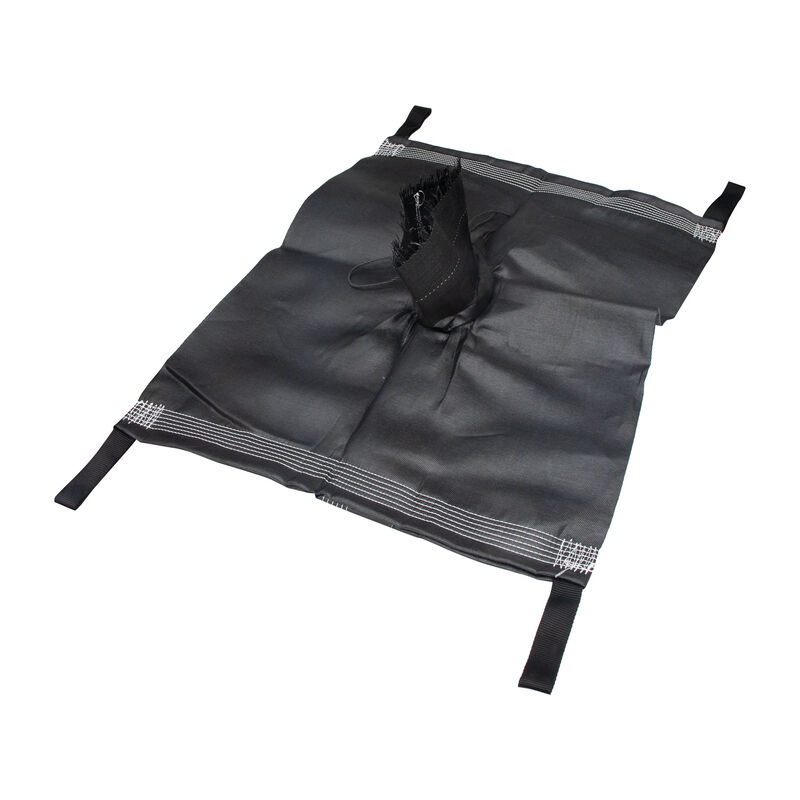

Filtration geotube with various of function of separate filter protect or drain

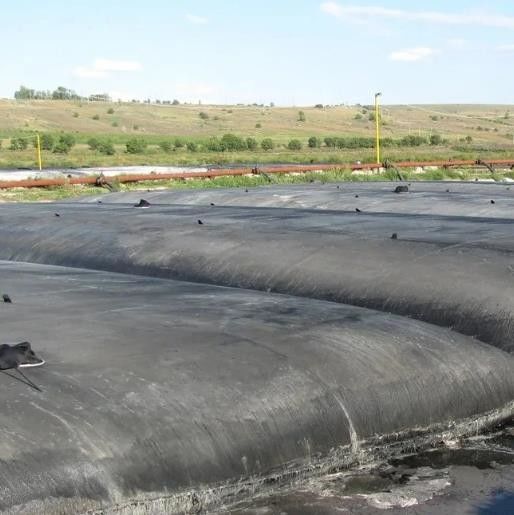

Geotextile dewatering tubes (large sludge dewatering bags or geo-containers) used in a wide variety of projects where dewatering of sediments, sludge removal and industrial wastes is required. Geotextile Tube is a sewn geotextile and filled with sand, used to replace the rock or others conventional coastal protection. Its weight and the pillow-like shape makes Geotextile Tube hydraulically and geotechnical stable.
| Iterm | Unit | Standard | Index | |||
| HT500 | HT750 | HT1000 | ||||
| Tensile Strength | Radial Direction | KN/M | ISO 10319-2015 | 85 | 130 | 220 |
| Zonal Direction | KN/M | ISO 10319-2015 | 115 | 120 | 200 | |
| Elongation at Break | Radial Direction | % | ISO 10319-2015 | 13 | 12 | 13 |
| Zonal Direction | % | ISO 10319-2015 | 8 | 8 | 8 | |
| Joint Tensile Strength | KN/M | ISO 10319-2015 | 90 | 100 | 170 | |
| CBR | KN | GB/T14800-2010 | 9 | 15 | 20 | |
| Dynamic Perforation | MM | GB/T17630-1998 | 8 | 10 | 8 | |
| Effective Aperture(O90) | MM | GB/T14799-2005 | 0.45 | 0.4/0.28 | 0.45 | |
| Permeability(Q50) | L/m2/s | GB/T15789-2005 | 35 | 14 | 18 | |
| UV Resistance | % | ASTM D4355-2014 | 90 | 85 | 85 | |
Environmental protection project
The geotextile is resistant to acid and alkali corrosion, has strong flexibility and strong tensile strength. It is used together with geomembrane for leachate inverting project of landfill, and can also be used for garbage separation, slit fence,dewatering of coastal mud, etc. The effect is very good
Road & Railway Stabalization
Geosynthetics can be used to increase the bearing capacity of soil and reduce and level uneven settlement. Geosynthetics are commonly used for the reinforcement of roads and railway lines to help increase their lifespan.
FAQ
Q1. What's your payment item?
A: For your convenience,our payment can be L/C,TT,West union,paypal.
Q2. Can you provide the samples ?
A:We are glad to provide the samples to you if we have the identical or similar samples in our warehouse, but the sample charge and shipping cost should be paid by customers
Q3. Good quality and cheaper price,is possible?
A: We can assure our quality, also a favorable discount will be given if there is a large quantity
Q4. Can you accept customised design?
A: Yes.We can produce the products according to your request. It will be helpful if you can offer samples to us
Q5. How to contral quality?
A: we have professional test teamwork and professional test machine ,every product will choose sample to test.
