Place of Origin:
China
Brand Name:
zhongloo
Certification:
ISO,SGS
Model Number:
Geotube
Contact Us

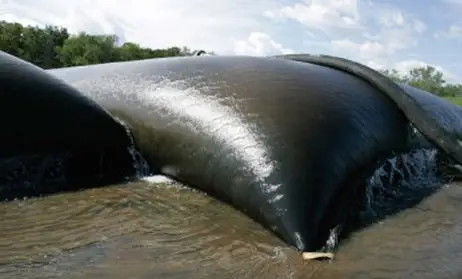

Dewatering PP Geotextile Tube Geotubes for Environmental Dredging and Remediation

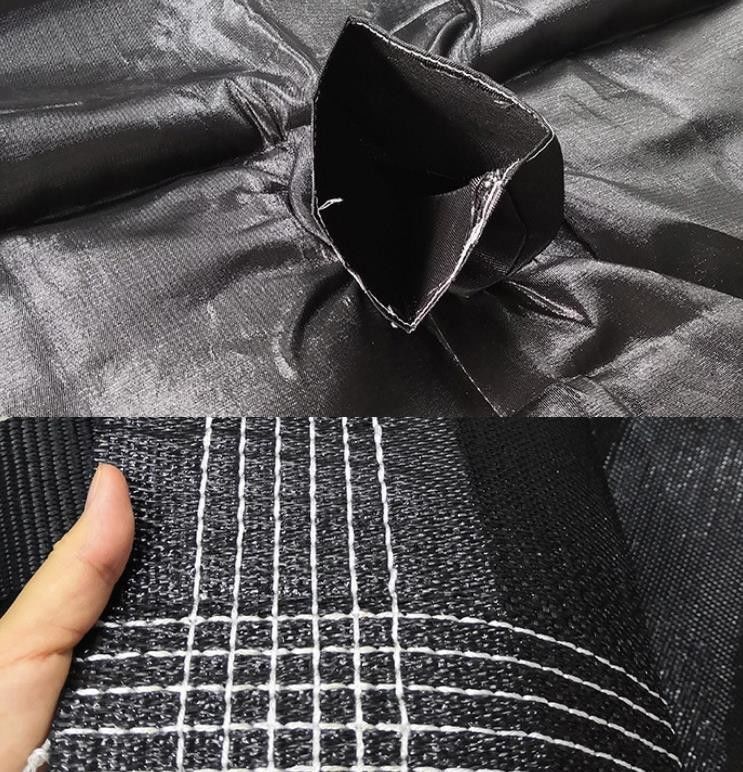

Woven Geotextile, which incorporate round strands that are extruded. It is composed of high-tenacity polypropylene
yarns, which are woven into a network such that the yarns retain their relative position. Mono-filament woven geotextile is
preferred for applications where both strength and filtration are a concern, such as shoreline rip rap applications.
| Iterm | Unit | Standard | Index | |||
| HT500 | HT750 | HT1000 | ||||
| Tensile Strength | Radial Direction | KN/M | ISO 10319-2015 | 85 | 130 | 220 |
| Zonal Direction | KN/M | ISO 10319-2015 | 115 | 120 | 200 | |
| Elongation at Break | Radial Direction | % | ISO 10319-2015 | 13 | 12 | 13 |
| Zonal Direction | % | ISO 10319-2015 | 8 | 8 | 8 | |
| Joint Tensile Strength | KN/M | ISO 10319-2015 | 90 | 100 | 170 | |
| CBR | KN | GB/T14800-2010 | 9 | 15 | 20 | |
| Dynamic Perforation | MM | GB/T17630-1998 | 8 | 10 | 8 | |
| Effective Aperture(O90) | MM | GB/T14799-2005 | 0.45 | 0.4/0.28 | 0.45 | |
| Permeability(Q50) | L/m2/s | GB/T15789-2005 | 35 | 14 | 18 | |
| UV Resistance | % | ASTM D4355-2014 | 90 | 85 | 85 | |
Main Features
1. High strength, low deformation geotube geotube
2. Durability: steady property, not easy to resolved, air slaked and can keep the original property long term
3. Anti-erosion: anti-acid, anti-alkali, resists insects and mould geotube
4. Permeability: could control the sieve size to retain certain permeability geotube
5.Effective high volume containment
Our service
Service is our corporate philosophy, we will give you the best service to you, if your product in use, encountered any problems, we are willing to help you solve the problem.
| 1.We can provide free factory similar sample and delivery charge at your side |
| 2.We can make sample with your design proposal at your cost.we can provide matched die-cutting document for your designing use in advance. |
| 3.The sample can be ready right after we have discussed the processing details and confirm your payment for it in 4-7 work days.it may be extension for some special or complicate ones. |
FAQ
Q1. What's your payment item?
A: For your convenience,our payment can be L/C,TT,West union,paypal.
Q2. Can you provide the samples ?
A:We are glad to provide the samples to you if we have the identical or similar samples in our warehouse, but the sample charge and shipping cost should be paid by customers
Q3. Good quality and cheaper price,is possible?
A: We can assure our quality, also a favorable discount will be given if there is a large quantity
Q4. Can you accept customised design?
A: Yes.We can produce the products according to your request. It will be helpful if you can offer samples to us
Q5. How to contral quality?
A: we have professional test teamwork and professional test machine ,every product will choose sample to test.
