100-100KN Polyester geogrid PET biaxial geogrid for slope protection railway road construction
Product Description

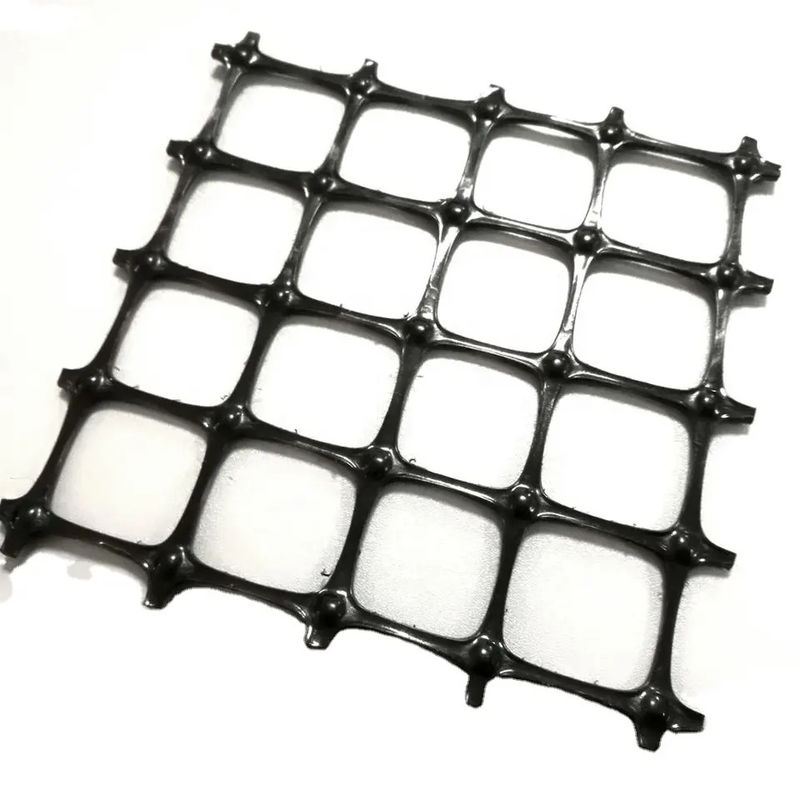

PP Biaxial Geogrid is an integrally formed structure,which especially designed for soil stabilization and reinforcement applications. Grid-PPBG biaxial geogrid is manufactured from Polypropylene,from the process of extruding,longitudinal stretching and transverse stretching.
| Biaxial Plastic Geogrid Technical Parameter (GB standard) | ||||||||
| Item | Specification | |||||||
| TGSG1515 | TGSG2020 | TGSG2525 | TGSG3030 | TGSG3535 | TGSG4040 | TGSG4545 | TGSG5050 | |
| Vertical and horizontal tensile strength≥(KN/M) | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
| Tensile strength at 2% elongation≥(KN/M) | 5 | 7 | 9 | 10.5 | 12 | 14 | 16 | 17.5 |
| Tensile strength at 5% elongation≥(KN/M) | 7 | 14 | 17 | 21 | 24 | 28 | 32 | 35 |
| Tensile strength at 5% elongation≥(KN/M) | 15 | |||||||
Product Feature
1,High tensile strength at both longitudinal and transverse direction.
2,High tension resistance,high plane torsion resistance modulus,good creep resistance and stable chemical nature.
3,High mechanic damage resistance and durability and large friction factor with sandy stone.
4,It can improve bearing force of foundation and increase diffusion angle.
Application:
PP biaxial geogrids have been used in tens of thousands of projects worldwide, including roads, working platforms and reinforced foundations.
1,pavement subgrade stabilization.
2,Area/ground stabilization.
3,Pavement base reinforcement.
4,Working&load transfer platforms.
5,Reinforced granular foundation beds.
