Polypropylene HDPE PP Biaxial Uniaxial Geogrid Rapid Construction

Polypropylene HDPE PP Biaxial Uniaxial Geogrid Rapid Construction

HDPE Biaxial Plastic Geogrid

Rapid Construction PP Uniaxial Geogrid

Polypropylene PP Biaxial Geogrid

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

Plastic geogrid

Contact Us

Request A Quote
Product Details
Material:
Pp Biaxial Geogrid
Tensile Strength:
20-200kn/M
Colors:
Black, Green,Grey
Raw Material:
Polypropylene
Mesh Size (mm):
12.7*12.7mm; 25.4*25.4mm
Installation:
Rapid Construction
Product Description

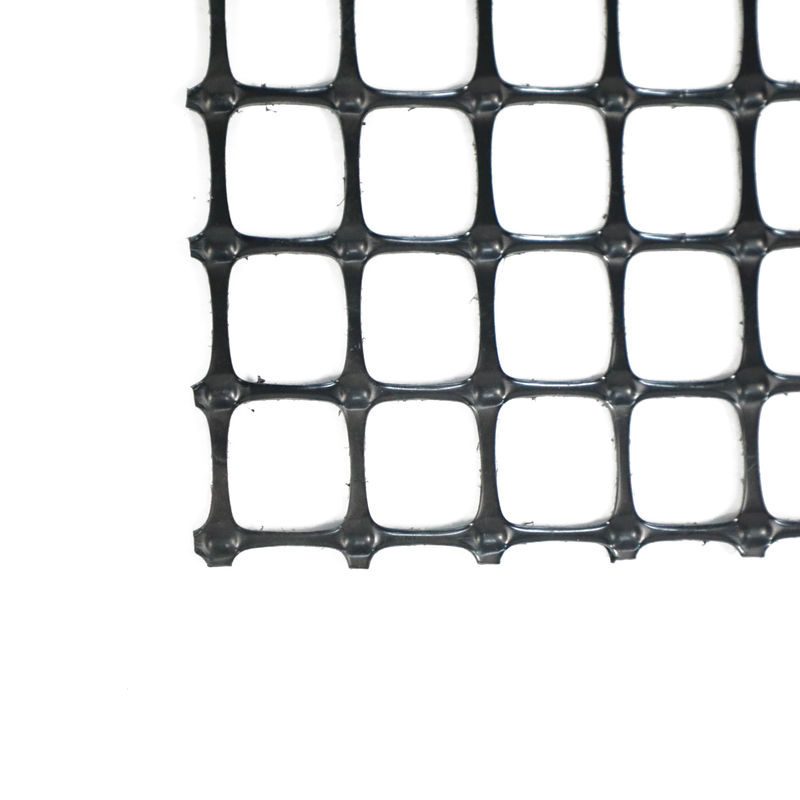

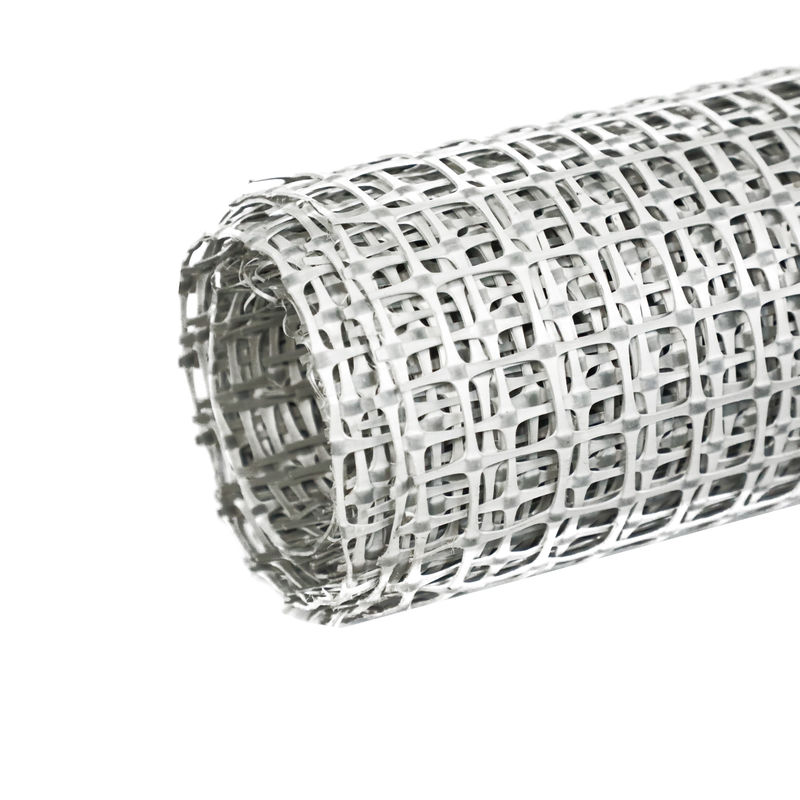

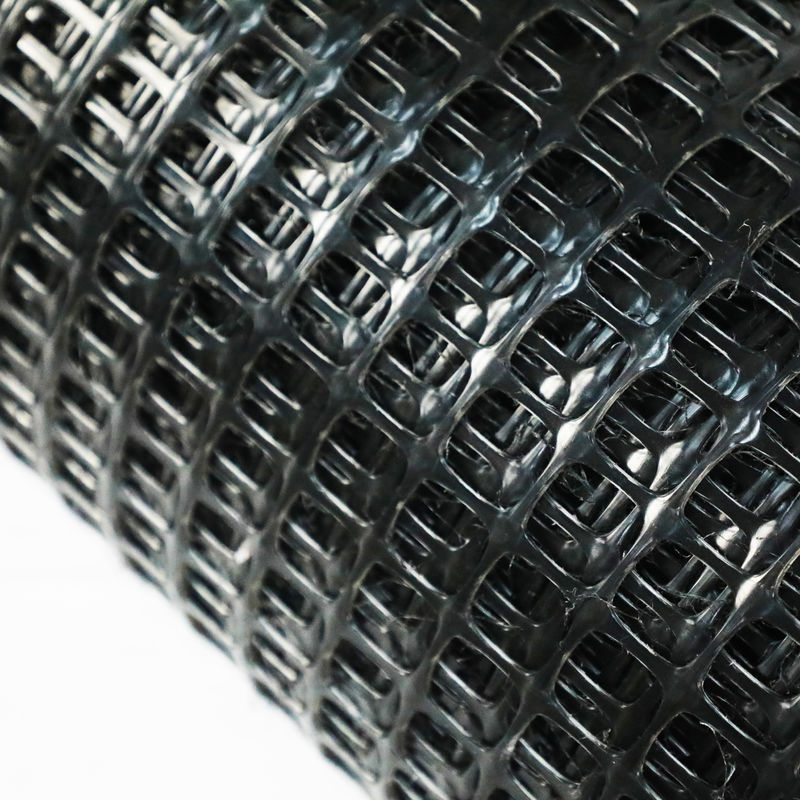

Biaxial Plastic Geogrid for Construction
Biaxially stretched plastic geogrids are made of polypropylene (PP) or polyethylene (PE) as raw materials through plasticizing, extruding plates, punching, heating, longitudinal stretching, and transverse stretching.

High Quality Biaxial Uniaxial Geogrid Prices HDPE PP
Geogrid Specifications:

Biaxial Plastic Geogrid Technical Parameter (GB standard)
Item
Specification

TGSG1515
TGSG2020
TGSG2525
TGSG3030
TGSG3535
TGSG4040
TGSG4545
TGSG5050
Vertical and horizontal tensile strength≥(KN/M)
15
20
25
30
35
40
45
50
Tensile strength at 2% elongation≥(KN/M)
5
7
9
10.5
12
14
16
17.5
Tensile strength at 5% elongation≥(KN/M)
7
14
17
21
24
28
32
35
Tensile strength at 5% elongation≥(KN/M)

15
Feature:
Increase the bearing capacity of the roadbed and foundation and prolong their service life.
Prevent road surface and foundation from sinking or flawing, keep clean and beautiful ground surface.
Convenient construction saves time and labor, reduce mounting time and decrease maintenance expense.
Prevent culverts from flawing.
Enhance earth slope and prevent water loss and soil erosion.
Decrease underlayer thickness and save manufacturing cost.
Enhance the stability of side slope turf net patch to improve greening.
Replace wire netting used in mine as intermediate ceiling netting.

High Quality Biaxial Uniaxial Geogrid Prices HDPE PP
Performance

1,High tensile strength at both longitudinal (MD) and transverse direction(XMD).
2,Improving bearing capacity of foundation;

3,Preventing cracking and subsiding;
4,Convenient to construct, reducing cost and maintaining expense.

Application

1. It is applied in reinforcement of roadbed and road surface of road, railway, airport, etc.;
2. It is applied in foundation reinforcement of perpetual bearings such as large-scale park, dock, and freight yard, etc.;
3. It is applied in the secondary reinforcement of earth slope after being reinforced by uniaxial plastic geogrid so as to further reinforce the earth slope and prevent water and soil loss;
4. It is applied in the reinforcement of culvert;
5. It is applied in slope protection of railway and road;
6. Reinforcement of mine and gallery;
7. Special network used in livestock breeding;
8. Special network used in cage culture.

High Quality Biaxial Uniaxial Geogrid Prices HDPE PPHigh Quality Biaxial Uniaxial Geogrid Prices HDPE PP
Characteristics:
High tensile strength with low elongation.
Excellent temperature resistance and good compatibility with asphalt.
Reducing reflective cracking of the road.
Easy installation and lower maintenance cost.


High Quality Biaxial Uniaxial Geogrid Prices HDPE PP
High Quality Biaxial Uniaxial Geogrid Prices HDPE PP

FAQ
1, What is the difference between uniaxial and biaxial geogrid?
Biaxial geogrids are those that exhibit the same strength in both the machine directions MD and cross-machine directions CMD while uniaxial geogrids exhibit the primary strength in the machine direction with minimal strength, enough to maintain the aperture structure, in the cross-machine direction.

2, How many types of geogrids are there?
There are three different types of geogrids: Uniaxial, Biaxial, and Triaxial . Each one is designed and manufactured for specific construction applications with various tensile strengths.

3: How long is the delivery time?

Generally it is 2-3 days if the goods are in stock. Or 10-15if not in stock, according to the quantity.



4:Do you provide samples?

A:Yes,samples are free.
