Bitumen Coated Glass Fiber Geotextile Geogrid 50 - 300m Length

Bitumen Coated Glass Fiber Geotextile Geogrid 50 - 300m Length

Bitumen Coated Glassfiber Geo Grid

Geotextile Geogrid 50mm

15kn Fiberglass Geogrid

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

Fiberglass Geogrid

Contact Us

Request A Quote
Product Details
Types:
Self-Adhesive Or Without Glue Available
Classification:
Fiberglass Geogrid
Geogrid Application:
Highways/Railways/Airports
Roll Length:
50-300m
Elongation At Break:
3%
Breaking Strength Across Direction:
15kn-800kn
Product Description

Introduction:

Fiberglass geogrid is knitted by glass fiber filaments and coated with bitumen to provide a good bond with the asphalt layers, can strengthen the asphalt layer, extend the service life ot pavement layers and decrease the occurrence rate of reflective cracking under cyclic traffic load.
Fiberglass Geocomposite Coated Bitumen Geogrid for Asphalt Overlay Reinforcement
Application Range:


1.It reinforces old asphalt concrete road surface as well as asphalt layer, and prevents damage;
2.It is used for rebuilding cement concrete road surface into composite road surface and restraining reflection caused by block contraction;
3.It is used in road expansion and improvement project, control cracks caused by old and new combination position or by uneven sedimentation;
4.It is used in soft soil base reinforcement treatment. It is favorable for soft soil water separation and concretion,restrains sedimentation effectively, distributes stress uniformly and improves overall strength of road base;

5.It is sued for preventing contraction crack caused by new road semi-rigid base layer, and reinforces and prevents road surface crack caused by foundation crack reflection.




Fiberglass Geogrid: (ISO Certificates)
Specification 25-25 40-40 50-50 80-80 100-100 120-120 200-200 400-400
Intensity
(KN/M)
Warp 25 40 50 80 100 120 200 400
Weft 25 40 50 80 100 120 200 400
Elongation ( %) ≤4
Mesh Size (mm) 25.4*25.4; 12.7*12.7
Roll Width (m) 1/2/3.95/4/5.3/6
Roll Length (m) 50/100
Types Regular/self-adhesive bitumen coating


Fiberglass Geocomposite Coated Bitumen Geogrid for Asphalt Overlay Reinforcement


Application:

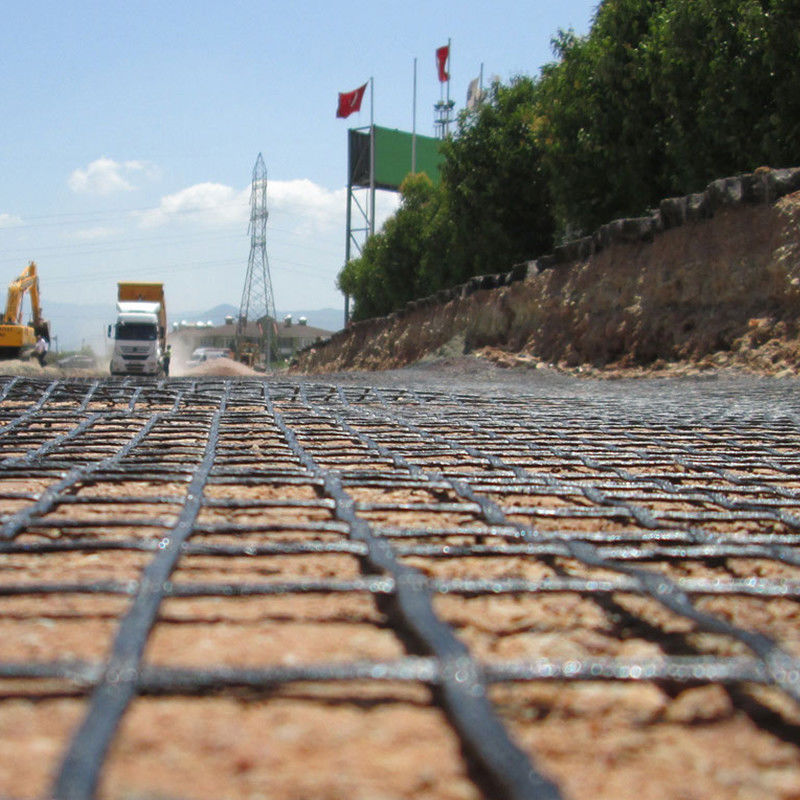

1. Suitable for enhancing the roadbed and pavement of various highways, railways, and airports.
2. Suitable for permanent bearing foundation reinforcement in large parking lots and dock freight yards.
3. Suitable for slope protection of railways and highways.
4. Applicable culvert reinforcement.
5. Suitable for secondary reinforcement of soil slopes after unidirectional tensile geogrid reinforcement, further enhancing the soil slope and preventing soil erosion. Reinforcement of mines and tunnels

Fiberglass Geocomposite Coated Bitumen Geogrid for Asphalt Overlay Reinforcement
Fiberglass Geocomposite Coated Bitumen Geogrid for Asphalt Overlay Reinforcement

Fiberglass Geocomposite Coated Bitumen Geogrid for Asphalt Overlay Reinforcement

Fiberglass Geocomposite Coated Bitumen Geogrid for Asphalt Overlay Reinforcement
FAQ
1, What is the difference between uniaxial and biaxial geogrid?
Biaxial geogrids are those that exhibit the same strength in both the machine directions MD and cross-machine directions CMD while uniaxial geogrids exhibit the primary strength in the machine direction with minimal strength, enough to maintain the aperture structure, in the cross-machine direction.

2, How many types of geogrids are there?
There are three different types of geogrids: Uniaxial, Biaxial, and Triaxial . Each one is designed and manufactured for specific construction applications with various tensile strengths.

3, Are you trading company or manufacturer?
We are factory.

4,Is the quality of your products stable?
The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.

5,Can you do OEM?
Yes, of course. We can produce the products as your request.

6, Do you provide samples? is it free?
Yes, we could offer the sample for free charge but do not pay the cost of freight.

7,How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

8, What is your terms of payment?
Payment<=5000USD, 100% in advance. Payment>=30000USD, 30% T/T in advance,balance before shipment.
