Highways / Railways / Airports Fiberglass Geotextile Geogrid Bitumen Coated Glass Fiber Geogrid

Highways / Railways / Airports Fiberglass Geotextile Geogrid Bitumen Coated Glass Fiber Geogrid

Highways Fiberglass Geogrid

Bitumen Coated Glass Fiber Geogrid

Airports Fiberglass Geotextile Geogrid

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

Fiberglass Geogrid

Contact Us

Request A Quote
Product Details
Mesh Size (mm):
12.7*12.7mm. 25.4*25.4mm
Classification:
Fiberglass Geogrid
Geogrid Application:
Highways/Railways/Airports
Advantage:
High Strength /Long Life Service
Elongation At Break:
3%
Tensile Strength:
15kn/M--50kn/M
Product Description

Introduction:

Fiberglass Geogrid is a kind of new favorable earthwork base material to strengthen the road surface and roadbed. This product is made by weaving and covering fiberglass filament. It is featured by high vertical and horizontal tensile strength, low unit extension, high flexibility, and favorable high and low temperature resistance. The products after surface covering own the favorable property of alkali resistance and aging resistance.
Fiberglass Geocomposite Coated Bitumen Geogrid for Asphalt Overlay Reinforcement

Property Test method TGSB 30-30 TGSB 40-40 TGSB 50-50 TGSB 60-60 TGSB 70-70 TGSB 80-80 TGSB 90-90 TGSB 100-100 TGSB 120-120 TGSB 130-130
Ultimate tensile strength KN/m MD EN ISO 10139 30 40 50 60 70 80 90 100 120 130
CD 30 40 50 60 70 80 90 100 120 130
Elongation at maximum load % MD 3 3 3 3 3 3 3 3 3 3
CD 3 3 3 3 3 3 3 3 3 3
Approximate mesh size mm   12-50
Roll width m     1-6
Roll length m     50-200

Feature:
Increase the bearing capacity of the roadbed and foundation and prolong their service life.
Prevent road surface and foundation from sinking or flawing, keep clean and beautiful ground surface.
Convenient construction saves time and labor, reduce mounting time and decrease maintenance expense.
Prevent culverts from flawing.
Enhance earth slope and prevent water loss and soil erosion.
Decrease underlayer thickness and save manufacturing cost.
nhance the stability of side slope turf net patch to improve greening.
Replace wire netting used in mine as intermediate ceiling netting.








Fiberglass Geocomposite Coated Bitumen Geogrid for Asphalt Overlay Reinforcement


Application:

1. Suitable for enhancing the roadbed and pavement of various highways, railways, and airports.
2. Suitable for permanent bearing foundation reinforcement in large parking lots and dock freight yards.
3. Suitable for slope protection of railways and highways.
4. Applicable culvert reinforcement.
5. Suitable for secondary reinforcement of soil slopes after unidirectional tensile geogrid reinforcement, further enhancing the soil slope and preventing soil erosion. Reinforcement of mines and tunnels



Product Application

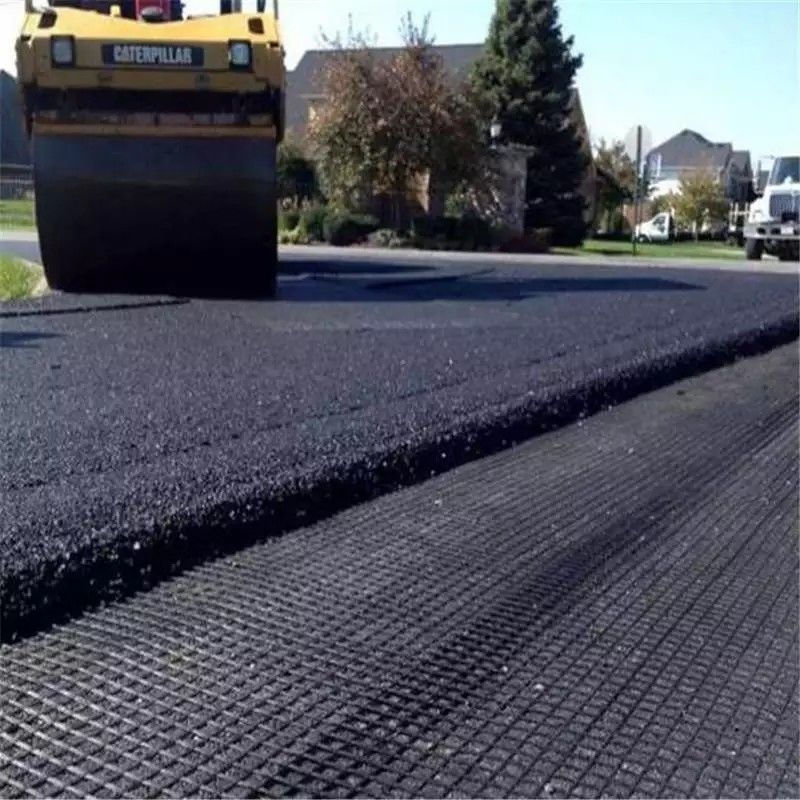

High Quality Fiberglass Mesh Grid Glass Fibre Geogrid for Road Reinforcement Highways / Railways / Airports Fiberglass Geotextile Geogrid Bitumen Coated Glass Fiber Geogrid 3

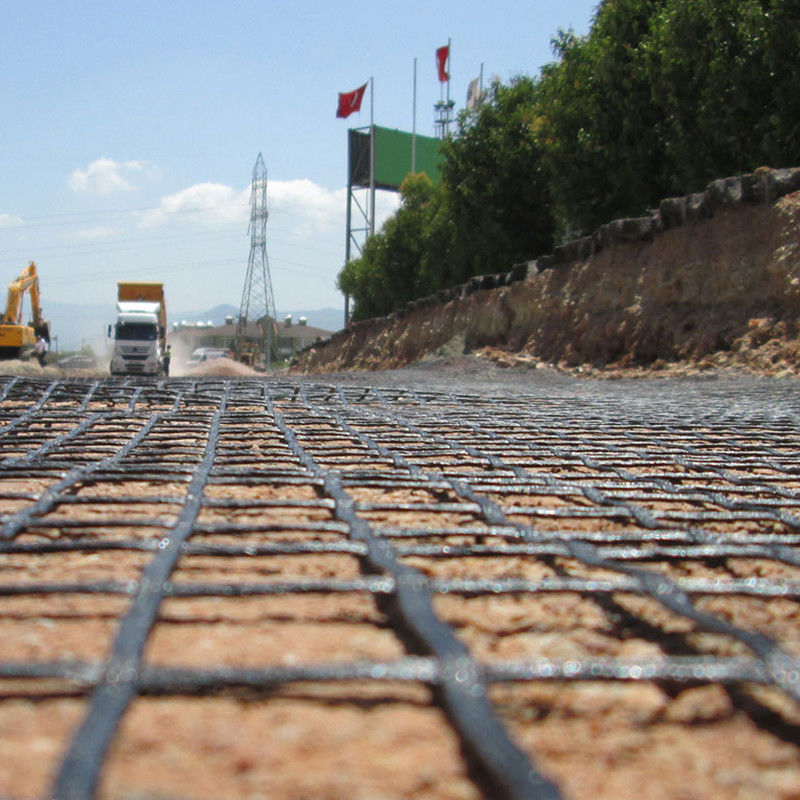

Reinforced soil retaining wall, steep slope and the reinforcement and consolidation of the soft ground.

Ground treatment, reinforcement of the bridge abutment, reinforcement of the enbankment, reinforcement of the
pile-net roadbed

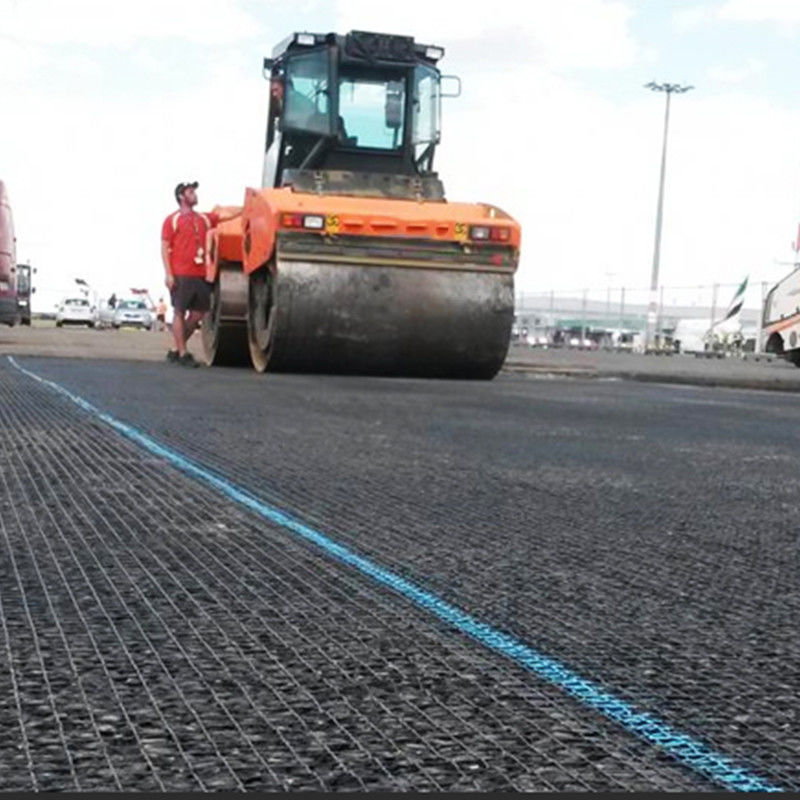

Highways / Railways / Airports Fiberglass Geotextile Geogrid Bitumen Coated Glass Fiber Geogrid 4 High Quality Fiberglass Mesh Grid Glass Fibre Geogrid for Road Reinforcement
Protection of port, approach lane, seabeach, channel, river channel, dam and other irrigation projects.
Land reclamation, prevention and controlling of the desertification, and the composite protective structure in the landfill sites of urban garbage and waste.

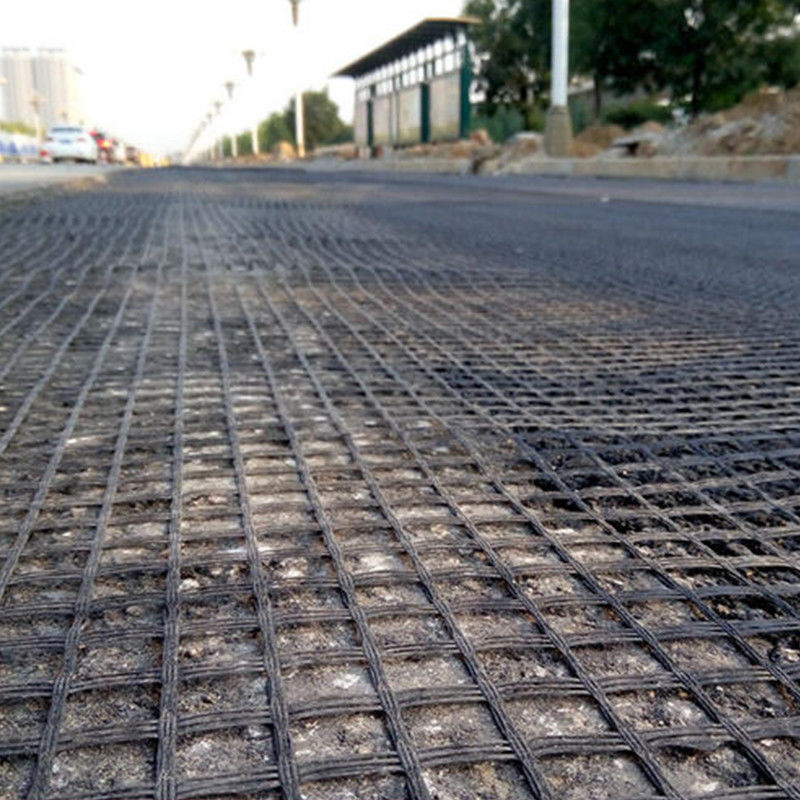

Highways / Railways / Airports Fiberglass Geotextile Geogrid Bitumen Coated Glass Fiber Geogrid 6 High Quality Fiberglass Mesh Grid Glass Fibre Geogrid for Road Reinforcement
Coal mines, side slope protection of opencast mines, slope protection for the dumping site of the opencast mines,reinforcement to counter dam in the large tailing ponds of the metallurgical mines.
Construction of stuffing and package system of heavy soil engineering.


Fiberglass Geocomposite Coated Bitumen Geogrid for Asphalt Overlay Reinforcement

Fiberglass Geocomposite Coated Bitumen Geogrid for Asphalt Overlay Reinforcement
FAQ
1, What is the difference between uniaxial and biaxial geogrid?
Biaxial geogrids are those that exhibit the same strength in both the machine directions MD and cross-machine directions CMD while uniaxial geogrids exhibit the primary strength in the machine direction with minimal strength, enough to maintain the aperture structure, in the cross-machine direction.

2, How many types of geogrids are there?
There are three different types of geogrids: Uniaxial, Biaxial, and Triaxial . Each one is designed and manufactured for specific construction applications with various tensile strengths.

3, Are you trading company or manufacturer?
We are factory.

4,Is the quality of your products stable?
The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.

5,Can you do OEM?
Yes, of course. We can produce the products as your request.

6, Do you provide samples? is it free?
Yes, we could offer the sample for free charge but do not pay the cost of freight.

7,How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

8, What is your terms of payment?
Payment<=5000USD, 100% in advance. Payment>=30000USD, 30% T/T in advance,balance before shipment.
