Place of Origin:
China
Brand Name:
OEM
Certification:
ISO certificate
Model Number:
Fiberglass Geogrid
Contact Us
Introduction:

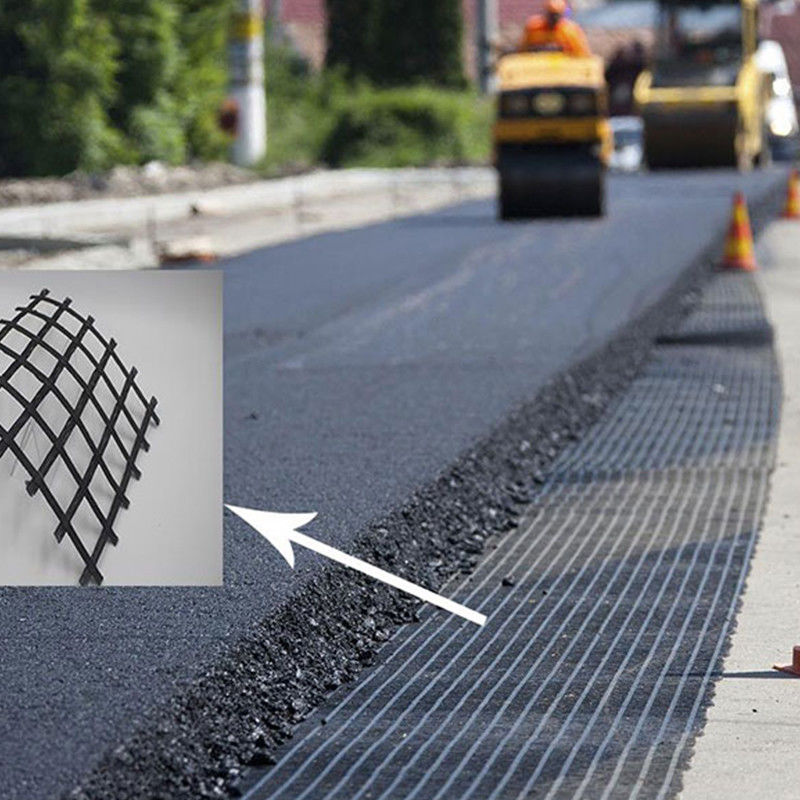

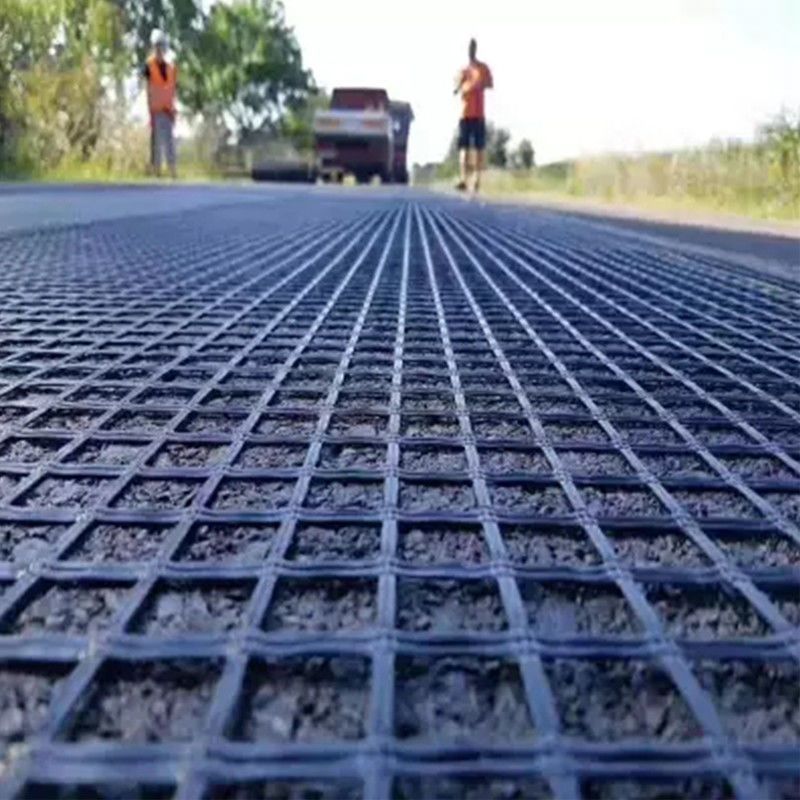

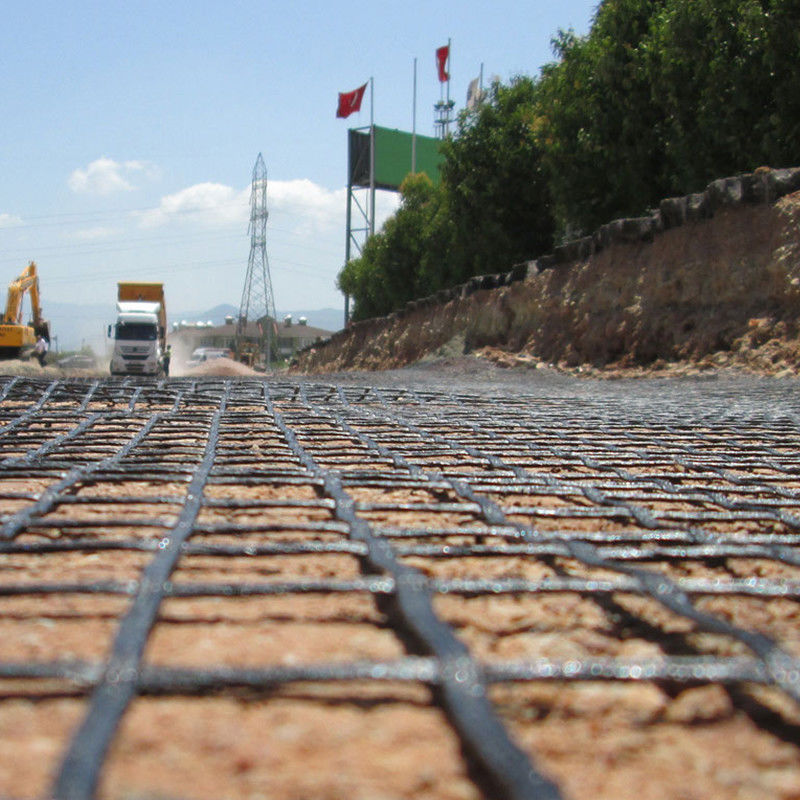

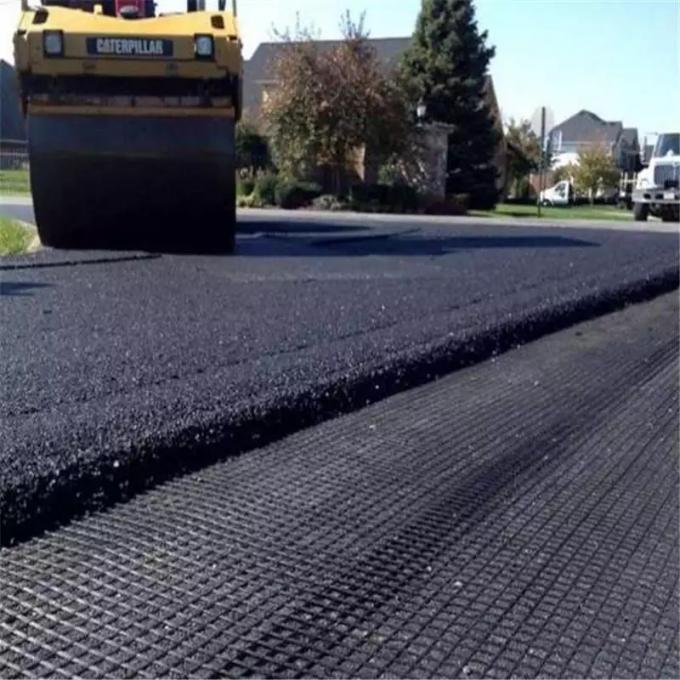

Fiberglass geogrid is knitted by glass fiber filaments and coated with bitumen to provide a good bond with the asphalt layers, can strengthen the asphalt layer, extend the service life ot pavement layers and decrease the occurrence rate of reflective cracking under cyclic traffic load.
| Property | Test method | TGSB 30-30 | TGSB 40-40 | TGSB 50-50 | TGSB 60-60 | TGSB 70-70 | TGSB 80-80 | TGSB 90-90 | TGSB 100-100 | TGSB 120-120 | TGSB 130-130 | ||
| Ultimate tensile strength | KN/m | MD | EN ISO 10139 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 130 |
| CD | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 130 | |||
| Elongation at maximum load | % | MD | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| CD | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |||
| Approximate mesh size | mm | 12-50 | |||||||||||
| Roll width | m | 1-6 | |||||||||||
| Roll length | m | 50-200 | |||||||||||
 |
 |
|

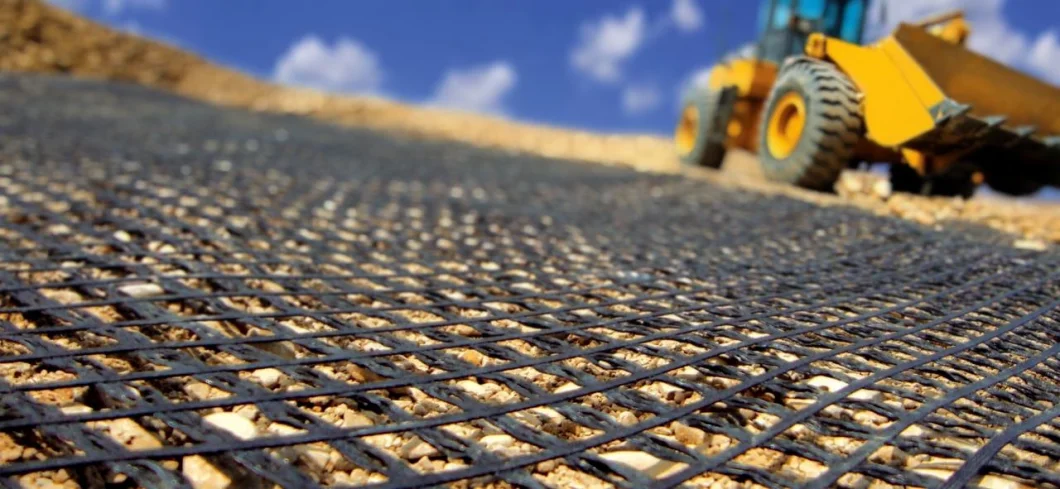

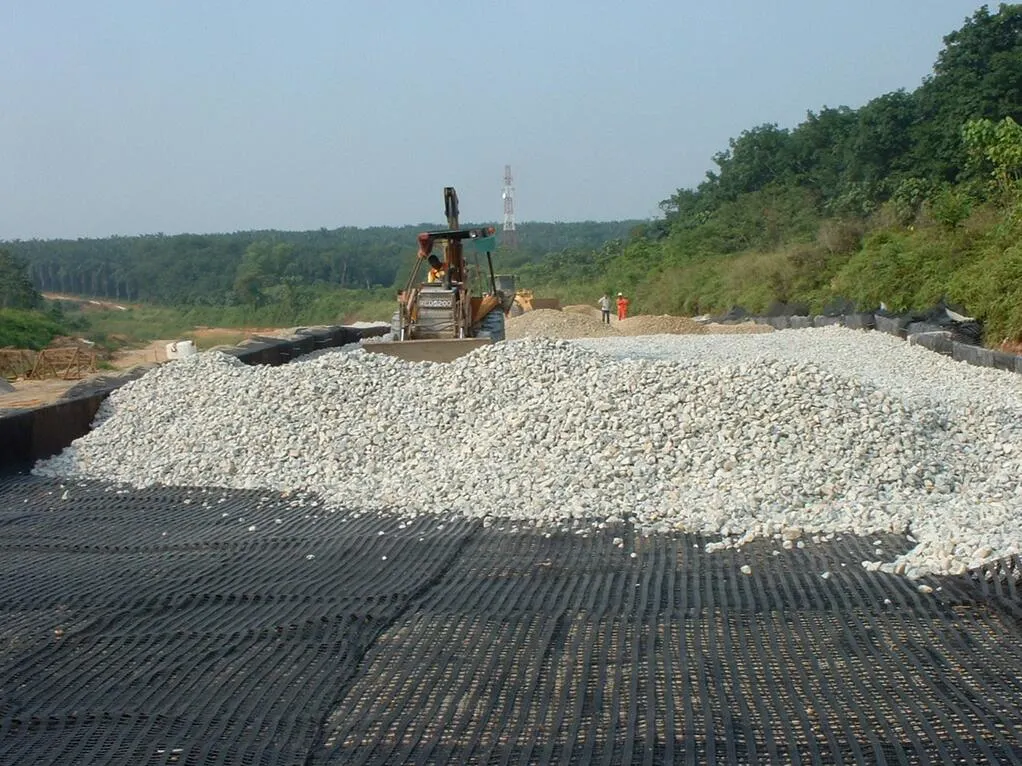

Reinforced soil retaining wall, steep slope and the reinforcement and consolidation of the soft ground. |
Ground treatment, reinforcement of the bridge abutment, reinforcement of the enbankment, reinforcement of the pile-net roadbed |
|
 |
|
Protection of port, approach lane, seabeach, channel, river channel, dam and other irrigation projects.
|
Land reclamation, prevention and controlling of the desertification, and the composite protective structure in the landfill sites of urban garbage and waste.
|
|
 |
|
Coal mines, side slope protection of opencast mines, slope protection for the dumping site of the opencast mines,reinforcement to counter dam in the large tailing ponds of the metallurgical mines.
|
Construction of stuffing and package system of heavy soil engineering.
|
FAQ
1, What is the difference between uniaxial and biaxial geogrid?
Biaxial geogrids are those that exhibit the same strength in both the machine directions MD and cross-machine directions CMD while uniaxial geogrids exhibit the primary strength in the machine direction with minimal strength, enough to maintain the aperture structure, in the cross-machine direction.
2, How many types of geogrids are there?
There are three different types of geogrids: Uniaxial, Biaxial, and Triaxial . Each one is designed and manufactured for specific construction applications with various tensile strengths.
3, Are you trading company or manufacturer?
We are factory.
4,Is the quality of your products stable?
The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.
5,Can you do OEM?
Yes, of course. We can produce the products as your request.
6, Do you provide samples? is it free?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
7,How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
8, What is your terms of payment?
Payment<=5000USD, 100% in advance. Payment>=30000USD, 30% T/T in advance,balance before shipment.
