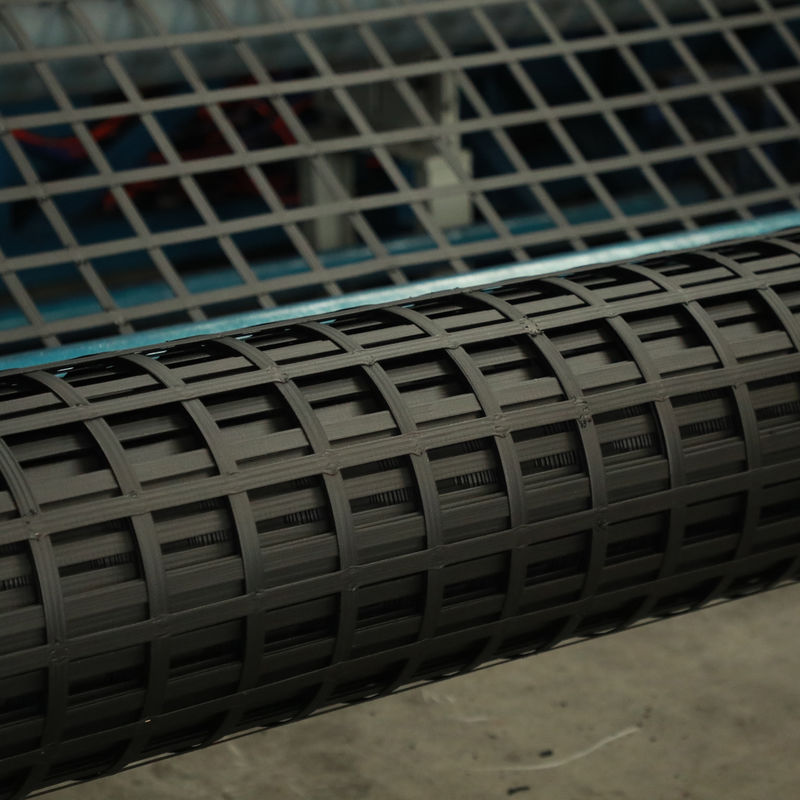

50kn/M Steel Plastic Welding Biaxial Geogrid For Embankment

50kn/M Steel Plastic Welding Biaxial Geogrid For Embankment

Steel Plastic Welding Biaxial Geogrid

Embankment Biaxial Geogrid

50kn/M Geotextile Geogrid

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO,SGS

Model Number:

steel plastic geogrid

Contact Us

Request A Quote
Product Details
Product Description

Product Description

·The steel plastic composite geogrid uses high tensile steel wire(or other fiber) specially handled and polyethylene (P.E) with other assistants. Then squeeze it out and make it become composite high-strength anti-pull belt and the horizontally using this single belt and welding the joint using a special welding technology to molding is reinforcement geogrid.

· The products are applied widely in railway, bridge, dock, retaining wall, dam to reinforce the soft soil's and to resist the road surface's crack.

Biaxial geogrids have been utilized in pavement construction and soil stabilization projects throughout the worldwide.Biaxial Geogrid is Strata's innovative geogrid that is made from extruded polypropylene which provides superior stiffness, aperture stability and interlock capabilities for structural reinforcement of paved and unpaved roads.

50kn/M Steel Plastic Welding Biaxial Geogrid For Embankment 0

Technical index

Project TGDG30 TGDG50 TGDG80 TGDG100 TGDG120 TGDG150
Vertically Limited-Rally
(KN/m)≥
30 50 80 100 120 150
Vertically Limited elongation ratio(%)≤ 3 3 3 3 3 3
Elongation at 1% of the Rally (KN/m)≥ 23 38 63 81 98 125


High-strength steel-plastic biaxial( vertical and horizontal) geogrid

Project TGSG30-30 TGSG45-45 TGSG60-60 TGSG80-80 TGSG100-100 TGSG120-120
Two-way Limit-Rally
(KN/m)
30 45 60 80 100 120
Two-way Limit elongation
(%)≤
3 3 3 3 3 3
Elongation at 1% of the
Rally (KN/m)≥
23 36 48 63 81 98





Product Features

1.High tensile strength - the yield strength of each linear meter in both vertical and horizontal directions can reach 20-150KN, which has been tested by the Product Quality Supervision and Inspection Center of the Ministry of Transportation, Railways, and Water Resources.

2.Small deformation - yield elongation of convex node steel plastic geogrid ≤3%; The yield elongation of convex node plastic geogrid is ≤10%.

3.High node strength - This product uses a fused cast convex node type connection to form a grid with longitudinal and transverse ribs. Its node strength is high, with a shear strength of ≤ 1.5MPa at welded grid nodes and an ultimate peeling force of ≥ 300N at convex grid nodes.

4.Long service life - plastic is a material for protecting high-strength steel wire, and it is also a force bearing material for plastic grid. It has chemical properties of acid, alkali and salt corrosion resistance, and has anti-aging and anti-oxidation properties through scientific formulation. Suitable for various permanent projects, with a service life of over a hundred years.

50kn/M Steel Plastic Welding Biaxial Geogrid For Embankment 1

FAQ

Q1. Can you do OEM?
A1. Yes.of course.We can produce the products as per your request.
If you can offer samples to us,it will be more convenient.
Q2. If I want to order a small quantity goods,can you do it?
A2. If the product you need we have stock available,that would be great,you can choose the instock goods. but if not, don't worry, we can take your order with our other clients' order to be produced together.But it needs to wait some time .
Q3. Can I get a sample from your company?Should I pay for the express fee?
A3. If you can accept our available sample,we can offer free sample to you.
If you want a customized sample,we can renegotiate the cost.
About the express fee,please offer a freight collected account and pay for the express fee by your side. After confirming your order, the sample's freight cost will be deducted from your order's total cost.
Q4. How will you follow my order?
A4. When the goods are started to produce,we will take photos for the goods and send it to you.
If you find any production deficiencies,please contact us to correct it.
We will keep in touch with you in the whole production by e-mail or instant messaging, like Skype/Viber/WhatsApp, you can get the latest news about your order.
After the goods are finish,we will take photos for the goods and packing to you before shipping.
Q5. What is your exporting countries?
A5. We have good sales performance and win good international reputation in more than 15 Countries and regions,such as Japan, America, Australia,Russia, Canada,Middle East and so on.
