Retaining Wall Geotextile Geogrid Building Material Steel Plastic Geogrid

Retaining Wall Geotextile Geogrid Building Material Steel Plastic Geogrid

Composite Steel Plastic Geogrid

Retaining Wall Geotextile Geogrid

Building Material Geotextile Geogrid

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO,SGS

Model Number:

steel plastic geogrid

Contact Us

Request A Quote
Product Details
Product Description

Product Description

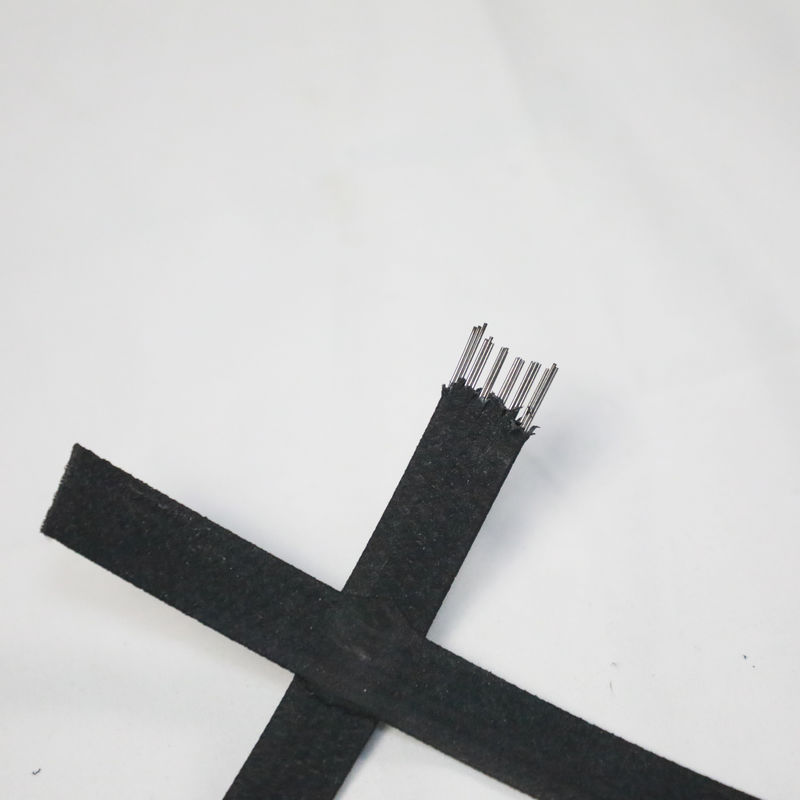

The steel plastic composite geogrid is composed of high-strength steel wires wrapped in high-density
polyethylene to form high-strength strips. It is a geosynthetic material formed by ultrasonic welding at right
angles to the plane's longitude and latitude. According to engineering needs, different mesh diameters and
the number of steel wires are used to change the tensile strength of the reinforcement strips.



Retaining Wall Geotextile Geogrid Building Material Steel Plastic Geogrid 0

Technical index

Project TGDG30 TGDG50 TGDG80 TGDG100 TGDG120 TGDG150
Vertically Limited-Rally
(KN/m)≥
30 50 80 100 120 150
Vertically Limited elongation ratio(%)≤ 3 3 3 3 3 3
Elongation at 1% of the Rally (KN/m)≥ 23 38 63 81 98 125


High-strength steel-plastic biaxial( vertical and horizontal) geogrid

Project TGSG30-30 TGSG45-45 TGSG60-60 TGSG80-80 TGSG100-100 TGSG120-120
Two-way Limit-Rally
(KN/m)
30 45 60 80 100 120
Two-way Limit elongation
(%)≤
3 3 3 3 3 3
Elongation at 1% of the
Rally (KN/m)≥
23 36 48 63 81 98





Product Features

1. By treating the plastic surface during the production process, rough patterns are pressed to enhance
the roughness of the grid surface and improve the friction coefficient between the steel plastic composite
geogrid and the soil.
2. The width of the steel plastic composite geogrid can reach 6m, achieving efficient and economical
reinforcement effects.
3. The high-density polyethylene used in the steel plastic composite geogrid can ensure that it will not be
corroded by acid, alkali, salt solution, or oil at room temperature; Not subject to water dissolution or
microbial invasion. At the same time, the polymer properties of polyethylene are also sufficient to resist
aging caused by ultraviolet radiation. After the grid is subjected to force, the longitudinal and transverse
ribs work together, without causing tension or damage to the nodes. In actual engineering, after the
compaction of the filling material, it is not subjected to UV light and oxygen erosion, so it can fully meet
the requirements of permanent engineering

Retaining Wall Geotextile Geogrid Building Material Steel Plastic Geogrid 1

FAQ

Q1. Can you do OEM?
A1. Yes.of course.We can produce the products as per your request.
If you can offer samples to us,it will be more convenient.
Q2. If I want to order a small quantity goods,can you do it?
A2. If the product you need we have stock available,that would be great,you can choose the instock goods. but if not, don't worry, we can take your order with our other clients' order to be produced together.But it needs to wait some time .
Q3. Can I get a sample from your company?Should I pay for the express fee?
A3. If you can accept our available sample,we can offer free sample to you.
If you want a customized sample,we can renegotiate the cost.
About the express fee,please offer a freight collected account and pay for the express fee by your side. After confirming your order, the sample's freight cost will be deducted from your order's total cost.
Q4. How will you follow my order?
A4. When the goods are started to produce,we will take photos for the goods and send it to you.
If you find any production deficiencies,please contact us to correct it.
We will keep in touch with you in the whole production by e-mail or instant messaging, like Skype/Viber/WhatsApp, you can get the latest news about your order.
After the goods are finish,we will take photos for the goods and packing to you before shipping.
Q5. What is your exporting countries?
A5. We have good sales performance and win good international reputation in more than 15 Countries and regions,such as Japan, America, Australia,Russia, Canada,Middle East and so on.
