High Strength 500*500*40mm Plastic Grass Grid For Driveway Parking Lot

High Strength 500*500*40mm Plastic Grass Grid For Driveway Parking Lot

Parking Lot HDPE Plastic Grid

500*500*40mm Plastic Grass Grid

High Strength Driveway Plastic Grass Grid

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO,SGS

Model Number:

grass grid

Contact Us

Request A Quote
Product Details
Product Material:
HDPE
Name:
Grass Grid
Length:
500mm
Width:
500mm
Product Height:
38mm.48mm 68mm
Product Color:
Black ,greeb, Grey And Etc.,
Product Usage:
Greening System
Product Feature:
Corrosion Resistant, Oxidation Resistance, Chemica
Transport Package:
Baling
Production Capacity:
50000m2/Day
Product Description

Product Description

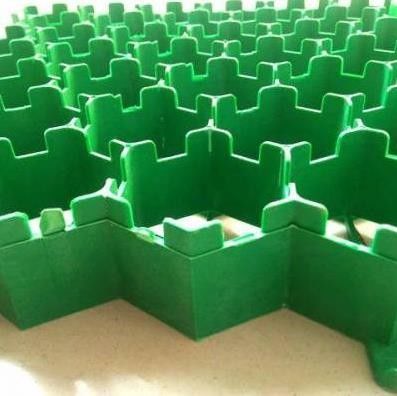

Grass grid is made of HDPE material, and adopt high pressure injection forming technology to suppress the nest bee continuous shell, three-dimensional space and certain support height and strength, green environmental protection, completely Recyclable.
It realizes a perfect combination of parking lots with lawn. Grass grid has good properties pressure-resistant, abrasion resistance, impact resistance, aging resistance, corrosion resistance, etc. It enhances the quality and saves investment. The flat lapping type is unique. It can save labor, fast, telescopic joint regulation.

High Strength 500*500*40mm Plastic Grass Grid For Driveway Parking Lot 0High Strength 500*500*40mm Plastic Grass Grid For Driveway Parking Lot 1

2.Technical Data:

Product Name Plastic Grass Paver
Model GPP-38 GPP-48 GPP-68
Size(mm) 410×390×38 410×390×48 410×390×68
500×500×38 500×500×68
Pressure Strength 160ton/sqm-250ton/sqm
Material HDPE ( high-density polyethylene )
Product Type Virign material and Recycled Material
Durability at least 4 years in neutral ground of 4 < pH < 9
Working Temperature Apply in temperature of -10ºC to 50ºC
Anti HCL 30%x24h, no visible change
Thermal Aging 70ICx24h, no visible change
Anti UV

UPE>30 T(UVA)AV<5%, qualified



3.Advantages

1) Anti-aging,

2) Resisting acid and alkaline

3) Homogenous structure

4) The best sidewise restriction and soil-fixation

5) Convenient and fast construction





4. Product Function

1)Parking Lots (Grass or Gravel) & Overflow Parking

2)Make reinforcement treatment for soft soil foundation

3) Protect steep slope

4) Used in highway, railway, airport, wharf,

5) Especially in Airslaked Mountain, desert and swamp land etc.
