Road Construction Material PP PET Biaxial Geogrid For Soil Stabilization

Road Construction Material PP PET Biaxial Geogrid For Soil Stabilization

PET Biaxial Geotextile Geogrid

Soil Stabilization PP PET Biaxial Geogrid

Road Construction Material Biaxial Geogrid

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

Plastic geogrid

Contact Us

Request A Quote
Product Details
Material:
Plastic
Function:
Anti-slip, Reinforcement
Nominal Longitudinal Elongation:
15% Max/13% Max
Elongation At Longitudinal:
15% Max
Process:
Extruded
Specification:
15KN/m--50KN/m
Product Description

Product Description

Chuangwan Road Construction Material PP Pet Biaxial Geogrid for Soil Stabilization
Biaxially stretched plastic geogrids are made of polypropylene (PP) or polyethylene (PE) as raw materials through plasticizing, extruding plates, punching, heating, longitudinal stretching, and transverse stretching.

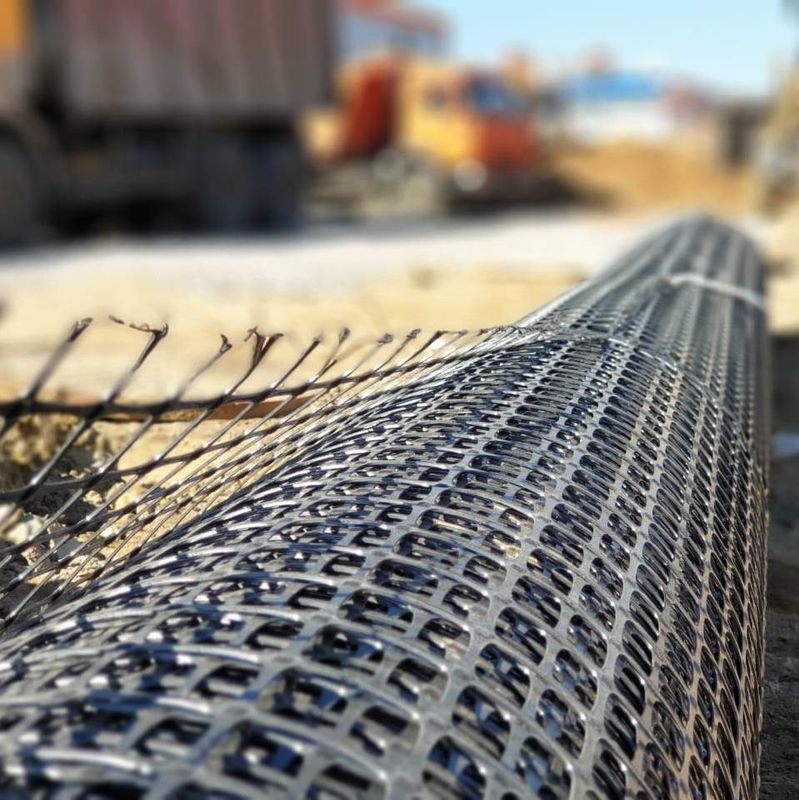

Detailed Photos

Chuangwan Road Construction Material PP Pet Biaxial Geogrid for Soil Stabilization
Chuangwan Road Construction Material PP Pet Biaxial Geogrid for Soil Stabilization



Product Features


Biaxially stretched plastic geogrids have great tensile strength in both longitudinal and transverse directions. This structure can provide a more effective chain system for bearing and diffusing forces in soil, suitable for large-scale permanent bearing foundation reinforcement.

Technical index

Biaxial PP/Plastic Geogrid Data Sheet: GB/T 17689-2008
Project Tensile yield per linear meter,KN/m≥ Yield elongation,%≤ Tensile force at 2% elongation,KN/m≥ Tensile force at 5% elongation,KN/m≥
Project longitudinal Horizontal longitudinal Horizontal longitudinal Horizontal longitudinal Horizontal
TGSG15-15 15 15 15 13 5 5 7 7
TGSG20-20 20 20 15 13 7 7 14 14
TGSG30-30 30 30 15 13 10.5 10.5 21 21
TGSG50-50 50 50 15 13 14 14 28 28
Width 1~6m
Q/CR 549.2-2016
Project GGR/PP/BS30-30 GGR/PP/BS40-40 GGR/PP/BS50-50
Mass per unit area,g/m2 ≥260 ≥400 ≥500
Longitudinal and transverse tensile strength,KN/m ≥30 ≥40 ≥50
Longitudinal and transverse tensile strength at 2% elongation,KN/m ≥10.5 ≥14 ≥17.5
Longitudinal and transverse tensile strength at 5% elongation,KN/m ≥21 ≥28 ≥35
Nominal longitudinal and transverse elongation ≤15.0%/≤13.0%
Width 1~6m

Product Application

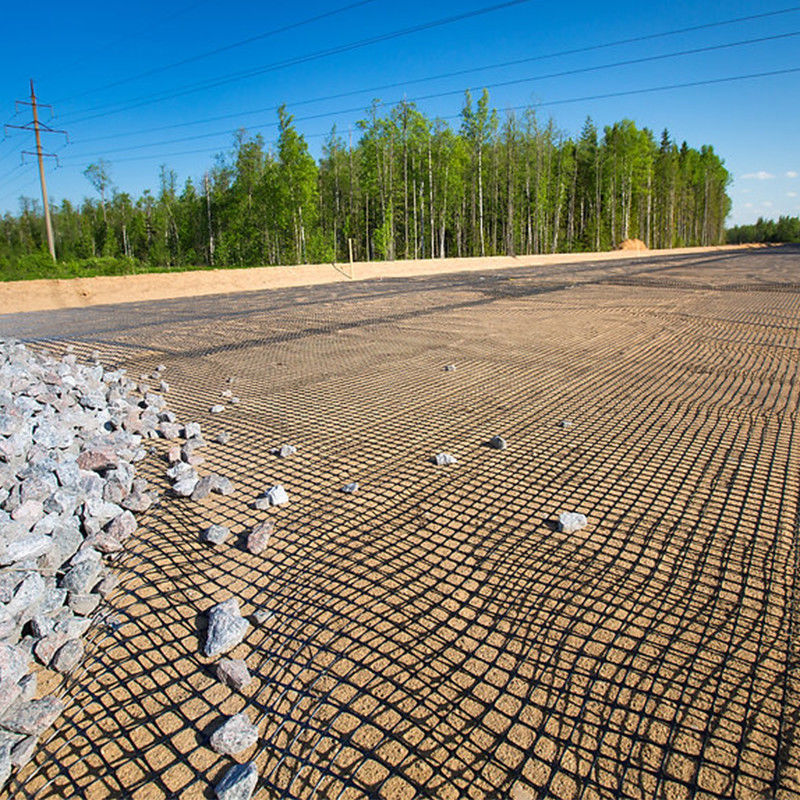

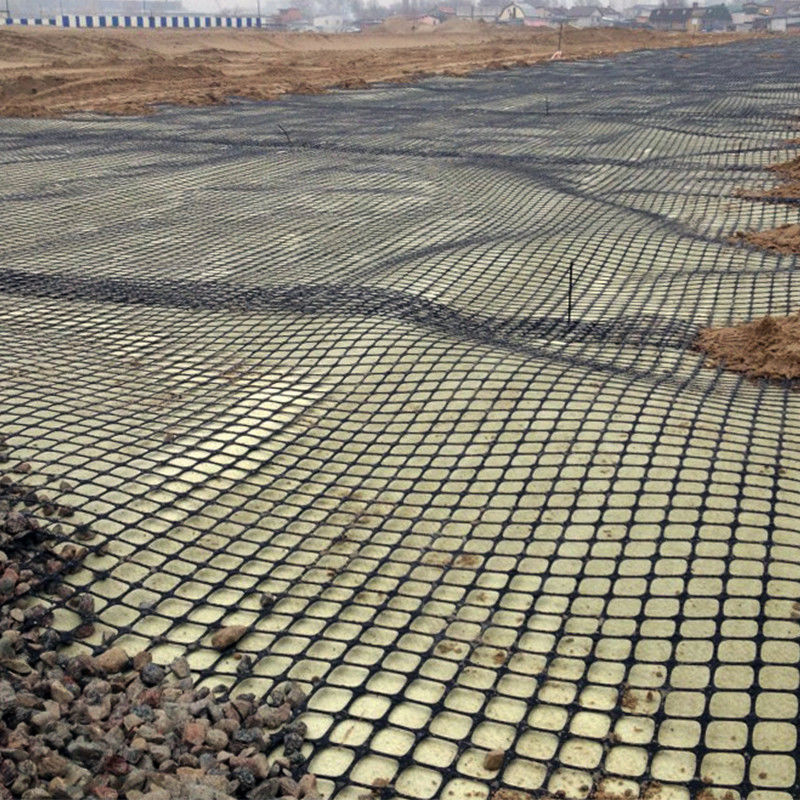

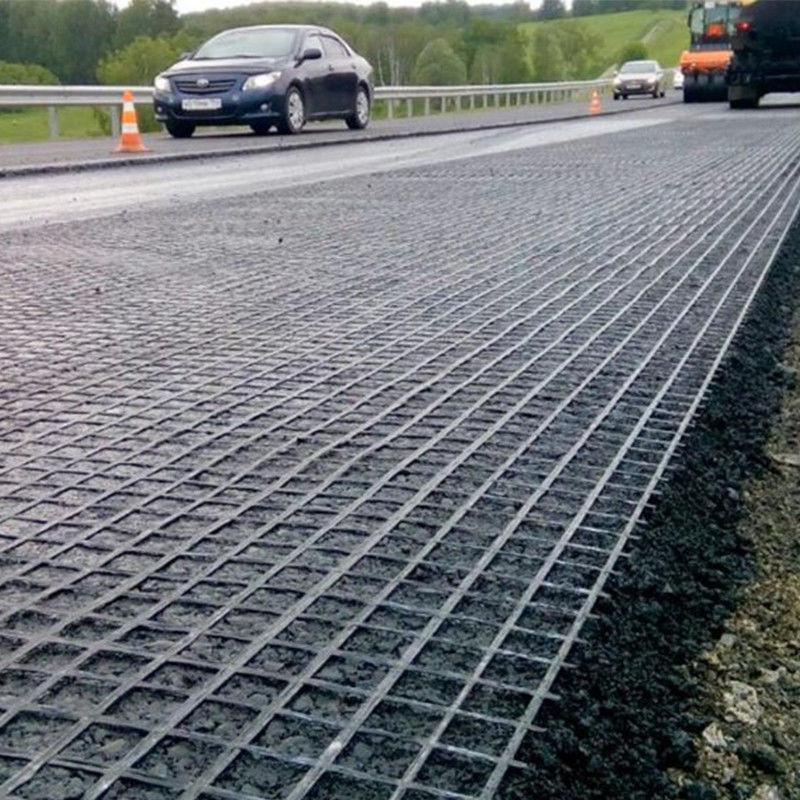

Suitable for various types of embankment and roadbed reinforcement, slope protection, tunnel wall reinforcement, and permanent bearing foundation reinforcement for large airports, parking lots, docks and freight yards.
1. Increase the bearing capacity of the road (ground) foundation and extend its service life.
2. Prevent road (ground) collapse or cracks, and maintain a beautiful and tidy ground.
3. Convenient construction, time-saving, labor-saving, shortened construction period, and reduced maintenance costs.
4. Prevent cracks in culverts.
5. Strengthen soil slopes to prevent soil erosion.
6. Reduce the thickness of the cushion layer and save costs.
7. Support the stability and greening environment of the slope planting mat.
8. It can replace metal mesh and be used for false roof mesh in coal mines.

Road Construction Material PP PET Biaxial Geogrid For Soil Stabilization 3
Chuangwan Road Construction Material PP Pet Biaxial Geogrid for Soil Stabilization



Product Stock


1,We have professional warehouse management system, not only keep clean and dry, but also ensure the packing. All the goods stock respectively according to different orders
2,Standard export packing, or customized packing as your request.

Road Construction Material PP PET Biaxial Geogrid For Soil Stabilization 5
