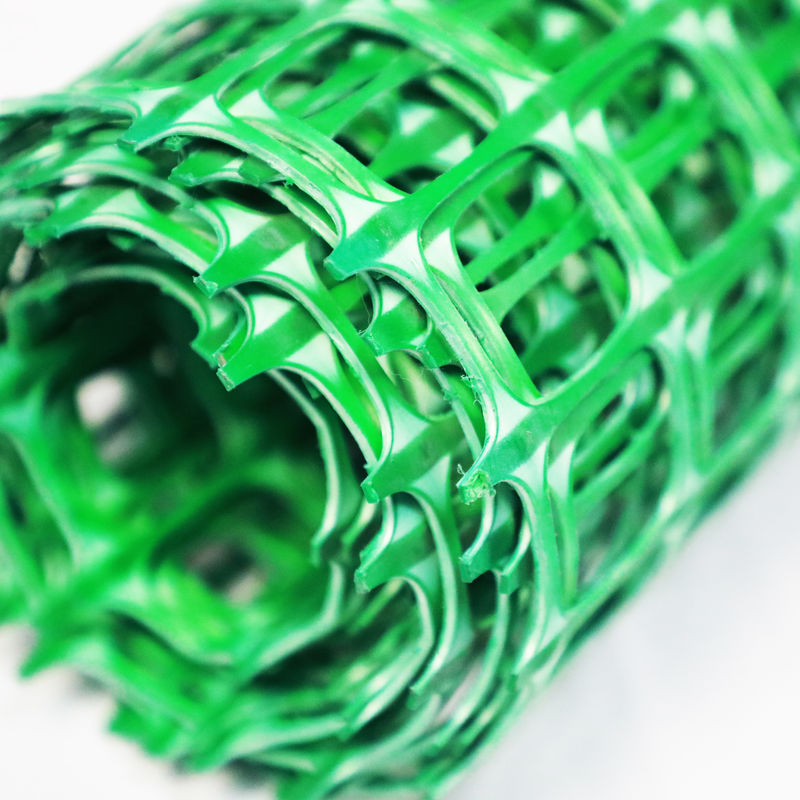

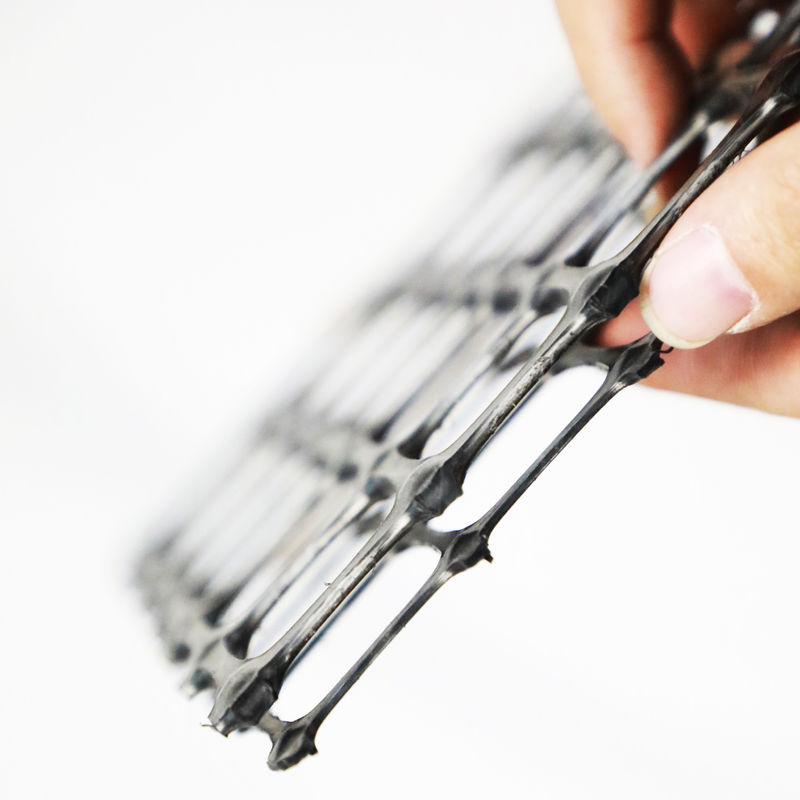

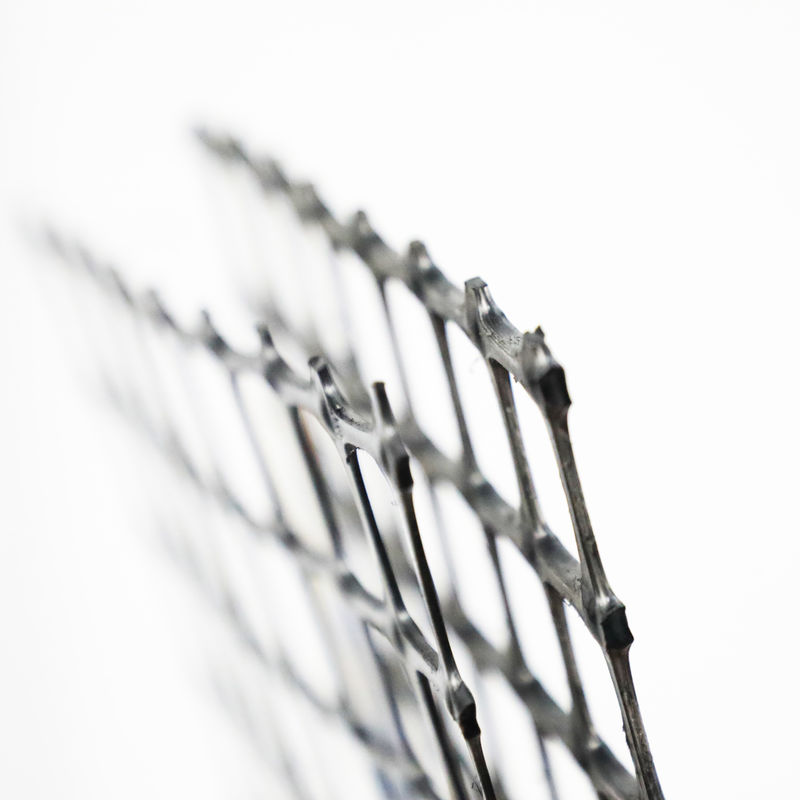

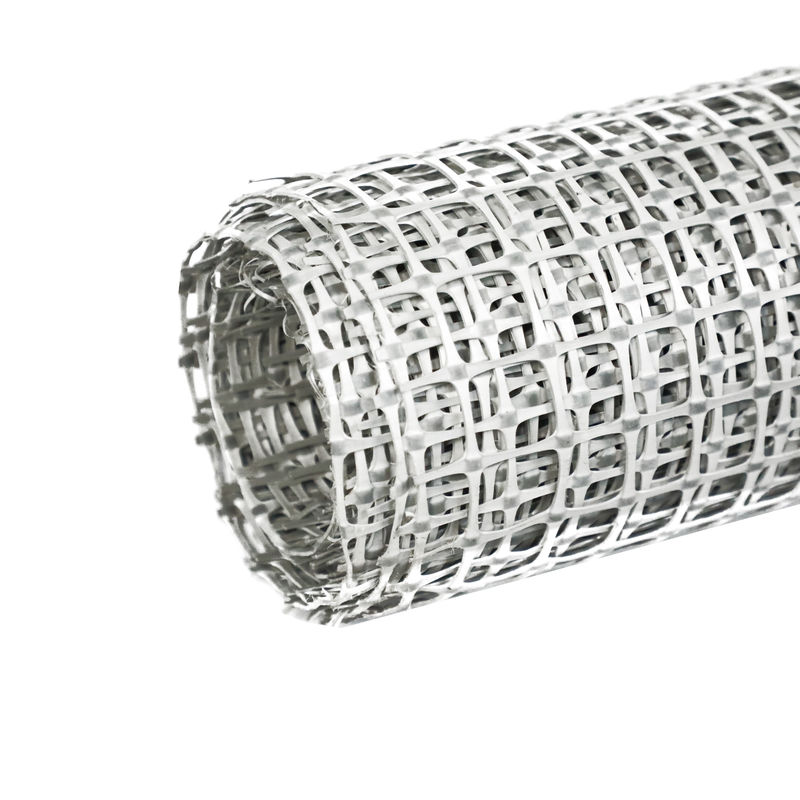

Biaxial geogrids have been utilized in pavement construction and soil stabilization projects throughout the US and worldwide.Biaxial Geogrid is Strata's innovative geogrid that is made from extruded polypropylene which provides superior stiffness, aperture stability and interlock capabilities for structural reinforcement of paved and unpaved roads.
Plastic Uniaxial Geogrid is Made from polymer and nano scal carbon black by extrusion technology.
Property
Roadbed reinforcement improves stability and bearing capacity
Prevent roadbed from deformation and crack due to roadbed material wash off
Retaining wall bearing capacity improvement
Application
Roadbed reinforcement in highway
Municipal road, railway, airport runway
Dam reinforcement
Garden fence and river bank
Retaining wall reinforcement in highway
Biaxially stretched plastic geogrids have great tensile strength in both longitudinal and transverse directions. This structure can provide a more effective chain system for bearing and diffusing forces in soil, suitable for large-scale permanent bearing foundation reinforcement.
Technical index
| Biaxial PP/Plastic Geogrid Data Sheet: GB/T 17689-2008 | ||||||||
| Project | Tensile yield per linear meter,KN/m≥ | Yield elongation,%≤ | Tensile force at 2% elongation,KN/m≥ | Tensile force at 5% elongation,KN/m≥ | ||||
| Project | longitudinal | Horizontal | longitudinal | Horizontal | longitudinal | Horizontal | longitudinal | Horizontal |
| TGSG15-15 | 15 | 15 | 15 | 13 | 5 | 5 | 7 | 7 |
| TGSG20-20 | 20 | 20 | 15 | 13 | 7 | 7 | 14 | 14 |
| TGSG30-30 | 30 | 30 | 15 | 13 | 10.5 | 10.5 | 21 | 21 |
| TGSG50-50 | 50 | 50 | 15 | 13 | 14 | 14 | 28 | 28 |
| Width | 1~6m | |||||||
| Q/CR 549.2-2016 | ||||||||
| Project | GGR/PP/BS30-30 | GGR/PP/BS40-40 | GGR/PP/BS50-50 | |||||
| Mass per unit area,g/m2 | ≥260 | ≥400 | ≥500 | |||||
| Longitudinal and transverse tensile strength,KN/m | ≥30 | ≥40 | ≥50 | |||||
| Longitudinal and transverse tensile strength at 2% elongation,KN/m | ≥10.5 | ≥14 | ≥17.5 | |||||
| Longitudinal and transverse tensile strength at 5% elongation,KN/m | ≥21 | ≥28 | ≥35 | |||||
| Nominal longitudinal and transverse elongation | ≤15.0%/≤13.0% | |||||||
| Width | 1~6m | |||||||
Suitable for various types of embankment and roadbed reinforcement, slope protection, tunnel wall reinforcement, and permanent bearing foundation reinforcement for large airports, parking lots, docks and freight yards.
1. Increase the bearing capacity of the road (ground) foundation and extend its service life.
2. Prevent road (ground) collapse or cracks, and maintain a beautiful and tidy ground.
3. Convenient construction, time-saving, labor-saving, shortened construction period, and reduced maintenance costs.
4. Prevent cracks in culverts.
5. Strengthen soil slopes to prevent soil erosion.
6. Reduce the thickness of the cushion layer and save costs.
7. Support the stability and greening environment of the slope planting mat.
8. It can replace metal mesh and be used for false roof mesh in coal mines.
1,We have professional warehouse management system, not only keep clean and dry, but also ensure the packing. All the goods stock respectively according to different orders
2,Standard export packing, or customized packing as your request.
Geogrid Advantage
1. fast and an all-weather installation solution
2. construction of cost effective
3. Solutions for slope protection
4. Ability to reinforce any soil type
5. Low creep under constant load
6. High modulus
7. Easy to install
8. High pull out resistance
9. Excellent survivability to construction stresses
10. Excellent soil-to-soil and aggregate-to-aggregate contact through large grid openings.
