40kn Grid Mesh Biaxial PP Plastic Geogrid For Road Reinforcement

40kn Grid Mesh Biaxial PP Plastic Geogrid For Road Reinforcement

Road Reinforcement PP Plastic Geogrid

40kn Plastic Geotextile Geogrid

Extruded Biaxial PP Plastic Geogrid

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

Plastic geogrid

Contact Us

Request A Quote
Product Details
Classification:
Plastic Geogrid
Application:
Retaining Wall, Steep Slop, Dam, Road Base
Nominal Longitudinal Elongation:
15% Max/13% Max
Elongation At Longitudinal:
15% Max
Process:
Extruded
Specification:
15KN/m--50KN/m
Elongation At Horizontal:
13% Max
Product Description

Product Description

Chuangwan Road Construction Material PP Pet Biaxial Geogrid for Soil Stabilization
PP/Plastic Biaxial Geogrid is made of polypropylene. It is produced through through several processes: extruding, punching, heating, longitudinal stretching and transverse stretching. It has a high tensile strength. After adding some percent of carbon black material, it makes the product good acid and alkali resistance, corrosion resistance and ageing resistance and durability.
PP/Plastic Biaxial Geogrid is widely used for Improving the bearing capacity of foundation, Preventing cracking and subsiding. It is an economic construction material which is convenient to construct, reducing cost and maintaining expense.
Compared with uniaxial geogrid, PP/Plastic Biaxial Geogrid can provide longer service time, higher strength and nicer reinfrocement ability.
By the way, we have ISO certificates for this product.

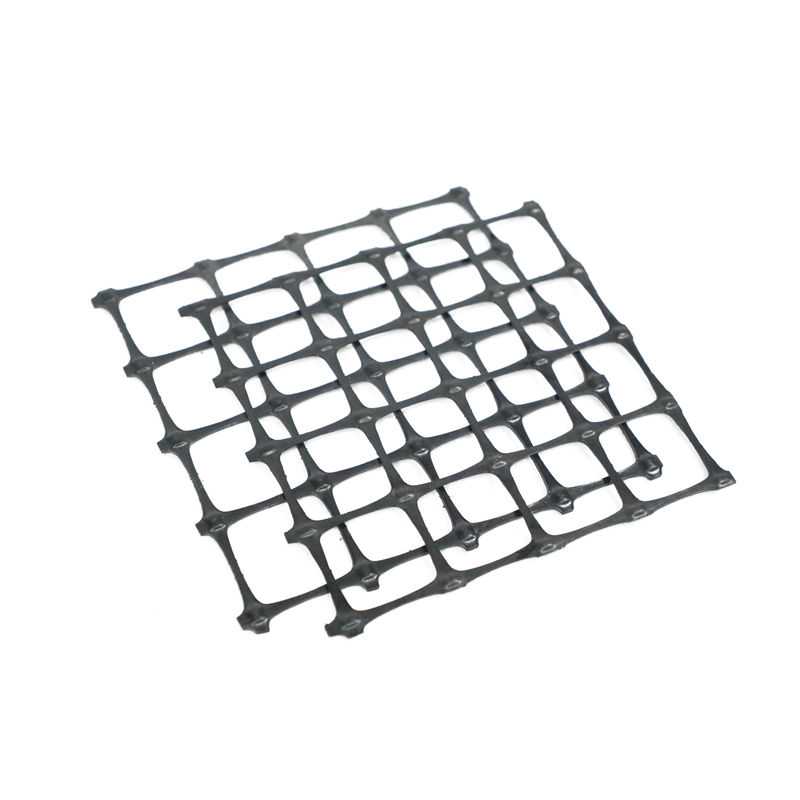

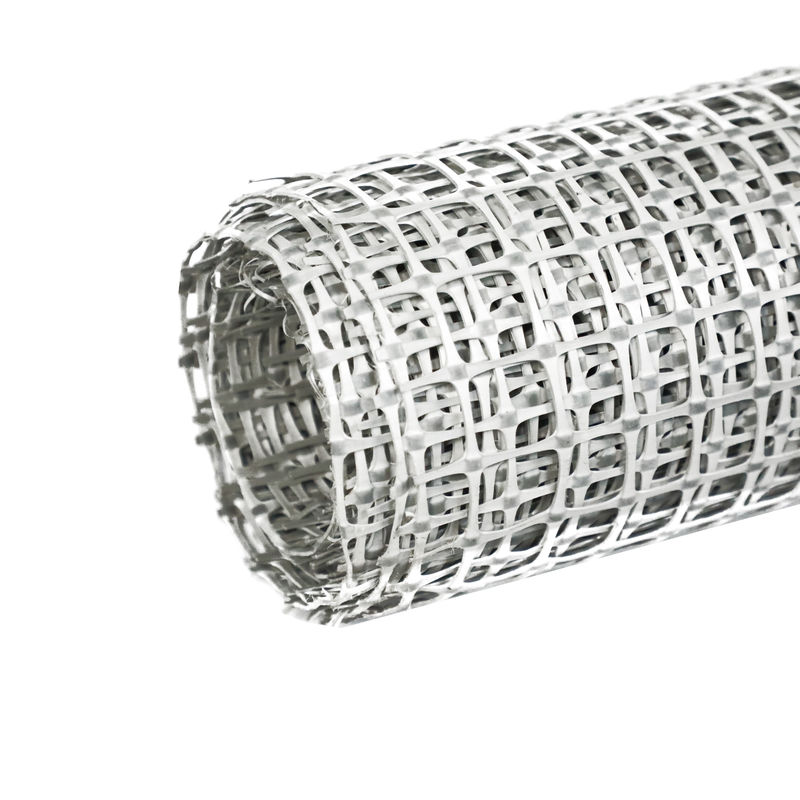

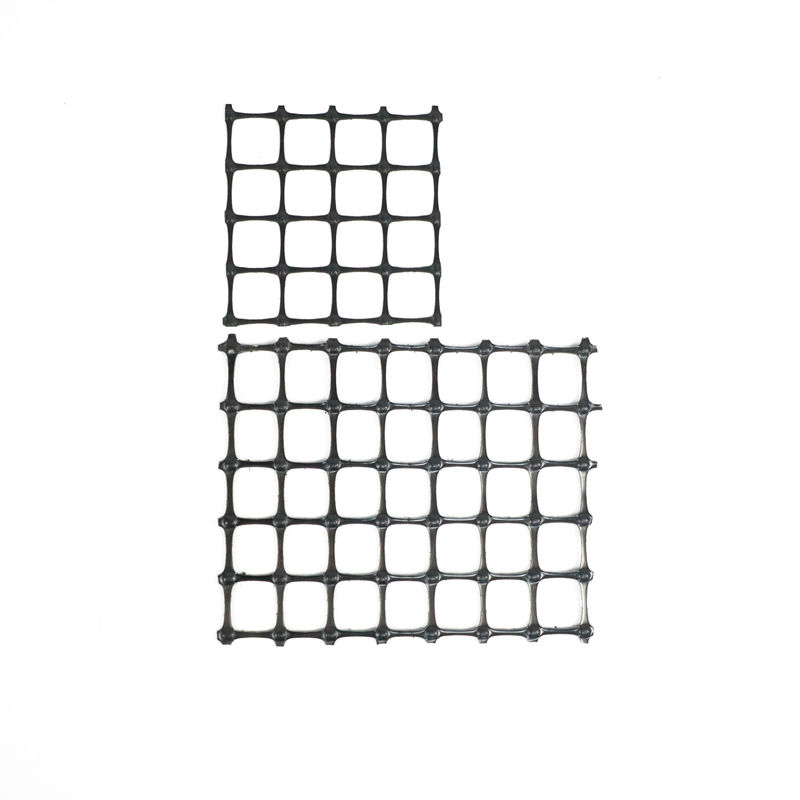

Detailed Photos

Chuangwan Road Construction Material PP Pet Biaxial Geogrid for Soil Stabilization
Chuangwan Road Construction Material PP Pet Biaxial Geogrid for Soil Stabilization



Product Features


Biaxially stretched plastic geogrids have great tensile strength in both longitudinal and transverse directions. This structure can provide a more effective chain system for bearing and diffusing forces in soil, suitable for large-scale permanent bearing foundation reinforcement.

Technical index

Biaxial PP/Plastic Geogrid Data Sheet: GB/T 17689-2008
Project Tensile yield per linear meter,KN/m≥ Yield elongation,%≤ Tensile force at 2% elongation,KN/m≥ Tensile force at 5% elongation,KN/m≥
Project longitudinal Horizontal longitudinal Horizontal longitudinal Horizontal longitudinal Horizontal
TGSG15-15 15 15 15 13 5 5 7 7
TGSG20-20 20 20 15 13 7 7 14 14
TGSG30-30 30 30 15 13 10.5 10.5 21 21
TGSG50-50 50 50 15 13 14 14 28 28
Width 1~6m
Q/CR 549.2-2016
Project GGR/PP/BS30-30 GGR/PP/BS40-40 GGR/PP/BS50-50
Mass per unit area,g/m2 ≥260 ≥400 ≥500
Longitudinal and transverse tensile strength,KN/m ≥30 ≥40 ≥50
Longitudinal and transverse tensile strength at 2% elongation,KN/m ≥10.5 ≥14 ≥17.5
Longitudinal and transverse tensile strength at 5% elongation,KN/m ≥21 ≥28 ≥35
Nominal longitudinal and transverse elongation ≤15.0%/≤13.0%
Width 1~6m

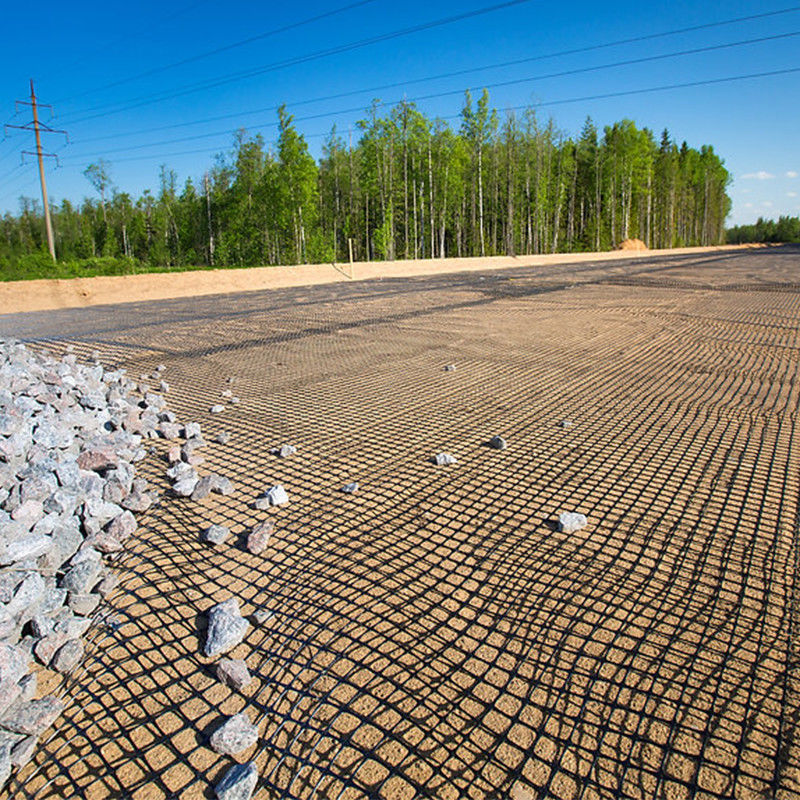

Product Application


Suitable for various types of embankment and roadbed reinforcement, slope protection, tunnel wall reinforcement, and permanent bearing foundation reinforcement for large airports, parking lots, docks and freight yards.
1. Increase the bearing capacity of the road (ground) foundation and extend its service life.
2. Prevent road (ground) collapse or cracks, and maintain a beautiful and tidy ground.
3. Convenient construction, time-saving, labor-saving, shortened construction period, and reduced maintenance costs.
4. Prevent cracks in culverts.
5. Strengthen soil slopes to prevent soil erosion.
6. Reduce the thickness of the cushion layer and save costs.
7. Support the stability and greening environment of the slope planting mat.
8. It can replace metal mesh and be used for false roof mesh in coal mines.

40kn Grid Mesh Biaxial PP Plastic Geogrid For Road Reinforcement 3
Chuangwan Road Construction Material PP Pet Biaxial Geogrid for Soil Stabilization



Product Stock


1,We have professional warehouse management system, not only keep clean and dry, but also ensure the packing. All the goods stock respectively according to different orders
2,Standard export packing, or customized packing as your request.

40kn Grid Mesh Biaxial PP Plastic Geogrid For Road Reinforcement 5
