Place of Origin:
China
Brand Name:
OEM
Certification:
ISO certificate
Model Number:
Plastic geogrid
Contact Us
Description:

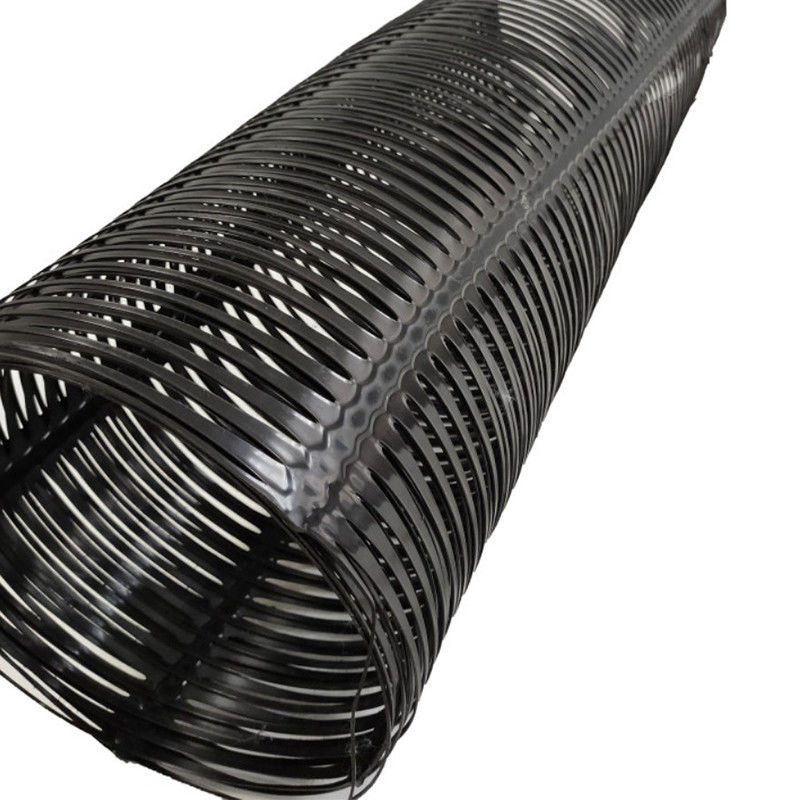

Uniaxial Geogrid is made of high molecular polymer,is extruded into sheet and then punched into regular mesh pattern and finally stretched in the longitudinal direction.
Product Features
1.High tensile strength and tensile modulus.
2.Strong combination with gravel and soil
Scope of application

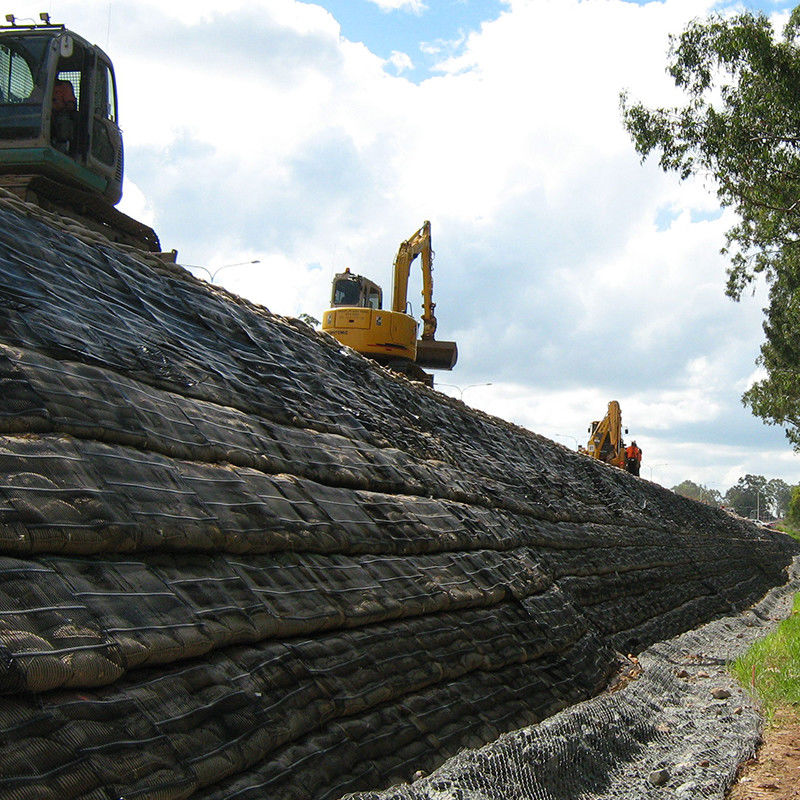

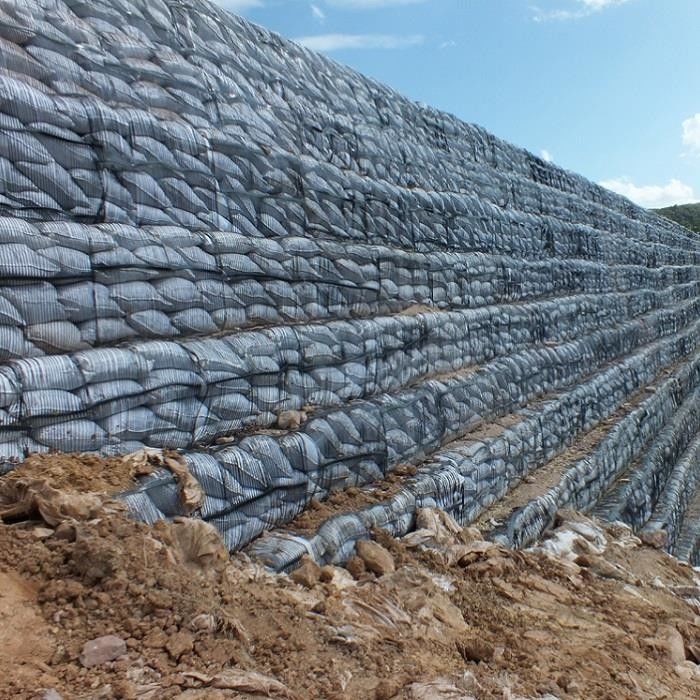

Roadbed, railway, runway to enhance the reinforcement of retaining wall, all kinds of embankment protection.
|
uniaxial geogrid(PP)Technical Parameter (GB standard)
|
|||||||||
|
Item
|
Specification
|
||||||||
|
Type
|
TGDG35
|
TGDG50 |
TGDG80 |
TGDG110 |
TGDG120 |
TGDG150 |
TGD200 |
TGDG260 |
TGDG300 |
|
Tensile Strength≥(KN/M)
|
35
|
50
|
80
|
110
|
120
|
150
|
200
|
260
|
300
|
|
Maximum elongation≤(%)
|
10
|
||||||||
|
Tensile strength at 2% elongation≥(KN/M)
|
10
|
12
|
26
|
32
|
36
|
42
|
56
|
94
|
108
|
|
Tensile strength at 5% elongation≥(KN/M)
|
22
|
28
|
48
|
64
|
72
|
84
|
112
|
185
|
213
|

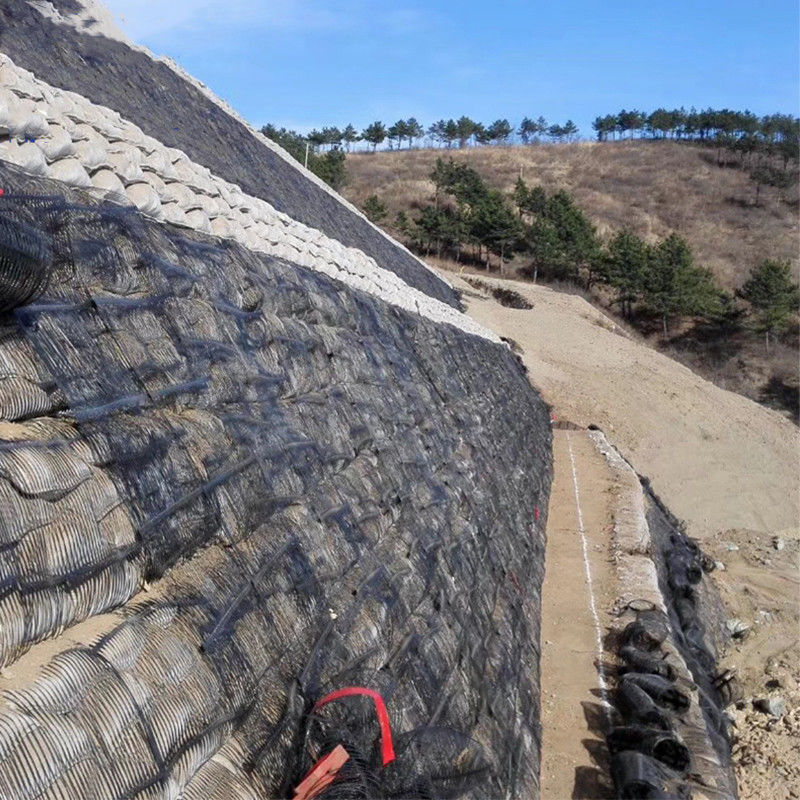

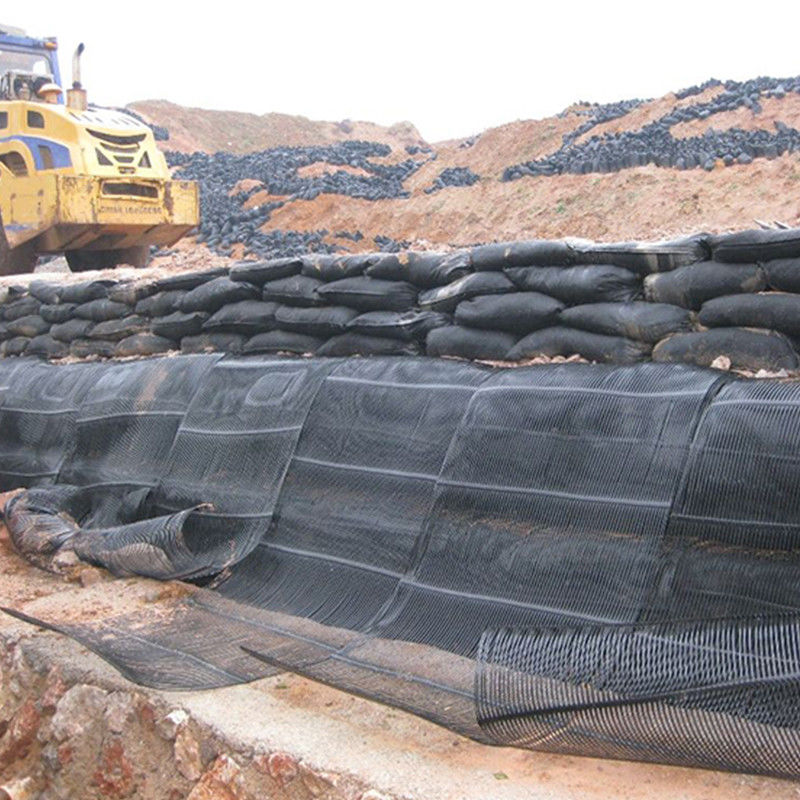

Uniaxial geogrid is mainly applied in highway, railway, slope protecting projects, retaining wall, dam to strengthen land loading capacity and extend its service life. Features in reducing area, project cost and maintainance cost, convenient to construct.
geogrids can quickly increase the bearing capacity of foundations, control the development of settlement, and effectively distribute loads to wider subbases by confining the road base, thereby reducing The thickness of the base layer reduces the project cost, shortens the construction period and prolongs the service life.
Unidirectional geogrid for cement pavement
Geogrid is laid on the bottom of the cement pavement, which can reduce the rut depth, prolong the anti-fatigue life of the pavement, and reduce the thickness of the cement pavement to save costs.

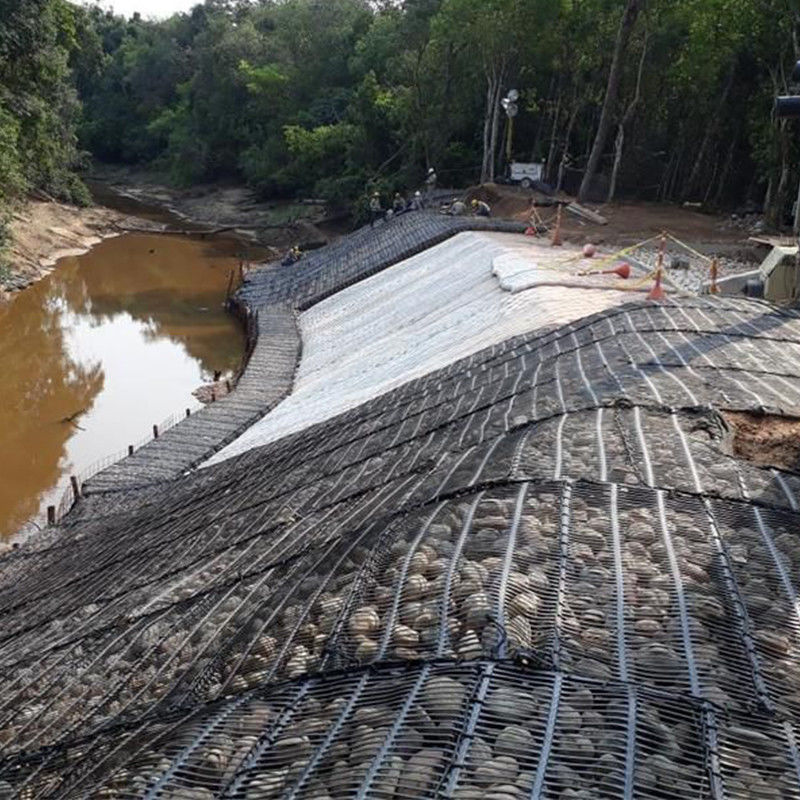

It can be made into a gabion, and then used together with a grid to prevent the dam from being washed by sea water and cause collapse. The gabion is permeable, can slow down the impact of waves, prolong the life of the dam, save manpower and material resources, and shorten the construction period.
FAQ
1, What is the difference between uniaxial and biaxial geogrid?
Biaxial geogrids are those that exhibit the same strength in both the machine directions MD and cross-machine directions CMD while uniaxial geogrids exhibit the primary strength in the machine direction with minimal strength, enough to maintain the aperture structure, in the cross-machine direction.
2, How many types of geogrids are there?
There are three different types of geogrids: Uniaxial, Biaxial, and Triaxial . Each one is designed and manufactured for specific construction applications with various tensile strengths.
3: How long is the delivery time?
Generally it is 2-3 days if the goods are in stock. Or 10-15if not in stock, according to the quantity.
4:Do you provide samples?
A:Yes,samples are free.
