Place of Origin:
China
Brand Name:
OEM
Certification:
ISO certificate
Model Number:
Geogrid Composite Nonwoven geotextile
Contact Us

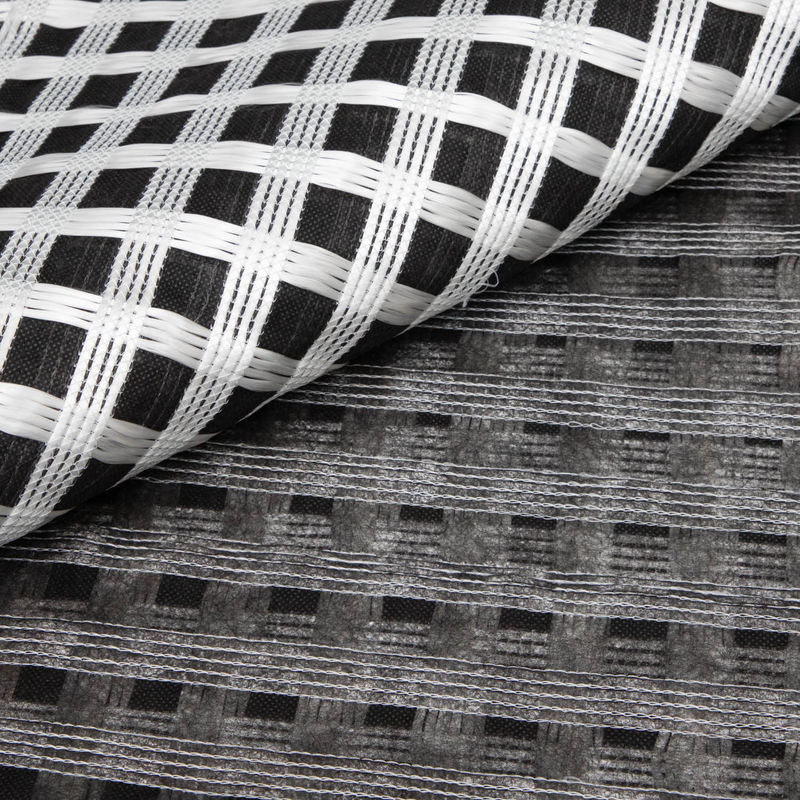

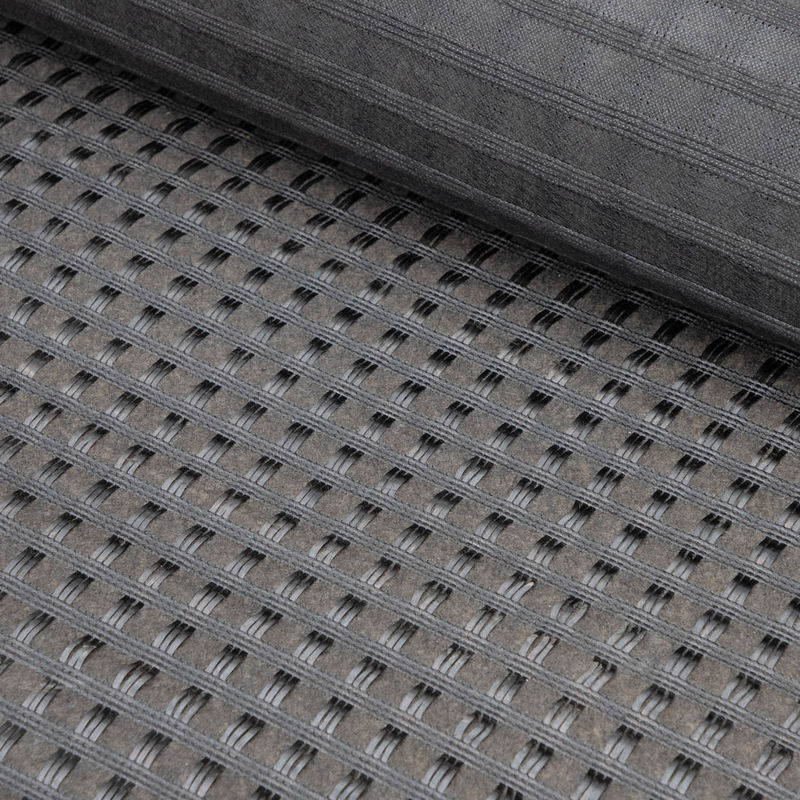

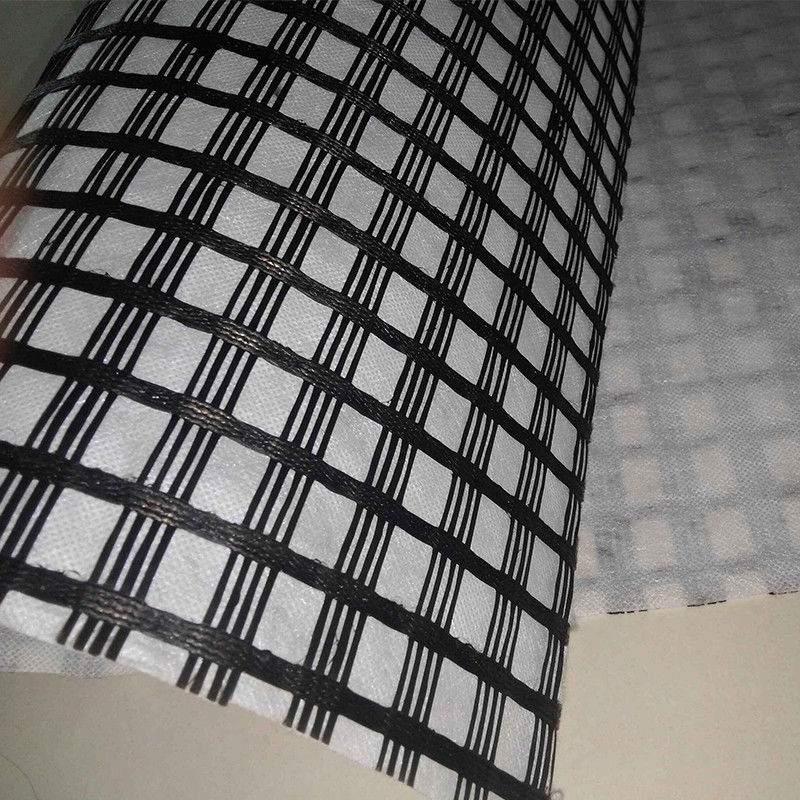

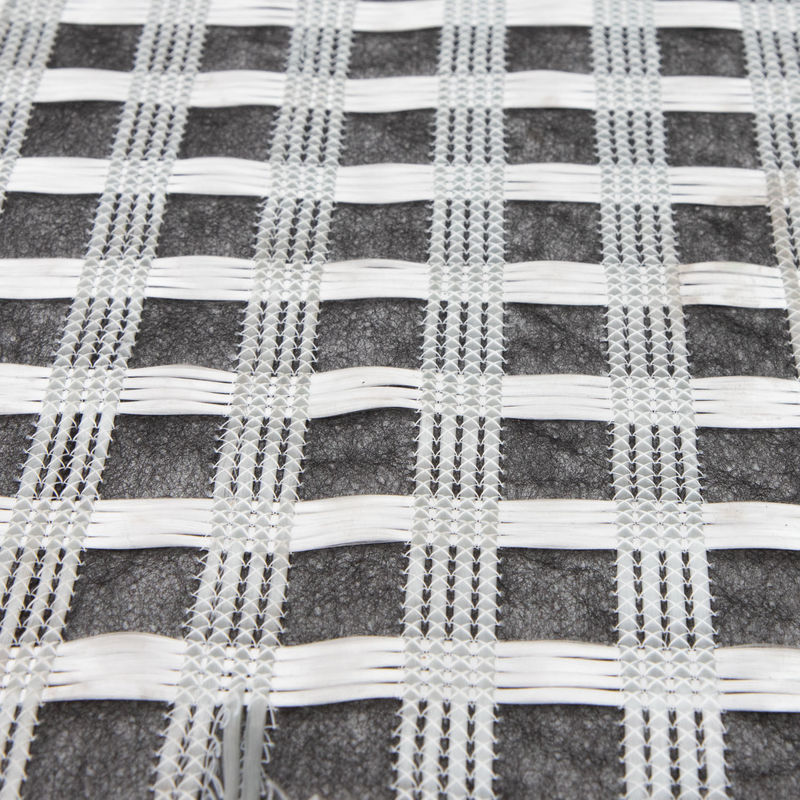

composite geogrids is the composite of fiberglass geogrid combined with nonwoven fabric or geotextile. It installed between two asphalt layers, the main function is to reduce reflective and fatigue cracking, reduce rutting, extend pavement structural life.
composite geogrids: 25*25KN, 30*30KN, 40*40KN, 50*50KN, 60*60KN, 80*80KN, 100*100KN, 120*120KN
Nonwoven fabric: 80g/ 100g/ 200g
Or do customerised as per your requirements.
Fiberglass Geogrid Composite has high tensile strength at both longitudinal (MD)and transverse (CD) directions. It makes road course reinforced with its excellent struture stability and better stress relief performance
Besides, we can also sew the geogrid and geotextile together which is more stable structure under outside force.
Application:
Normally, Geogrid Composite with Geotextile is widely used at home and abroad because it is cheaper compared with other kind geocomposite.

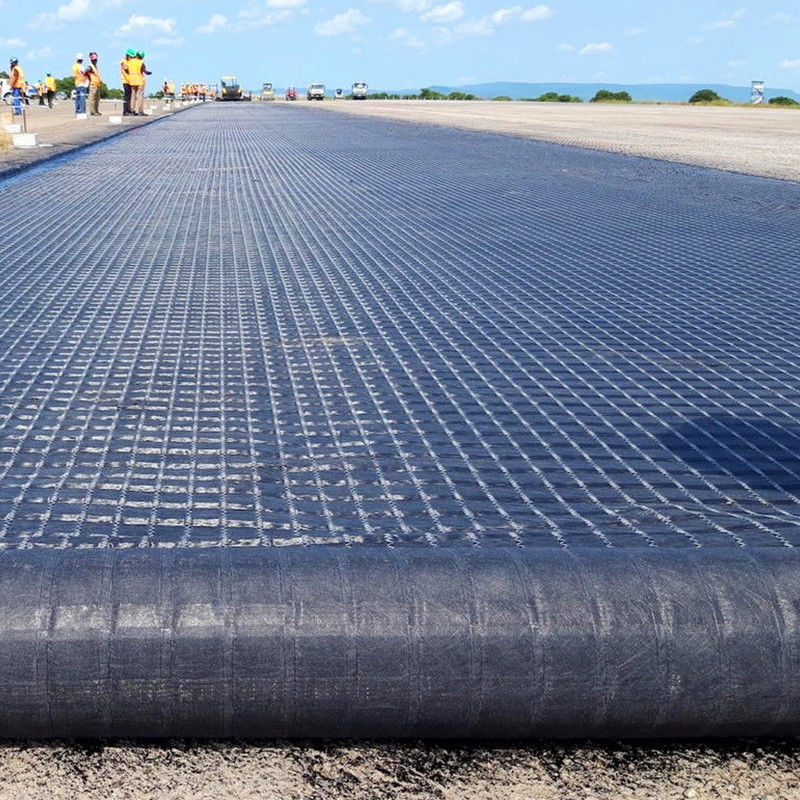

1. Used in surface reinforcement of highway, railway and airport road;
2. Used for the maintaining, re-construction and broaden of the old road surface
3. Used for reinforcement of irrigation channels and river dams.
4. Used to strengthen bridge connecting surface.
| pecification |
WTF 30-30 |
WTF 50-50 |
WTF 80-80 |
WTF 100-100 |
WTF 120-120 |
WTF 150-150 |
WTF 200-200 |
WTF 300-300 |
|||||||
| Mesh size(mm) | 25.4×25.4 or 12.5×12.5 or 50.8×50.8 | ||||||||||||||
| Breaking strength(kN/m) | Warp direction | 30 | 50 | 80 | 100 | 120 | 150 | 200 | 300 | ||||||
| Across warp | 30 | 50 | 80 | 100 | 120 | 150 | 200 | 300 | |||||||
| Elongation at break(%) | Warp direction | 4 | |||||||||||||
| Across warp | 4 | ||||||||||||||
| Thermal tolerance(ºC) | -100~280 | ||||||||||||||
| Width≤(m) | 6 | ||||||||||||||
