Wear Resistant Textured HDPE Geocell 0.9mm To 2.0mm Thickness

Wear Resistant Textured HDPE Geocell 0.9mm To 2.0mm Thickness

Railway Plastic Geocell

Wear Resistant Textured HDPE Geocell

2.0mm HDPE Geocell

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO,SGS

Model Number:

geocell

Contact Us

Request A Quote
Product Details
Material:
HDPE
Product Thickness:
0.9mm To 2.0mm
Product Height:
50MM
Welding Distance:
800MM
Surface:
Textured Smooth
Transport Package:
Standard Port Packing Or According To Customer′s R
Specification:
Cell Depth: 50mm, 100mm, 150mm, 200mm, 250mm
Trademark:
Good
HS Code:
3920109090
Application:
Retaining Wall, Dam, Railway, Highway
Product Description

Product Description

Geocell is a lightweight and flexible three-dimensional, expandable panels made from High Density Polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.

Product Parameters

Properties Test Method Unit Value
Polymer   - HDPE
Density ASTM D 1505 g/cm3 0.94
Carbon black content ASTM D 1603 % 1.5
Sheet thickness(Smooth) ASTM D 5199 mm 1.1 or 1.2
Sheet thickness(Textured) ASTM D 5199 mm 1.5
Seam peel strength Cell depth
    N 75 mm 1060
    N 100 mm 1420
    N 150 mm 2130
    N 200 mm 2840
Weld spacing   mm 330 356 400 445 660 712
Expanded cell size (WxL)   mm 244X203 259X224 295X250 320X287 488X408 508X475
Expanded panel size(WxL)   m 2.44X6.15 2.56X6.52 4X5 2.56X8.35 2.44X12.29 2.56X13.72
Expanded panel area   m2 15 16.7 20 21.4 30 35.12



Application

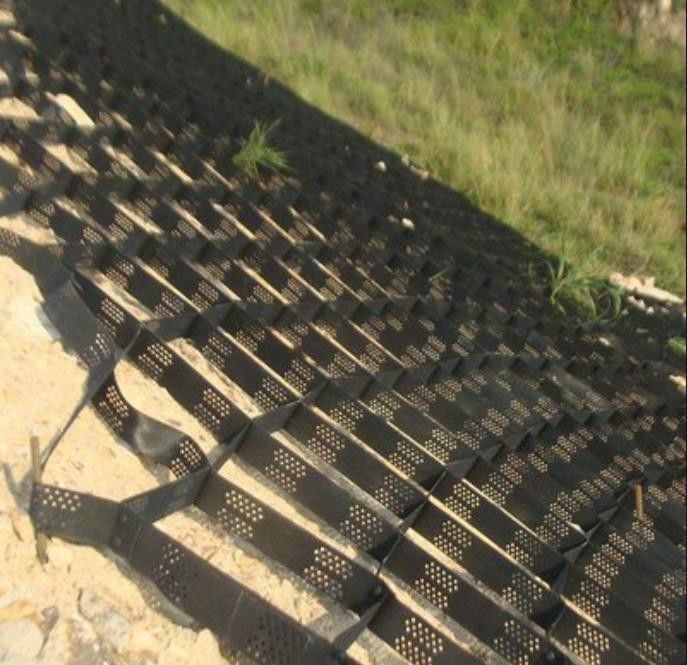

1. Used for all kinds of road building, driveways, soil stabilization and embankment stabilization
2. Used to stabilize river embankments.
3. Used to prevent landslides.
4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed, construction speed, good performance and greatly reduce the project cost.

Wear Resistant Textured HDPE Geocell 0.9mm To 2.0mm Thickness 0

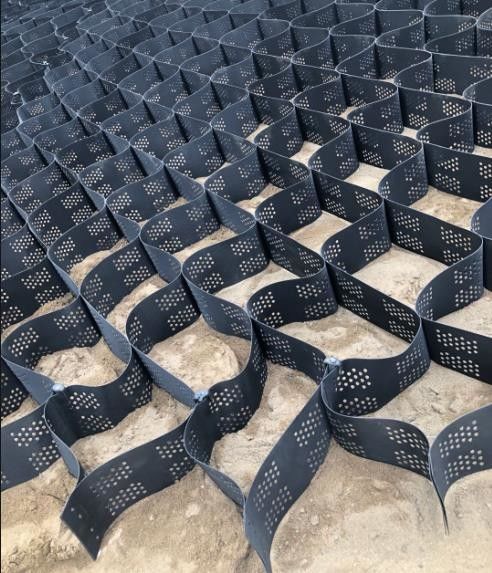

Road Construction
Geocell is a confinement system that performs better than conventional crushed stone sections, and it provides an expedient construction technique for access roads over soft ground without being adversely affected by wet weather conditions. It can also be used to strengthen paved areas.
Wear Resistant Textured HDPE Geocell 0.9mm To 2.0mm Thickness 1
