Place of Origin:
China
Brand Name:
zhongloo
Certification:
ISO,SGS
Model Number:
geocell
Contact Us
Video
Product Description

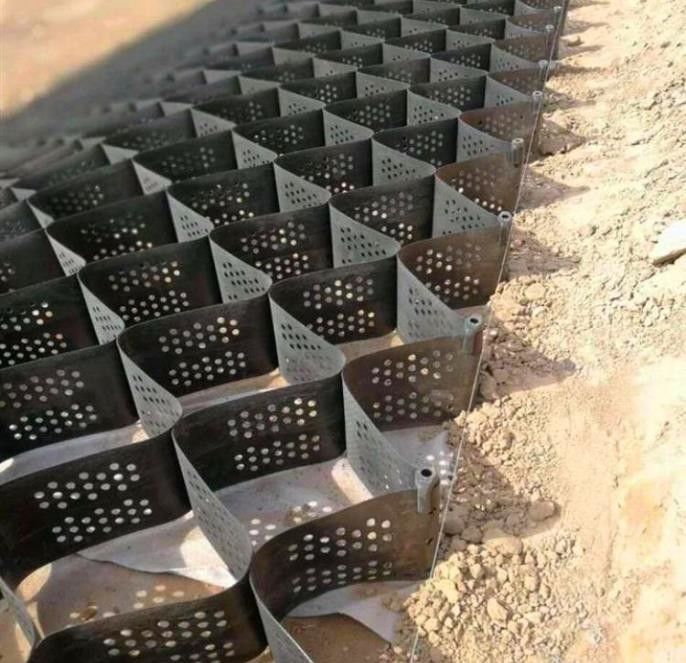

Geocell is a lightweight and flexible three-dimensional, expandable panels made from High-Density Polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.
Geocell System can be filled with a wide range of material: aggregate, concrete, sand, soil, etc.
Product Parameters
| Properties | Test Method | Unit | Value | |||||
| Polymer | - | HDPE | ||||||
| Density | ASTM D 1505 | g/cm3 | 0.94 | |||||
| Carbon black content | ASTM D 1603 | % | 1.5 | |||||
| Sheet thickness(Smooth) | ASTM D 5199 | mm | 1.1 or 1.2 | |||||
| Sheet thickness(Textured) | ASTM D 5199 | mm | 1.5 | |||||
| Seam peel strength | Cell depth | |||||||
| N | 75 mm | 1060 | ||||||
| N | 100 mm | 1420 | ||||||
| N | 150 mm | 2130 | ||||||
| N | 200 mm | 2840 | ||||||
| Weld spacing | mm | 330 | 356 | 400 | 445 | 660 | 712 | |
| Expanded cell size (WxL) | mm | 244X203 | 259X224 | 295X250 | 320X287 | 488X408 | 508X475 | |
| Expanded panel size(WxL) | m | 2.44X6.15 | 2.56X6.52 | 4X5 | 2.56X8.35 | 2.44X12.29 | 2.56X13.72 | |
| Expanded panel area | m2 | 15 | 16.7 | 20 | 21.4 | 30 | 35.12 | |
Application

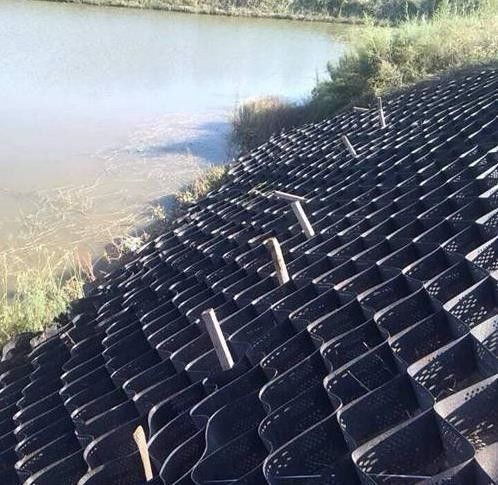

Geocell is the ideal product for soil reinforcement. It can greatly improve the bear capacity thanks to itsthree- dimensional structure. In many scenarios (various roads, airstrips, container yards, parking lots), in order to improve the bearing capacity of the road surface, reduce uneven settlement, and reduce maintenance costs in the later period, the geocell will be the best choice. Besides, geocell is widely used in slope protection, retaining walls, channel lining.
