Place of Origin:
China
Brand Name:
zhongloo
Certification:
ISO,SGS
Model Number:
geocell
Contact Us
Video
Product Description
Geocell is a lightweight and flexible three-dimensional, expandable panels made from High-Density Polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.
Geocell System can be filled with a wide range of material: aggregate, concrete, sand, soil, etc.
HDPE plastic honeycomb hdpe geocell gravel grid basic details:
1.Cell depth: 50mm ,100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm ~ 1600mm
3. Thickness:
(1)1.0mm~1.2mm for smooth geocell
(2) 1.5mm~1.7mm for textured geocell
Product Parameters
| Properties | Test Method | Unit | Value | |||||
| Polymer | - | HDPE | ||||||
| Density | ASTM D 1505 | g/cm3 | 0.94 | |||||
| Carbon black content | ASTM D 1603 | % | 1.5 | |||||
| Sheet thickness(Smooth) | ASTM D 5199 | mm | 1.1 or 1.2 | |||||
| Sheet thickness(Textured) | ASTM D 5199 | mm | 1.5 | |||||
| Seam peel strength | Cell depth | |||||||
| N | 75 mm | 1060 | ||||||
| N | 100 mm | 1420 | ||||||
| N | 150 mm | 2130 | ||||||
| N | 200 mm | 2840 | ||||||
| Weld spacing | mm | 330 | 356 | 400 | 445 | 660 | 712 | |
| Expanded cell size (WxL) | mm | 244X203 | 259X224 | 295X250 | 320X287 | 488X408 | 508X475 | |
| Expanded panel size(WxL) | m | 2.44X6.15 | 2.56X6.52 | 4X5 | 2.56X8.35 | 2.44X12.29 | 2.56X13.72 | |
| Expanded panel area | m2 | 15 | 16.7 | 20 | 21.4 | 30 | 35.12 | |

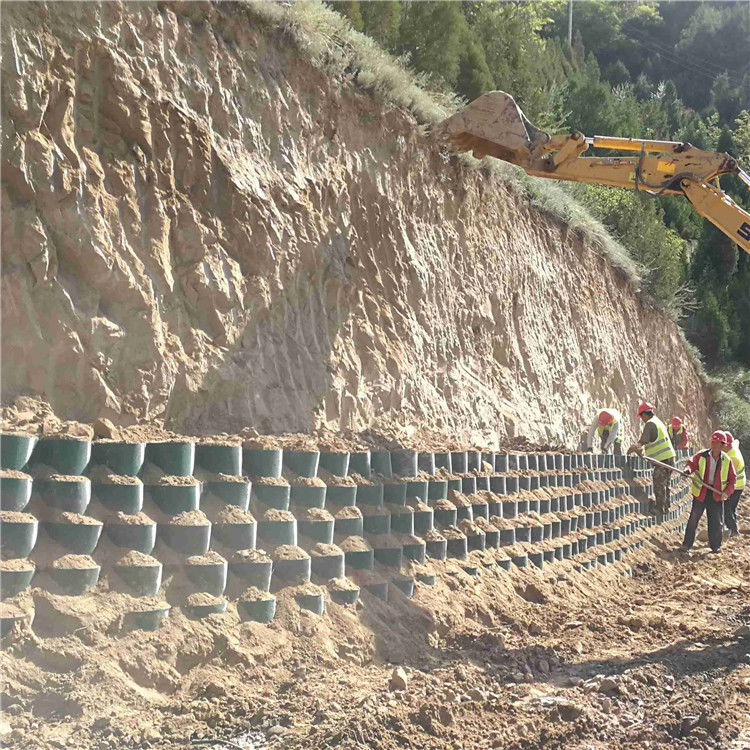

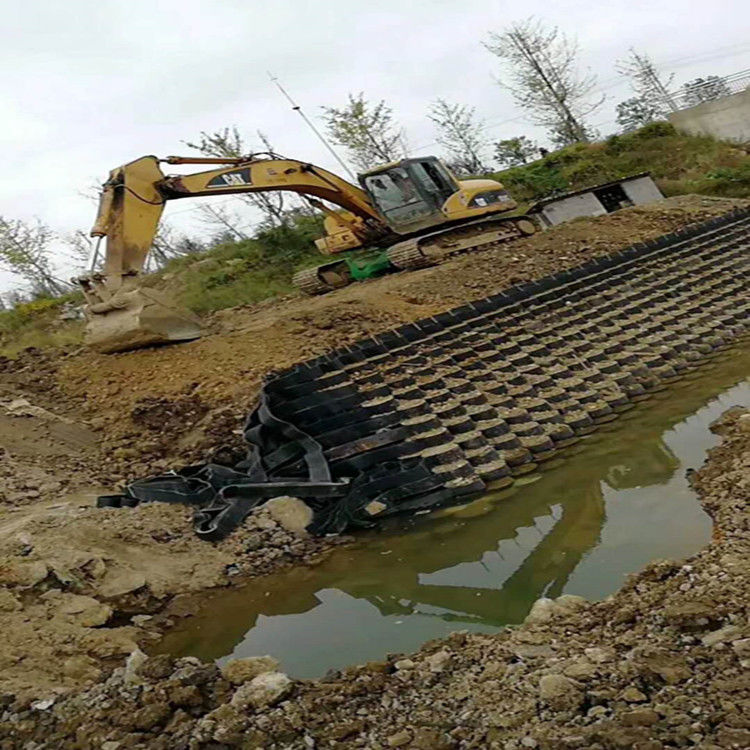

Application
HDPE plastic honeycomb hdpe geocell gravel grid Introduction:
Plastic geocell cellular confinement system is three dimensional , honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique . It is flexible to fold during the transport and installation on construction site . The geocell nets will be filled with soils , granular, cements or other on-site infill materials when stretched into web structures , which has powerful and rigid confinement in the lateral and vertical sides .
