Textured / Perforated HDPE Plastic Sheet Geocell For Channel Slope Reinforcement Protection

Textured / Perforated HDPE Plastic Sheet Geocell For Channel Slope Reinforcement Protection

Perforated Geocell HDPE

HDPE Plastic Sheet Geocell

Channel Slope Reinforcement Protection HDPE Geocell

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO,SGS

Model Number:

geocell

Contact Us

Request A Quote
Product Details
Material:
HDPE
Product Thickness:
1.1mm To 1.8mm
Product Height:
50MM-250MM
Welding Distance:
300-800MM
Surface:
Textured Smooth
Transport Package:
Standard Port Packing Or According To Customer′s R
Specification:
Cell Depth: 50mm, 100mm, 150mm, 200mm, 250mm
Trademark:
Good
HS Code:
3920109090
Application:
Retaining Wall, Dam, Railway, Highway
Product Description

Product Description

1.Introduction:
Geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.
2.Specifications:
(1).Cell depth: 50mm,100mm,150mm,200mm,250mm
(2). Welding space: 330mm~1600mm
(3). Thickness:
a,1.0mm~1.2mm for smooth geocell
b, 1.5mm~1.7mm for textured geocell
(4). Textured and smooth geocell

Textured / Perforated HDPE Plastic Sheet Geocell For Channel Slope Reinforcement Protection 0



Product Parameters

Properties Test Method Unit Value
Polymer   - HDPE
Density ASTM D 1505 g/cm3 0.94
Carbon black content ASTM D 1603 % 1.5
Sheet thickness(Smooth) ASTM D 5199 mm 1.1 or 1.2
Sheet thickness(Textured) ASTM D 5199 mm 1.5
Seam peel strength Cell depth
    N 75 mm 1060
    N 100 mm 1420
    N 150 mm 2130
    N 200 mm 2840
Weld spacing   mm 330 356 400 445 660 712
Expanded cell size (WxL)   mm 244X203 259X224 295X250 320X287 488X408 508X475
Expanded panel size(WxL)   m 2.44X6.15 2.56X6.52 4X5 2.56X8.35 2.44X12.29 2.56X13.72
Expanded panel area   m2 15 16.7 20 21.4 30 35.12

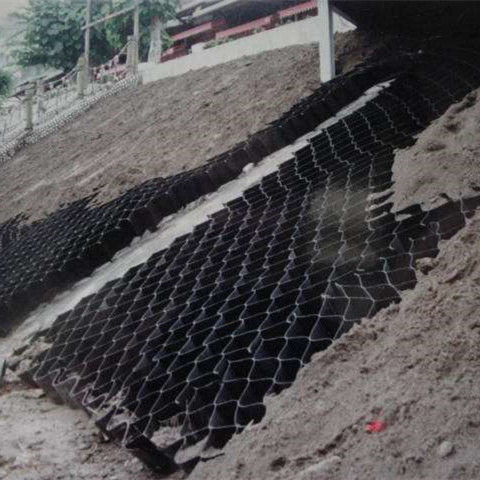

Application

Plastic geocell grid gravel for road
1. Used for all kinds of road building , driveways , soil stabilization and embankment stabilization
2. Used to stabilize river embankments .
3. Used to prevent landslides .
4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed , construction speed , good performance and greatly reduce the project cost .

Textured / Perforated HDPE Plastic Sheet Geocell For Channel Slope Reinforcement Protection 1
