Road Construction Gravel Grid, Grass Grid Mats For Road Surfacing Grid Parking Lot

Hexagonal Grass Grid Mats

Road Construction Gravel Grid

Parking Lot Grass Grid Mats

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

grass grid

Request A Quote

Product Details

Grid Shape:

Hexagonal

Carrying Capacity:

200 Tons

Size:

500*500*38mm/48mm/68mm

Specification:

38mm, 48mm, 68mm

Advantage:

Pressure, Wear Resistance, Impact Resistance

Working Temperature:

-10ºC To 50cº

Certificate:

ISO9001/ISO14001

Feature:

Distribute Loading

Plastic Plastic Grass Grid for Parking Lot Fire Exit HDPE Pavers Geogrid for Landscape Ground Geocell Gravel Paddock Grid

Get Best Price

Video

Heavy Duty Soil Stabilizer Honeycomb Plastic Grass Grid for Driveway for Landscape Turf Parking Lot

Get Best Price

Video

High Tensile Strength Biaxial Plastic Mesh for Soil Reinforcement, 30kN/m Black PP/PET Grid for Road Base Stabilization

Get Best Price

Video

Plastic Plastic Grass Grid for Parking Lot Fire Exit HDPE Pavers Geogrid for Landscape Ground Geocell Gravel Paddock Grid

Get Best Price

86--18095658976

angela@zhongloo.com

86-551- 65540070

Contact Now

Product Description

Grass grid is made of HDPE material, and adopt high pressure injection forming technology to suppress the nest bee continuous shell, three-dimensional space and certain support height and strength, green environmental protection, completely Recyclable.
It realizes a perfect combination of parking lots with lawn. Grass grid has good properties pressure-resistant, abrasion resistance, impact resistance, aging resistance, corrosion resistance, etc. It enhances the quality and saves investment. The flat lapping type is unique. It can save labor, fast, telescopic joint regulation.

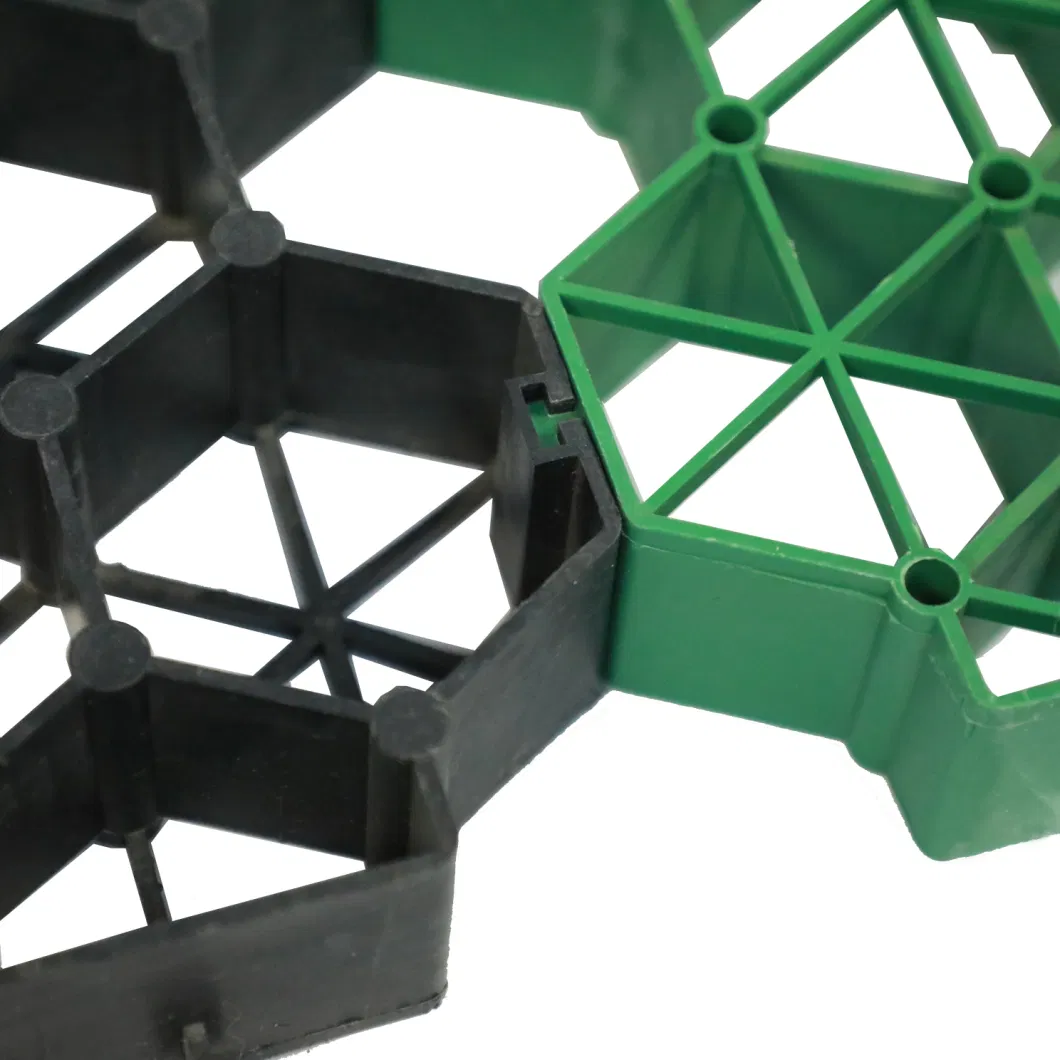

Road Construction Gravel Grid, Grass Grid Mats For Road Surfacing Grid Parking Lot 0

2.Technical Data:

Product Name	Plastic Grass Paver
Model	GPP-38	GPP-48	GPP-68
Size(mm)	410×390×38	410×390×48	410×390×68
	500×500×38		500×500×68
Pressure Strength	160ton/sqm-250ton/sqm
Material	HDPE ( high-density polyethylene )
Product Type	Virign material and Recycled Material
Durability	at least 4 years in neutral ground of 4 < pH < 9
Working Temperature	Apply in temperature of -10ºC to 50ºC
Anti HCL	30%x24h, no visible change
Thermal Aging	70ICx24h, no visible change
Anti UV	UPE>30 T(UVA)AV<5%, qualified

3.Advantages

1.Reduce ground reflection, reduce ground heat radiation
2.Reduce the ground acoustic wave transmission, reduce noise pollution.
3.Reduce dust and purify the air
4.Natural leakage of rainwater, soil does not lose, no water phenomenon
5.Free combination and disassembly, reusable
6.Easy to install.

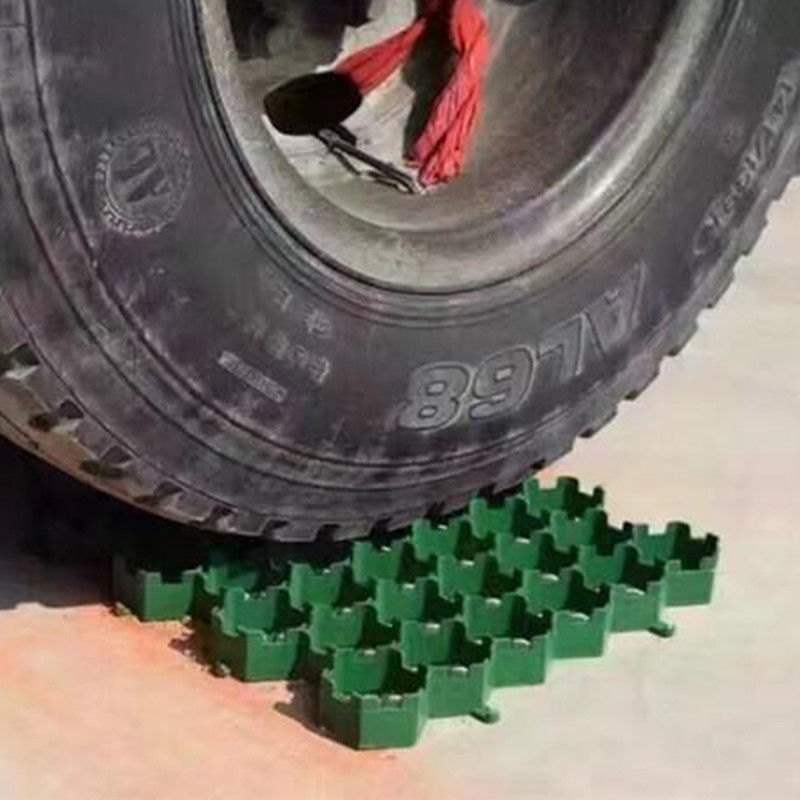

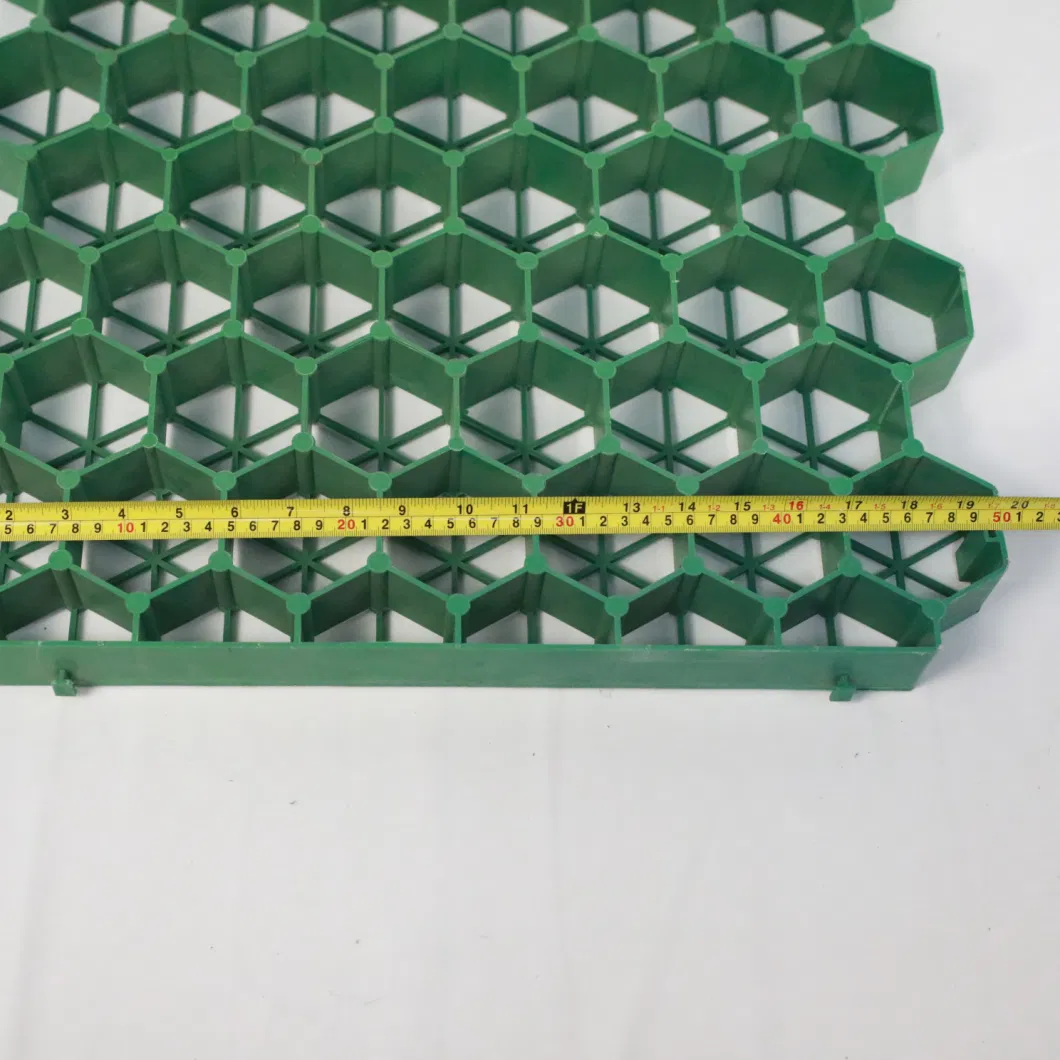

Road Construction Gravel Grid, Grass Grid Mats For Road Surfacing Grid Parking Lot 1

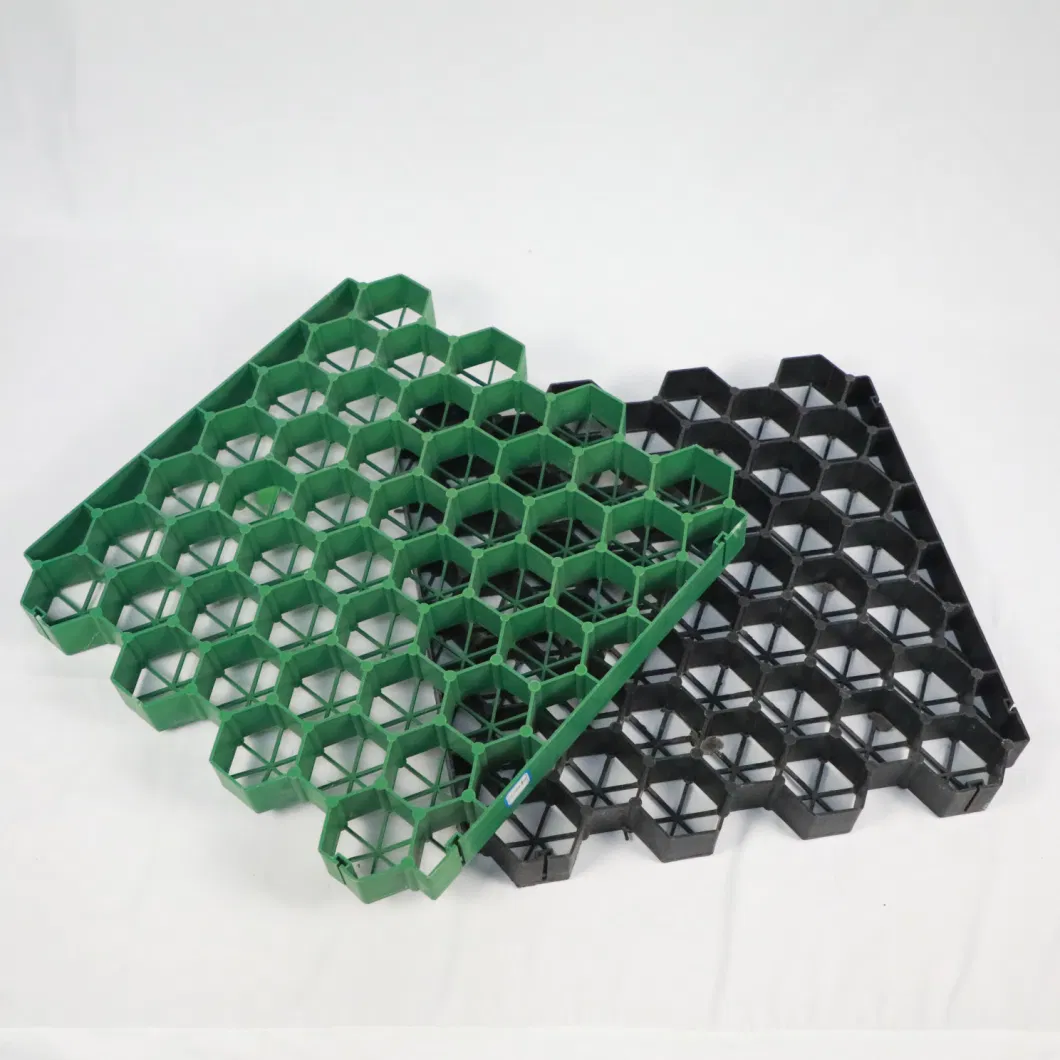

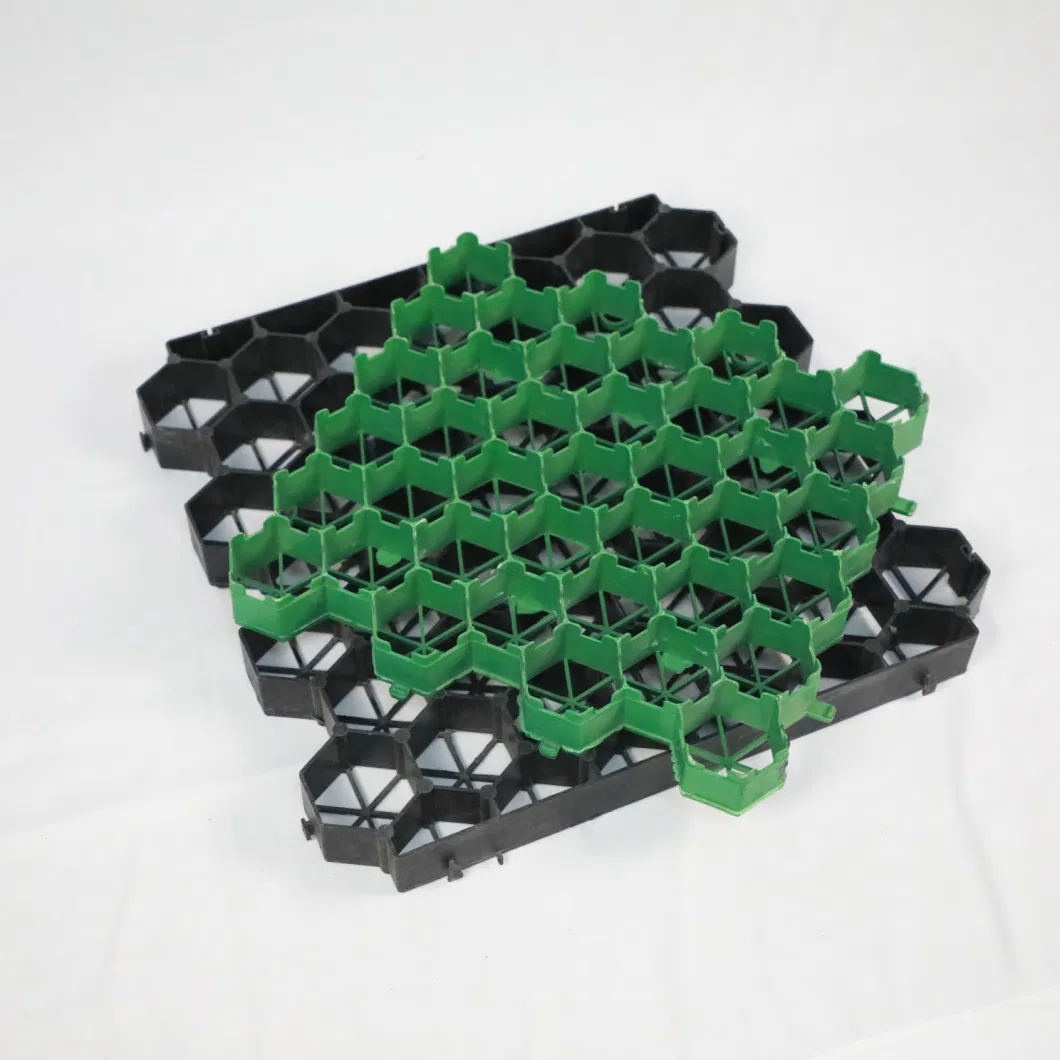

Road Construction Gravel Grid, Grass Grid Mats For Road Surfacing Grid Parking Lot 2

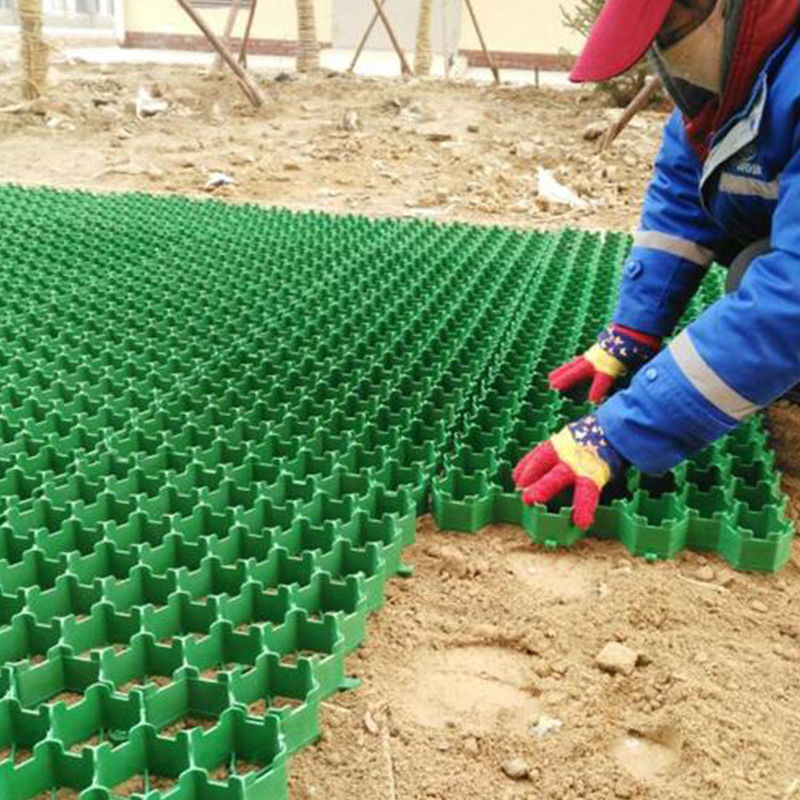

How to install?
1. Start in corner of the project area with male tabs of first grid facing towards the center of the area
2. Line up female slots of next grid over male tabs of the first grid.
3. Lock grid into its place.
4. Repeat until the area is covered with a connected grid.
5. Gravel fill: Fill the grid with the desired aggregate to top of the grid.
6. Lightly compact to settle.
7. Grass fill: Fill the grid with soil and seed.

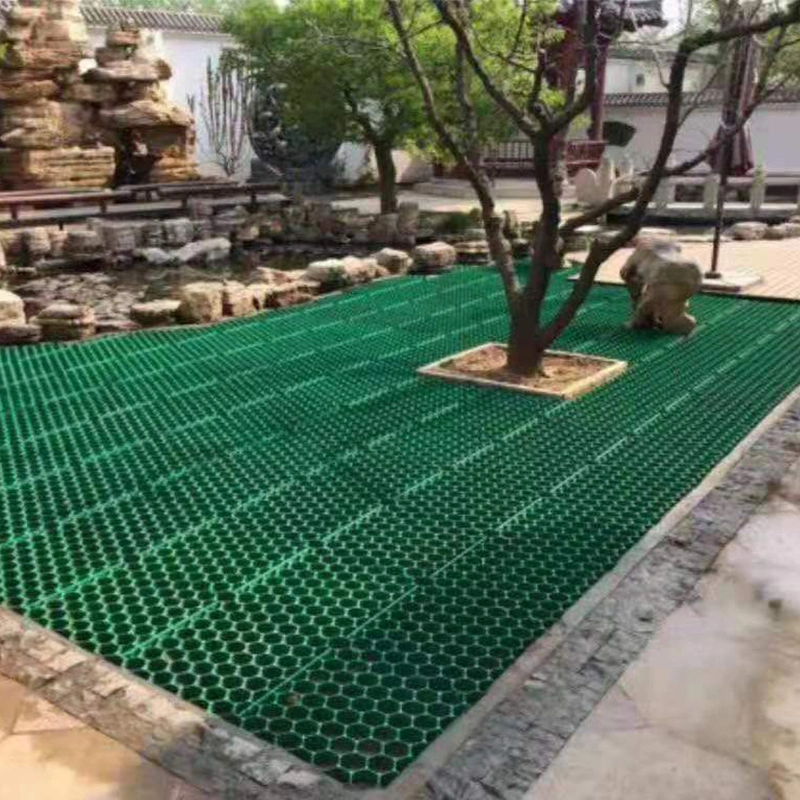

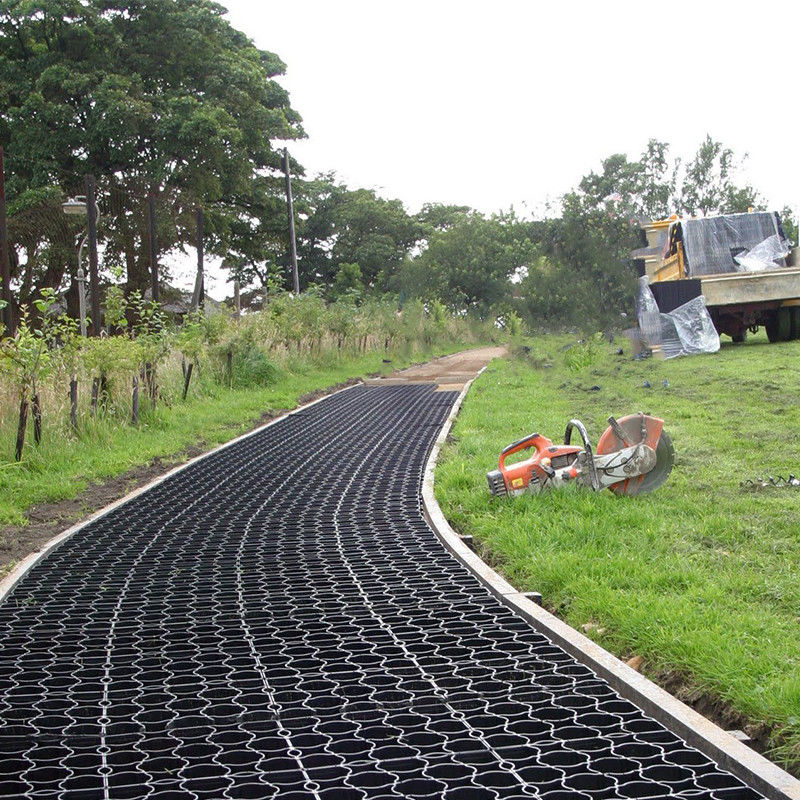

Road Construction Gravel Grid, Grass Grid Mats For Road Surfacing Grid Parking Lot 3

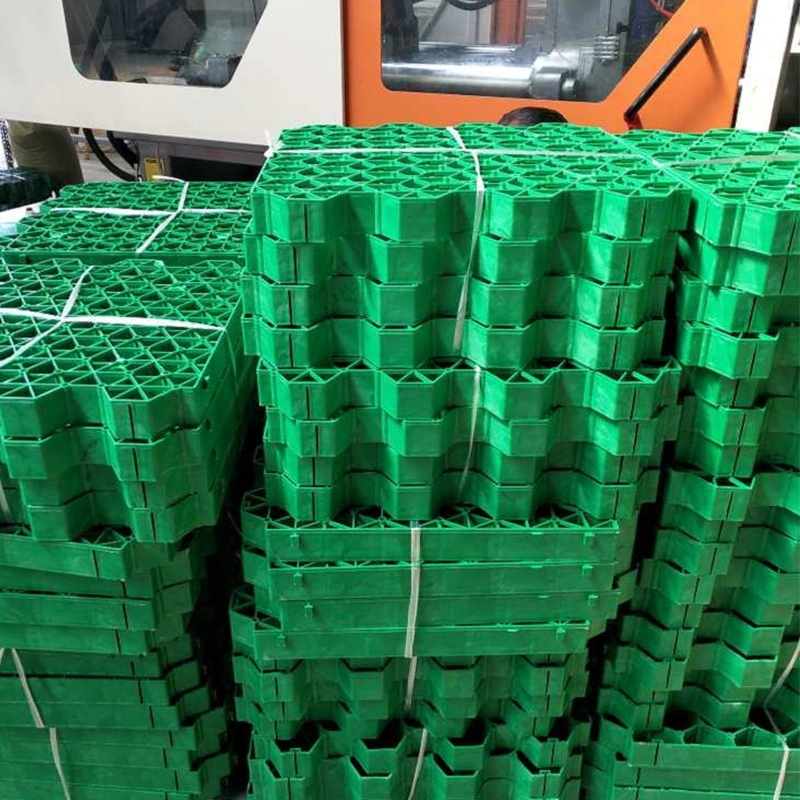

Road Construction Gravel Grid, Grass Grid Mats For Road Surfacing Grid Parking Lot 4

5.Funcation:

1) Make reinforcement treatment for soft soil foundation
2) Protect steep slope
3) Used in highway, railway, airport, wharf
4) Especially in Airslaked Mountain, desert and swamp land etc.

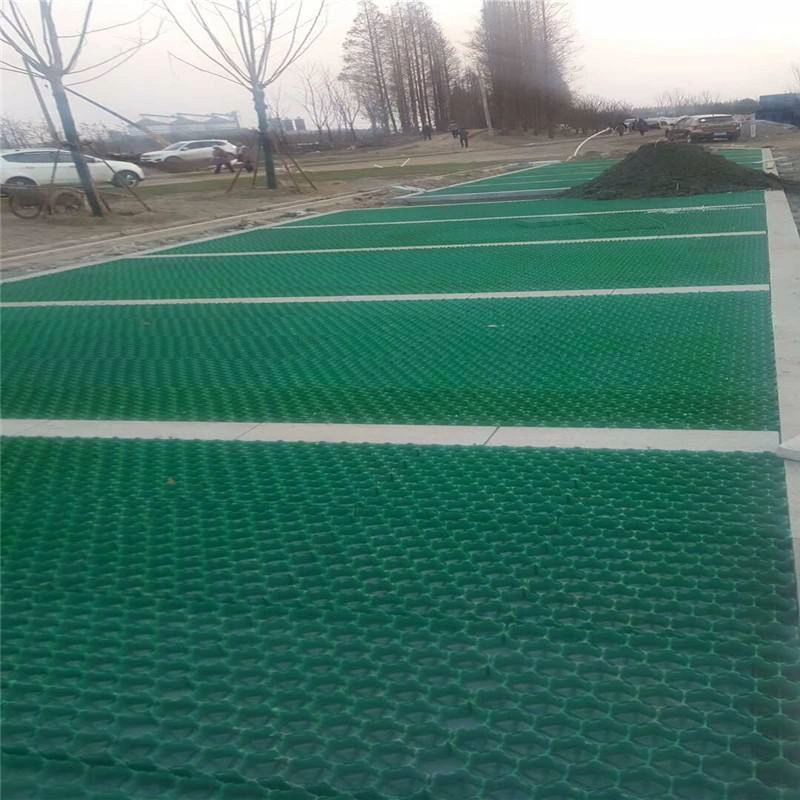

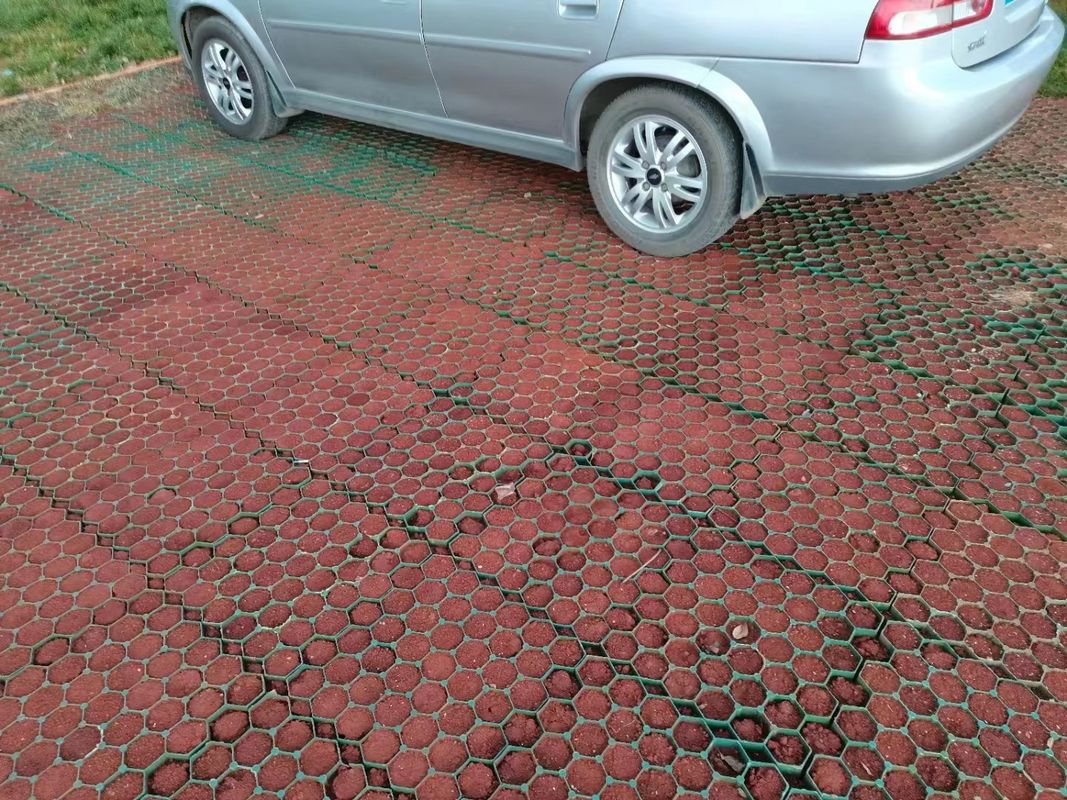

Road Construction Gravel Grid, Grass Grid Mats For Road Surfacing Grid Parking Lot 5

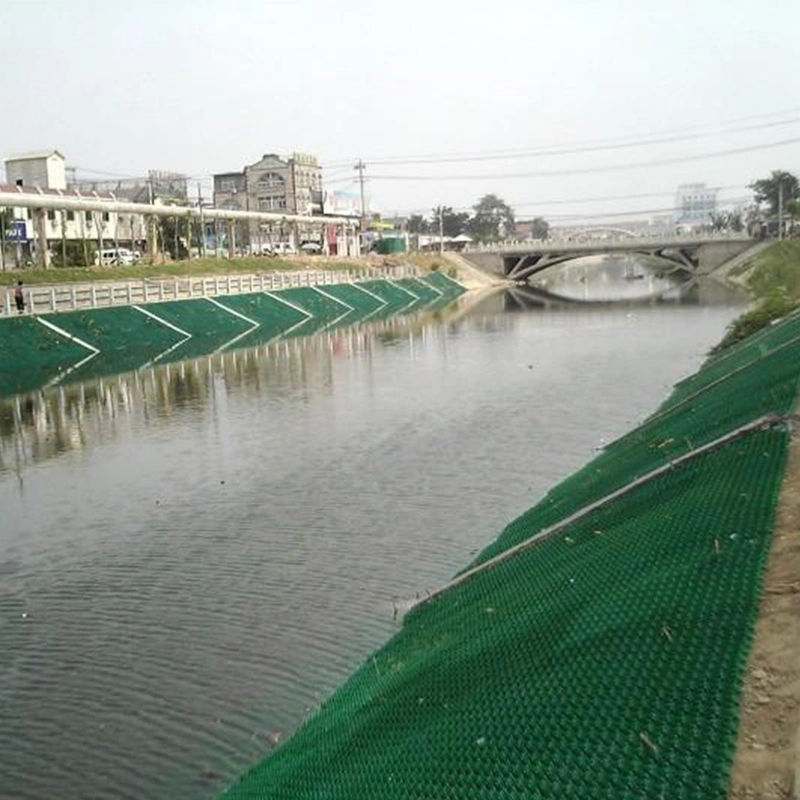

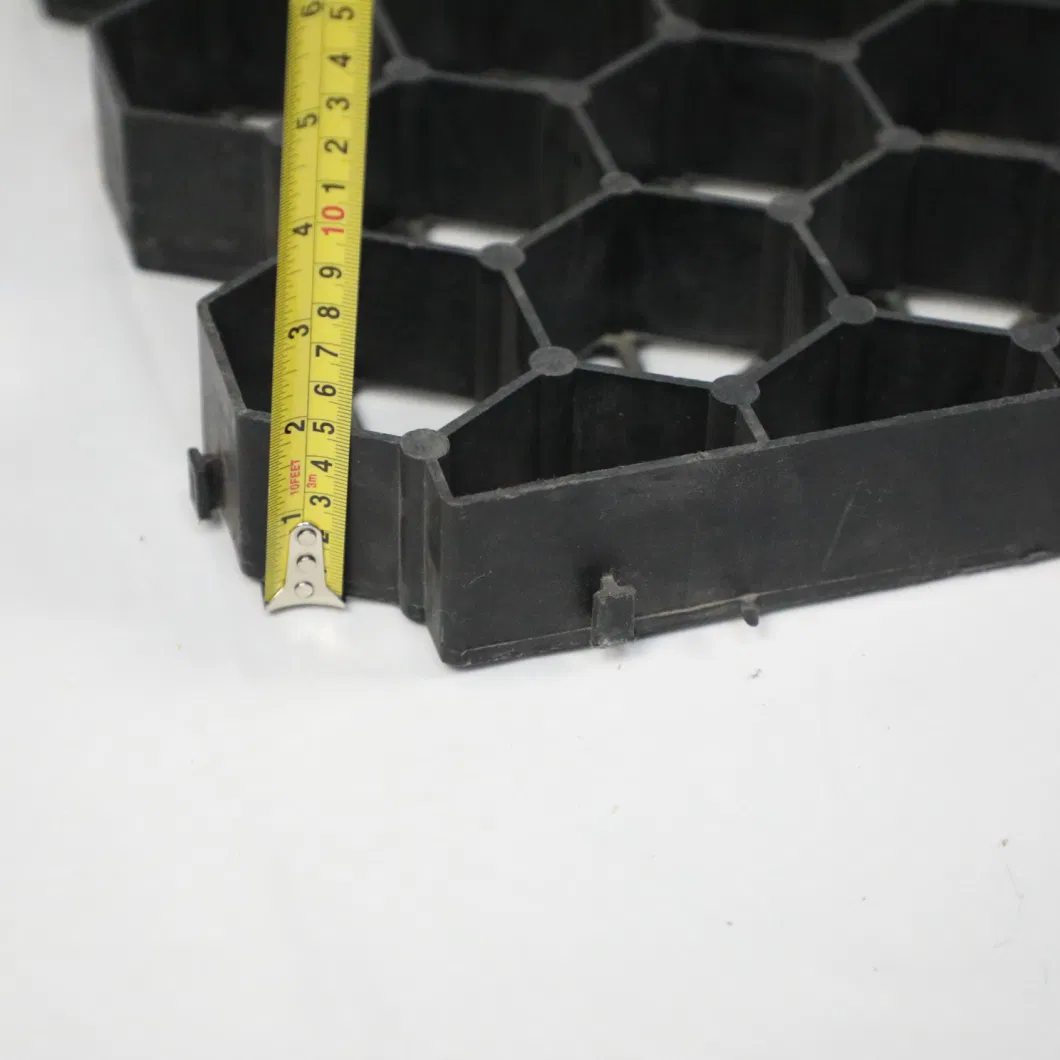

Road Construction Gravel Grid, Grass Grid Mats For Road Surfacing Grid Parking Lot 6

6. Application:

1.Grass Parking Lots
2.Overflow grass car & bus parking lots
3.Grass Fire Truck Access routes / Fire Lanes
4.Handicap access routes
5.Golf cart paths
6.Emergency grass access roads
7.Residential access and parking spaces
8.Grass Driveway and grass shoulders

Road Construction Gravel Grid, Grass Grid Mats For Road Surfacing Grid Parking Lot 7

Road Construction Gravel Grid, Grass Grid Mats For Road Surfacing Grid Parking Lot 8

FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Geogrid,Geotextile,Geocell,Geomembrane,Geocomposite,Spunbond Nonwoven Fabric

Professional geosynthetics manufacturer
Anhui Zhonglu Engineer Materials Co., Ltd
