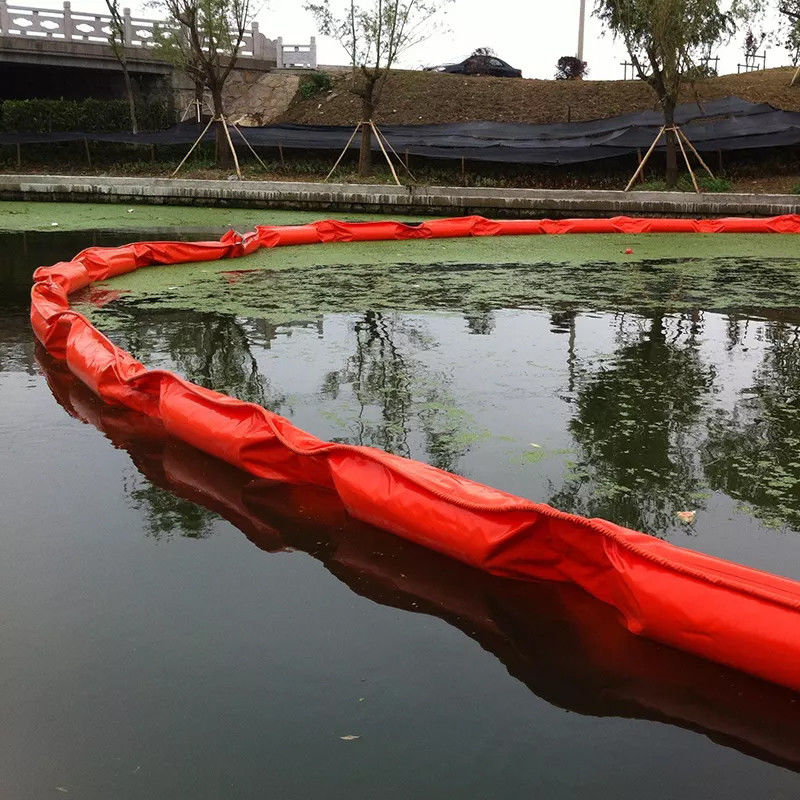

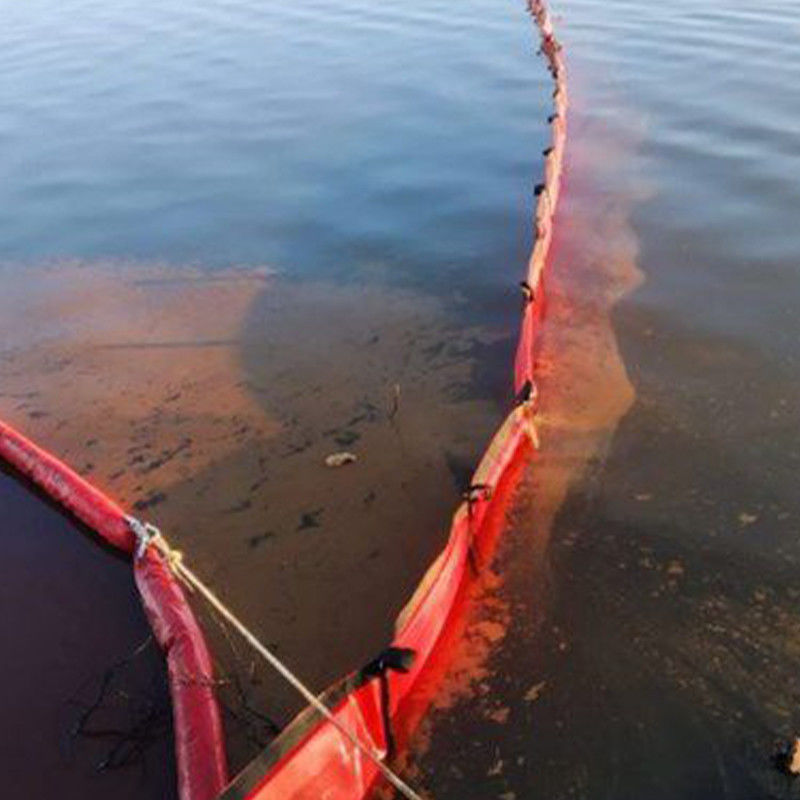

Woven Geotextile Silt Curtain Turbidity Curtain
| CODE | WQV600 | WQV900 | WQV1100 | WQV1500 | WQV2000 | |
| TOTAL HEIGHT(MM) | 600 | 900 | 1100 | 1500 | 2000 | |
| FREEBOARD(MM) | 130 | 320 | 360 | 500 | 600 | |
| DRAFT(MM) | 380 | 460 | 560 | 750 | 1100 | |
| SECTION LENGTH(M) | 200 | |||||
| WORKING PRESSURE(PA) | 3000-5000 | |||||
| WORKING CONDITION | TENTION STRENGHT(KN) | 20 | 50 | 80 | 120 | 150 |
| WAVE HEIGHT(M) | 0.3 | 1 | 1.5 | 3 | 3 | |
| WIND SPEED(M/S) | 8 | 15 | 15 | 20 | 20 | |
| FLOW RATE(KN) | 1 | 2 | 3 | 3 | 3 | |
STRUCTURE:
1. Boom's membrane is PVC double-face coated reinforced fabric.
2. A top ridge rope, middle reinforced belts and a bottom balance chain on boom sections bear the longitudinal load, and form concaves both at the skirt in water and at the flexible sections above water when boom is in a current.
3. There are flexible sections between cross beam like floaters.
4. Easily connect boom sections, which are 20m long.
5. Every section has anchor seats.
