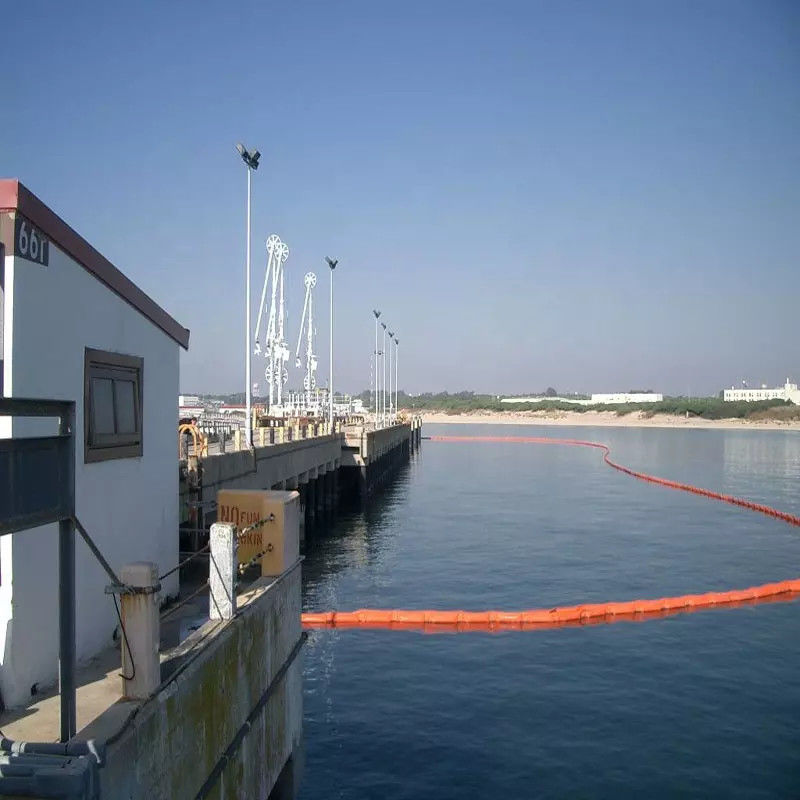

PVC Silt Curtain is the main product to protect the environment in the sea and large river. It can prevent the silt when reclamation, port construction and other project.The main purpose to protect the environment is to stop the suit from being widely diffused. The application of using silt curtain is an useful and popular way at the moment.

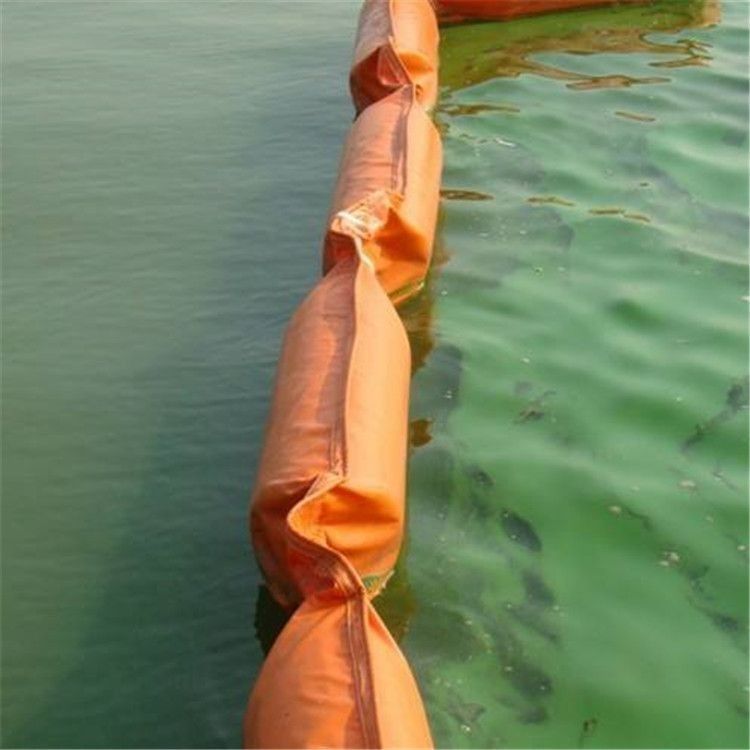

The Silt Curtain includes the floating and skirt. The floating pocked is PVC material. It’s UV restraint. The floating is EPS, and sealed with plastic film. The floating is very soft, it can be folded one by one. The chain is at the bottom of the skirt to make sure of its stability.The rope and reinforcing belt as well as chain are stressed in longitudinal. There is anchor socket on both sides of silt curtain in order to connect each piece easily.
| CODE | WQV600 | WQV900 | WQV1100 | WQV1500 | WQV2000 | |
| TOTAL HEIGHT(MM) | 600 | 900 | 1100 | 1500 | 2000 | |
| FREEBOARD(MM) | 130 | 320 | 360 | 500 | 600 | |
| DRAFT(MM) | 380 | 460 | 560 | 750 | 1100 | |
| SECTION LENGTH(M) | 200 | |||||
| WORKING PRESSURE(PA) | 3000-5000 | |||||
| WORKING CONDITION | TENTION STRENGHT(KN) | 20 | 50 | 80 | 120 | 150 |
| WAVE HEIGHT(M) | 0.3 | 1 | 1.5 | 3 | 3 | |
| WIND SPEED(M/S) | 8 | 15 | 15 | 20 | 20 | |
| FLOW RATE(KN) | 1 | 2 | 3 | 3 | 3 | |
