38mm 48mm 68mm Plastic Grass Gravel Paver Grid For Car Parking

38mm 48mm 68mm Plastic Grass Gravel Paver Grid For Car Parking

Plastic Grass Grid 68mm

Plastic Grass Gravel Paver Grid

Car Parking Grass Gravel Paver Grid

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO9001

Contact Us

Request A Quote
Product Details
Length:
Normal 50mm
Width:
395/455/496/532mm
Application:
Electrical Engineering, Roads & Railways & Airpor
Specification:
38mm, 48mm, 68mm
Usage:
Greening System
Material:
HDPE
Product Description

Product Description

Grass Paver is a structure which provides incredible load bearing strength while protecting vegetation root systems from deadly compaction .High void spaces within the entire cross-section enable excellent root development ,and storage capacity for rainfall from storm events .

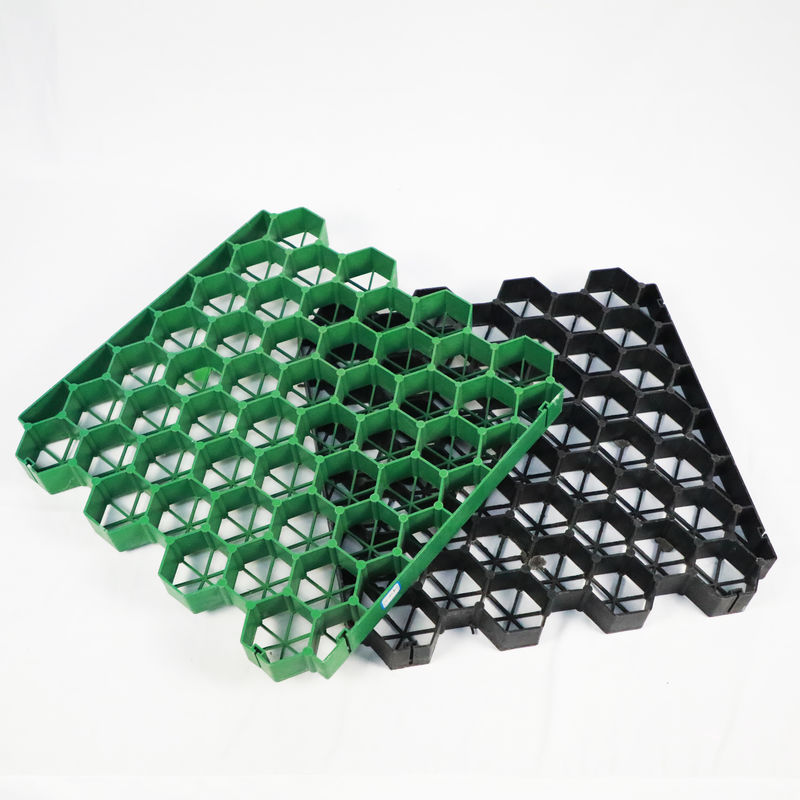

Plastic Grass Gravel Paver Grid for Car Parking

2.Technical Data:

Product Name Plastic Grass Paver
Model GPP-38 GPP-48 GPP-68

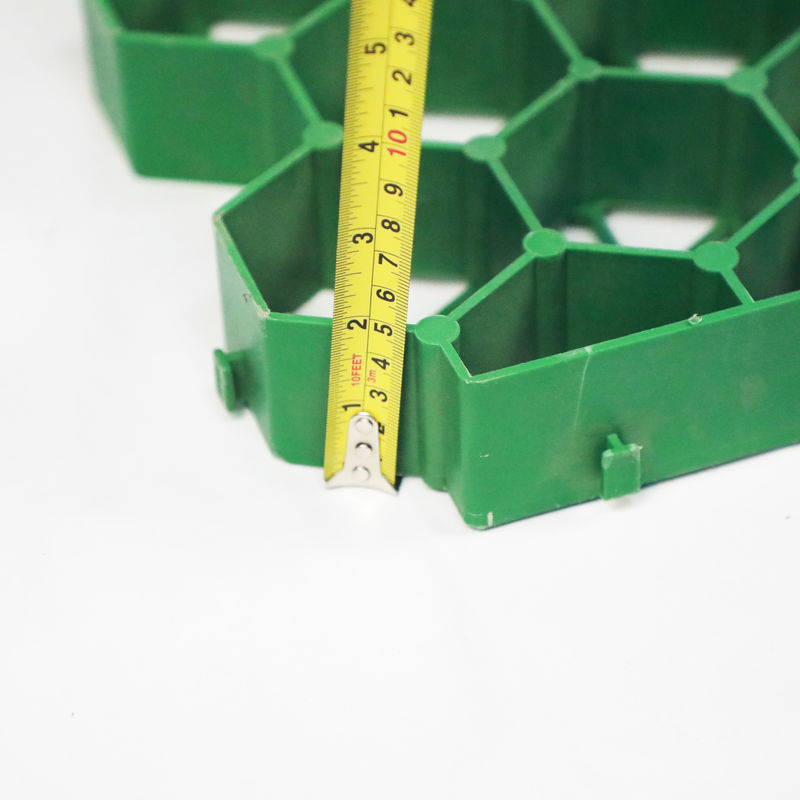

Size(mm) 410×390×38 410×390×48 410×390×68
500×500×38 500×500×68
Pressure Strength 160ton/sqm-250ton/sqm
Material HDPE ( high-density polyethylene )
Product Type Virign material and Recycled Material
Durability at least 4 years in neutral ground of 4 < pH < 9
Working Temperature Apply in temperature of -10ºC to 50ºC
Anti HCL 30%x24h, no visible change
Thermal Aging 70ICx24h, no visible change
Anti UV UPE>30 T(UVA)AV<5%, qualified
3.Advantages
1.Reduce ground reflection, reduce ground heat radiation
2.Reduce the ground acoustic wave transmission, reduce noise pollution.
3.Reduce dust and purify the air
4.Natural leakage of rainwater, soil does not lose, no water phenomenon
5.Free combination and disassembly, reusable
6.Easy to install.
Plastic Grass Gravel Paver Grid for Car Parking
Plastic Grass Gravel Paver Grid for Car Parking

4.Features:
-Impact resistant, anti-aging, anti-UV
-Abrasion and corrosion resistance, good flame retardancy, strong grass planting function
-Reduce ground reflection, reduce ground heat radiation
-Reduce the ground acoustic transmission, reduce noise pollution
-Reduces dust and purifies air
-Natural seepage of rainwater, no loss of soil, no waterlogging
-Natural circulation of water, air and fertilizer, no soil caking
-Increases green area
-Simple construction and light weight
-Free combination and disassembly, reusable
-Can withstand a weight of over 300T/m2

Plastic Grass Gravel Paver Grid for Car Parking
Plastic Grass Gravel Paver Grid for Car Parking

5.Funcation:

1) Make reinforcement treatment for soft soil foundation
2) Protect steep slope
3) Used in highway, railway, airport, wharf
4) Especially in Airslaked Mountain, desert and swamp land etc.

Plastic Grass Gravel Paver Grid for Car Parking
Plastic Grass Gravel Paver Grid for Car Parking


6.How to install?
1. Start in corner of the project area with male tabs of first grid facing towards the center of the area
2. Line up female slots of next grid over male tabs of the first grid.
3. Lock grid into its place.
4. Repeat until the area is covered with a connected grid.
5. Gravel fill: Fill the grid with the desired aggregate to top of the grid.
6. Lightly compact to settle.

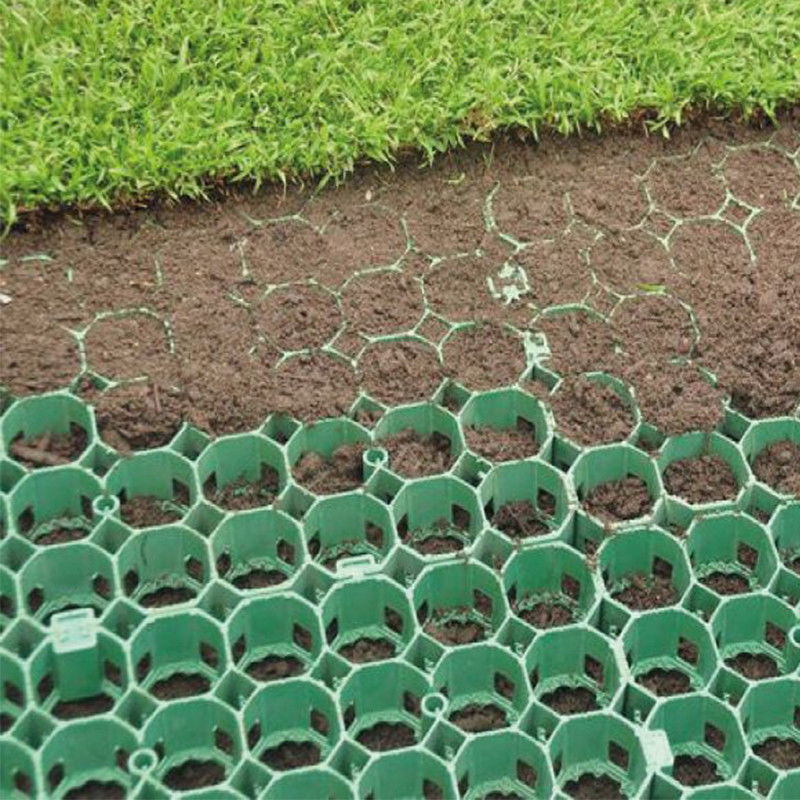

7. Grass fill: Fill the grid with soil and seed.

Plastic Grass Gravel Paver Grid for Car Parking
7. Application:

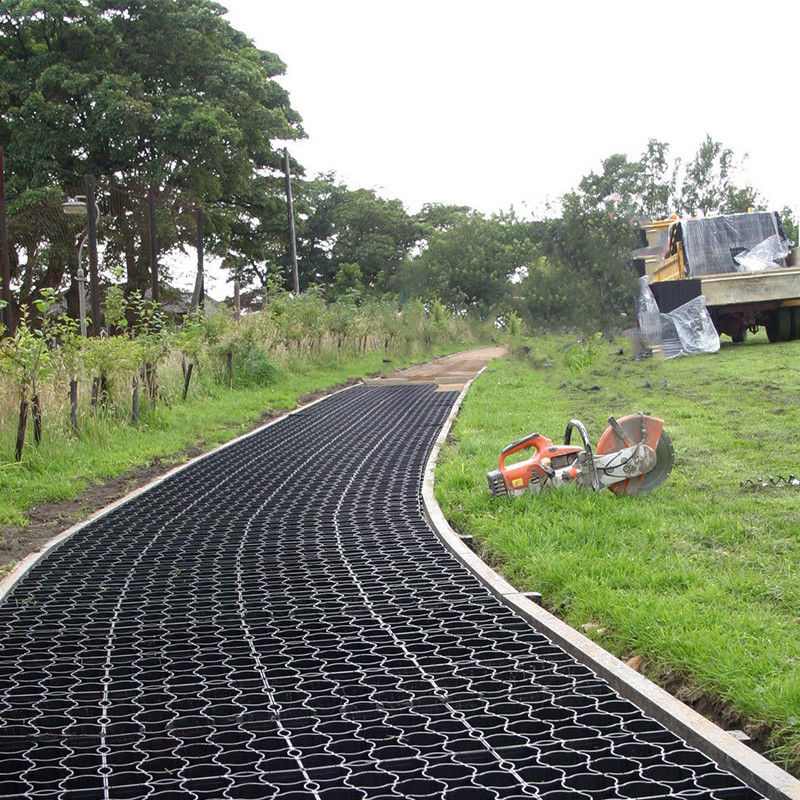

1.Grass Parking Lots
2.Overflow grass car & bus parking lots
3.Grass Fire Truck Access routes / Fire Lanes
4.Handicap access routes
5.Golf cart paths
6.Emergency grass access roads
7.Residential access and parking spaces
8.Grass Driveway and grass shoulders

Plastic Grass Gravel Paver Grid for Car Parking
Plastic Grass Gravel Paver Grid for Car Parking
