Curtains and Silt Curtains PVC Boom Instruction:
Turbidity curtain, silt barrier, silt screen, or turbidity barriers, as they are sometimes called, are floating oil spill containment boom used in marine construction, dredging, and remediation?projects?to control the silt and sediment in a body of water.
Marine turbidity screen for dredging are custom designed and manufactured specifically to project requirements. Complete information of specific hydraulic conditions at marine construction sites is important to ensure the marine containment booms system is properly designed and effective when deployed in those hydraulic conditions

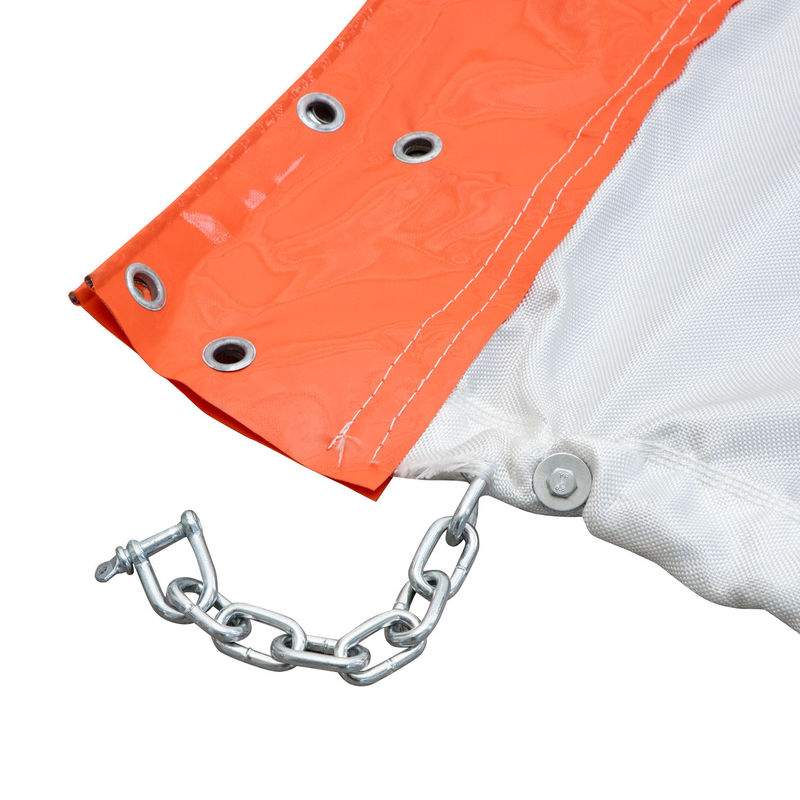

Orange color turbidity screen are made of special grade high strength geotextiles that offer excellent water permeability whilst confining sediments and other materials withing the silt curtain barrier. The vertically suspended turbidity screen for dredging are stabilized with a flotation and mooring system. Complete with the necessary accessories such as floats, ballast chains, stay cables etc, the silt curtains are easily deployed during installation. Silt Curtain systems may be supplied as panels for assembly at site.
Benefits of Silt Curtain systems:
Custom designed to project requirements
Effective in turbidity control and confining sediments to maintain safety and environmental practices
Complete and effective prefabricated system with accessories
Custom designed to project requirements
Effective in turbidity control and confining sediments to maintain safety and environmental practices
Complete and effective prefabricated system with accessories
| PVC Flotation Oil Boom Specification | ||||||||
| Model | FOB-650 | FOB-700 | FOB-750 | FOB-800 | FOB-900 | FOB-950 | FOB-1000 | FOB-1100 |
| freeboard | 180mm | 260mm | 250mm | 330mm | 325mm | 320mm | 160mm | 250mm |
| sea gauge | 320mm | 400mm | 410mm | 540mm | 650mm | 770mm | 340mm | 500mm |
| standard length | 20m15m,10m | |||||||
| standard | 20KN | 40KN | 55KN | 65KN | 75KN | 85KN | 20KN | 35KN |
| strength | ||||||||
| scale of submerged weight | 3.9 | 5.6 | 4.9 | 6.2 | 5.6 | 5.5 | 3.2 | 4.2 |
| weight | 3.7kg/m | 6.2kg/m | 7.1kg/m | 8.4kg/m | 9.3kg/m | 9.5kg/m | 3.3kg/m | 4.5kg/m |
| Max. wave resisted | 0.5m | 1m | 1.5m | 1.8m | 2m | 1m | 0.5m | 0.5m |
| Max. wind speed resisted | 10m/s | 15m/s | 15m/s | 18m/s | 18m/s | 20m/s | 10m/s | 10m/s |
| Max. flow velocity resisted | 1 | 1.5 | 2 | 2Kn | 2.5Kn | 2.5Kn | 1 | 1 |
| 20m/60m Packing | 1*1*0.6 | 1.2*1*1 | 1.3*1.1*1.1 | 1.4*1.5*1.2 | 1.4*1.6*1.3 | 1.4*1.7*1.4 | 1.4*1.7*0.8 | 1.4*1.7*1.2 |
applications include:
Bridge construction or repair
Rock wall construction or repair
Jetty construction or repair
Civil works in or adjacent to waterways
Coastal or marine dredging
Excavation
Sediment pond management
