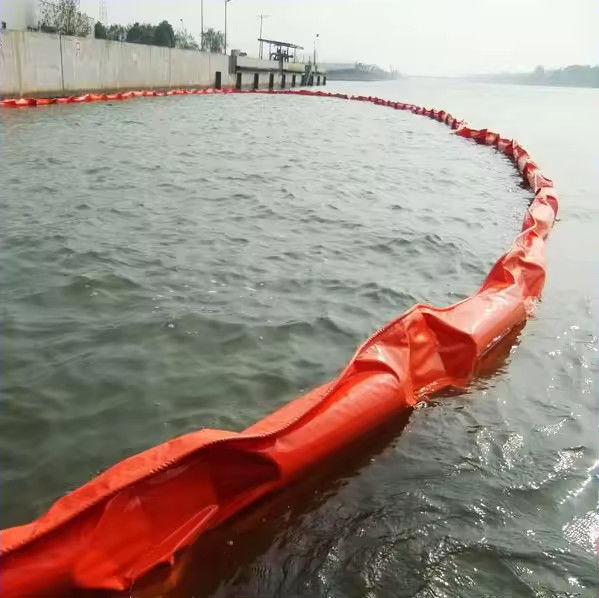

Curtains and Silt Curtains PVC Boom Instruction:
PVC Silt Curtain is the main product to protect the environment in the sea and large river. It can prevent the silt when reclamation, port construction and other project.The main purpose to protect the environment is to stop the suit from being widely diffused. The application of using silt curtain is an useful and popular way at the moment.
The Silt Curtain includes the floating and skirt. The floating pocked is PVC material. It's UV restraint. The floating is EPS, and sealed with plastic film. The floating is very soft, it can be folded one by one. The chain is at the bottom of the skirt to make sure of its stability.The rope and reinforcing belt as well as chain are stressed in longitudinal. There is anchor socket on both sides of silt curtain in order to connect each piece easily.
Skirt: you can choose PET need punch geotextile or terylene fabric.
Connection: belt & terylene rope.
Benefits of Silt Curtain systems:
Custom designed to project requirements
Effective in turbidity control and confining sediments to maintain safety and environmental practices
Complete and effective prefabricated system with accessories
Custom designed to project requirements
Effective in turbidity control and confining sediments to maintain safety and environmental practices
Complete and effective prefabricated system with accessories
| PVC Flotation Oil Boom Specification | ||||||||
| Model | FOB-650 | FOB-700 | FOB-750 | FOB-800 | FOB-900 | FOB-950 | FOB-1000 | FOB-1100 |
| freeboard | 180mm | 260mm | 250mm | 330mm | 325mm | 320mm | 160mm | 250mm |
| sea gauge | 320mm | 400mm | 410mm | 540mm | 650mm | 770mm | 340mm | 500mm |
| standard length | 20m15m,10m | |||||||
| standard | 20KN | 40KN | 55KN | 65KN | 75KN | 85KN | 20KN | 35KN |
| strength | ||||||||
| scale of submerged weight | 3.9 | 5.6 | 4.9 | 6.2 | 5.6 | 5.5 | 3.2 | 4.2 |
| weight | 3.7kg/m | 6.2kg/m | 7.1kg/m | 8.4kg/m | 9.3kg/m | 9.5kg/m | 3.3kg/m | 4.5kg/m |
| Max. wave resisted | 0.5m | 1m | 1.5m | 1.8m | 2m | 1m | 0.5m | 0.5m |
| Max. wind speed resisted | 10m/s | 15m/s | 15m/s | 18m/s | 18m/s | 20m/s | 10m/s | 10m/s |
| Max. flow velocity resisted | 1 | 1.5 | 2 | 2Kn | 2.5Kn | 2.5Kn | 1 | 1 |
| 20m/60m Packing | 1*1*0.6 | 1.2*1*1 | 1.3*1.1*1.1 | 1.4*1.5*1.2 | 1.4*1.6*1.3 | 1.4*1.7*1.4 | 1.4*1.7*0.8 | 1.4*1.7*1.2 |
