Corrosion Resistant HDPE Plastic Geocell Ground Grid Used In Road Construction

Corrosion Resistant HDPE Plastic Geocell Ground Grid Used In Road Construction

Corrosion Resistant HDPE Plastic Geocell

Road Construction HDPE Plastic Geocell

HDPE Geocell Ground Grid

Place of Origin:

CHINA

Brand Name:

zhongloo

Certification:

ISO,SGS,CE

Model Number:

geocell

Contact Us

Request A Quote
Product Details
Model NO.:
300mm
Color:
Black
Application:
Retaining Wall, Dam, Railway, Highway
Function:
Distributing Load, Anti-deforming, Non-skid
Feature:
Corrosion Resistant, Oxidation Resistance, Chemical Stability, Wear-resistant
Material:
HDPE
Name:
Direct Factory Supply Strataweb Cellular Confineme
Thickness(Textured):
1.4-1.5mm
Thickness(Smooth):
1-1.1mm
Cell Depth:
50/75/100/150/200/250mm
Product Description

Detailed Photos

HDPE Plastic Geocell Used in Road Construction Geocell Ground Grid Geocell
HDPE Plastic Geocell Used in Road Construction Geocell Ground Grid Geocell

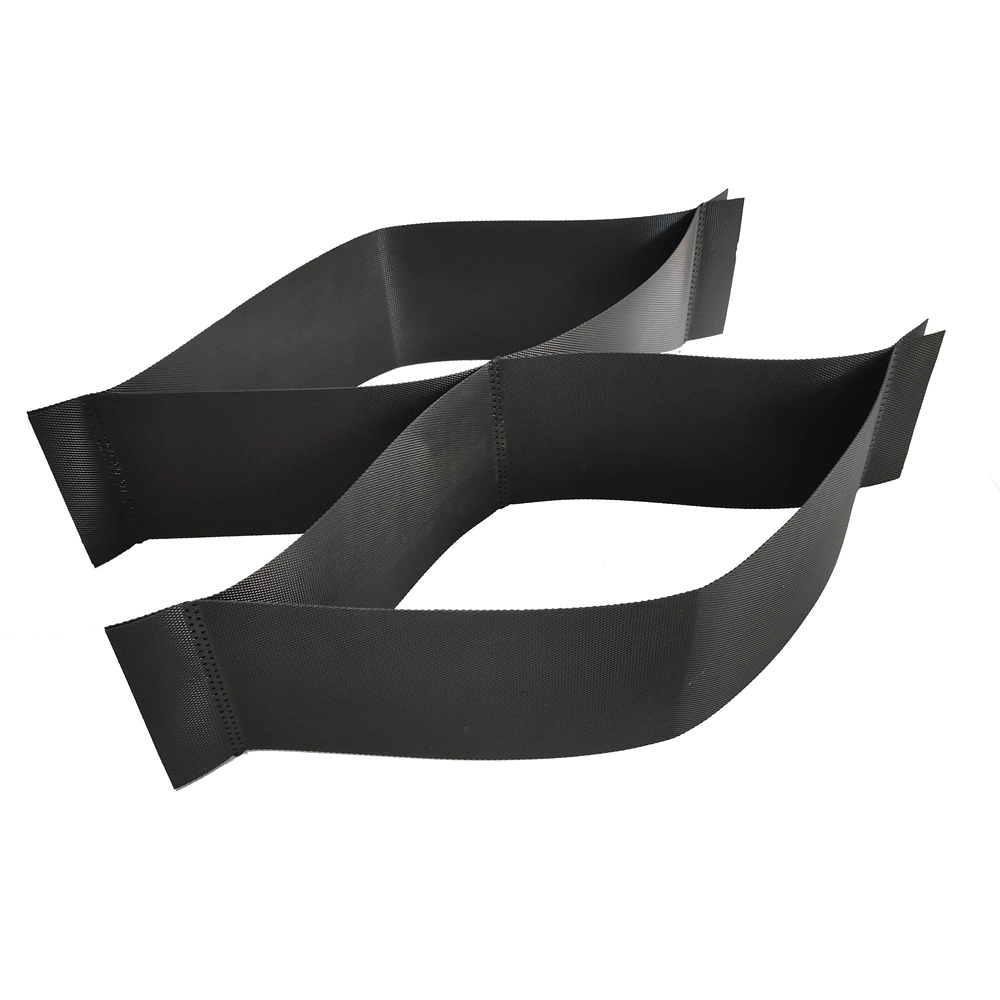

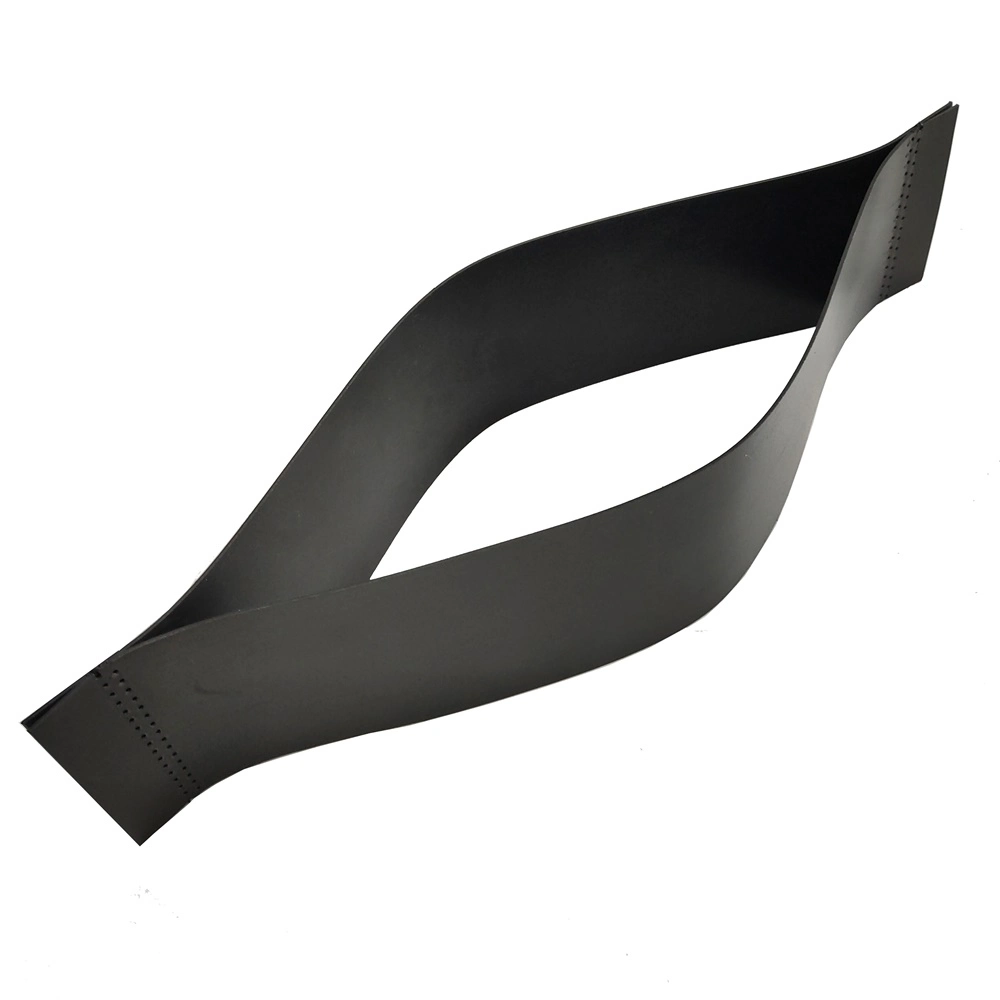

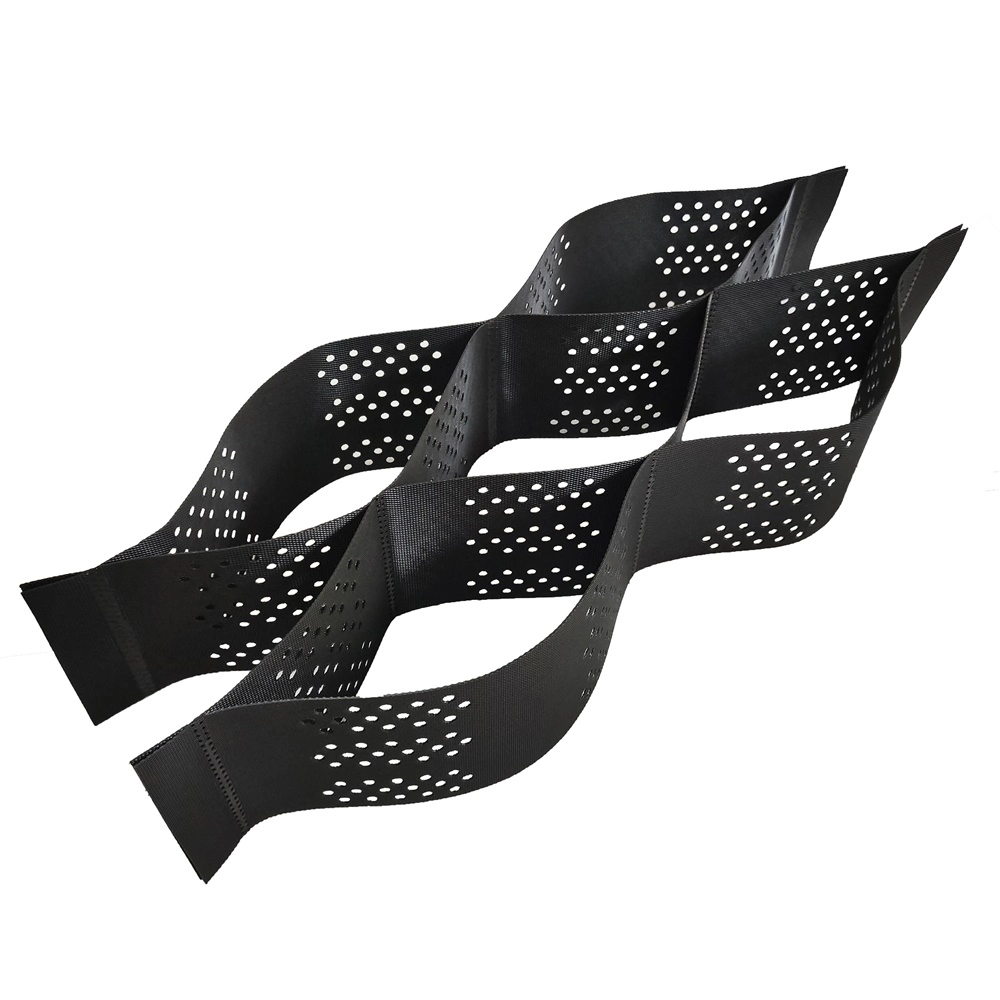

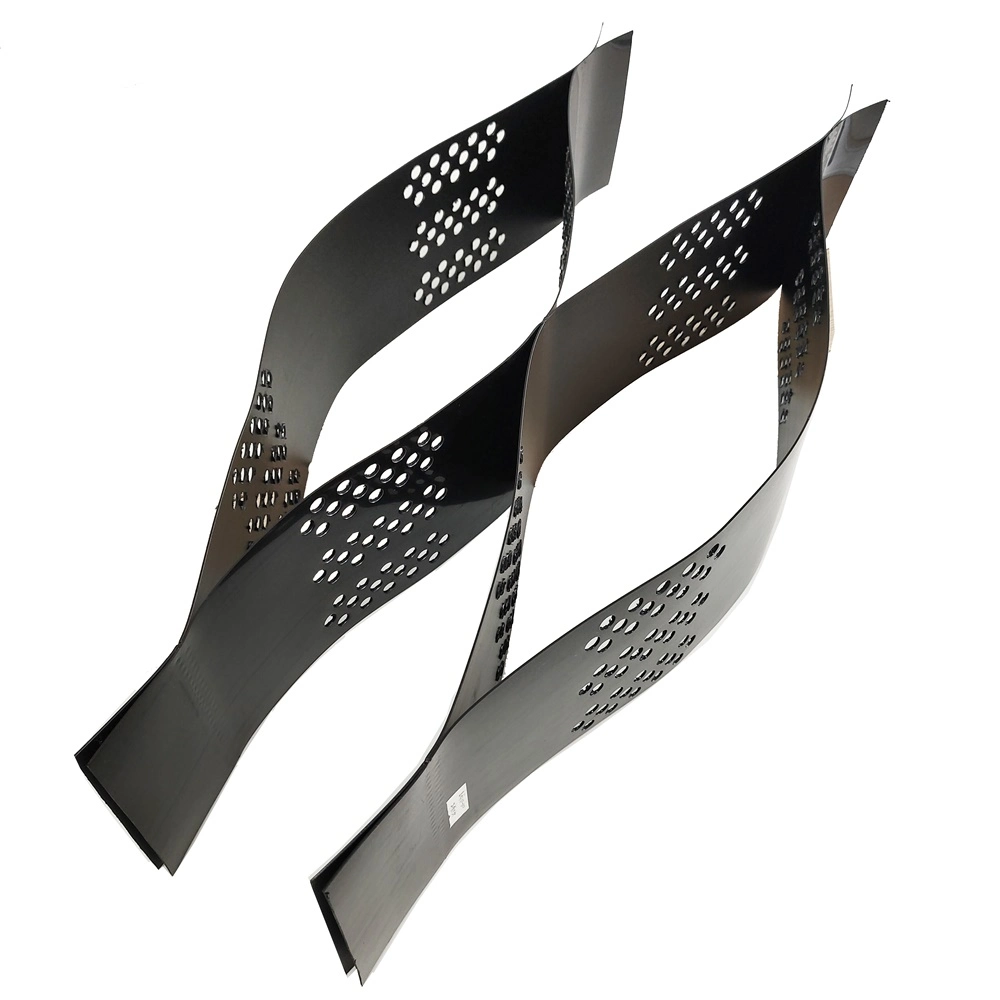

Textured & Perforated HDPE Geocell Smooth & Perforatd HDPE Geocell

HDPE Plastic Geocell Used in Road Construction Geocell Ground Grid Geocell
HDPE Plastic Geocell Used in Road Construction Geocell Ground Grid Geocell




Smooth & Non-perforated HDPE Geocell Smooth & Non-perforated HDPE Geocell


HDPE Plastic Geocell Used in Road Construction Geocell Ground Grid Geocell


Product Parameters



Properties Test Method Unit Value
Polymer   - HDPE
Density ASTM D 1505 g/cm3 0.94
Carbon black content ASTM D 1603 % 1.5
Sheet thickness(Smooth) ASTM D 5199 mm 1.1 or 1.2
Sheet thickness(Textured) ASTM D 5199 mm 1.5
Seam peel strength Cell depth
    N 75 mm 1060
    N 100 mm 1420
    N 150 mm 2130
    N 200 mm 2840
Weld spacing   mm 330 356 400 445 660 712
Expanded cell size (WxL)   mm 244X203 259X224 295X250 320X287 488X408 508X475
Expanded panel size(WxL)   m 2.44X6.15 2.56X6.52 4X5 2.56X8.35 2.44X12.29 2.56X13.72
Expanded panel area   m2 15 16.7 20 21.4 30 35.12

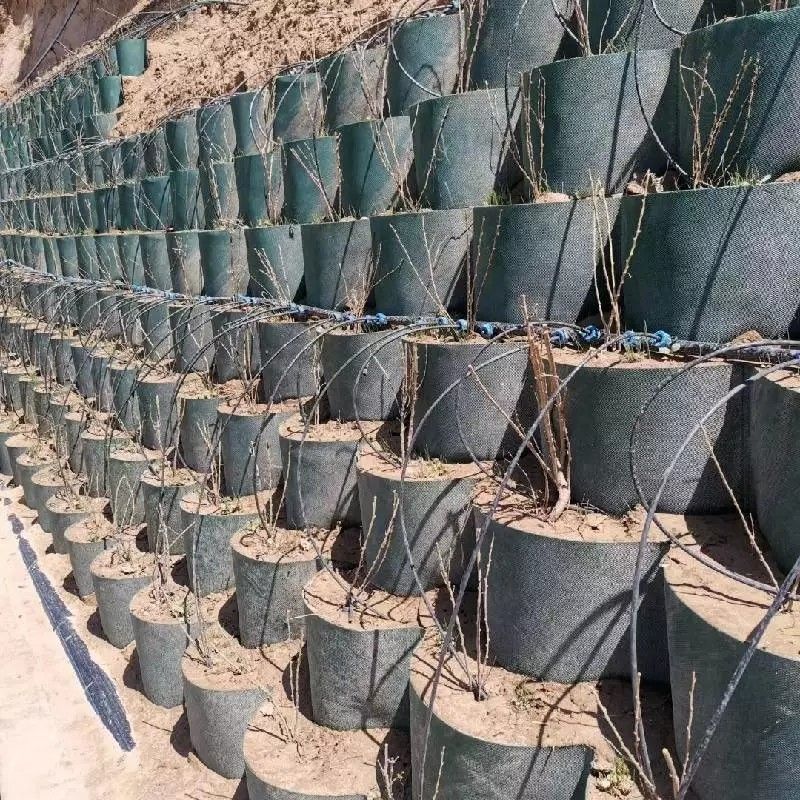

Application

1. Used for all kinds of road building, driveways, soil stabilization and embankment stabilization
2. Used to stabilize river embankments.
3. Used to prevent landslides.
4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed, construction speed, good performance and greatly reduce the project cost.
HDPE Plastic Geocell Used in Road Construction Geocell Ground Grid Geocell

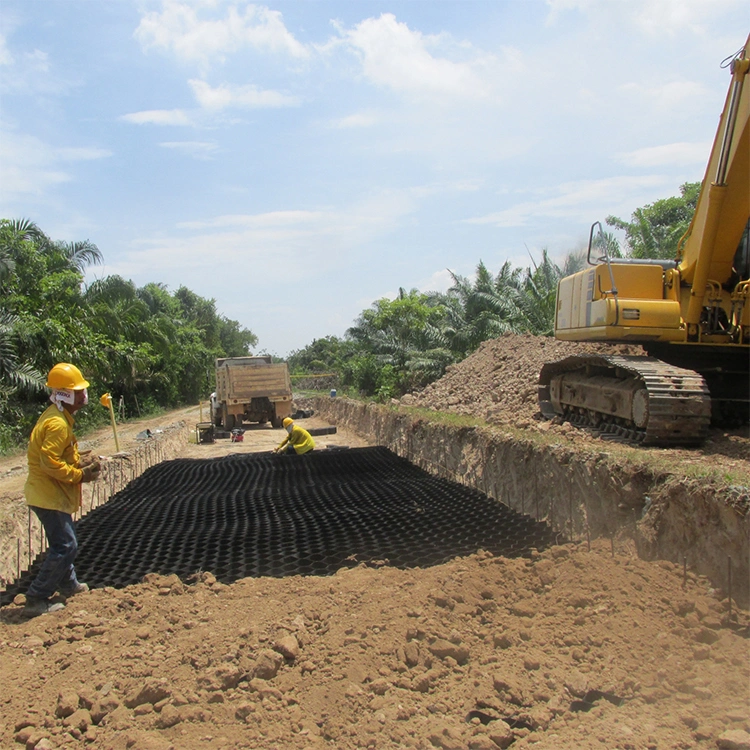

1. Project Name:
Farm Driveway Construction
Country: Saudi Arabia

Black Geocell Specification:
Height:50mm
Welding distance:330mm
Textured surface Perforated

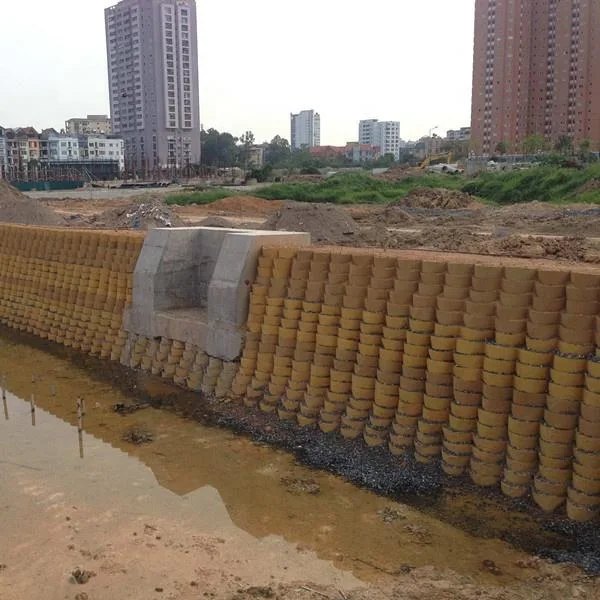

2. Project Name:
Retain Wall for River Bank
Country: Vietnam

Yellow Geocell Specification:
Height:100mm
Welding distance:356mm
HDPE Plastic Geocell Used in Road Construction Geocell Ground Grid Geocell
