Retaining Walls Driveway Geocell Gravel Grid Earthwork Products

Retaining Walls Driveway Geocell Gravel Grid Earthwork Products

Retaining Walls Driveway Geocell

Driveway Geocell Gravel Grid

HDPE Geocell Oxidation Resistant

Place of Origin:

CHINA

Brand Name:

zhongloo

Certification:

ISO,SGS,CE

Model Number:

geocell

Contact Us

Request A Quote
Product Details
Model NO.:
300mm
Product Color:
Black
Application:
Retaining Wall, Dam, Railway, Highway
Product Function:
Distributing Load, Anti-deforming, Non-skid
Feature:
Corrosion Resistant, Oxidation Resistance, Chemical Stability, Wear-resistant
Material:
HDPE
Name:
Direct Factory Supply Strataweb Cellular Confineme
Thickness(Textured):
1.4-1.5mm
Thickness(Smooth):
1-1.1mm
Cell Depth:
50/75/100/150/200/250mm
Product Description

Detailed Photos

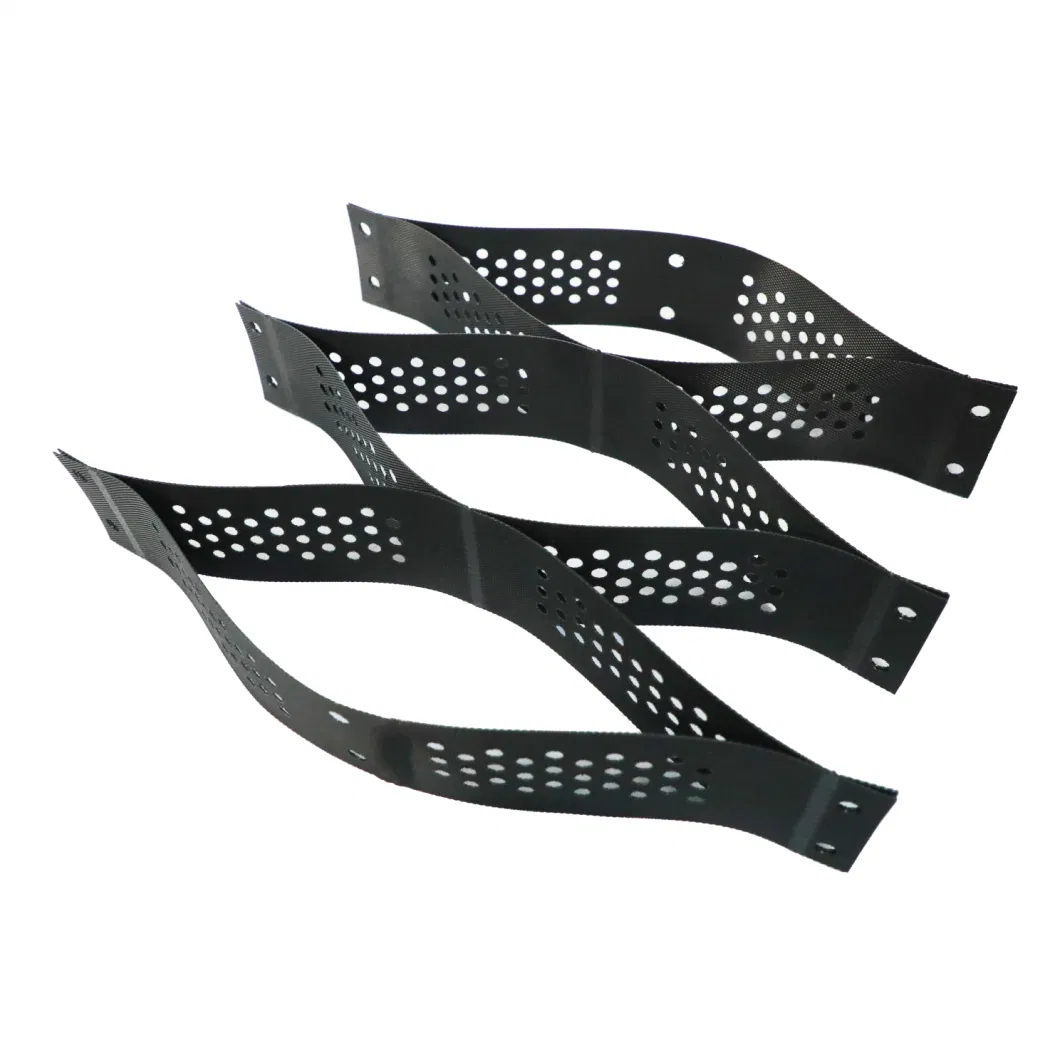

Plastic geocell cellular confinement system is three dimensional , honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique . It is flexible to fold during the transport and installation on construction site .The geocell nets will be filled with soils , granular, cements or other on-site infill materials when stretched into web structures , which has powerful and rigid confinement in the lateral and vertical sides.

1.HDPE Paving Plastic Gravel Stabilizer Geocell Introduction:
Plastic geocell cellular confinement system is three dimensional , honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique . It is flexible to fold during the transport and installation on construction site .The geocell nets will be filled with soils , granular, cements or other on-site infill materials when stretched into web structures , which has powerful and rigid confinement in the lateral and vertical sides.

Earthwork Products Driveway Geocell Retaining Walls Geocell Gravel Grid
Earthwork Products Driveway Geocell Retaining Walls Geocell Gravel Grid









Smooth & Non-perforated HDPE Geocell Smooth & Non-perforated HDPE Geocell


HDPE Plastic Geocell Used in Road Construction Geocell Ground Grid Geocell


Product Parameters



Properties Test Method Unit Value
Polymer   - HDPE
Density ASTM D 1505 g/cm3 0.94
Carbon black content ASTM D 1603 % 1.5
Sheet thickness(Smooth) ASTM D 5199 mm 1.1 or 1.2
Sheet thickness(Textured) ASTM D 5199 mm 1.5
Seam peel strength Cell depth
    N 75 mm 1060
    N 100 mm 1420
    N 150 mm 2130
    N 200 mm 2840
Weld spacing   mm 330 356 400 445 660 712
Expanded cell size (WxL)   mm 244X203 259X224 295X250 320X287 488X408 508X475
Expanded panel size(WxL)   m 2.44X6.15 2.56X6.52 4X5 2.56X8.35 2.44X12.29 2.56X13.72
Expanded panel area   m2 15 16.7 20 21.4 30 35.12
Our Advantages

Good quality and good services:
(1)Service:
A. OEM/ODM orders are warmly welcome
B. All of our products have proceeded testing before shipment and we guaranteed the good quality .
(2) Quality Control:
We have established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing .
Not only is stringent internal quality control carried out at zhonglu , but regular testing and analyzing of our product performance is implemented by authoritative testing organizations in Europe and the United States
