Biaxial Steel Plastic Reinforcement Geogrid Earthwork Products

Biaxial Steel Plastic Reinforcement Geogrid Earthwork Products

Earthwork Biaxial Steel Plastic Geogrid

Steel Plastic Reinforcement Geogrid

300kn/M Reinforcement Geotextile Geogrid

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO9001

Contact Us

Request A Quote
Product Details
Application:
Retaining Wall, Road Base
Width:
1m-6m
Length:
50m-100m/Roll
Elongation At Break:
13% Max
Specification:
25Kn/m--300Kn/m
Function:
Reinforcement
Product Description
High Quality Earthwork Products Biaxial Steel Plastic Reinforcement Geogrid
Biaxial Steel Plastic Reinforcement Geogrid Earthwork Products 0
Biaxial Steel Plastic Reinforcement Geogrid Earthwork Products 1

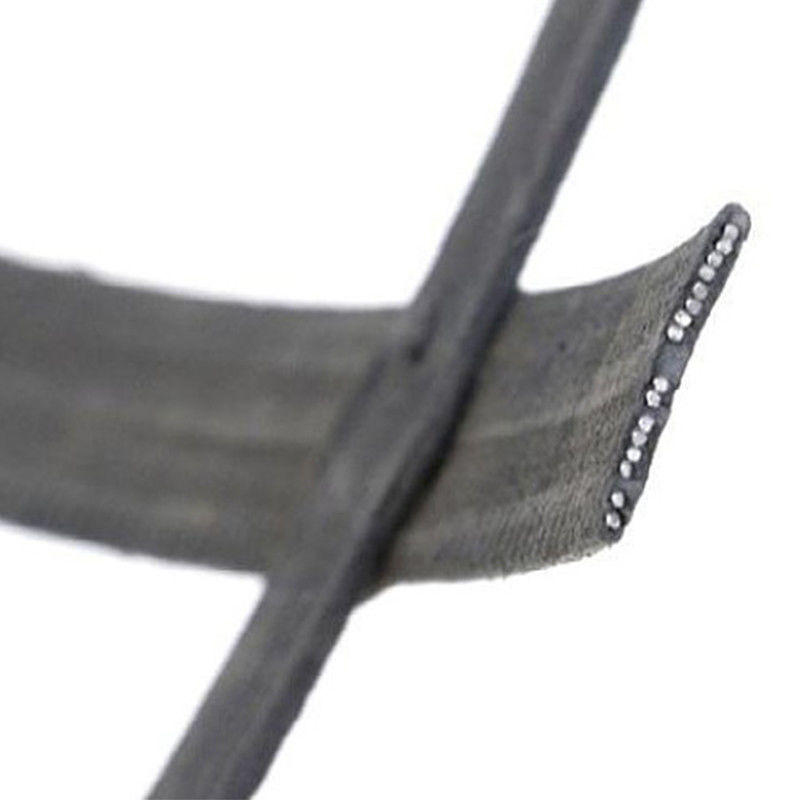

The steel plastic composite geogrid uses high tensile steel wire(or other fiber) specially handled and polyethylene (P.E) with other assistants. Then squeeze it out and make it become composite high-strength anti-pull belt and the horizontally using this single belt and welding the joint using a special welding technology to molding is reinforcement geogrid.
The products are applied widely in railway, bridge, dock, retaining wall, dam to reinforce the soft soil's and to resist the road surface's crack.
Biaxial Steel Plastic Reinforcement Geogrid Earthwork Products 2
Biaxial Steel Plastic Reinforcement Geogrid Earthwork Products 3
·Steel Plastic Geogrid has breakthrough strength compared to the traditional geogrid:

·When the bidirectional strength is used on the surface of the plastic, the rid is pressed into rough pattern to reinforce the
roughness of geogrid surface, increase the friction factor between the geogrid and soil.

·This geogrid is low cost and easy to construct, easy to pave, lap, locate, avoid the repetition and cross, so shorten the
construction period obviously.
Biaxial Steel Plastic Reinforcement Geogrid Earthwork Products 4
Steel Plastic Composite Geogrid Technical Parameter (GB standard)
Item
Specification
Type
GSZ 30-30
GSZ 50-50
GSZ 60-60
GSZ 70-70
GSZ 80-80
GSZ 100-100
GSZ 150-150
Vertical and horizontal ultimate tensile strength≥(KN/M)
30
50
60
70
80
100
150
Vertical and horizontal ultimate tensile strength elongation≤(%)
3
Peel force of connection point≥(KN)
300
500
Biaxial Steel Plastic Reinforcement Geogrid Earthwork Products 5
Biaxial Steel Plastic Reinforcement Geogrid Earthwork Products 6
Biaxial Steel Plastic Reinforcement Geogrid Earthwork Products 7
Biaxial Steel Plastic Reinforcement Geogrid Earthwork Products 8
Biaxial Steel Plastic Reinforcement Geogrid Earthwork Products 9
Biaxial Steel Plastic Reinforcement Geogrid Earthwork Products 10
Biaxial Steel Plastic Reinforcement Geogrid Earthwork Products 11
Biaxial Steel Plastic Reinforcement Geogrid Earthwork Products 12
Biaxial Steel Plastic Reinforcement Geogrid Earthwork Products 13
Q:Can you send samples? A:Yes,we are very happy to provide you with free samples to check the quality of our products.
Q:Are you a manufacturer or a trading company? A:Our company located in Hefei,Anhui Province,with are gistered capital of 52 miion yuan.It is a professiona lmanufacturer of geomembrane,geotextile,geogrid and other products.So we have the competitive price with best quality.
Q:Can you produce the product according to customers' requirements? A:Sure,we are professional manufacturer,OEM and ODM are both welcome.
Q:How long is the delivery time? A:General within 3-7days after received the deposit
Q:How to control product quality? A:Our factory adopts lean management,products from the beginning to the end of the production process have strict quality control.All products must be strictly tested before packing and shipping
