Place of Origin:
CHINA
Brand Name:
zhongloo
Certification:
ISO,SGS,CE
Model Number:
geocell
Contact Us
|
Cell depth
|
50mm, 75mm, 100mm, 150mm, 200mm, 250mm
|
|
Welding space
|
330mm ~ 1600mm
|
|
Thickness
|
1)1.0mm~1.2mm for smooth geocell
(2) 1.5mm~1.7mm for textured geocell |

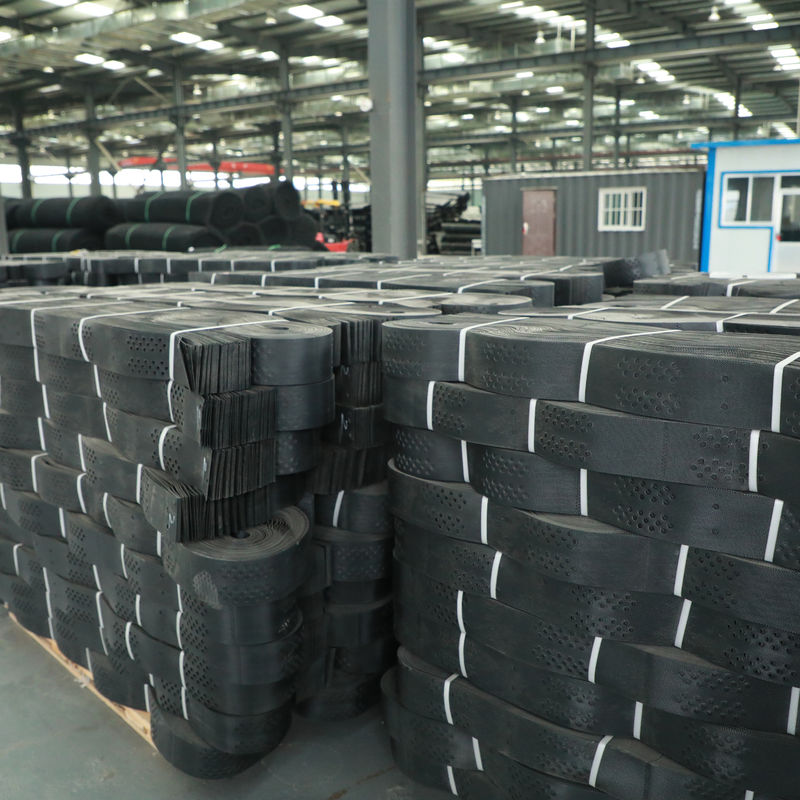

Plastic geocell cellular confinement system is three dimensional , honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique . It is flexible to fold during the transport and installation on construction site .The geocell nets will be filled with soils , granular, cements or other on-site infill materials when stretched into web structures , which has powerful and rigid confinement in the lateral and vertical sides.
1.HDPE Paving Plastic Gravel Stabilizer Geocell Introduction:
Plastic geocell cellular confinement system is three dimensional , honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique . It is flexible to fold during the transport and installation on construction site .The geocell nets will be filled with soils , granular, cements or other on-site infill materials when stretched into web structures , which has powerful and rigid confinement in the lateral and vertical sides.
2.HDPE Paving Plastic Gravel Stabilizer Geocell Specifications:
1.Cell depth: 50mm , 100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm~1600mm
3. Thickness: 1.0mm , 1.2mm , 1.5mm , 1.8mm
4. Appearance: smooth / textured
|
Material Properties
|
unit
|
|
|
|
|
Tested Method
|
||
|
Cell Depth
|
mm
|
75
|
100
|
150
|
200
|
|
||
|
Polymer Density
|
g/cm3
|
0.935-0.965
|
ASTM D 1505
|
|||||
|
Enviroment Stress Crack Resistance
|
Hours
|
>400
|
ASTM D 5397
|
|||||
|
Enviroment Stress Crack Resistance
|
Hours
|
6000
|
ASTM D 1693
|
|||||
|
Carbon Black Content
|
%
|
1.5%-2.0%
|
ASTM D 1603
|
|||||
|
Nominal Sheet Thickness Before Texturing
|
mm
|
1.27-5%,+10%
|
ASTM D 5199
|
|||||
|
Nominal Sheet Thickness After Texturing
|
mm
|
1.27-5%,+10%
|
ASTM D 5199
|
|||||
|
Strip Puncture Resistance
|
N
|
450
|
ASTM D 4833
|
|||||
|
Seam Peel Strength
|
N
|
1065
|
1420
|
2130
|
2840
|
EN ISO 13426-1B
|
||
|
Seam Efficiency
|
%
|
GRI100
|
GRI-GS13
|
|||||
|
Norminal Expanded Cell Size(width x length)
|
mm
|
320x287,475x508 etc
|
|
|||||
|
Norminal Expanded Panel Size(width x length)
|
m
|
2.56x8.35,4.5x5.0,6.5x4.5,6.1x2.44
|
||||||
