4000g GCL Hardening Bentonite Geosynthetic Clay Liner

4000g GCL Hardening Bentonite Geosynthetic Clay Liner

Place of Origin:

China

Brand Name:

zhongloo

Model Number:

FST

Contact Us

Request A Quote
Product Details
Model Number:
ZL-FST
Product Name:
Bentonite Geosynthetic Clay Liner
Usage:
Waterproof Projects
Width:
1m-6m
Length:
30m
Application:
Landfill
Product Description

4000g GCL Hardening Bentonite Geosynthetic Clay Liner



Product Description

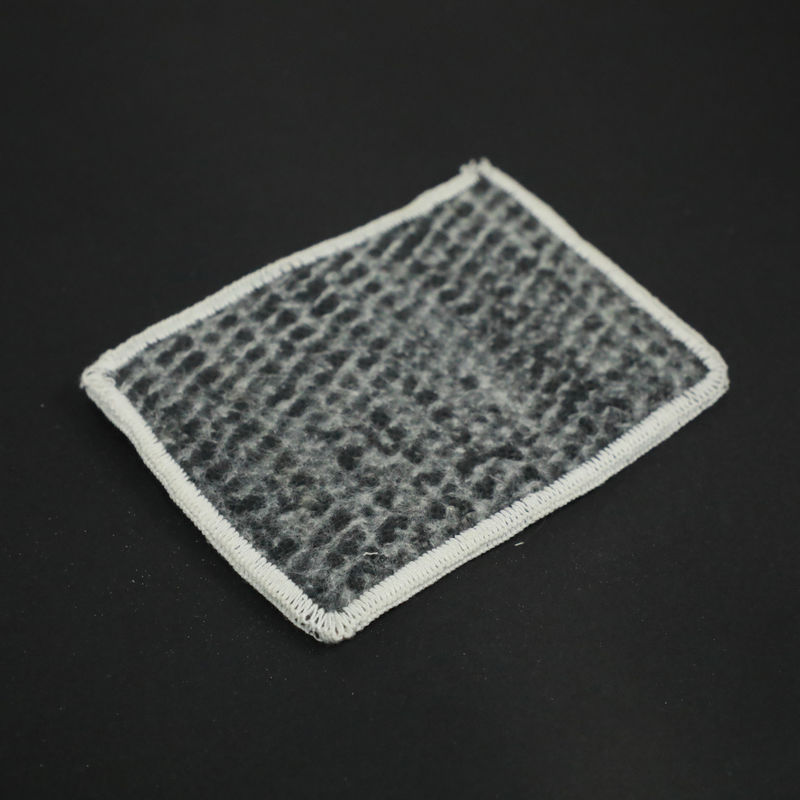

GCL sodium bentonite geosynthetic clay liner is a new type of geosynthetic material, and it can be divided into needle-punctured GCL(GCL-NP) and needle-punctured coated GCL(GCL-OF). GCL is a kind of bentonite seepage-proofing mat needle-punctured through filling sodium bentonite between woven geotextile and non-woven geotextile. Among which tiny fiber spaces can be formed to prevent bentonite particles to move to a direction. It can form glue-type water-proofing layer to prevent water leakage. Woven geotextile of 120g/㎡ and non-woven geotextile of 220g/㎡ are applied in this kind of GCL.





Technical Data:



No.

Item

Value





GCL-NP

Standard

1

GCL swell index, mL/2g

≥24

JG/T 193-2006

2

Methylene blue index, g/100g

≥30

JG/T 193-2006

3

Tensile strength, N/100mm

≥600

JG/T 193-2006

4

Elongation at break, %

≥10

JG/T 193-2006

5

Peel strength between non-woven geotextile and woven geotextile, N/100mm

≥40

JG/T 193-2006

6

Water permeability, m/s

≤5.0x10-11

JG/T 193-2006

7

Hydrostatic preserve

0.4MPa,1h,no leakage

JG/T 193-2006

8

Fluid loss,mL

≤18

JG/T 193-2006

9

GCL durability, mL/2g

≥20

JG/T 193-2006





Application

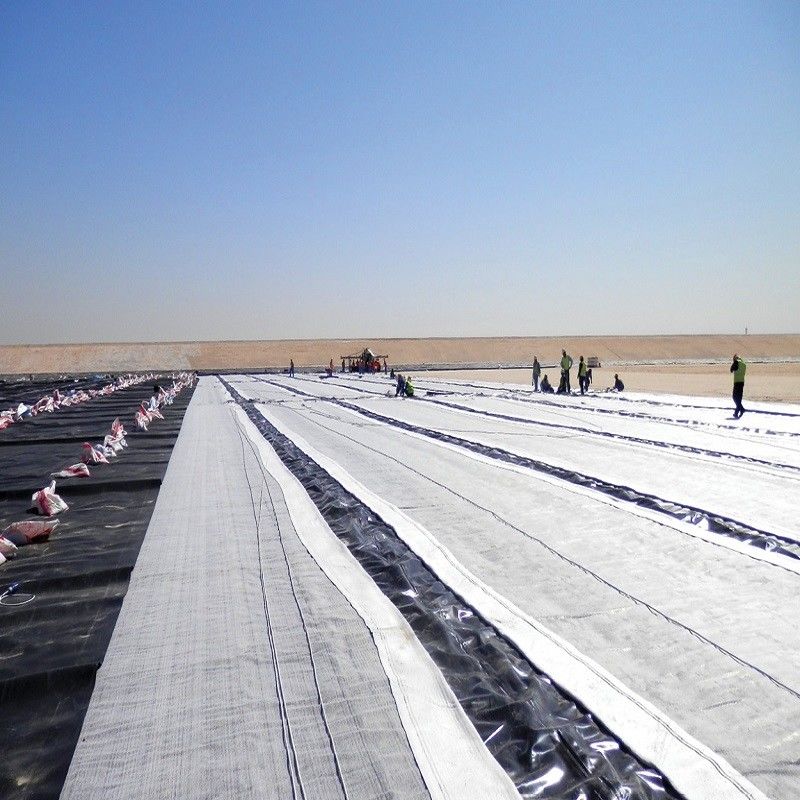

Mainly used in environmental engineering of waste landfills, underground reservoirs, underground infrastructure construction projects, solving the sealing, isolation, leakage problem,
the effect is good, resist destructive.
1.landfill
2.base liner applications under roads, railways,
3.containment for ground tank farms, dams, canals, ponds, rivers and lakes.
