Ground Stabilization Geosynthetics Products Price Biaxial Stretch Plastic Geogrid

Ground Stabilization Geosynthetics Products Price Biaxial Stretch Plastic Geogrid

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO9001

Contact Us

Request A Quote
Product Details
Model NO.:
15KN-50KN
Application:
Retaining Wall, Steep Slop, Dam, Road Base
Function:
Anti-slip, Reinforcement
Process:
Extruded
Elongation At Longitudinal:
15% Max
Classification:
Plastic Geogrid
Product Description

Biaxial Plastic Geogrid for Construction

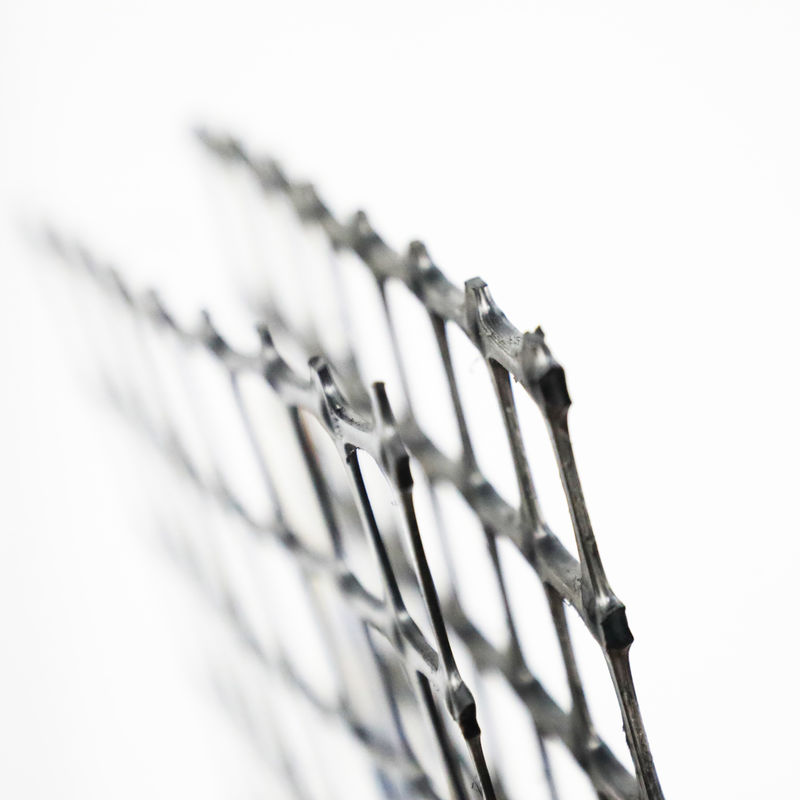

PP Extruded Biaxial Geogrid is manufactured from Polypropylene, from the process of extruding, longitudinal stretching and transverse stretching. And have high tensile strength at both longitudinal (MD) and transverse (TD) directions. It makes soil reinforced with its excellent structure stability and strong mechanical interlock performance.



Ground Stabilization Geosynthetics Products Price Biaxial Stretch Plastic Geogrid 0



Biaxial Plastic Geogrid Technical Parameter (GB standard)
Item
Specification

TGSG1515
TGSG2020
TGSG2525
TGSG3030
TGSG3535
TGSG4040
TGSG4545
TGSG5050
Vertical and horizontal tensile strength≥(KN/M)
15
20
25
30
35
40
45
50
Tensile strength at 2% elongation≥(KN/M)
5
7
9
10.5
12
14
16
17.5
Tensile strength at 5% elongation≥(KN/M)
7
14
17
21
24
28
32
35
Tensile strength at 5% elongation≥(KN/M)

15



Advantages

  1. Distribution of loads and therefore reduction in stress concentration over the soil.
  2. The geogrids structural junctions, rigid ribs and thick walls help lock aggregate, increasing its shear resistance.
  3. As a result when a vertical load is applied the aggregate is restrained by the ribs reducing deformation. (Lateral Restraint)
  4. Decrease in long term deformation (creep).
  5. Increase in load distribution. (Bearing Capacity Increase)
  6. Controls differential settlement.



Performance

1,High tensile strength at both longitudinal (MD) and transverse direction(XMD).
2,Improving bearing capacity of foundation;

3,Preventing cracking and subsiding;
4,Convenient to construct, reducing cost and maintaining expense.

Application

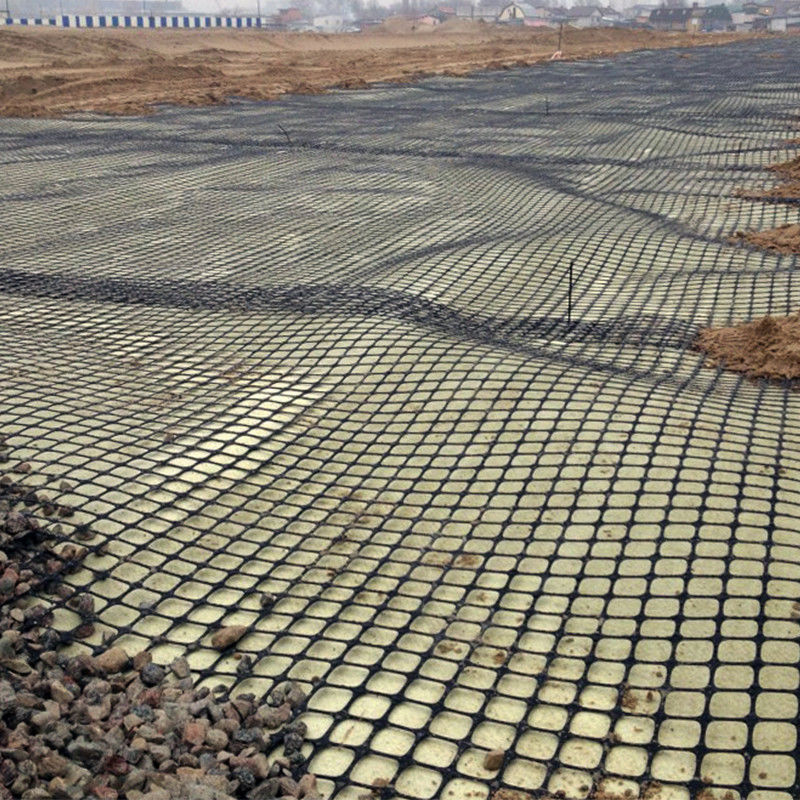

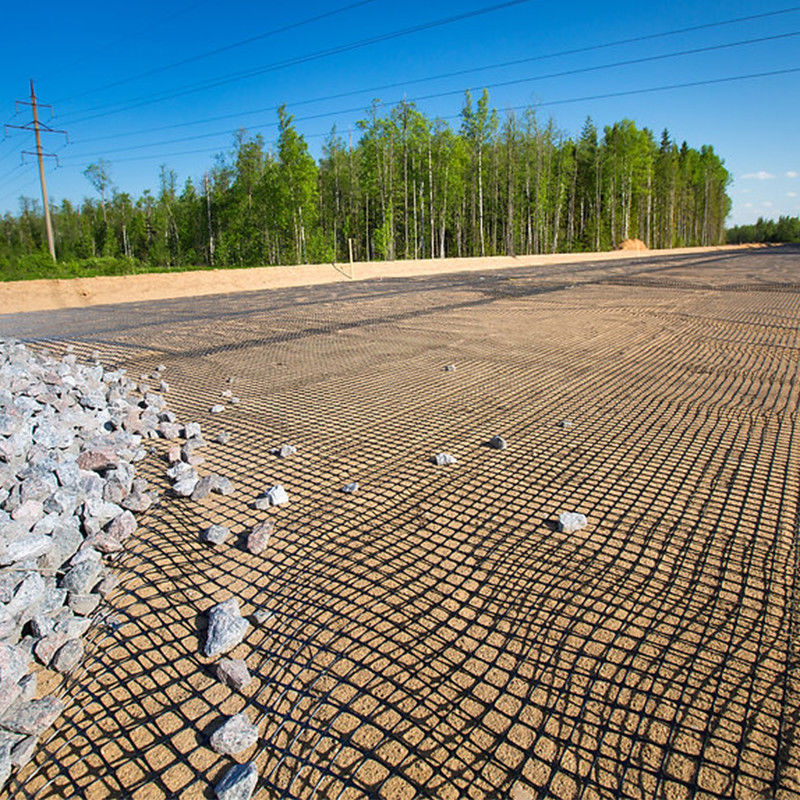

1. It is applied in reinforcement of roadbed and road surface of road, railway, airport, etc.;
2. It is applied in foundation reinforcement of perpetual bearings such as large-scale park, dock, and freight yard, etc.;
3. It is applied in the secondary reinforcement of earth slope after being reinforced by uniaxial plastic geogrid so as to further reinforce the earth slope and prevent water and soil loss;
4. It is applied in the reinforcement of culvert;
5. It is applied in slope protection of railway and road;
6. Reinforcement of mine and gallery;
7. Special network used in livestock breeding;
8. Special network used in cage culture.



Ground Stabilization Geosynthetics Products Price Biaxial Stretch Plastic Geogrid 1



Ground Stabilization Geosynthetics Products Price Biaxial Stretch Plastic Geogrid 2

FAQ
1, What is the difference between uniaxial and biaxial geogrid?
Biaxial geogrids are those that exhibit the same strength in both the machine directions MD and cross-machine directions CMD while uniaxial geogrids exhibit the primary strength in the machine direction with minimal strength, enough to maintain the aperture structure, in the cross-machine direction.

2, How many types of geogrids are there?
There are three different types of geogrids: Uniaxial, Biaxial, and Triaxial . Each one is designed and manufactured for specific construction applications with various tensile strengths.

3: How long is the delivery time?

Generally it is 2-3 days if the goods are in stock. Or 10-15if not in stock, according to the quantity.



4:Do you provide samples?

A:Yes,samples are free.
