HDPE Geomembrane Technical Parameter (GB standard)
|
|||||||
Spec
Properties |
GMS0.5
|
GMS0.75
|
GMS1.0
|
GMS1.25
|
GMS1.5
|
GMS2.0
|
GMS2.5
|
Thickness
|
0.5mm
|
0.75mm
|
1.0mm
|
1.25mm
|
1.5mm
|
2.0mm
|
2.5mm
|
Tensile Properties
(each direction) (≥) .yield strength .break strength .yield elongation .break elongation |
7KN/m 10KN/m -- 600% |
10KN/m 15KN/m -- 600% |
13KN/m 20KN/m 11% 600% |
16KN/m 25KN/m 11% 600% |
20KN/m 30KN/m 11% 600% |
26KN/m 40KN/m 11% 600% |
33KN/m 50KN/m 11% 600% |
Density(≥)
|
0.940g/cc
|
0.940g/cc
|
0.940g/cc
|
0.940g/cc
|
0.940g/cc
|
0.940g/cc
|
0.940g/cc
|
Puncture Restistance (≥)
|
120N
|
180N
|
240N
|
300N
|
360N
|
480N
|
600N
|
Carbon Black Content
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
Carbon black Dispersion
|
Noted(1)
|
Noted(1)
|
Noted(1)
|
Noted(1)
|
Noted(1)
|
Noted(1)
|
Noted(1)
|
Tear Resistance (≥)
|
56N
|
84N
|
115N
|
140N
|
170N
|
2255N
|
280N
|
Oxidative Induction Time(OIT)
Standare OIT(≥) |
60min. |
60min. |
60min. |
60min. |
60min. |
60min. |
60min.
|
Basic Details
Geomembrane; pond liner
1.Main Thickness:0.1mm,0.2mm,0.3mm,0.5mm, 0.75mm,1.0mm,1.5mm,2.0mm,3.0mm,4.0mm,5.0mm
2.Main Width:4m, 5m, 5.8m, 6.0m, 7m, 8m,10m
3.Main Length:50m/100m
4.Main Color: black, white, blue, green
5. Optional surface: Textured or Smooth surface.
6.Material:HDPE, LDPE,LLDPE,EVA
7. Certificate & Test: ISO, TUV,SGS
8. Quality Control: Third party test and factory lab test
The polyethylene geomembrane is made of high-quality polyethylene virgin resin,the main component is 97.5% polyethylene,2.5% carbon black,anti-aging agent,antioxidant,ultraviolet absorber,stabilizer and other additives, using internationally advanced mutiple layer co-extrusion blow molding process or muti-head flat extrusion process.The finished product has excellent resistance to chemical acid and alkali,UV resistance, strength, durability and stress tear resistance.
HDPE Geomembrane Application:

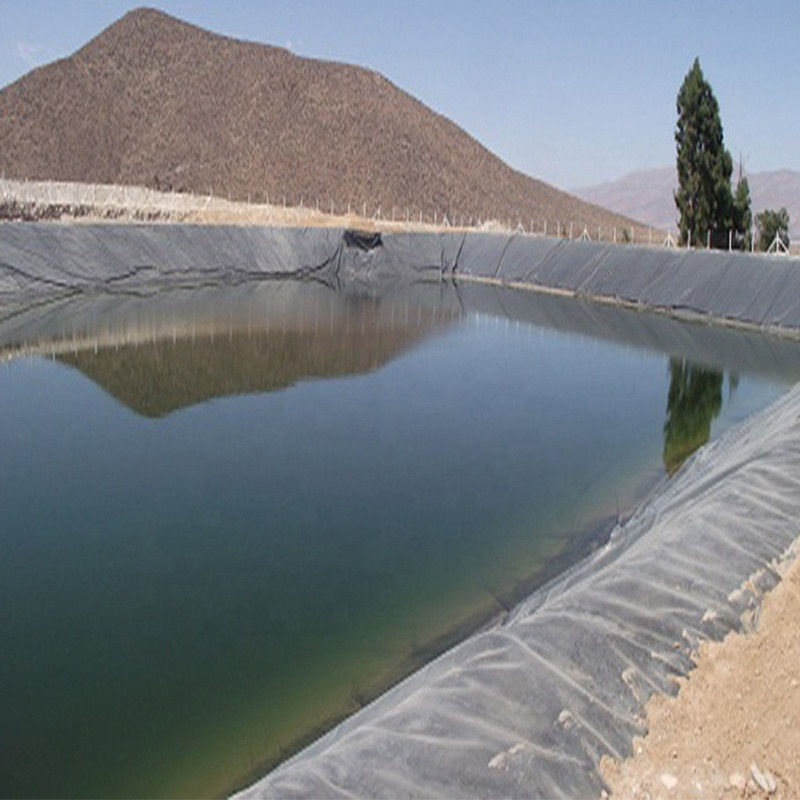

(1)Aquaculture:
Using the geomembrane anti-seepage feature; geomembrane liners can be used as fish ponds, shrimp pond, tank liner and others.

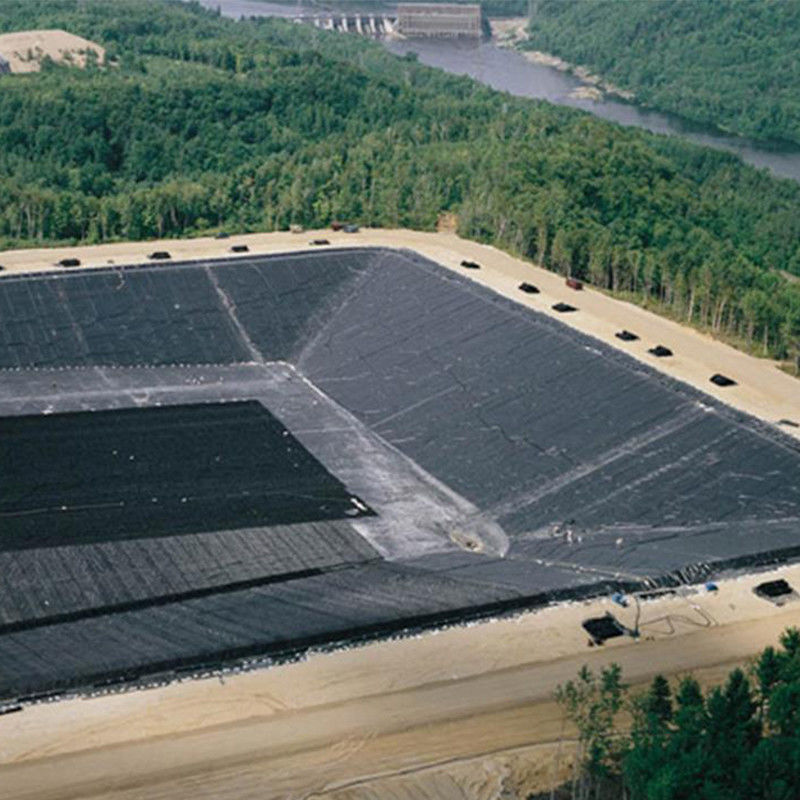

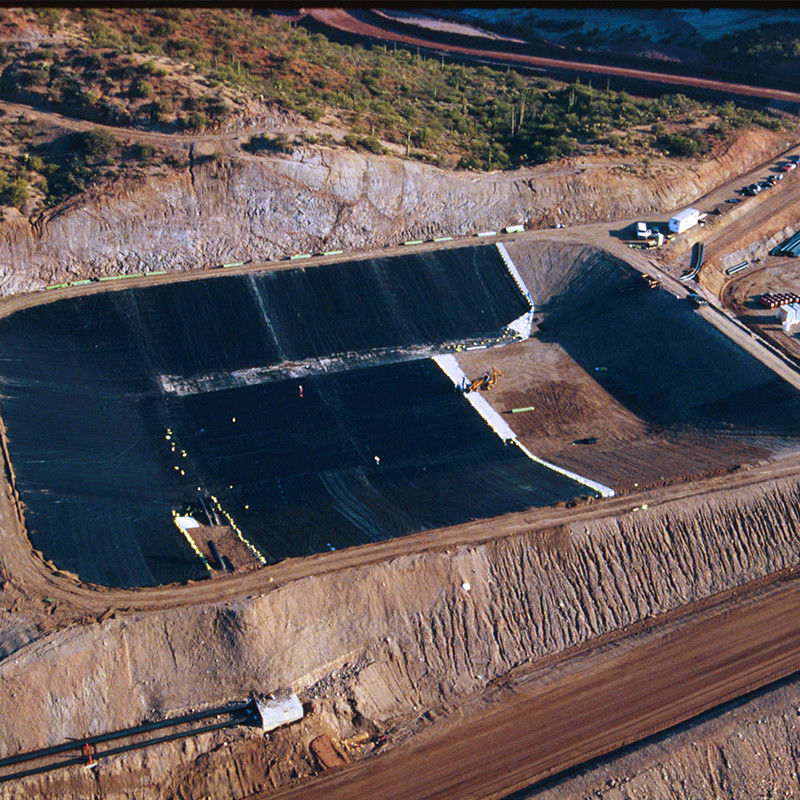

(2)Landfill:
HDPE geomembrane is the most widely used in landfill anti-seepage engineering material. The use of main parts of the bottom of the landfill liner, landfill sealing cover, leachate regulating pool liner, etc.
(3)Water Treatment System :
HDPE geomembrane is applied to the adjustment of the power plant and sewage treatment plants pool;and a series of water treatment systems.
(4)Agriculture:
HDPE geomembrane suitable Agriculture: washing pool, pool heap leaching, heap yard, dissolving tank, tank, storage area, the bottom line of the tailings seepage control, etc
