Composite Geomembrane Liner With Non Woven Geotextile For Aquaculture River Treatment Garbage Landfill

Composite Geomembrane Liner With Non Woven Geotextile For Aquaculture River Treatment Garbage Landfill

Aquaculture River Treatment Geomembrane Liner

Non Woven Geotextile Geomembrane Liner

Garbage Landfill Geomembrane Liner

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO9001

Contact Us

Request A Quote
Product Details
Type:
Composite Geomembrane
Application:
Electrical Engineering, Roads & Railways & Airports Project, Water Conservancy Project
Packing:
PP Woven Plastic Bags Tied With Plastic Belts,Easy
Thickness Of Geomembrane:
0.3-2.5mm
Classification:
Composite Impervious Geomembrane
Feature:
Puncture Resistance, Impact Resistance, Tear Resis
Product Description

Description:

The most common structure of a composite geomembrane consists of a geomembrane layer (often made of high-density polyethylene, HDPE) laminated to one or more geotextile layers. The geomembrane layer provides impermeability to fluids, while the geotextile layers enhance mechanical strength, puncture resistance, and provide protection against ultraviolet (UV) degradation and environmental factors.

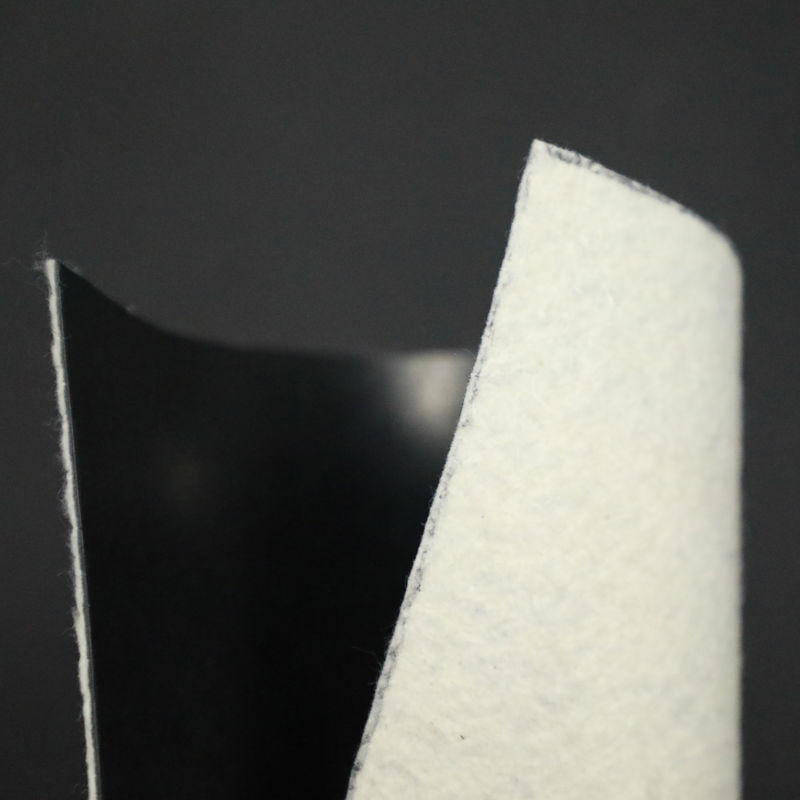

Composite Geomembrane Liner With Non Woven Geotextile For Aquaculture River Treatment Garbage Landfill 0

Products Specification

Technical Parameters of compound geomembrane
Product weight G/M2 400 500 600 700 800 900 1000
SPEC 1 layer geotextile +1 layer membrane
150/0.25

200/0.3

300/0.3

300/0.4

300/0.5

400/0.5

400/0.6
2 layer geotextile +1 layer membrane 100/0.2/100 100/0.3/100 150/0.3/150 200/0.3/200 200/0.4/200 200/0.5/200 250/0.5/250
Breaking strength (kN/m) 5.0 7.5 10.0 12.0 14.0 16.0 18.0
Elongation at break (%) 300~100
CBR Mullen burst strength (KN) 1.1 1.5 1.9 2.2 2.5 2.8 3.0
Vertical permeability coefficient (CM/S) K*10-11~13
Hydraulic pressure (MPa) 0.4~0.6 0.6~1.0

Main Features of Composite Geomembrane:

1.Impermeability: Composite geomembranes provide an effective barrier against the passage of liquids, gases, and contaminants. This impermeability helps to prevent pollution of soil and groundwater, making them ideal for containment applications such as landfill liners, pond liners, and liquid containment systems.

2.Strength and Durability: The combination of geomembrane and geotextile layers in composite geomembranes enhances mechanical strength, puncture resistance, tear resistance, and durability. This ensures long-term performance and stability, even in challenging environmental conditions or when subjected to heavy loads.

3.Chemical Resistance: Composite geomembranes exhibit excellent resistance to a wide range of chemicals, including acids, alkalis, hydrocarbons, and other aggressive substances. This chemical resistance ensures protection against corrosion and degradation, making them suitable for applications involving hazardous materials or chemical containment.

4.Environmental Compatibility: Composite geomembranes are manufactured using materials that are inert, non-toxic, and environmentally friendly. They do not leach harmful chemicals into the surrounding soil or water, making them safe for use in sensitive environmental areas and for applications requiring compliance with environmental regulations.

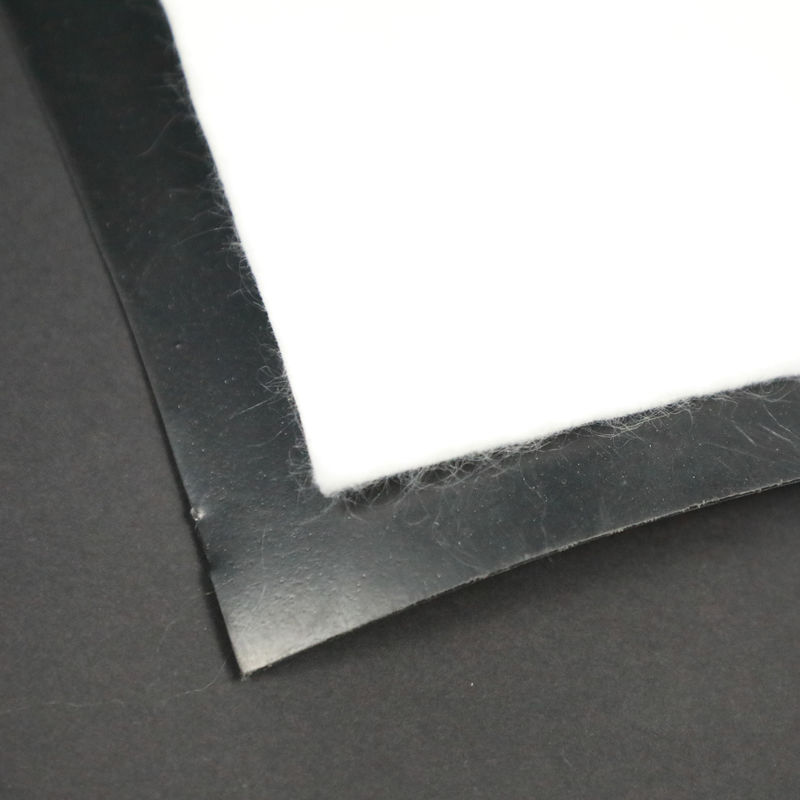

  • Composite Geomembrane Liner With Non Woven Geotextile For Aquaculture River Treatment Garbage Landfill 1
Application
  • Environmental friendly
  • For example,anti-seepage and anti-seepage in landfills, hazardous waste treatment sites, sewage treatment plants and other places.

  • Water Conservancy
    For example, dams, reservoirs, rivers and other water conservancy

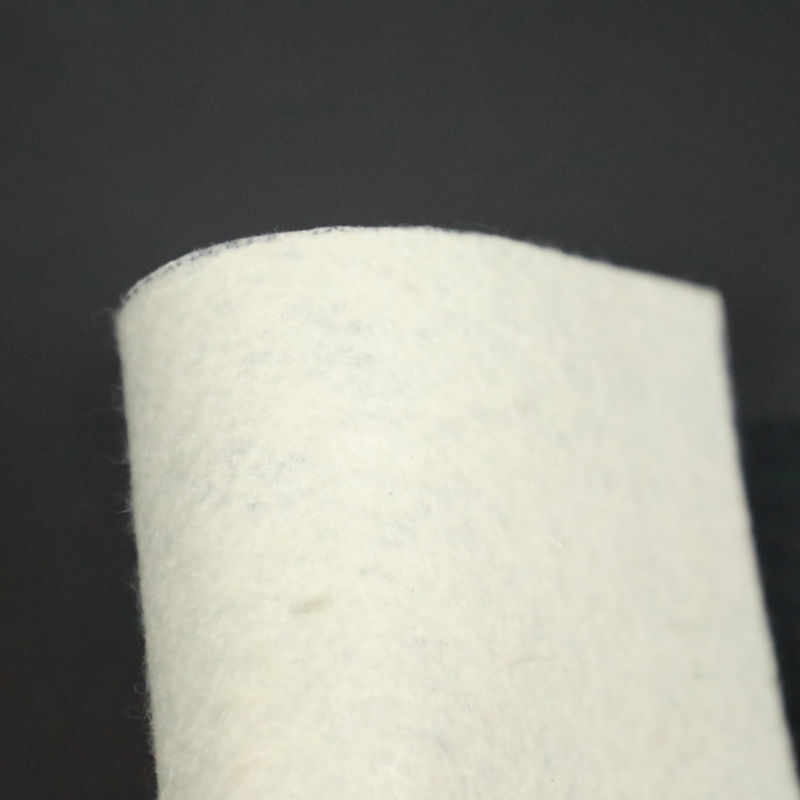

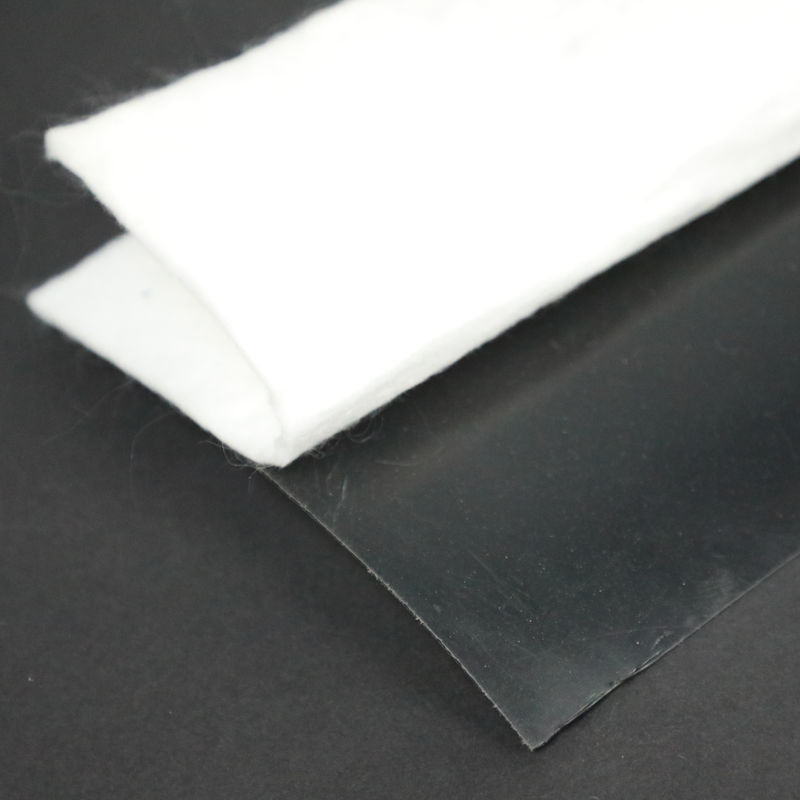

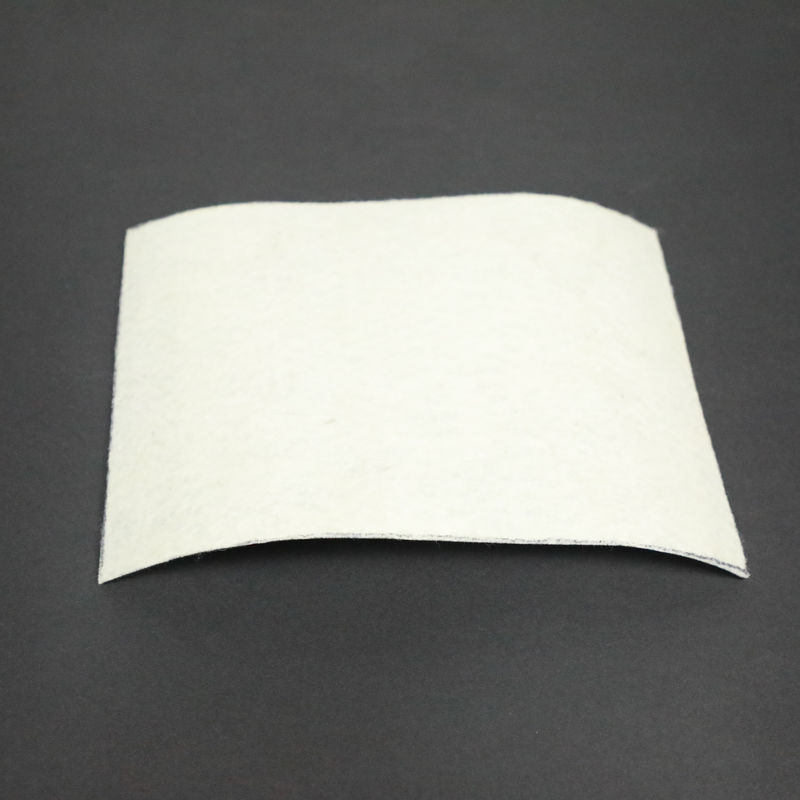

Composite Geomembrane Liner With Non Woven Geotextile For Aquaculture River Treatment Garbage Landfill 2Composite Geomembrane Liner With Non Woven Geotextile For Aquaculture River Treatment Garbage Landfill 3Composite Geomembrane Liner With Non Woven Geotextile For Aquaculture River Treatment Garbage Landfill 4Composite Geomembrane Liner With Non Woven Geotextile For Aquaculture River Treatment Garbage Landfill 5Composite Geomembrane Liner With Non Woven Geotextile For Aquaculture River Treatment Garbage Landfill 6
(1)Service:
A. OEM/ODM orders are warmly welcome
B. All of our products have proceeded testing before shipment and we guaranteed the good quality.

(2) Quality Control:
We have established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing.
Not only is stringent internal quality control carried out at zhonglu, but regular testing and analyzing of our product performance is implemented by authoritative testing organizations in Europe and the United States.

FAQ

What is geosynthetics ?

Geosynthetics form a perfect erosion control fabric used extremely widely in civil engineering to stabilize and reinforce slopes and soil under or next to roads, railways, dams, water reservoirs etc.. They can be easily applied which minimizes the time of construction, as well as they limit the resources and materials necessary.

What kinds of geosynthetics we have ?

Non-woven geotextile, geogrids, geocells, GCL, Geomembranes, Geonets, Geocomposites etc .

What is the geosynthetics used for ?

Hydraulic
Lagooning and Water Treatment, Ornamental Ponds, Golf Courses
Aquaculture and Desalination,Water Lagoons,Tanks, Reservoirs, Liquid Waste,Floating Cover Solutions, Drainage and Filtration

Environment
Tailing ponds, Leach mining,Landfills,Landfill Capping,Protection against corrosion,Vertical Barriers

Civil Works
Erosion Control,Secondary Containment,Tunnels,Linear and Surface Works,Consolidation of Margins,Soil Reinforcement,Soil Separation.
Building - Parkings,Roofing,Soundproofing
