Fiberglass Geogrid Reinforced Composite Nonwoven Geotextile

Fiberglass Geogrid Reinforced Geotextile

Composite Nonwoven Geotextile

Composite Nonwoven Geogrid

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO9001

Request A Quote

Fiberglass Geogrid Reinforced Composite Nonwoven Geotextile

Product Details

Model NO.:

Composite Geogrid

Function:

Anti-slip, Reinforcement, Construction Material

Coating:

Asphalt Or Bitumen

Specification:

As Your Request

Elongation:

<13%

Roll Length:

50-100m

Industrial 40*80cm Geotextile Geobag for Highway Slope Protection Geotextile Geobag Afforestation Planting Grass Flood Control Geotextile Geobag

Get Best Price

Reinforcement Biaxial Plastic PP PE Uniaxial Composite Stretched HDPE Geogrid Road Railway Construction

Get Best Price

Pet/PP Spunbond Nonwoven Fabric Geotextile for Reservoirs Artificial Lakes Tailings Ponds Landfills Filtration Isolation

Get Best Price

Reinforcing Polymeric Strip For Reinforcement Retaining Wall Civil Engineering

Get Best Price

86--18095658976

angela@zhongloo.com

86-551- 65540070

Contact Now

Product Description

Composite Geogrid Product Description

Nonwoven geotextile backed polyester geogrid is made from high modulus polyester and coated with bitumen to achieve a good bond to the asphalt. One side has a light weight nonwoven attached, also coated with bitumen. This nonwoven simplifies installation and ensures continuous bond between the layers.

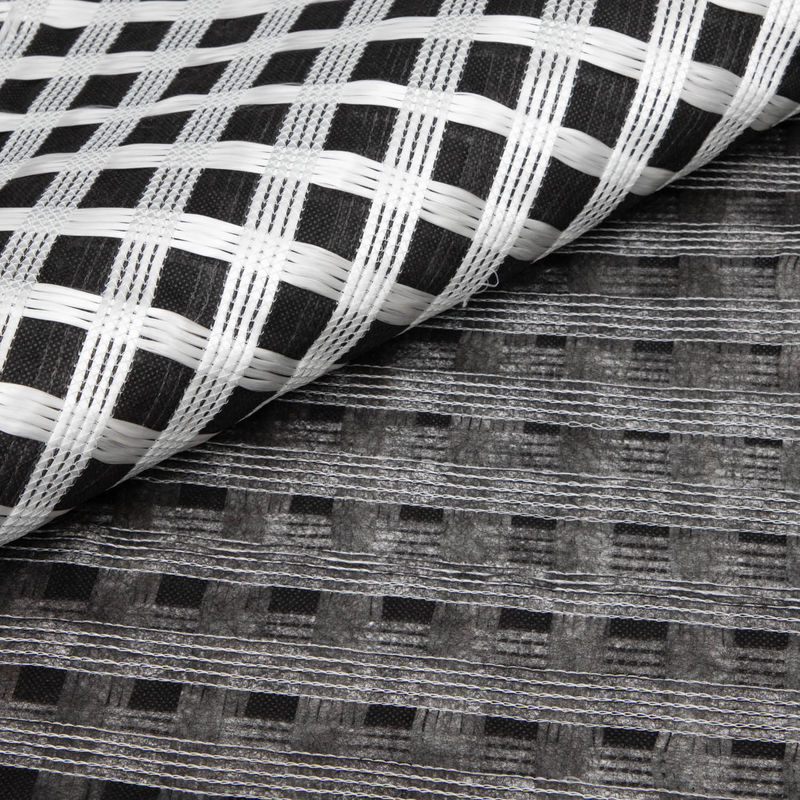

Fiberglass Geogrid Reinforced Composite Nonwoven Geotextile 0

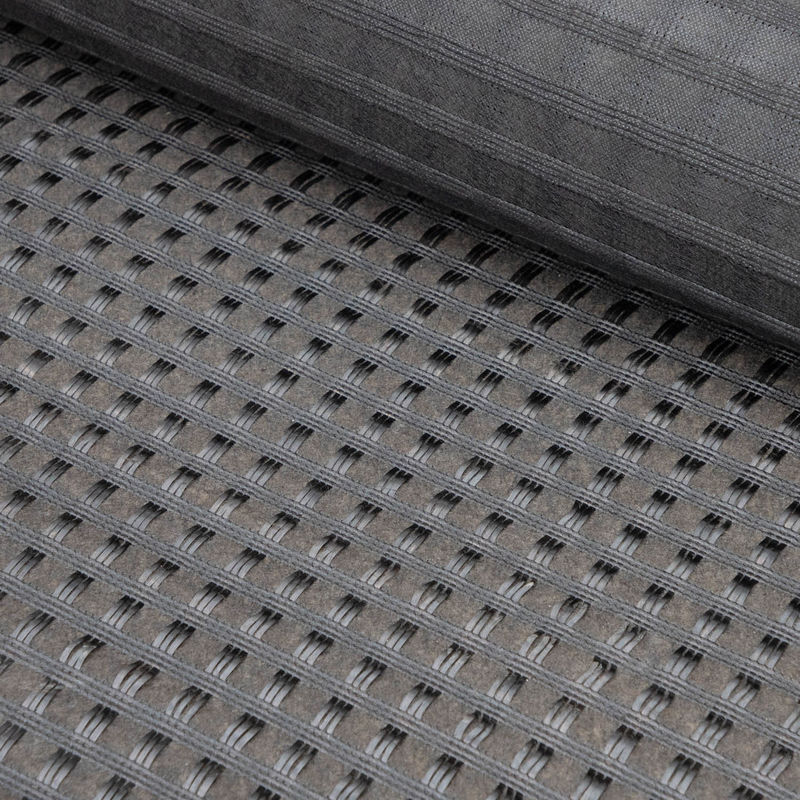

Fiberglass Geogrid Reinforced Composite Nonwoven Geotextile 1

Typical Uses:
Anti-cracking reinforcement in asphalt
Reinforcement of joints
Overlays to old concrete roads
Reinforcement of asphalt layers in hydraulic engineering and landfill

Specification		WTF 30-30	WTF 50-50	WTF 80-80	WTF 100-100	WTF 120-120	WTF 150-150	WTF 200-200	WTF 300-300
Mesh size(mm)		25.4×25.4 or 12.5×12.5 or 50.8×50.8
Breaking strength(kN/m)	Warp direction	30	50	80	100	120	150	200	300
Breaking strength(kN/m)	Across warp	30	50	80	100	120	150	200	300
Elongation at break(%)	Warp direction	4
Elongation at break(%)	Across warp	4
Thermal tolerance(ºC)		-100~280
Width≤(m)		6

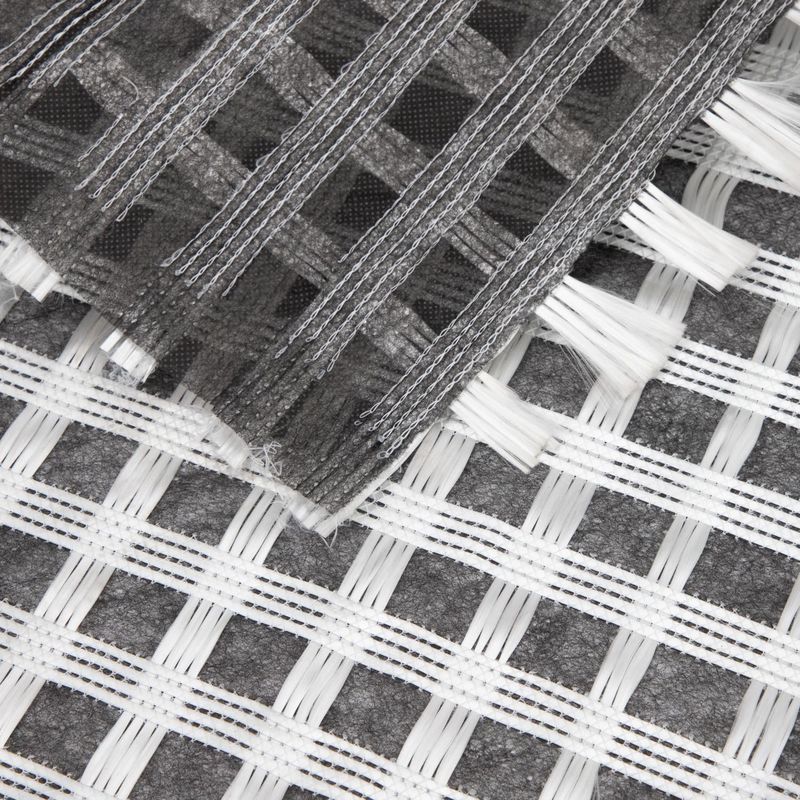

Fiberglass Geogrid Reinforced Composite Nonwoven Geotextile 2
FAQ:

Q:Can you send samples?

A:Yes,we are very happy to provide you with free samples to check the quality of our products.

Q:Are you a manufacturer or a trading company?

A:Our company located in Hefei,Anhui Province,with are gistered capital of 52 miion yuan. It is a professiona lmanufacturer of geomembrane,geotextile,geogrid and other products.So we have the competitive price with best quality.

Q:Can you produce the product according to customers' requirements?

A: Sure,we are professional manufacturer,OEM and ODM are both welcome.

Q:How long is the delivery time?

A: General within 3-7days after received the deposit.

Q: How to control product quality?

A: Our factory adopts lean management,products from the beginning to the end of the production process have strict quality control.All products must be strictly tested before packing and shipping.
