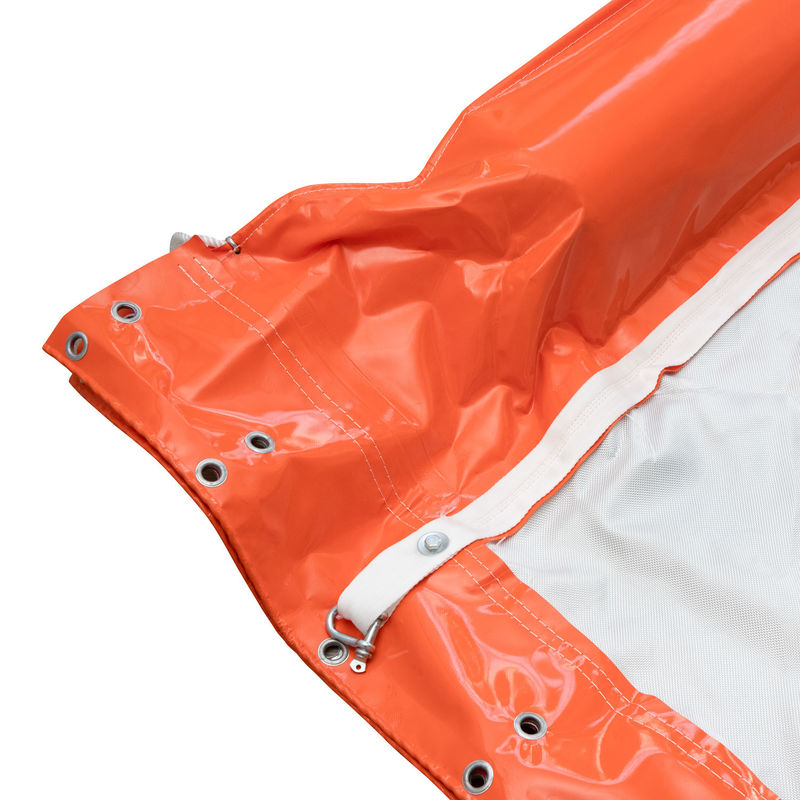

Name: PVC Type Soild Float Boom Fence For Oil-spilling And Other Floating Containment
Brand: zhongloo
SKU: silt curatin
Rating: 4.6 (192 reviews)

Home > products > Floating Silt Curtain >

PVC Type Soild Float Boom Fence For Oil-spilling And Other Floating Containment

Oil-spilling float boom fence

PVC type soild float boom fence

Other floating containment float boom fence

Place of Origin:

CHINA

Brand Name:

zhongloo

Certification:

ISO,SGS,TUV,BV

Model Number:

silt curatin

Request A Quote

PVC Type Soild Float Boom Fence For Oil-spilling And Other Floating Containment

Product Details

Model NO.:

Silt Curatin

Function:

PRO-Environment

Usage:

Keep Construction Areas In Compliance And Protect

Product Name:

PVC Silt Curtain Boom

Situable Water Area:

Ports/Harbors/Shoreline/Offsh

Type:

Boom

Skirt Material:

High Strength Geotextile

Size:

As Required

Geotextile Type:

Woven Geotextiles

Specification:

15m/20m/25m

Permeable Aquatic Floating Silt Curtain For Aquatic Environments Eco Friendly Oil Spilling Boom PVC Floating Silt Curtain

Get Best Price

Silt Curtain PVC Floating Silt Curtain Containment Boom Eco Friendly Oil Spilling Boom Silt Curtain For Aquatic Environm

Get Best Price

Silt Curtain Pvc Floating Silt Curtain Containment Boom Eco Friendly Oil Spilling Boom

Get Best Price

Floating Oil Boom Silt Curtains For Sea

Get Best Price

86--18095658976

angela@zhongloo.com

86-551- 65540070

Contact Now

Product Description

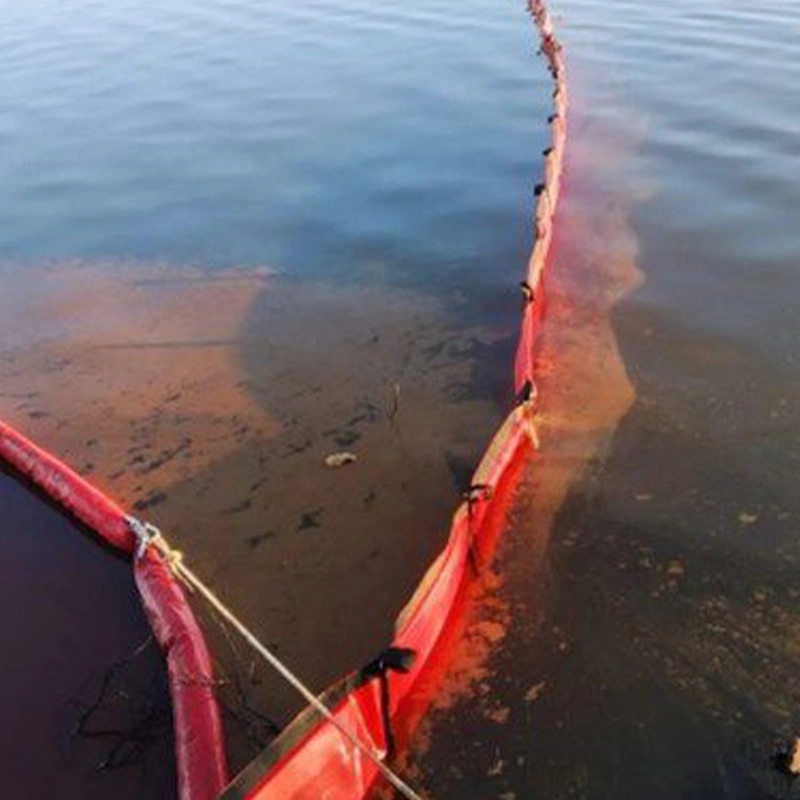

Silt curtains (also called turbidity curtains, silt screens or silt barricades) are vertical barriers positioned within the water that function to contain the fine particles of silt that are discharged into the water from dredging, construction or reclamation activities. Silt curtains are useful tools in almost any water environment. There are three groups of silt curtains, named type I, type II and type III, with I being the lightest and III the most heavy-duty silt curtain. Qualified professions will analyze a variety of factors such as water flow speed, waves, wind, and project type and duration, to help you to decide which silt curtain is needed for your project.

CODE		WQV600	WQV900	WQV1100	WQV1500	WQV2000
TOTAL HEIGHT(MM)		600	900	1100	1500	2000
FREEBOARD(MM)		130	320	360	500	600
DRAFT(MM)		380	460	560	750	1100
SECTION LENGTH(M)		200
WORKING PRESSURE(PA)		3000-5000
WORKING CONDITION	TENTION STRENGHT(KN)	20	50	80	120	150
	WAVE HEIGHT(M)	0.3	1	1.5	3	3
	WIND SPEED(M/S)	8	15	15	20	20
	FLOW RATE(KN)	1	2	3	3	3

Advantage:

1. Good stress state, high overall strength and long service life.
2. Good water posture, stable, strong oil retention ability.
3. Good wave riding.Easy to place.
4. Easy to clean and maintain.
5. Double-sided coated PVC reinforced plastic cloth is the column material.
6. Sealing, quick connection, time and labor saving, in line with international standards.
7. The upper, middle and lower ridges, stiffening belts and counterweight chains are longitudinal force elements. Each section of the oil boom has a fixed anchor seat, so that the skirt of the oil boom forms a concave surface of underwater oil stagnation in the water flow, and the flexible section of the oil boom forms a concave surface of water oil stagnation.
8. Crossbar type float with flexible sections between floats.
9. Each section is 20 meters, with convenient intersection connection.
Floating Oil Boom Silt Curtains for Sea

Anhui Zhonglu Engineering Materials Co., Ltd.

Summer:86-18056028960

CODE		WQV600	WQV900	WQV1100	WQV1500	WQV2000
TOTAL HEIGHT(MM)		600	900	1100	1500	2000
FREEBOARD(MM)		130	320	360	500	600
DRAFT(MM)		380	460	560	750	1100
SECTION LENGTH(M)		200
WORKING PRESSURE(PA)		3000-5000
WORKING CONDITION	TENTION STRENGHT(KN)	20	50	80	120	150
	WAVE HEIGHT(M)	0.3	1	1.5	3	3
	WIND SPEED(M/S)	8	15	15	20	20
	FLOW RATE(KN)	1	2	3	3	3

Advantage:

CODE		WQV600	WQV900	WQV1100	WQV1500	WQV2000
TOTAL HEIGHT(MM)		600	900	1100	1500	2000
FREEBOARD(MM)		130	320	360	500	600
DRAFT(MM)		380	460	560	750	1100
SECTION LENGTH(M)		200
WORKING PRESSURE(PA)		3000-5000
WORKING CONDITION	TENTION STRENGHT(KN)	20	50	80	120	150
	WAVE HEIGHT(M)	0.3	1	1.5	3	3
	WIND SPEED(M/S)	8	15	15	20	20
	FLOW RATE(KN)	1	2	3	3	3
