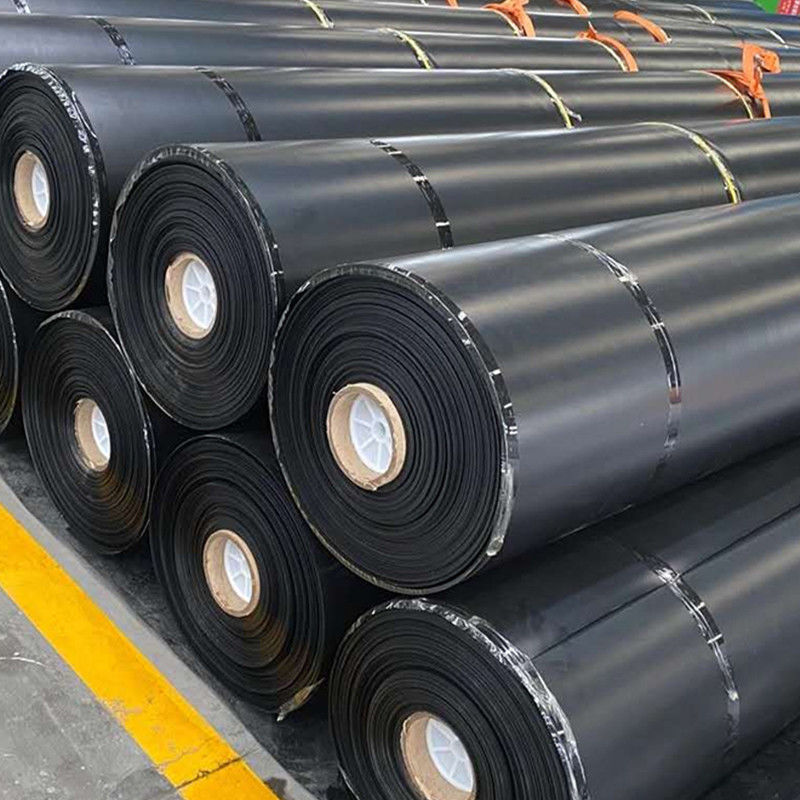

Geomembrane Pond liner Introduction

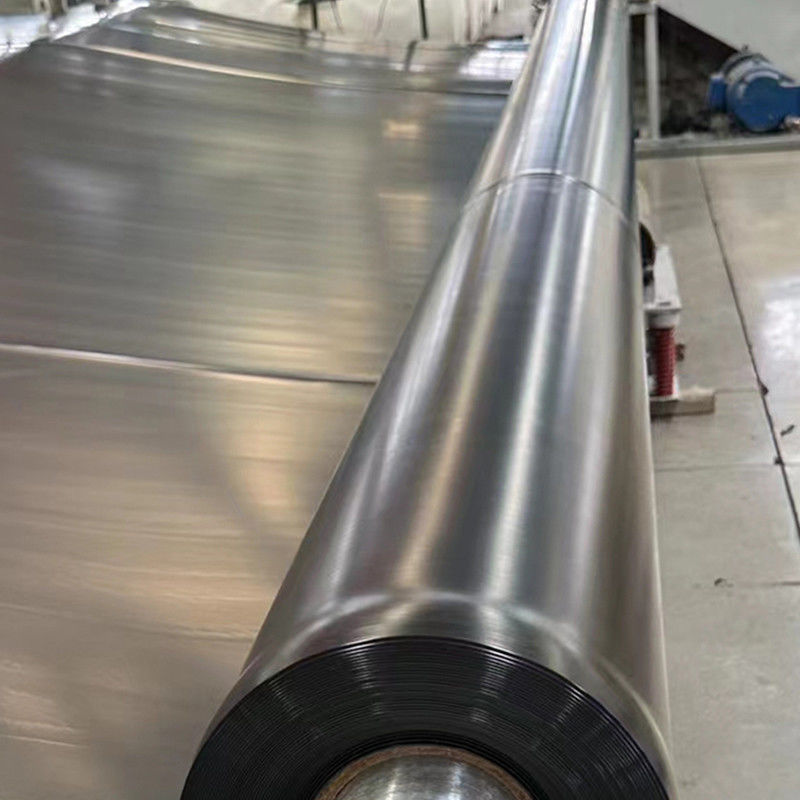

HDPE Geomembrane Pond liner is fabricated by the state of the art automatic geomembrane production lines and advanced three layered pressing technology in accordance with GRI GM13 standard. Compared with traditional concrete, asphalt and compacted clay, smooth hdpe geomembrane pond Liner has proven to be far more cost effective, environmentally safe, excellent durable, chemically resistant, fast deployment and easy transportation.
hdpe geomembrane pond liner Features: waterproof, isolation
hdpe geomembrane pond liner Application: landfill, sewage or waste disposal field seepage;
Along the river, the lake dam, tailings dam, dam and reservoir area sewage channel, and a liquid storage tank (pit mine);
Subway, underground chambers and tunnels, the tunnel lining;
Subgrade and foundation of saline seepage;
Embankment, dam foundation impervious blanket and vertical impervious layer, construction of cofferdam, scrap yard;
Sea water, fresh water breeding farm.
Highway, highway, railway subgrade; expansive soil and collapsible loess waterproof layer.
Products include: LDPE geomembrane, LLDPE geotechnical membrane, HDPE geomembrane, LLDPE geotechnical membrane,textured geomembrane etc.
Geomembrane Pond liner Product Features
1. Geomembrane have Good physical and mechanic performance.2. HDPE geomembrane pond liner with High tearing resistance, strong deformation adptability.
3. Corrosion resistance, aging resistance.
4. Good adaptability to high and low temperature, non-toxicity, long service life.
5. Good waterproof, drainage, anti-seepage and damp proof effects.
6. Complete width and thickness specifications, low cost and easy installation.
|
HDPE Geomembrane pond liner Technical Parameter (GB standard)
|
|||||||
|
Spec
Properties |
GMS0.5
|
GMS0.75
|
GMS1.0
|
GMS1.25
|
GMS1.5
|
GMS2.0
|
GMS2.5
|
|
Thickness
|
0.5mm
|
0.75mm
|
1.0mm
|
1.25mm
|
1.5mm
|
2.0mm
|
2.5mm
|
|
Tensile Properties
(each direction) (≥) .yield strength .break strength .yield elongation .break elongation |
7KN/m 10KN/m -- 600% |
10KN/m 15KN/m -- 600% |
13KN/m 20KN/m 11% 600% |
16KN/m 25KN/m 11% 600% |
20KN/m 30KN/m 11% 600% |
26KN/m 40KN/m 11% 600% |
33KN/m 50KN/m 11% 600% |
|
Density(≥)
|
0.940g/cc
|
0.940g/cc
|
0.940g/cc
|
0.940g/cc
|
0.940g/cc
|
0.940g/cc
|
0.940g/cc
|
|
Puncture Restistance (≥)
|
120N
|
180N
|
240N
|
300N
|
360N
|
480N
|
600N
|
|
Carbon Black Content
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
|
Carbon black Dispersion
|
Noted(1)
|
Noted(1)
|
Noted(1)
|
Noted(1)
|
Noted(1)
|
Noted(1)
|
Noted(1)
|
|
Tear Resistance (≥)
|
56N
|
84N
|
115N
|
140N
|
170N
|
2255N
|
280N
|
|
Oxidative Induction Time(OIT)
Standare OIT(≥) |
60min. |
60min. |
60min. |
60min. |
60min. |
60min. |
60min.
|
HDPE Geomembrane Pond liner Application:

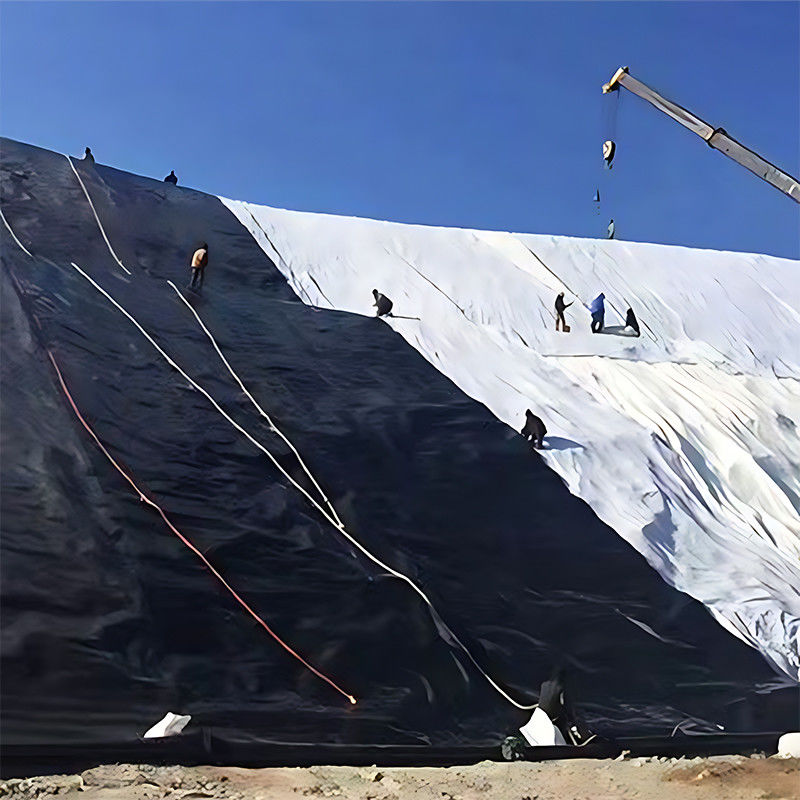

(1) Environmental protection and sanitation projects (such as domestic waste landfills, sewage treatment plants, workshops, etc.)

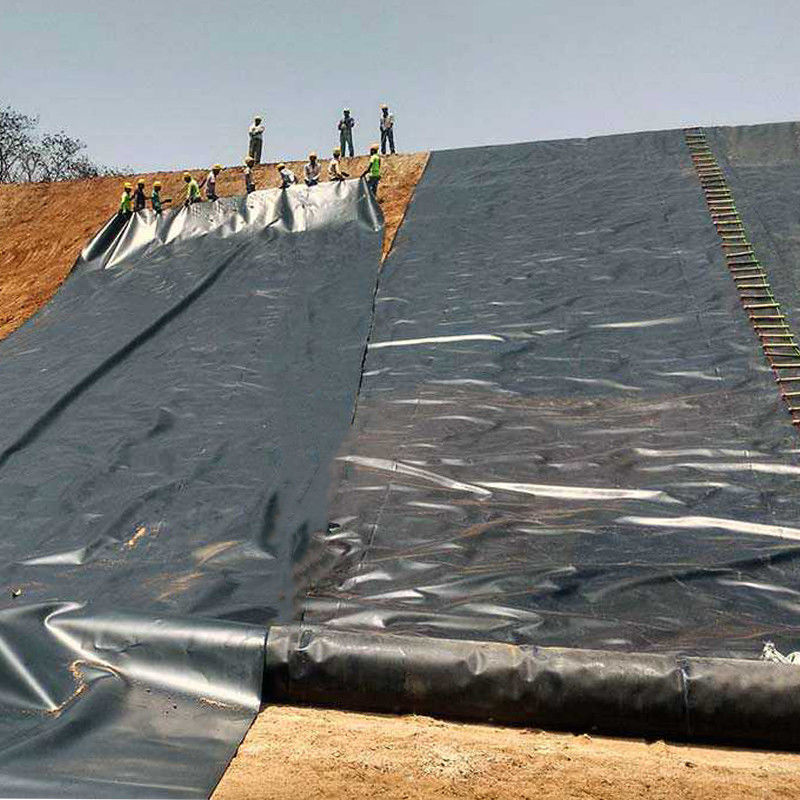

(2) Water conservancy and civil engineering (river / lake / reservoir / dike anti-seepage, plugging, reinforcement, etc.)
(3) Municipal engineering (underground, underground construction of buildings and roof tanks, lining of sewage pipes, etc.)

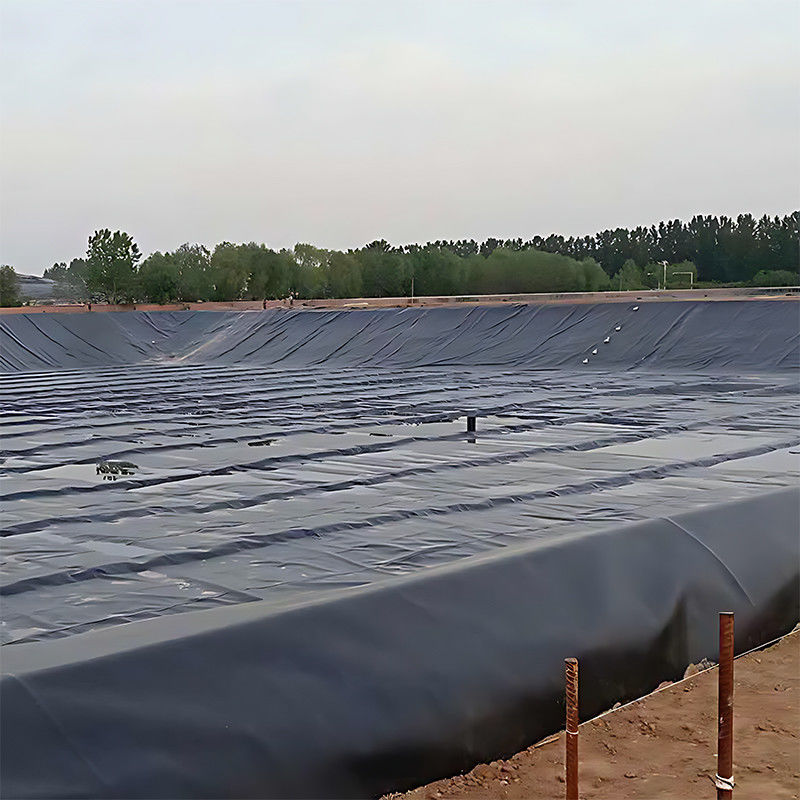

(4) Landscaping (artificial lake, pond, pond lining of golf course, etc.)
(5) Petrochemical (chemical plant, oil refinery storage tank anti-seepage and anti-fouling, chemical reaction tank lining, etc.)
(6) Mining (washing pond, heap leaching pond, ash dump, etc.)
(7) Traffic engineering (highway foundation reinforcement, culvert seepage prevention, etc.)
(8) Agriculture (reservoir, reference basin, storage tank, anti-seepage of irrigation system, etc.)
(9) Aquaculture (lining of fish ponds, shrimp ponds, etc.)
(10) Polluting enterprises (phosphorite enterprises, sugar factories, etc.)
FAQ
1.Are you manufacturer or trade company?
We Zhonglu are a professional geosynthetic products manufacture, we will provide you with top-class service.
2. What's the order process?
a.Inquiry--- The more detailed information you provide, the more accurate product we could provide you.
b. Quotation---Resonable quotation with clear specifications.
c. Sample confirmation---Sample could be sent before the final ordering.
d. T/T 30% in advanced, and the balance could be paid before shipment.
e. Production---Mass production.
f. Shipping--- By sea, air or courier. Detailed picture of package could be provided.
3. How long is your delivery time?
Generally it is 3-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
4. How does your factory do regarding quality control?
"Quality is priority." We always attach great importance to quality controlling from the beginning to the end.
5.What's the payment method you accept?
T/T, L/C,D/P etc.
