Steel-Plastic Geogrid For Soil Reinforcement Highways

Steel-Plastic Geogrid For Soil Reinforcement Highways

Soil Reinforcement Geogrid

Steel Plastic Geogrid

Highways Geogrid

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO9001

Model Number:

Steel Plastic Geogrid

Contact Us

Request A Quote
Product Details
Model Number:
ZL-TGGS-GS
Application:
Road Construction
Product Name:
Steel-plastic Geogrid
Color:
Black
Feature:
High Tensile Strength
Tensile Strength:
15-100kN/m
Product Description

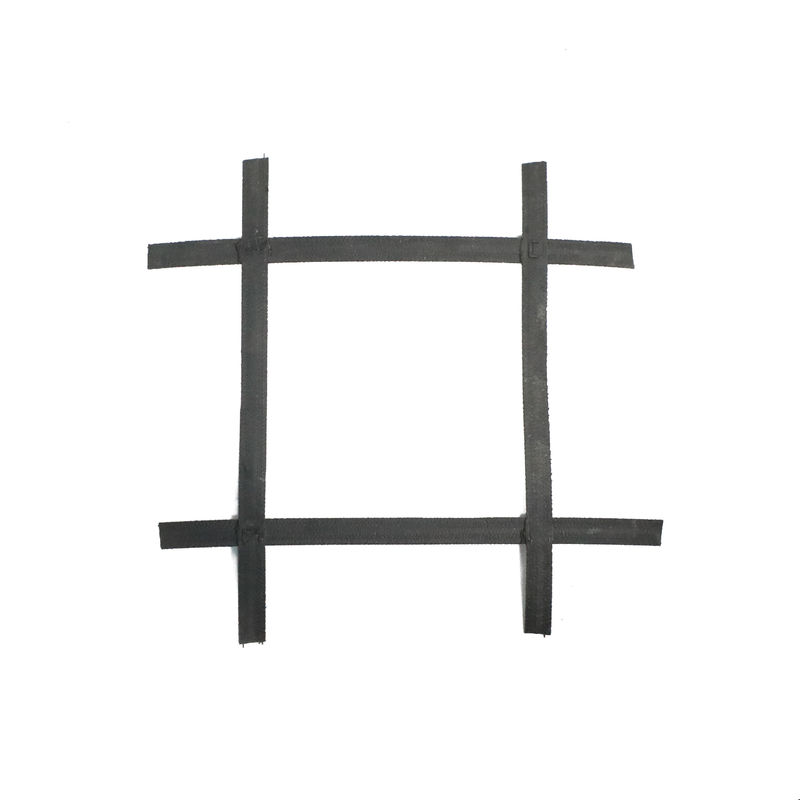

Steel-Plastic Geogrid For Soil Reinforcement Highways





Product introduce

The steel plastic composite geogrid uses high tensile steel wire(or other fiber) specially handled and polyethylene (P.E) with other assistants. Then squeeze it out and make it become composite high-strength anti-pull belt and the horizontally using this single belt and welding the joint using a special welding technology to molding is reinforcement geogrid.





Technical Parameter



Steel Plastic Composite Geogrid Technical Parameter (GB standard)
Item
Specification
Type
GSZ 30-30
GSZ 50-50
GSZ 60-60
GSZ 70-70
GSZ 80-80
GSZ 100-100
GSZ 150-150
Vertical and horizontal ultimate tensile strength≥(KN/M)
30
50
60
70
80
100
150
Vertical and horizontal ultimate tensile strength elongation≤(%)
3
Peel force of connection point≥(KN)
300
500







Product Features

*High tensile strength and low distort and creep deformation

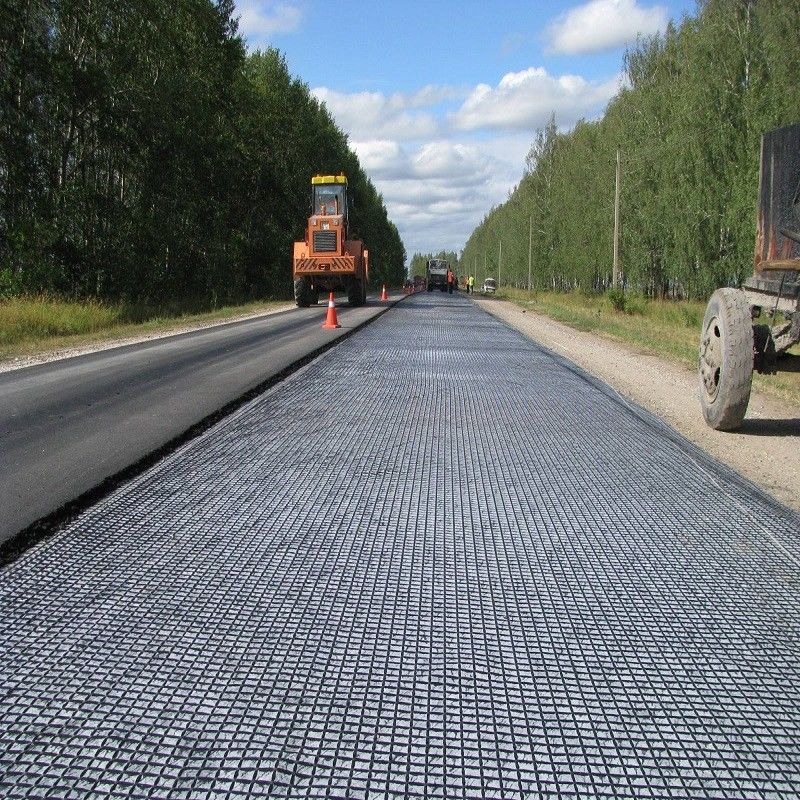

* Improving bearing capacity of road bed

* Anti-corrosion and extending the project life

* Shortening construction period,reducing cost.
