Geogrid Steel Plastic Composite Geogrid For Road

Geogrid Steel Plastic Composite Geogrid For Road

Road Geogrid Steel Plastic Composite

Road Geogrid

Geogrid Steel Plastic Composite

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO9001

Model Number:

Steel Plastic Geogrid

Contact Us

Request A Quote
Product Details
Model Number:
ZL-TGGS-GS
Application:
Highway Road
Product Name:
Steel-plastic Geogrid
Width:
1-6M
Feature:
High Tensile Strength
Mesh Size:
12.7*12.7mm
Product Description

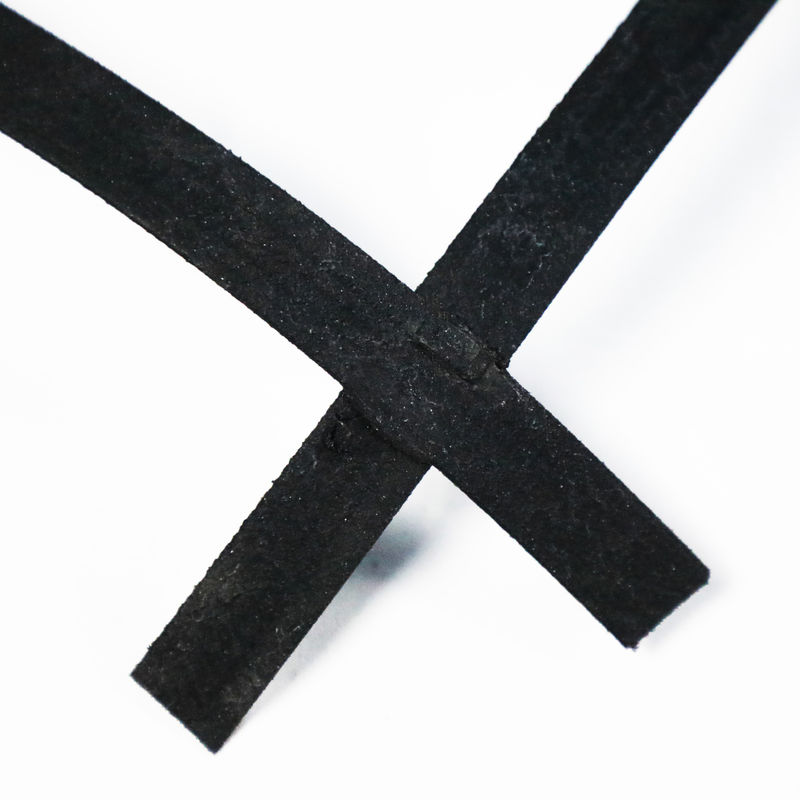

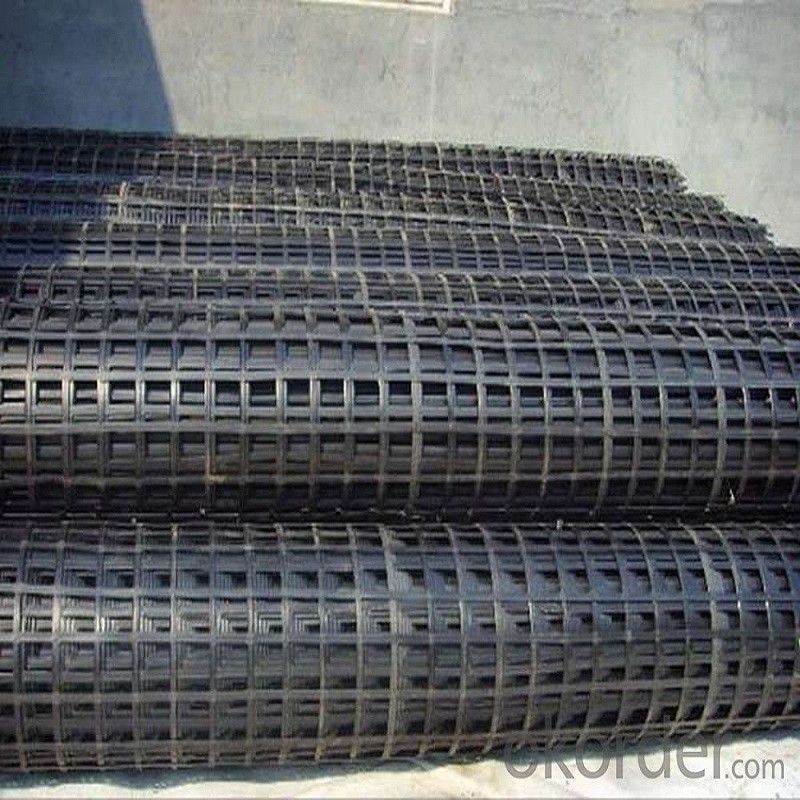

Geogrid Steel Plastic Composite Geogrid For Road



Product introduce

The steel plastic composite geogrid uses high tensile steel wire(or other fiber) specially handled and polyethylene (P.E) with other assistants. Then squeeze it out and make it become composite high-strength anti-pull belt and the horizontally using this single belt and welding the joint using a special welding technology to molding is reinforcement geogrid.





Technical Parameter



Steel Plastic Composite Geogrid Technical Parameter (GB standard)
Item
Specification
Type
GSZ 30-30
GSZ 50-50
GSZ 60-60
GSZ 70-70
GSZ 80-80
GSZ 100-100
GSZ 150-150
Vertical and horizontal ultimate tensile strength≥(KN/M)
30
50
60
70
80
100
150
Vertical and horizontal ultimate tensile strength elongation≤(%)
3
Peel force of connection point≥(KN)
300
500







Application

1)Well pull: Longitudinal and crosswise tensile strength per linear meter can reach 30 to 120 KN.

2) Small deformation: the yield elongation of steel plastic integral geogrid is not bigger than 3%.

3) Nodal point is high.

4) Lifespan is long. It has the properties of anti - oxidation and anti - aging. It can be possible to meet each kind of permanent works and its lifespan can be 100 years above.
