PRODUCT DESCRIPTION
High density polyethylene Geocell (HDPE Geocell) is a lightweight and flexible three-dimensional, expandable panels made from High Density Polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.
Width of the long strip is the height of the geocell, and the distance between two welding lines in the same side of the plate when the geocell is not expanded is welding distance.

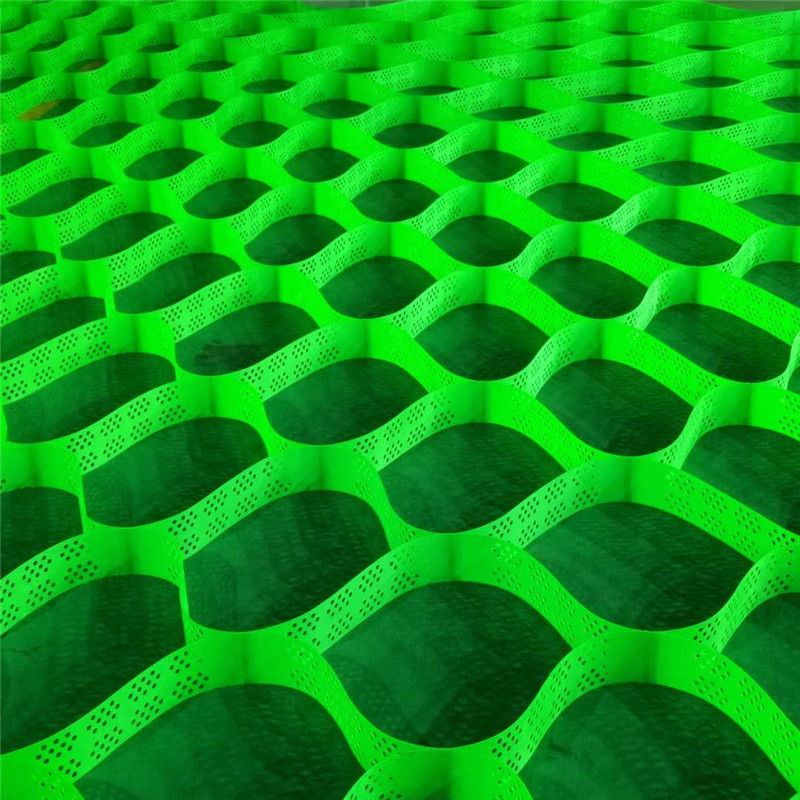

Zhonglu Geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.
SPECIFICATION
|
Polymer Density
|
High Density Polyethylene with density of 0.935 - 0.965 g/cm3
ASTM D 1505
|
|
Environmental Stress Crack Resistance
|
> 4000 hours
ASTM D 1693
|
|
Carbon Black Content
|
Carbon black content 1.5% - 2.0%
ASTM D 1603
|
|
Sheet Thickness
|
Smooth:1.1mm,1.2mm,textured:1.5mm
ASTM D 5199
|
|
Cell Details
|
welding distance:330-1000mm |
|
Cell Depth
|
50-250mm |
|
Seam Peel Strength
|
As per US Army Corps of Engineer's Report GL-86-19 Appendix A
|
|
Seam Hang Strength
|
A 100mm wide seam sample supports a 72.5 kg load for a minimum of 30 days in an ambient room temperature environment.
|
|
Certification
|
CE ,ISO
|
HDPE plastic honeycomb hdpe geocell gravel grid Specifications:
1.Cell depth: 50mm , 100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm~1600mm
3. Thickness: 1.0mm , 1.2mm , 1.5mm , 1.8mm
4. Appearance: smooth / textured
HDPE plastic honeycomb hdpe geocell gravel grid Features:
1) Light material , resistant to wear , stable in chemical properties , anti-aging , resistant to acids and alkalis, applicable to different soil and desert and other geological conditions .
2)High limit on lateral direction , anti-skidding , anti-deformation , effectively enhance the supporting ability and scattered load function of roadbed .
3)High carrying capacity and good dynamic performance and high erosion ability .
4)The geometry size can be changed to meet different needs of the project , such as height and welding distance .
5)Retractable and small loading volume , convenient joint , speed construction .
6)Local material can be used during construction , reduce the construction cost , easy to be transported after folding together.
Good quality and good services:
(1)Service:
A. OEM/ODM orders are warmly welcome
B. All of our products have proceeded testing before shipment and we guaranteed the good quality .
(2) Quality Control:
We have established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing .
Not only is stringent internal quality control carried out at zhonglu , but regular testing and analyzing of our product performance is implemented by authoritative testing organizations in Europe and the United States .
APPLICATION
1.To stable the roadbed of highway/railway.
2.To bear the load of dyke, retaining wall.
3.To improve the watercourse of shallow river.
4.To support the pipeline and sewer.
5.To be used as independent wall, wharf and breakwater, etc.
6.To be used for the regulation of the desert, beaches, river bed and river bank.
