Textured and Perforated HDPE Plastic Geocell Gravel Grid Gravel Stabilizer GeoCell
Geocell, also referred to as Ceocell in some markets, is an advanced geosynthetic material widely applied in civil engineering, geotechnical construction, and infrastructure projects. Manufactured in compliance with GB/T 19274-2003, geocell products are made from high-quality HDPE sheets bonded by ultrasonic welding to form a durable, three-dimensional cellular structure.

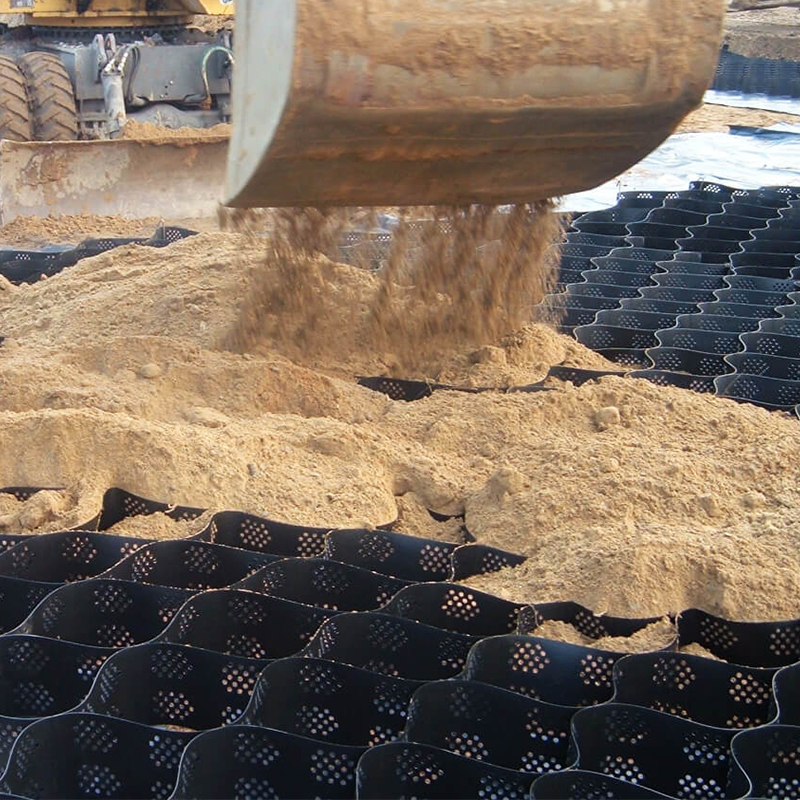

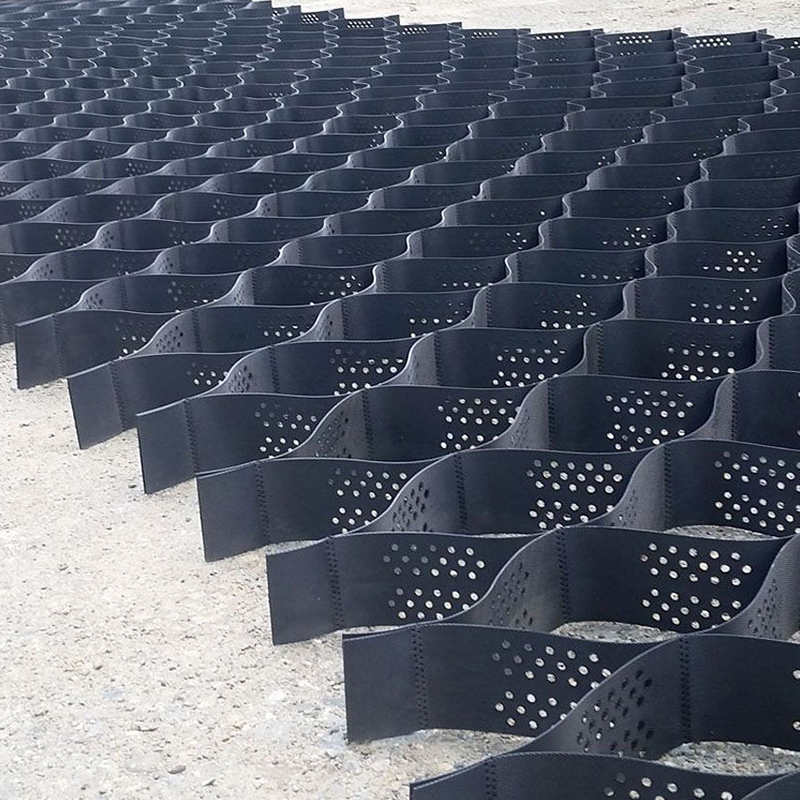

This geocell technology offers a lightweight, collapsible, and easy-to-install solution. Once expanded on site, the geocell grid creates a honeycomb network that can be infilled with soil, gravel, sand, crushed stone, or even concrete. The filled geocell structure ensures outstanding lateral confinement, enhanced stiffness, and excellent load-bearing capacity.
Geocell systems are extensively used for slope protection, roadbed reinforcement, retaining wall construction, erosion prevention, and ground stabilization. With high durability, resistance to chemical degradation, and UV stability, geocell materials provide long-term performance under demanding environmental conditions.
Whether referred to as geocell or Ceocell, this cellular confinement system is a critical solution for improving the stability, strength, and reliability of modern engineering and environmental projects.
Durable & Lightweight:
Made from high-grade HDPE, the geocell system combines low weight with excellent durability. It shows strong resistance to abrasion, UV degradation, chemical exposure, and demanding environments such as saline soils, deserts, or acidic and alkaline conditions.
Enhanced Confinement Strength:
The interconnected geocell honeycomb structure ensures outstanding lateral confinement, high skid resistance, and uniform load transfer. This geocell reinforcement greatly improves ground stability and roadbed performance.
High Load Capacity:
Engineered geocells provide superior erosion resistance, sustain heavy traffic loads, and maintain structural integrity across diverse terrains. The geocell material supports long-term strength under both static and dynamic forces.
Flexible Design Options:
With adjustable heights and weld spacing, geocell panels can be tailored to specific project needs, making them suitable for slope protection, embankment reinforcement, retaining wall construction, and other civil engineering applications.
Efficient Handling & Installation:
The foldable geocell design saves transport space and simplifies logistics. Modular geocell units allow quick deployment and easy installation on-site, helping reduce labor costs and shorten construction schedules.
Cost-Effective Solution:
By utilizing locally available infill materials such as soil, sand, or gravel within the geocell grid, overall project costs are reduced while still ensuring reliable geocell stabilization and structural performance.
Technical Parameters:
| Material Properties |
Unit |
|
|
|
|
Test Method |
| Cell Depth |
mm |
75 |
100 |
150 |
200 |
|
| Polymer Density |
g/cm3 |
0.935-0.965 |
ASTM D 1505 |
| Environmental Stress Crack Resistance |
Hours |
>400 |
ASTM D 5397 |
| Environmental Stress Crack Resistance |
Hours |
6000 |
ASTM D 1693 |
| Carbon Black Content |
% |
1.5% - 2.0% |
ASTM D 1603 |
| Nominal Sheet Thickness Before Texturing |
mm |
1.27 -5%,+10% |
ASTM D 5199 |
| Nominal Sheet Thickness After Texturing |
mm |
1.52-5%,+10% |
ASTM D 5199 |
| Strip Puncture Resistance |
N |
450 |
ASTM D 4833 |
| Seam Peel Strength |
N |
1065 |
1420 |
2130 |
2840 |
EN ISO13426-1B |
| Seam Efficiency |
% |
100 |
GRI-GS13 |
| Nominal Expanded Cell Size (width x length) |
mm |
320x287,475x508 etc |
|
| Nominal Expanded Panel Size (width x length) |
m |
2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44 |
|
The geocell plastic grid, often referred to as Ceocell, is widely applied in civil infrastructure and environmental engineering projects. With excellent soil confinement and efficient load distribution, geocell systems offer a reliable and economical solution for various ground stabilization, erosion control, and foundation reinforcement applications.
1. Road Construction & Driveways
Geocell, also known as Ceocell, is widely used for strengthening road base layers, constructing gravel or unpaved roads, and stabilizing both residential and commercial driveways. Geocell solutions enhance load-bearing capacity on soft or unstable soils, while the honeycomb structure evenly distributes applied loads, effectively preventing rutting and surface damage. This makes geocell systems a reliable and efficient choice for a variety of ground stabilization and infrastructure projects.

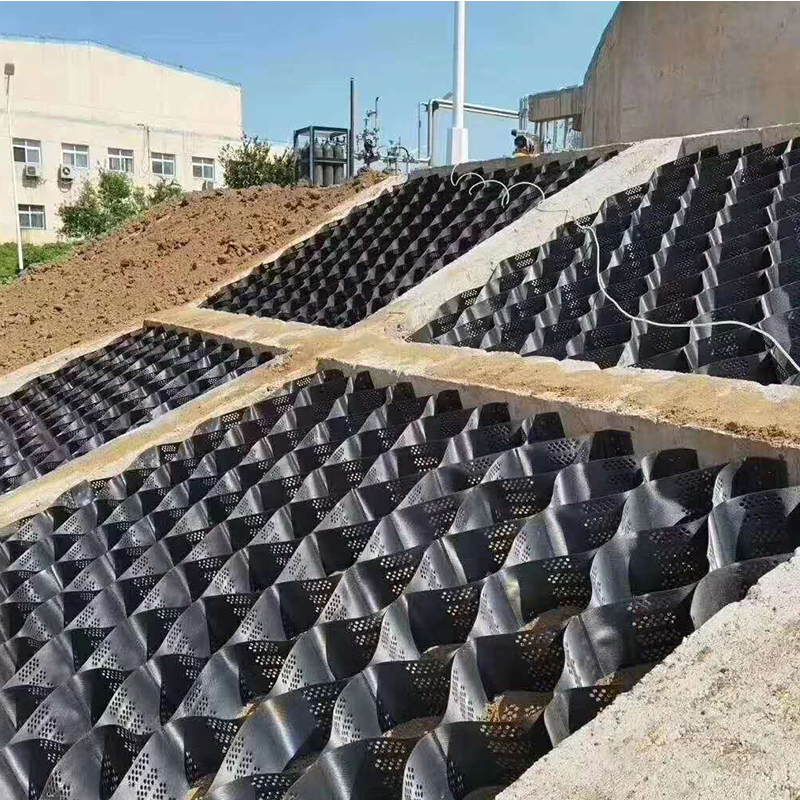

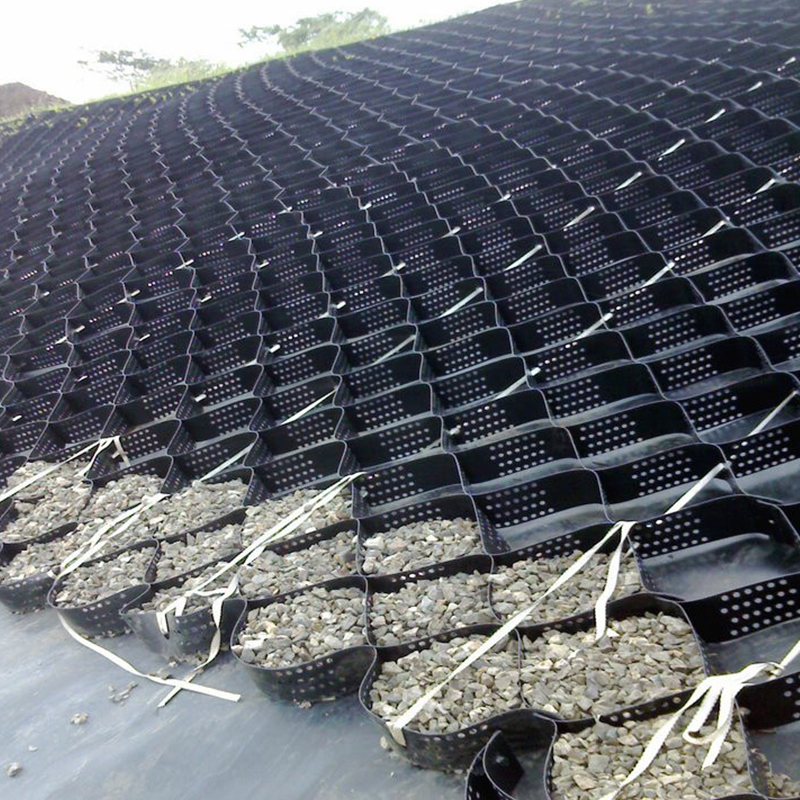

2. Embankment Stabilization
Plastic geocell grids, also called Ceocell, offer robust support for embankments and slopes, especially in areas susceptible to erosion or soil settlement. By securely confining infill materials, geocell systems enhance the stability of roadways and railway embankments, reducing maintenance needs and long-term repair costs.

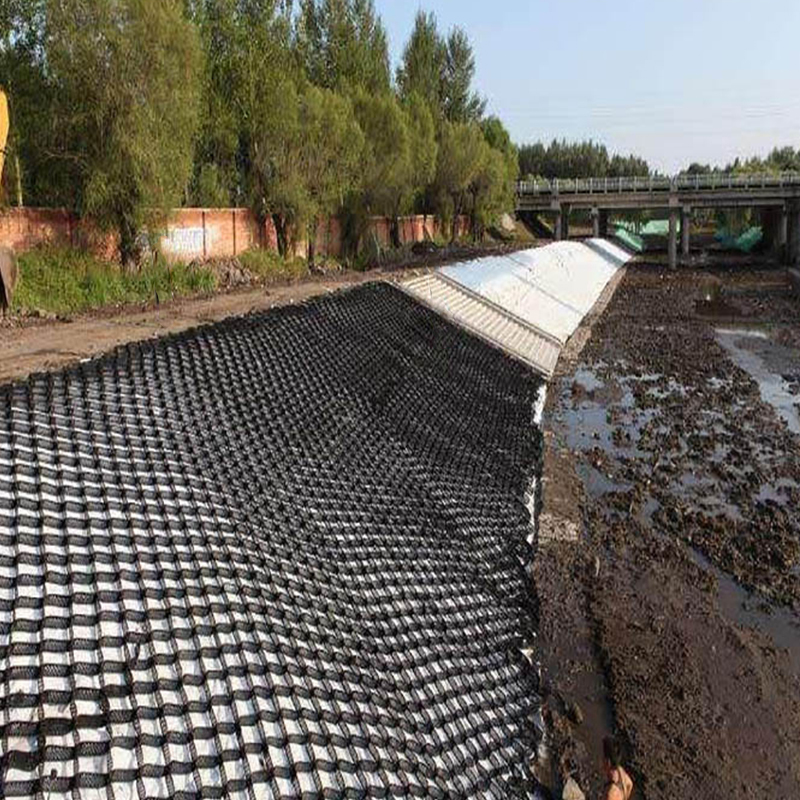

3. Riverbank Protection
HDPE geocells are extensively used to protect riverbanks, waterways, and coastal areas from erosion. The flexible geocell structure adapts to changing terrain and varying water levels, supports vegetation establishment, and provides an effective, sustainable solution for hydraulic and environmental engineering projects.

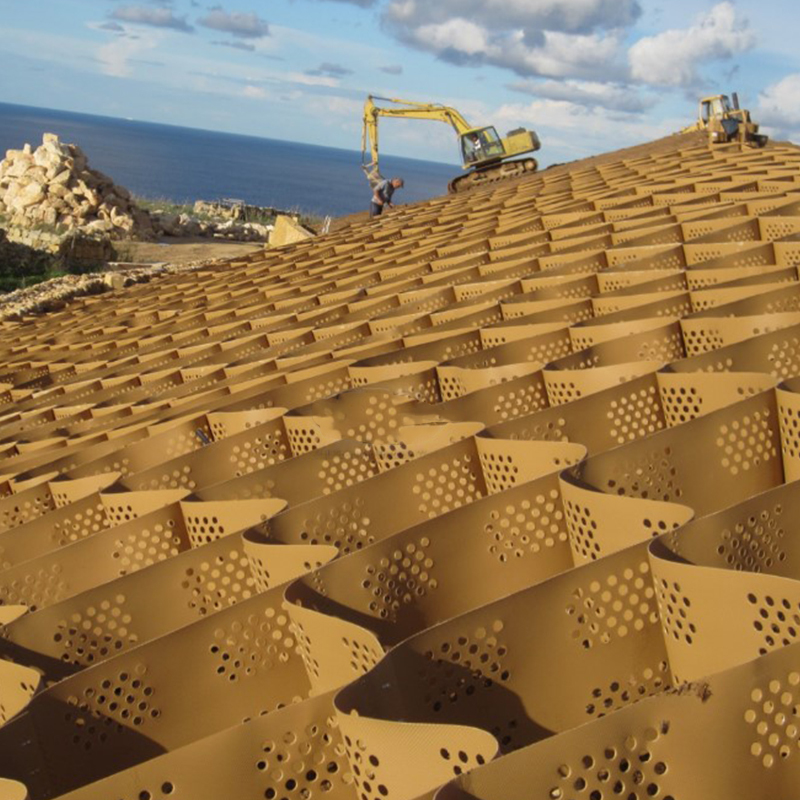

4. Landslide Prevention
Ceocell geocell systems enhance soil stability by providing strong lateral confinement, helping to prevent landslides and soil displacement on steep or unstable terrain. These geocell solutions are especially effective in mountainous and hilly areas, ensuring long-term slope reinforcement and safety.
5. Cost-Effective Construction
Geocell systems help reduce roadbed thickness and shorten construction time, while minimizing labor requirements. By allowing the use of locally available materials such as sand, gravel, or recycled aggregates, geocell solutions deliver excellent structural performance and stability, all while significantly lowering overall project costs.
