HDPE Geomembrane Liner for Aquaculture, Fish Farm, Pond, Dam, Pool, and Water Containment Applications

Aquaculture Fish Farm Waterproof Geomembrane Pond Liner HDPE High Density for Landfill Dam Soil Protection

The HDPE geomembrane pond liner is a high-strength, low-permeability synthetic liner designed for exceptional containment performance. Produced in full accordance with GRI GM13 standards, this geomembrane is made from 100% virgin polyethylene resin combined with carbon black, UV stabilizers, antioxidants, and anti-aging additives, ensuring long-lasting durability and excellent resistance to environmental stress cracking.

With a smooth surface finish, this HDPE geomembrane liner is ideal for exposed applications requiring superior UV resistance, chemical stability, and impermeability. It offers reliable, long-term protection for a wide range of geotechnical, agricultural, and environmental engineering projects, making it a versatile solution for ponds, reservoirs, and water containment systems.

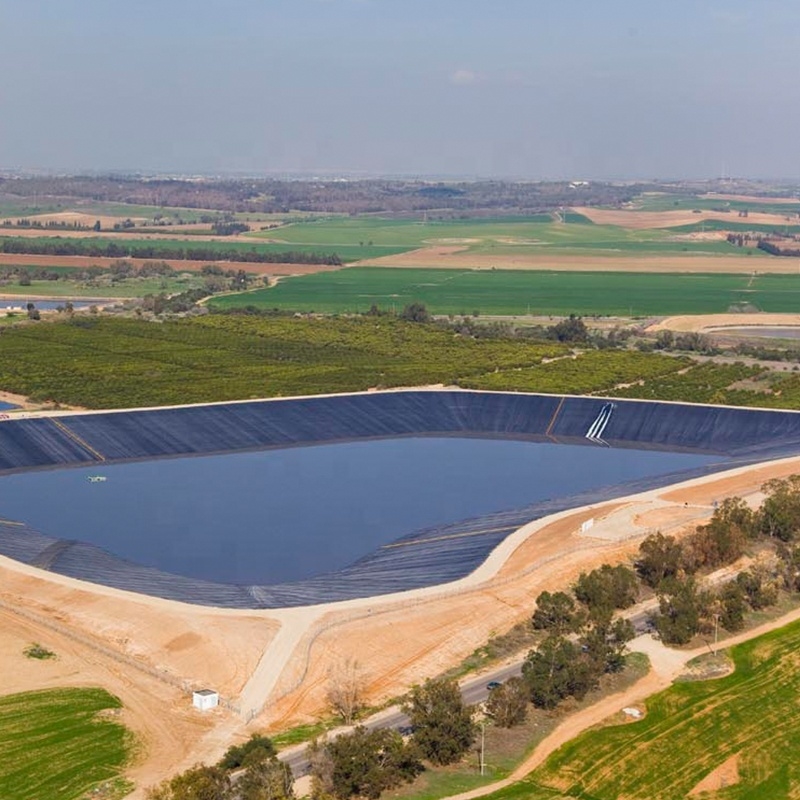

Aquaculture:

HDPE geomembrane liners provide excellent anti-seepage performance, making them ideal for fish ponds, shrimp ponds, tanks, and other aquaculture containment systems. These geomembrane solutions ensure long-term water retention and environmental safety.

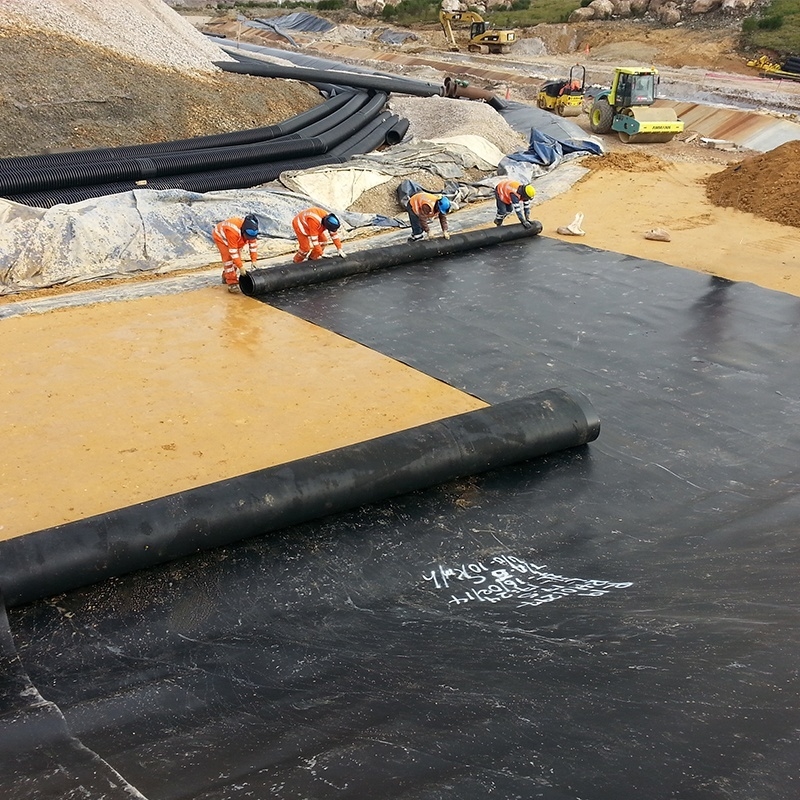

Landfill Engineering:
Widely used in landfill projects, HDPE geomembranes serve as the primary lining material for landfill bottoms, capping layers, leachate collection ponds, and other containment structures. The geomembrane liner effectively prevents leakage and protects surrounding soil and groundwater.

Water Treatment Systems:
In power plants and sewage treatment facilities, HDPE geomembrane liners are applied to adjustment ponds and various water treatment pools to guarantee effective containment and leakage prevention. These geomembrane solutions provide reliable performance under demanding operational conditions.

Mining Applications:
HDPE geomembrane liners are suitable for a wide range of mining uses, including wash ponds, heap leach pads, heap yards, dissolution tanks, storage areas, and tailings ponds. The geomembrane system ensures seepage control, environmental protection, and long-term structural stability.

Geomembrane Pond Liner Technical Parameter

ASTM Standard geomembrane pond liner

Characteristics:

     HDPE geomembrane liners offer superior flexibility and can withstand extreme temperatures ranging from -70°C to 110°C. These geomembrane solutions exhibit excellent resistance to chemical corrosion, aging, and environmental stress cracking (ESC). With high tensile strength and substantial elongation capacity, HDPE geomembranes provide reliable performance for a wide range of engineering and containment applications.

Main Features:

1. UV-resistant

2. Impermeable barrier

3. Reliable isolation

4. High tear-resistant

5. Puncture-proof

HDPE Geomembrane Application:
(1) Aquaculture:
Utilizing the geomembrane pond liner's anti-seepage properties, our geomembrane pond liner serves as:

• Fish farm

• Shrimp containment

• Tank sealing

• Recirculating aquaculture

(2) Landfill:
As the industry-standard geomembrane pond liner solution:

• Base geomembrane pond liner for landfill bottoms

• Capping geomembrane pond liner closure systems

• Leachate collection geomembrane pond liner

• Regulation pond geomembrane pond liner

(3) Water Treatment Systems:
Critical geomembrane pond liner applications include:

• Power plant cooling geomembrane pond liner

• Wastewater treatment geomembrane pond liner

• Equalization basin geomembrane pond liner

• Potable water geomembrane pond liner reservoirs

(4) Mining:
Heavy-duty geomembrane pond liner installations:

• Heap leach pad

• Tailings storage

• Process solution

• Sediment control

• Acid rock drainage containment

  Product Specification




  HDPE Geomembrane pond liner Technical Parameter

  ASTM Standard geomembrane

  Spec Properties	Test method ASTM	GMS0.5	GMS0.75	GMS1.0	GMS1.25	GMS1.5	GMS2.0	GMS2.5
  Thickness	D5199	0.5mm	0.75mm	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm
  Density (≥ g/cc)	D1505	0.940	0.940	0.940	0.940	0.940	0.940	0.940
  Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation	D 6693 Type IV	8 kN/m 14kN/m 12% 700%	11 kN/m 20kN/m 12% 700%	15 kN/m 27 kN/m 12% 700%	18 kN/m 33 kN/m 12% 700%	22 kN/m 40 kN/m 12% 700%	29 kN/m 53 kN/m 12% 700%	37kN/m 67kN/m 12% 700%
  Tear Resistance (≥)	D 1004	64 N	93 N	125 N	156 N	187 N	249 N	311 N
  Puncture Resistance (≥)	D 4833	160 N	240 N	320 N	400 N	480 N	640 N	800 N
  Stress Crack Resistance (≥)	D 5397	500 hr.	500 hr.	500 hr.	500 hr.	500 hr.	500 hr.	500 hr.
  Carbon Black Content	D 1603	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%
  Carbon Black Dispersion	D 5596	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)
  Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT	D 3895 D 5885	100 min. 400 min.	100 min. 400 min.	100 min. 400 min.	100 min. 400 min.	100 min. 400 min.	100 min. 400 min.	100 min. 400 min.
