Factory Price 100% Virgin High Density Polyethylene Anti-Seepage Waterproof Smooth Textured HDPE Geomembrane Pond liner for Landfill Mining Dam Water Lake Pond Liner

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO CE

Model Number:

Geomembrane pond liner

Request A Quote

Product Details

Chemical Resistance:

Excellent

Color:

Black Geomembrane Pond Liner

Surface Choices:

Smooth, Textured, Bi-Color Geomembrane Pond Liner

Puncture Resistance:

≥ 450N

Elongation At Break:

≥ 550%

Uv Resistance:

Yes

Low Temperature Resistance:

-70℃

Roll Length:

50m, 100m Geomembrane Pond Liner

Product Certificate:

CE/ISO9001

Supplying:

60,000m2/day Geomembrane Pond Liner

Supplying Capacity:

10,000m2/day

Implementation Standards:

ASTM/Gri GM13 Geomembrane Pond Liner

Product Thickness:

0.5MM 1.0MM 0.75MM 1.5MM 2.0MM 2.5MM Geomembrane Pond Liner

Outdoor Polyethylene Fish Farm Geomembrane Pond Liner HDPE Containment Liner Large Pond Liner Waterproof Geomembrane Pond Liner

Get Best Price

Video

HDPE Geomembrane Liner for Aquaculture, Fish Farm, Pond, Dam, Pool, and Water Containment Applications

Get Best Price

1.0mm 1.5mm 100% Virgin Material ASTM Anti-Seepage Waterproof Impermeable Smooth Textured LDPE LLDPE HDPE Geomembrane Pond liner for Landfill Mining Liner

Get Best Price

Video

Waterproofing High Density Black Heat Resistant HDPE Pond Liner Geomembrane Pond Liner for Roofing Fish Pond Liner Landfill Mining

Get Best Price

86--18095658976

angela@zhongloo.com

86-551- 65540070

Contact Now

Product Description

Factory Price 100% Virgin High Density Polyethylene Anti-Seepage Waterproof Smooth Textured HDPE Geomembrane Pond liner for Landfill Mining Dam Water Lake Pond Liner

Geomembrane Pond liner informations:

HDPE Geomembrane pond liner Technical Parameter (GB standard)
Spec Properties	GMS0.5	GMS0.75	GMS1.0	GMS1.25	GMS1.5	GMS2.0	GMS2.5
Thickness	0.5mm	0.75mm	1.0mm	1.25mm	1.5mm	2.0mm	2.5mm
Tensile Properties (each direction) (≥) .yield strength .break strength .yield elongation .break elongation	7KN/m 10KN/m -- 600%	10KN/m 15KN/m -- 600%	13KN/m 20KN/m 11% 600%	16KN/m 25KN/m 11% 600%	20KN/m 30KN/m 11% 600%	26KN/m 40KN/m 11% 600%	33KN/m 50KN/m 11% 600%
Density(≥)	0.940g/cc	0.940g/cc	0.940g/cc	0.940g/cc	0.940g/cc	0.940g/cc	0.940g/cc
Puncture Restistance (≥)	120N	180N	240N	300N	360N	480N	600N
Carbon Black Content	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%
Carbon black Dispersion	Noted(1)	Noted(1)	Noted(1)	Noted(1)	Noted(1)	Noted(1)	Noted(1)
Tear Resistance (≥)	56N	84N	115N	140N	170N	2255N	280N
Oxidative Induction Time(OIT) Standare OIT(≥)	60min.	60min.	60min.	60min.	60min.	60min.	60min.

1)Geomembrane pond liner Good physical and mechanic performance
2) Geomembrane pond liner High tearing resistance, strong deformation adaptability
3) Geomembrane pond liner Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
4) Geomembrane pond liner Good adaptability to high and low temperature, non-toxicity, long service life
5) Geomembrane pond liner Good waterproof, drainage, anti-seepage and damp proof effects
6) Complete width and thickness specifications, low cost and easy installation.

Our high density polyethylene (HDPE) geomembrane pond liner provide an impermeable barrier against a wide range of solids and liquids. They exhibit excellent chemical and UV resistance,impermeability, and high yield and welded seam strengths, which is widely used as the liner.(model according to the thickness of distinction, different thickness and different price) production capacity: thickness:0.1 mm -6 mm, width: 1-8 meters. It is suitable for seepage control in special industries, and is widely used for aquaculture, seepage control, reservoirs or sewage treatment ponds.

Petrochemical (chemical plant, oil refinery storage tank Water conservancy and civil engineering (river / lake /
anti-seepage and anti-fouling, chemical reaction tank lining reservoir / dike anti-seepage, plugging,
, etc.)

Municipal engineering (underground, underground construction Landscaping (artificial lake, pond, pond lining
of buildings and roof tanks, lining of sewage pipes, etc.) of golf course, etc.)

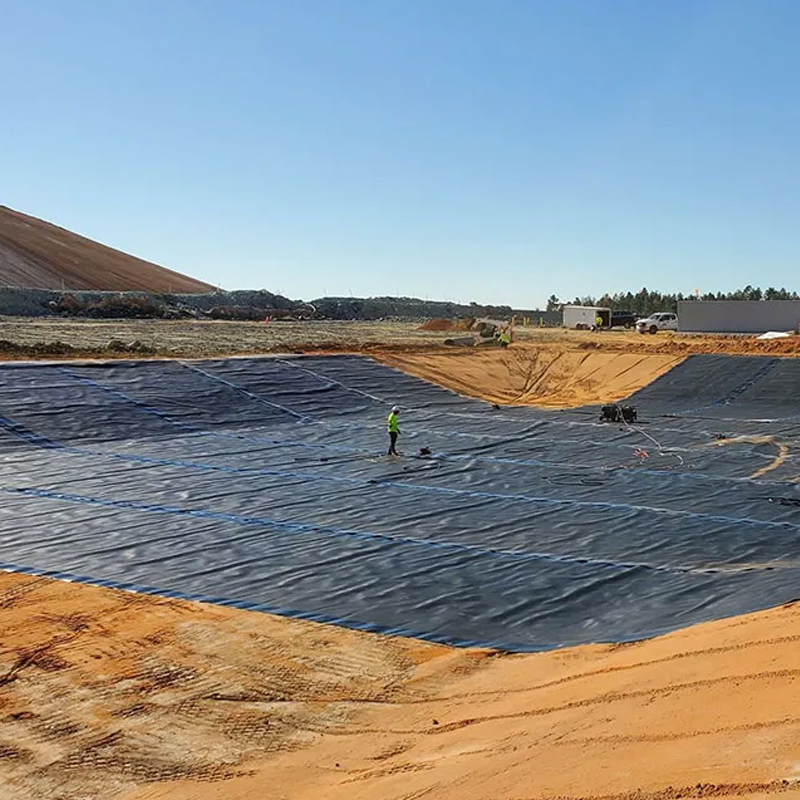

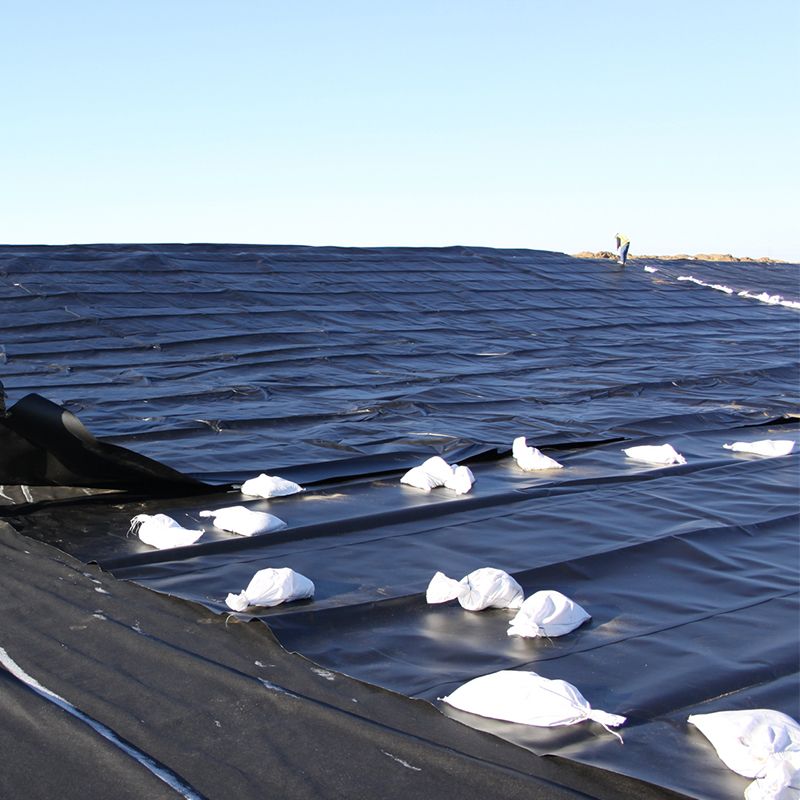

Geomembrane pond liner Construction Method

1. The slope shall be laid in order from top to bottom. Don't pull it too tight.
2. Tow adjacent longitudinal joints should not be in a horizontal line, should bestaggered more than 1m each other.
3. Longitudinal joints should be more than 1.50m away from the dam foot and bending foot, and should be located on the plane.
4. When the slope is laid, the direction of spreading film should be basically parallel to the slope line.
5. The construction, first of all to use small diameter sand or clay levelingbase, and then laid the geomembrane. The geomembrane should not be stretched too tight, and the part of the soil bured at both ends is corrugated. A transitional layer of about 10cm is laid on the geomembrane with sand or clay.

Factory Price 100% Virgin High Density Polyethylene Anti-Seepage Waterproof Smooth Textured HDPE Geomembrane Pond liner for Landfill Mining Dam Water Lake Pond Liner 1
FAQ

1.Are you manufacturer or trade company?
We Zhonglu are a professional geosynthetic products manufacture, we will provide you with top-class service.

2. What's the order process?
a.Inquiry--- The more detailed information you provide, the more accurate product we could provide you.
b. Quotation---Resonable quotation with clear specifications.
c. Sample confirmation---Sample could be sent before the final ordering.
d. T/T 30% in advanced, and the balance could be paid before shipment.
e. Production---Mass production.
f. Shipping--- By sea, air or courier. Detailed picture of package could be provided.

3. How long is your delivery time?
Generally it is 3-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.

4. How does your factory do regarding quality control?
"Quality is priority." We always attach great importance to quality controlling from the beginning to the end.

5.What's the payment method you accept?
T/T, L/C,D/P etc.
