Plastic ASTM Standard Road Grid Gravel Honeycomb HDPE Geocell for Retaining Wall Reinforcement Slope Protection Driveway Geocell Erosion Control

Place of Origin:

China

Brand Name:

Zhongloo

Certification:

ISO CE

Model Number:

HDPE Geocell

Request A Quote

Product Details

Raw Material:

HDPE Plastic

Description:

Plastic Parking Grass Grid Geocell

Filler:

Concrete Materials, Soil & Rock

Hdpe Geocell Material:

100% HDPE Plastic

Thickness About Geocell:

1.2mm-1.5mm HDPE Geocell

Tensile Strength:

≥ 20kN/m

Function:

Protect, Reinforce

Welding Distance:

330-1000mm HDPE Gepcell

Methods:

Welded

Geocell Height:

50mm Hdpe Geocell

Specification:

High-density Polyethylene Hdpe Geocell

Tensile Yield Strength:

3.75N/mm-29N/mm

Chemical Resistance:

Excellent

Durable HDPE Geocells Smooth Surface HDPE Geocell for Driveways Erosion Control for Slopes Retaining Wall Support

Get Best Price

Video

Textured and Perforated HDPE Plastic Geocell Gravel Grid for Driveway Stabilization, Road Base Reinforcement, Parking Lot and Slope Protection

Get Best Price

Video

50MM 100mm 150mm HDPE Geocell for Driveway Erosion Control Gravel Stabilizer Garden Drainage Board Roadbed Slope Protection

Get Best Price

Video

High Tensile Strength Biaxial Plastic Mesh – 30kN/m Black PP/PET Geogrid for Soil Reinforcement and Road Base Stabilization

Get Best Price

86--18095658976

angela@zhongloo.com

86-551- 65540070

Contact Now

Product Description

HDPE Geocell Description

Plastic ASTM Standard Road Grid Gravel Honeycomb HDPE Geocell for Retaining Wall Reinforcement Slope Protection Driveway Geocell Erosion Control

HDPE Plastic Geocell
item	PP	PE
tensile strength of Strip ≥(Mpa)	23	20
Tensile strength of weld ≥(N/cm)	100	100
Tensile strength of cell edge ≥(N/cm)	200	200
Intermediate tensile strength of cell sheet ≥(N/cm)	120	120

HDPE Geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. It is flexible to fold during the transport and installation on construction site.

HDPE geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.

1) Light material, resistant to wear, stable in chemical properties, anti-aging, resistant to acids and alkalis, applicable to different soil and desert and other geological conditions.

2)High limit on lateral direction, anti-skidding, anti-deformation, effectively enhance the supporting ability and scattered load function of roadbed.

3)High carrying capacity and good dynamic performance and high erosion ability

4)The geometry size can be changed to meet different needs of the project, such as height and welding distance.

5)Retractable and small loading volume, convenient joint, speed construction.

6)Local material can be used during construction, reduce the construction cost, easy to be transported after folding together.

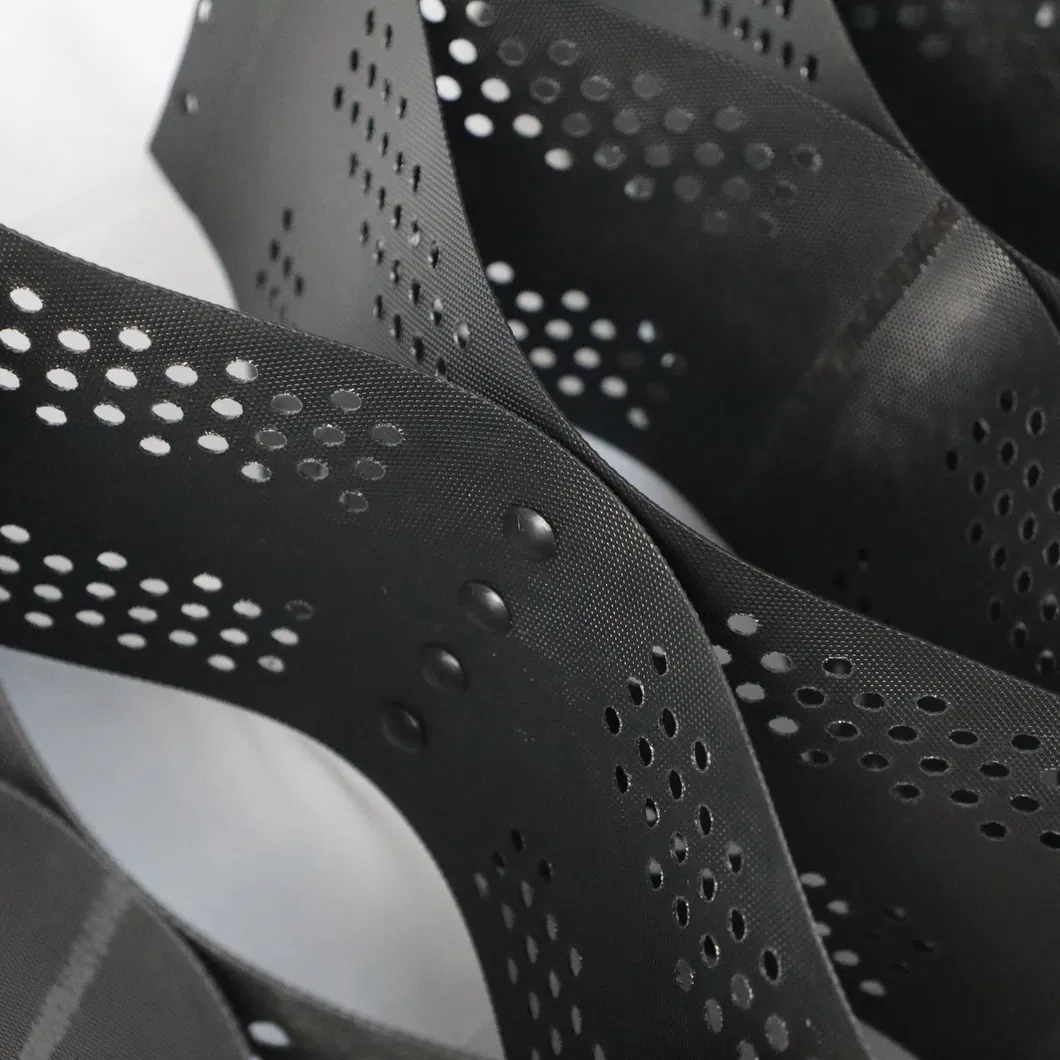

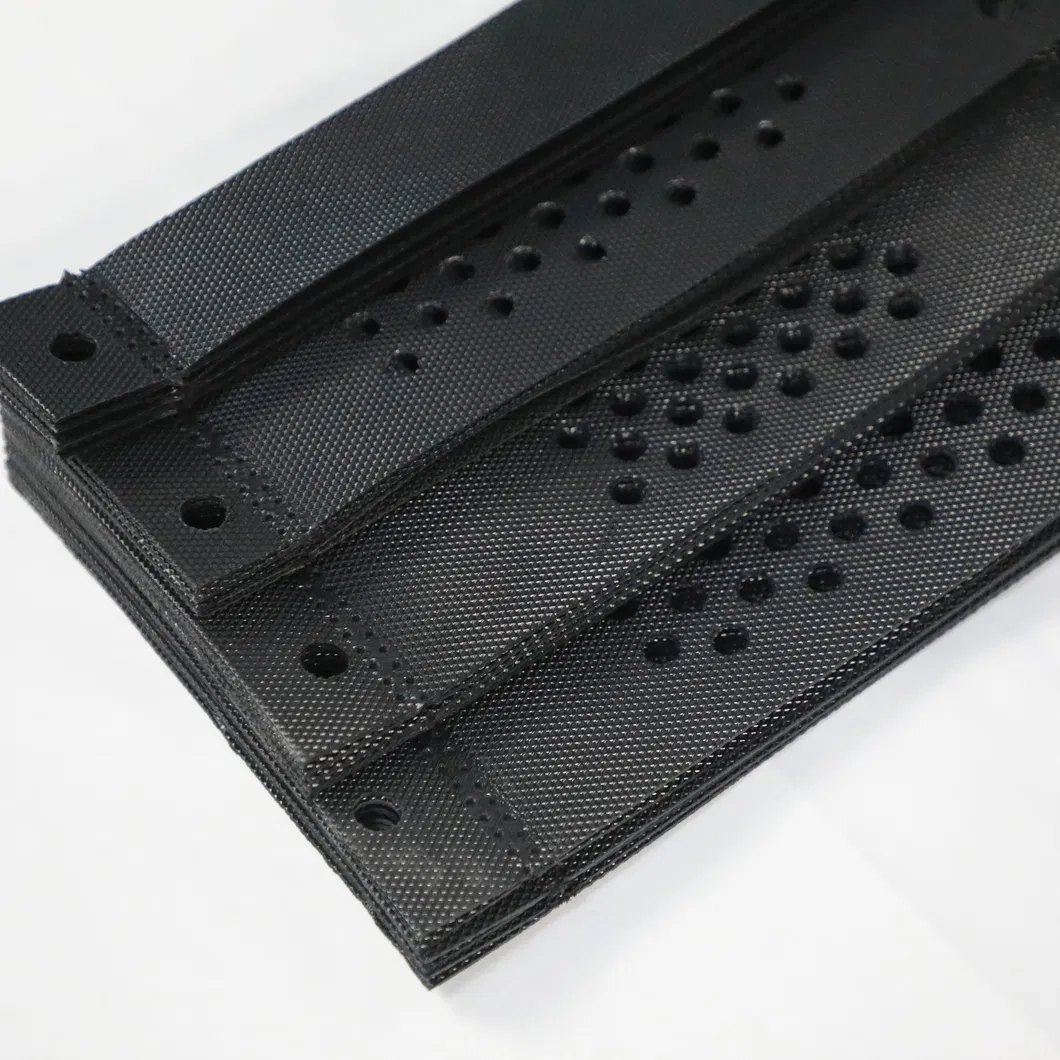

HDPE Geocell is a lightweight and flexible three-dimensional, expandable panels made from High Density Polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.

2.HDPE Paving Plastic Gravel Stabilizer Geocell Specifications:
1.Cell depth: 50mm , 100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm~1600mm
3. Thickness: 1.0mm , 1.2mm , 1.5mm , 1.8mm
4. HDPE Geocell Appearance: smooth / textured

3.HDPE Paving Plastic Gravel Stabilizer Geocell Features:
1) Light material , resistant to wear , stable in chemical properties , anti-aging , resistant to acids and alkalis, applicable to different soil and desert and other geological conditions .
2)High limit on lateral direction , anti-skidding , anti-deformation , effectively enhance the supporting ability and scattered load function of roadbed .
3)High carrying capacity and good dynamic performance and high erosion ability .
4)The geometry size can be changed to meet different needs of the project , such as height and welding distance .
5)Retractable and small loading volume , convenient joint , speed construction .
6)Local material can be used during construction , reduce the construction cost , easy to be transported after folding together .

Why HDPE Geocell In roads , railways , sewers and slope applications , etc . during construction , sometimes we encountersoft and / or weak soils . The traditional way is to fill with expensive materials , which could be costlyand time consuming . However , there is an effective alternative method , by using geocell directly on the subgrade .geocell is made of ultrasonically-welded high density polythelene ( HDPE ) and can beexpanded to form honeycomb structure . Cells are then filled with readily available granular materialsand compacte.The Geocell solution means to challenge soil stability problems in lots of applications therougn the high-strength network of interconnected cells .

How HDPE Geocell Works when infilled with compacted materials , it creates a newcomposite entity that possesses enhanced mechanical andgeotechnical properties

When the soil contained within a HDPE Geocell is subjected to pressure , it causes lateral stresses on perimeter cell walls.

The 3D zone of confinement reduces the lateral movement of soil particles while vertical loading on the contained infill results in high lateral stress and resistance on the cell-soil interface . These increase the shear strength of the confined soil . which :
Creates a stiff mattress or slab to distribute the load over a wider area. Preduces punching of sofl soil.
Incrcascs shear resistance and bcaring capacity
decreases deformation

Confinement from adjacent cells provides additional resistance against the loaded cell through passiveresistance , while lateral expansion of the infill is restricted by high hoop strength . Compaction ismaintained by Geocell resulting in long term reinforcement

.Applications:HDPE paving plastic gravel stabilizer geocell

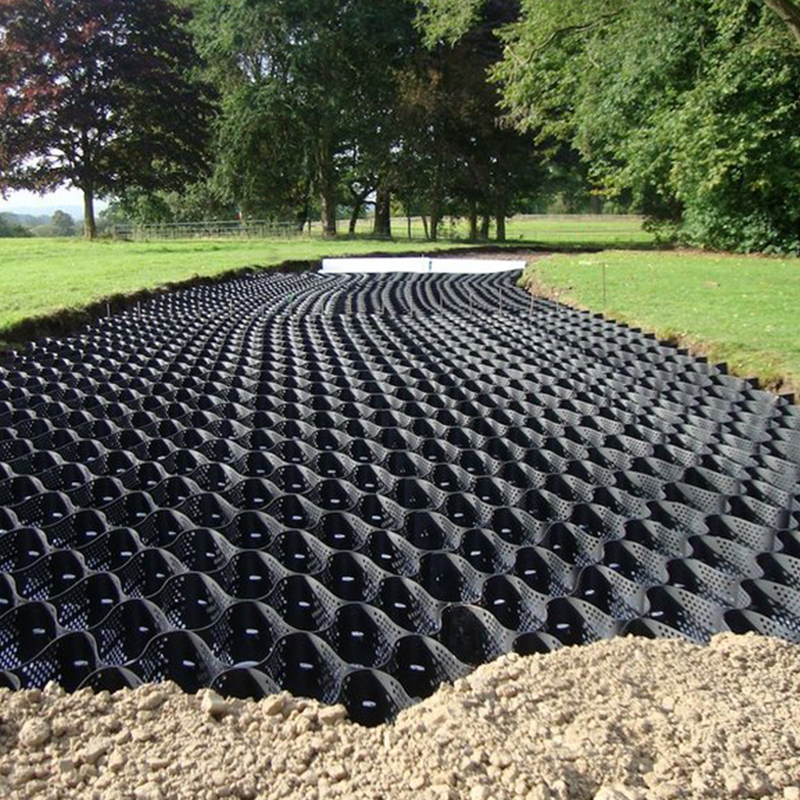

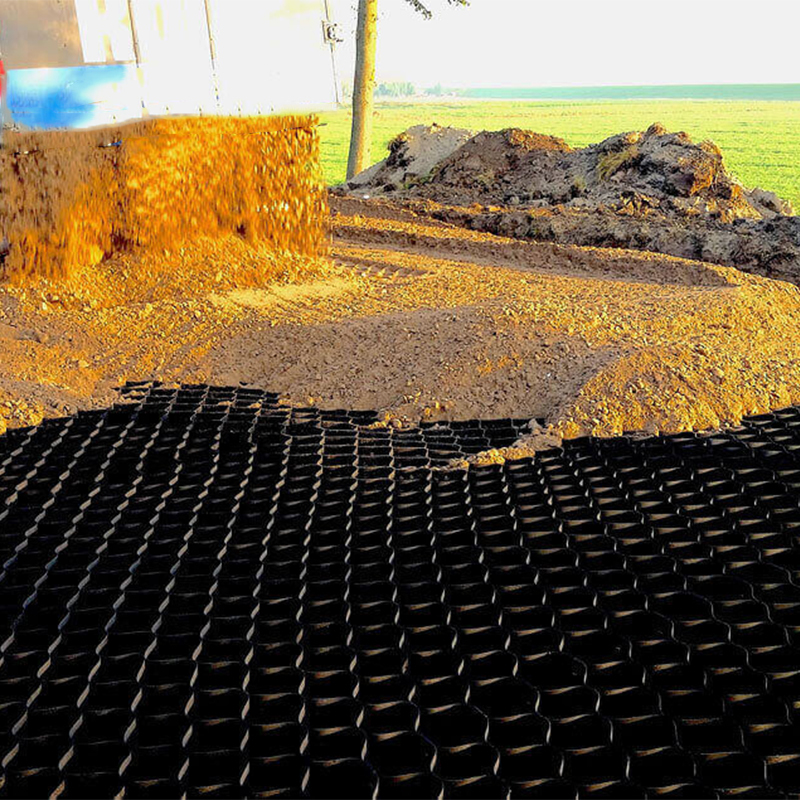

1. HDPE Geocell Used for all kinds of road building , driveways , soil stabilization and embankment stabilization

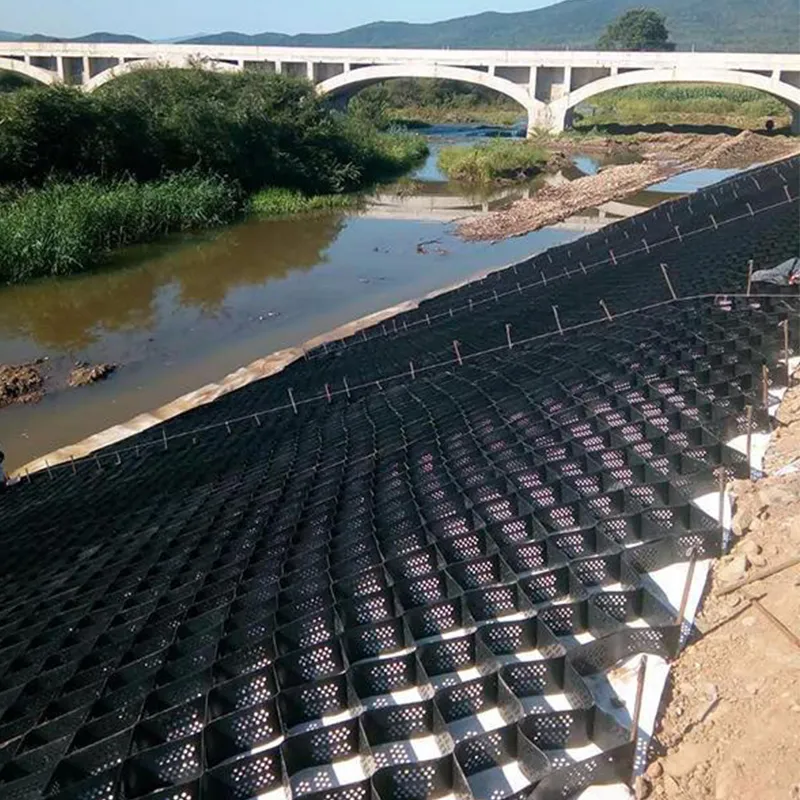

2. HDPE Geocell Used to stabilize river embankments .
3. HDPE Geocell Used to prevent landslides .
4. Using HDPE Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed , construction speed ,good performance and greatly reduce the project cost .

Load Support

Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong,stiff 3D cellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances load-bearing capacity, while reducing the amount of aggregate material required to extend the service life of roads.

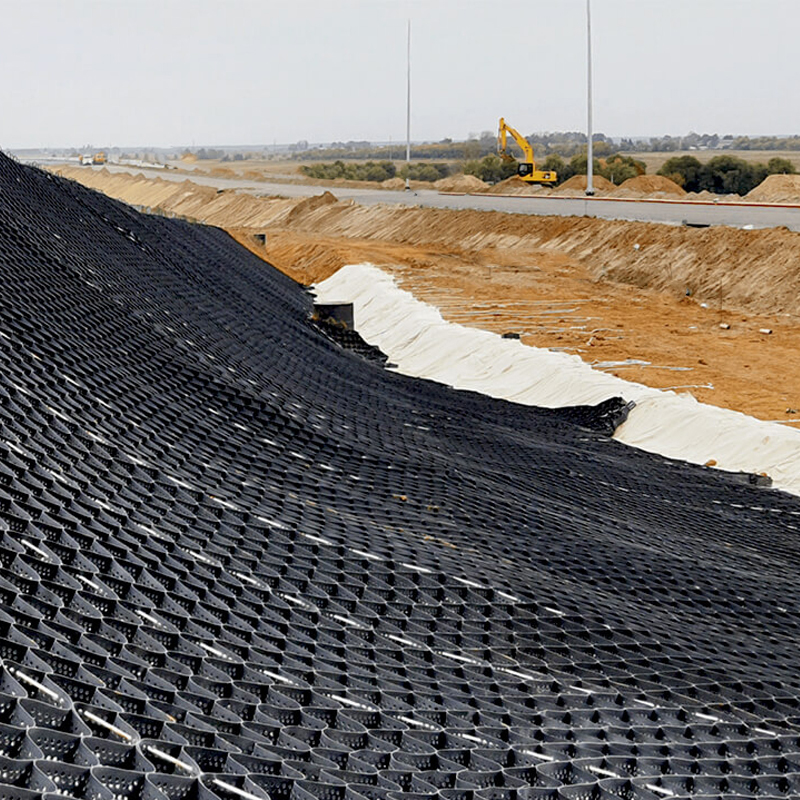

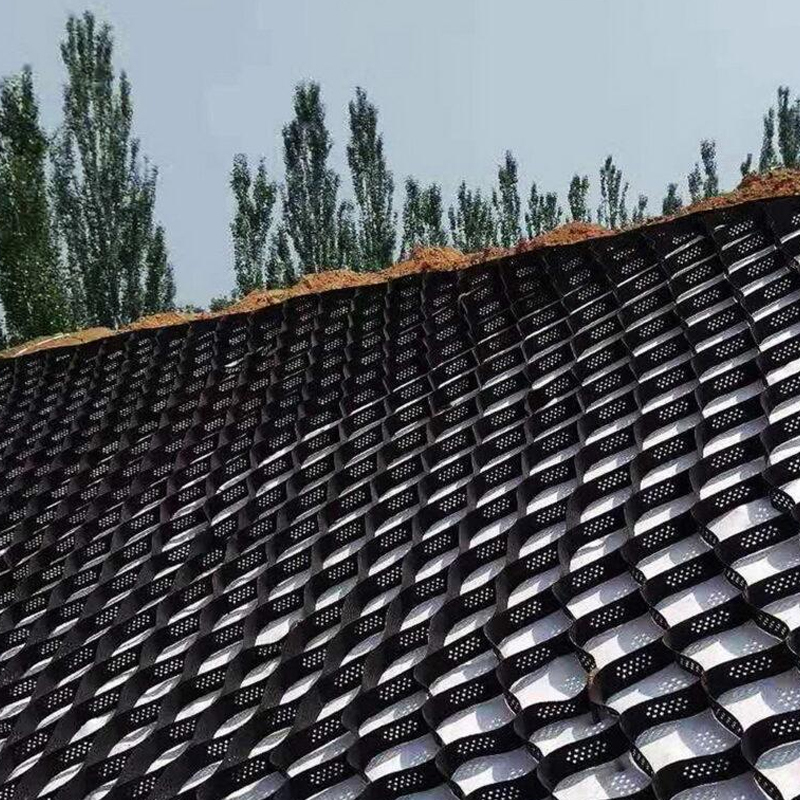

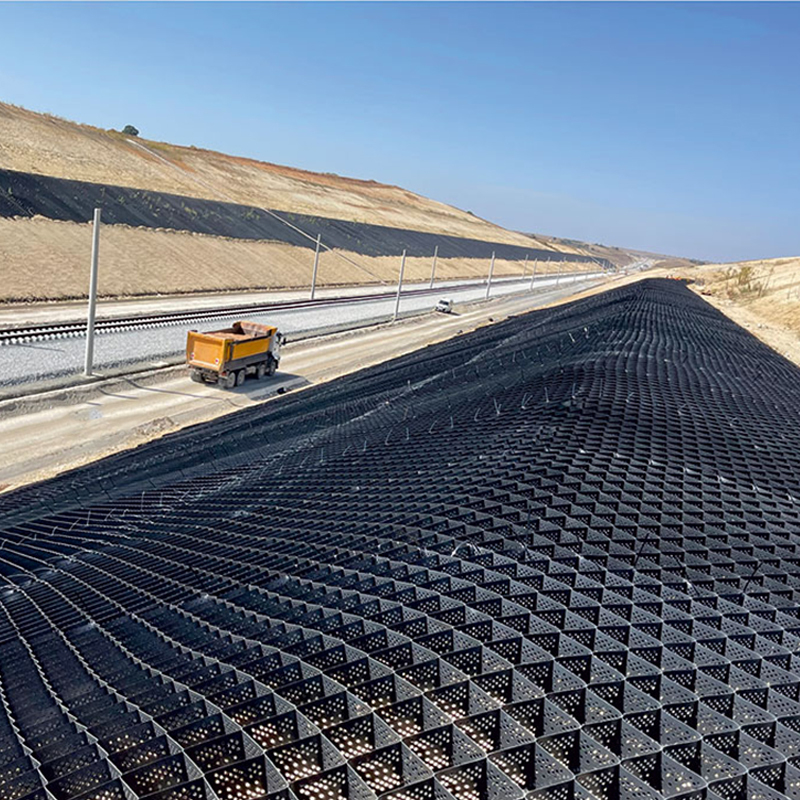

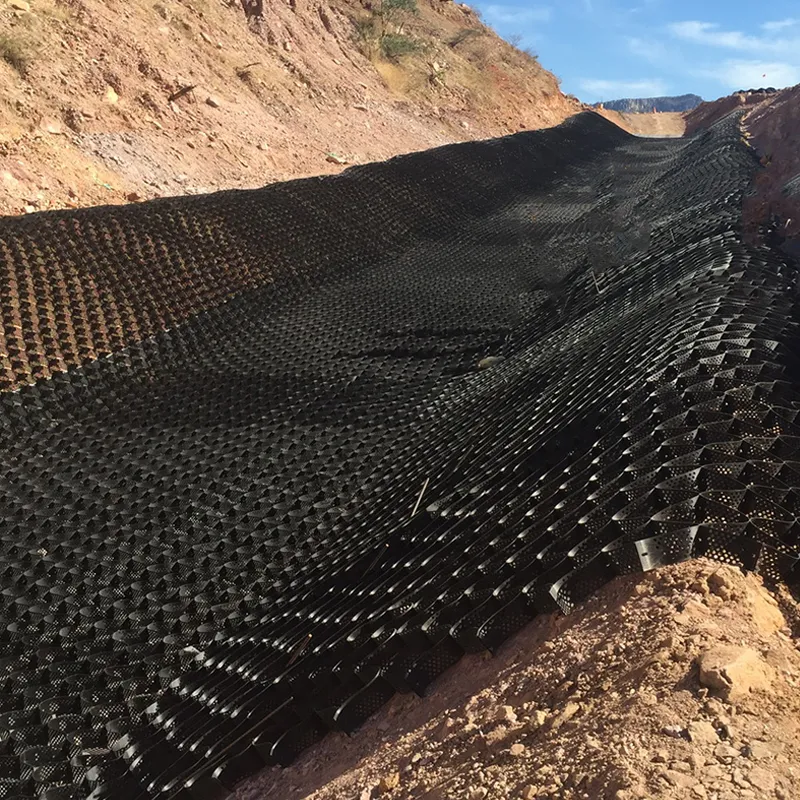

Slope Pretection

The three-dimensional lateral confinement of Cellular Confinement Systems along with anchoring techniques ensures the long-term stability of slopes using vegetated topsoil, aggregate or concrete surfacing

Gruound Stabilisation

Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior material for infill as well as reducing the structural support layer thickness.Typical stabilisation applications include reinforcement of base and subbase layers in flexible pavements, including: roads, railway substructure and ballast confinement; working platforms in intermodal ports; airport runways.

FAQ
Q:Can you send samples?
A:Yes, we are very happy to provide you with free samples to check the quality of our products.

Q:Are you a manufacturer or a trading company?
A:Our company located in Hefei,Anhui Province,with are gistered capital of 52 milion yuan. It is a professional manufacturer of geomembrane, geotextile, geocell and other products. So we have the competitive price with best quality.

Q: Can you produce the product according to customers' requirements?
A: Sure,we are professional manufacturer,OEM and ODM are both welcome.

Q:How long is the delivery time?
A: General within 3-7days after received the deposit.

Q: How to control product quality?
A: Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control. All products must be strictly tested before packing and shipping.
