Product Description

Products Description

Bitumen Fiberglass Geogrid High Strength Biaxial /Fiberglass Plastic Geogrid Composite Fiberglass Geogrid for Sale

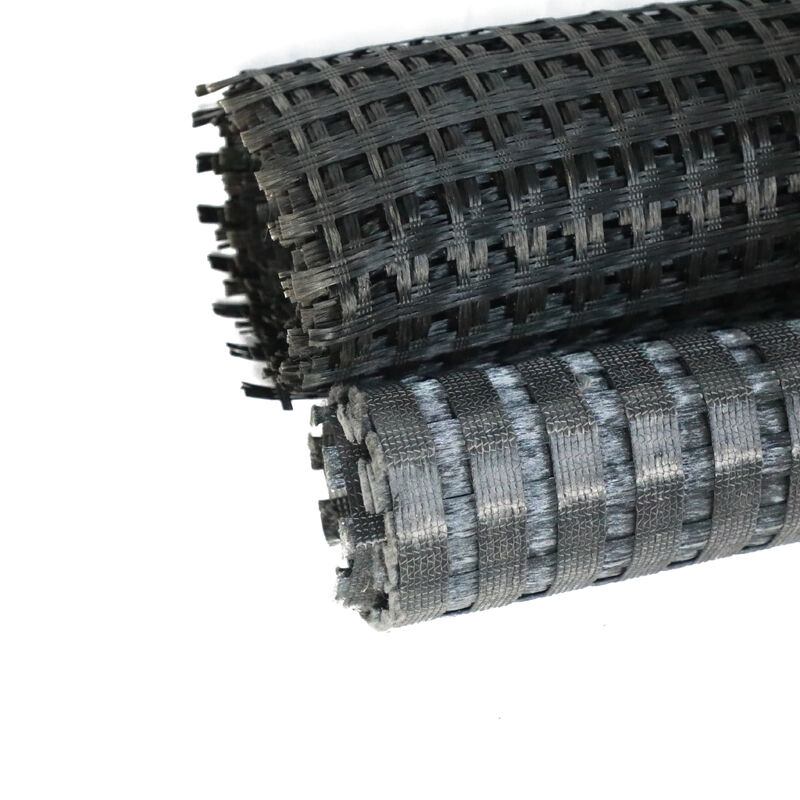

Fiberglass geogrid is a new type of geosynthetic material. It is made from fiberglass filament. This product adopts unique woven technique. It is coated with a special solution. Fiberglass geogrid has strong tension. It can largely increase the bearing capacity of the ground and prolongs the service life of the road. This material has high tensile strength and good wear resistant performance. It is suitable for the reinforcement of soft soil, cement, concrete, asphalt and so on. Compared with steel plastic geogrid, fiberglass geogrid has better heat resistance. This material is characterized by excellent thermal stability. It performs well under high temperature.

Details Images

Technical Index

Biaxial Fiberglass Geogrid
item	Specification
Type	EGA 30-30	EGA 50-50	EGA 80-80	EGA 100-100	EGA 120-120	EGA 150-150	EGA 200-200	EGA 300-300
Grid size (mm)	12.512.5 or 25.425.4 or 50.8*50.8
Latitude and longitude breaking strength ≥(KN/M)	30	50	80	100	120	150	200	300
Elongation at break in warp and weft ≤(%)	4

Feature

 * High tensile strength,reducing reflective cracking
* Low elongation, its break elongation is less than 3%
* Creep resistance
* Consistency
* Temperature Stability
* Nesting,Interlock and Restraint Effects

Products Advantage

Reinforced soil retaining wall, steep slope and the reinforcement and consolidation of the soft ground.

Ground treatment, reinforcement of the bridge abutment, reinforcement of the enbankment, reinforcement of the pile-net roadbed

Protection of port, approach lane, seabeach, channel, river channel, dam and other irrigation projects.

Land reclamation, prevention and controlling of the desertification, and the composite protective structure in the landfill sites of urban garbage and waste.
