Soil Stabilization HDPE Geocell Plastic Honeycomb Geocellular Confinement Systems 200mm

Soil Stabilization HDPE Geocell Plastic Honeycomb Geocellular Confinement Systems 200mm

Soil Stabilization HDPE Geocell

200mm HDPE Geocell

Honeycomb geocellular confinement systems

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

Plastic HDPE Geocell

Contact Us

Request A Quote
Product Details
Specification:
High Strength
Raw Material:
HDPE
Application Of Geocell:
Load Support/Slope Stabilization/Retaining Wall
Application Field:
Railway, Highway, Mine, Port, Airport, Slope Prote
Application:
Retaining Wall, Dam, Railway, Highway
Peel Strength Of Welding Point:
1000~1420n/10cm
Installation:
Rapid Construction
Cell Depth:
75-100-150-200mm
Product Description

Soil Stabilization Hdpe Paving Geo Grid Plastic Honeycomb Gravel Paver Geocell With Factory Price



Honeycomb Gravel Paver Geocell Description:

Geocells are engineered for protection and stabilization applications. They are often used to help improve the performance of standard construction materials and erosion-control treatments. Geocell products are three-dimensional, expandable panels made from high-density polyethylene (HDPE), polyester or another polymer material. When expanded during installation, the interconnected strips form the walls of a flexible, three-dimensional cellular structure into which specified infill materials are placed and compacted. This creates a free-draining system that holds infill materials in place and prevents mass movements by providing confinement through tensile reinforcement. Cellular confinement systems improve the structural and functional behavior of soils and aggregate infill materials.



The Advantage of Geocell

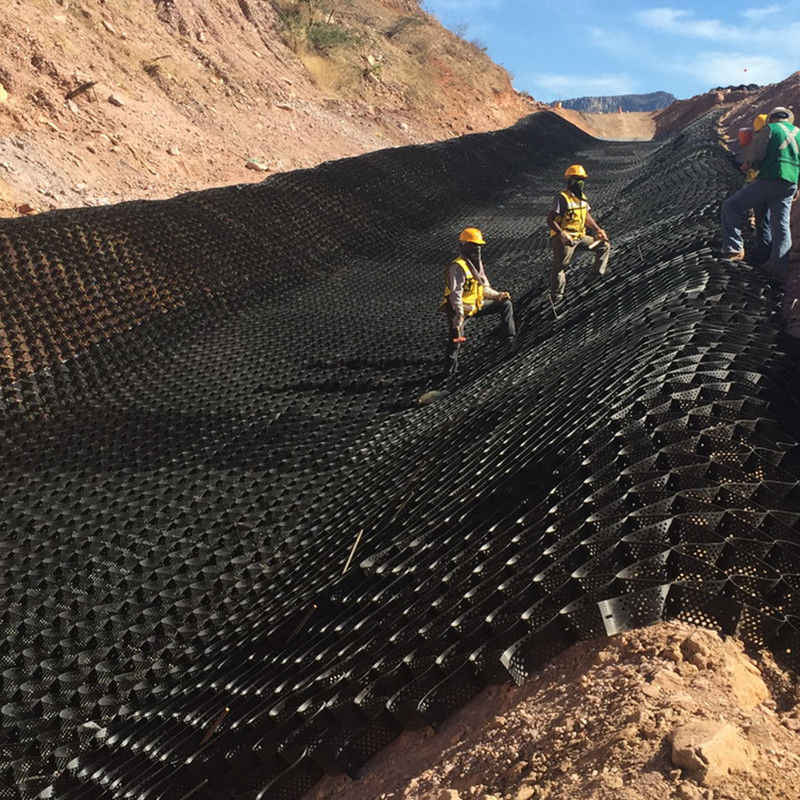

- Provides cost effective, long-term slope and channel protection and stabilization.

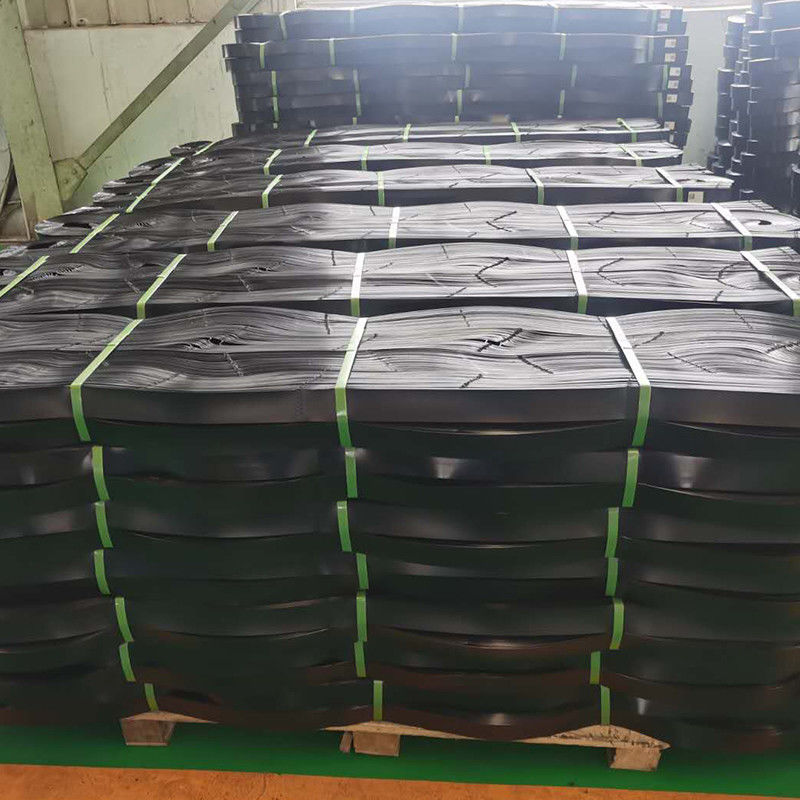

- Ease in transportation and on-site handling due to collapsible cells.
- Rapid and simple installation conforms to most terrain profiles.
- Ultrasonic welding of cell joints ensures maximum strength.
- Easily dismantled and subsequently re-used.
- Withstands high weight bearing loads.
- Resistant to biological attack and a wide range of soil borne chemicals.





Technical Parameters:
Material Properties Unit         Test Method
Cell Depth mm 75 100 150 200
Polymer Density g/cm3 0.935-0.965 ASTM D 1505
Environmental Stress Crack Resistance Hours >400 ASTM D 5397
Environmental Stress Crack Resistance Hours 6000 ASTM D 1693
Carbon Black Content % 1.5% - 2.0% ASTM D 1603
Nominal Sheet Thickness Before Texturing mm 1.27 -5%,+10% ASTM D 5199
Nominal Sheet Thickness After Texturing mm 1.52-5%,+10% ASTM D 5199
Strip Puncture Resistance N 450 ASTM D 4833
Seam Peel Strength N 1065 1420 2130 2840 EN ISO13426-1B
Seam Efficiency % 100 GRI-GS13
Nominal Expanded Cell Size (width x length) mm 320x287,475x508 etc
Nominal Expanded Panel Size (width x length) m 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44

WHAT THIS PRODUCTS USED FOR?

1). To stable the roadbed of highway/railway.
2). To bear the load of dyke, retaining wall
3). To improve the watercourse of shallow river
4). To support the pipeline and sewer.
5). To be used as independent wall, wharf and breakwater, etc..
6). To be used for the regulation of the desert, beaches, river bed and river bank

Soil Stabilization HDPE Geocell Plastic Honeycomb Geocellular Confinement Systems 200mm 0
