ODM GCL Geocomposite Geosynthetic Clay Liner Manufacturers With Sodium Bentonite

ODM GCL Geocomposite Geosynthetic Clay Liner Manufacturers With Sodium Bentonite

GCL geosynthetic clay liner manufacturers

ODM geosynthetic clay liner manufacturers

Sodium Bentonite geocomposite clay liner

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO9001

Model Number:

GCL

Contact Us

Request A Quote
Product Details
Application:
Outdoor
Warranty:
More Than 5 Years
Color:
Black White
Properties:
Swell When Meet Water
Specification:
ASTM
Thickness:
5mm
Weight:
4 Kg/m2 - 6 Kg/m2
Usage:
Outdoor
Product Description

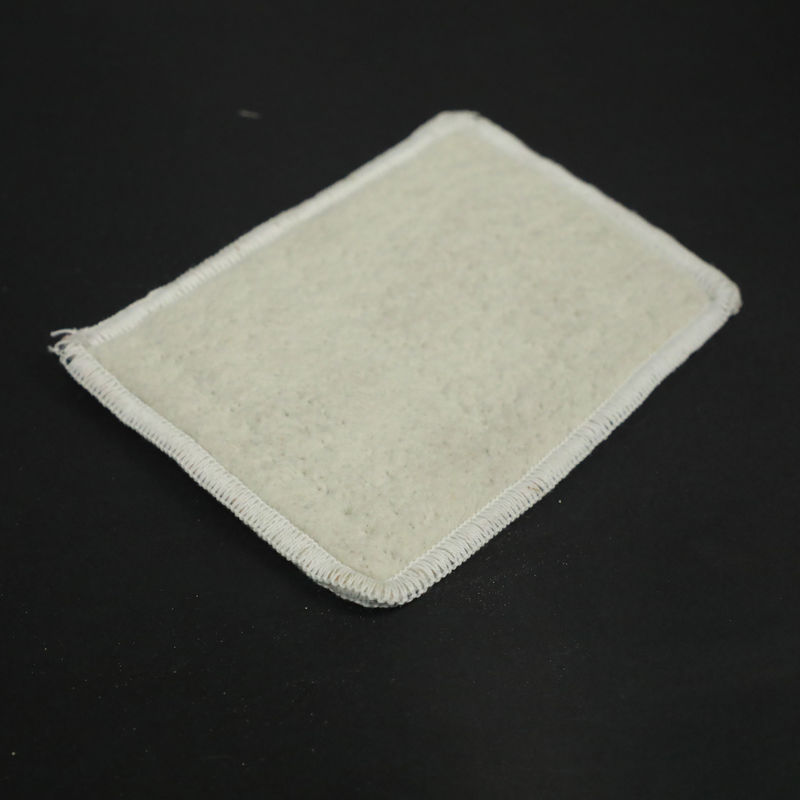

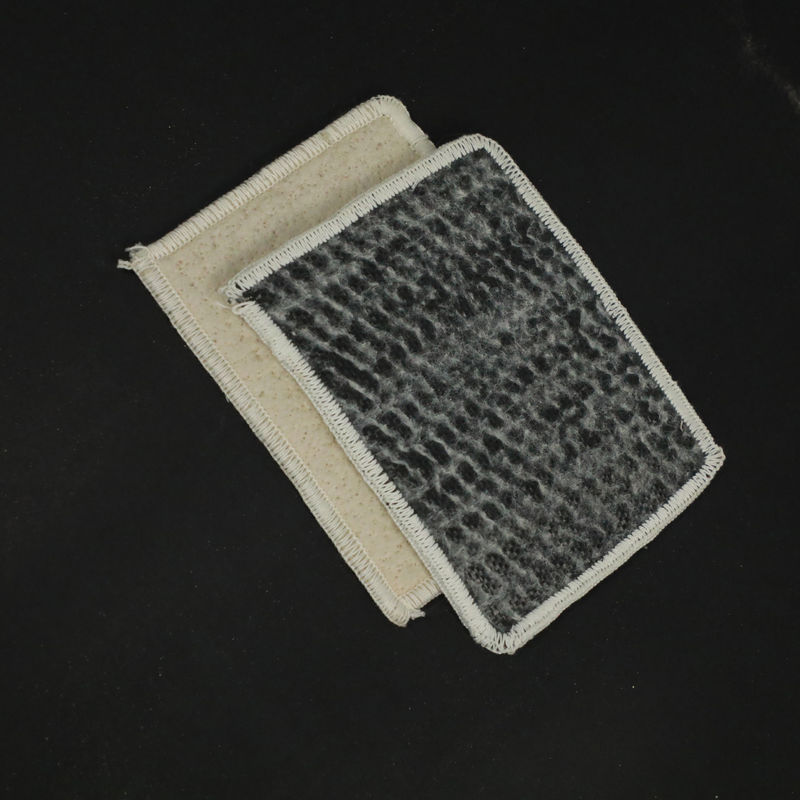

Geosynthetic Clay Liner (GCL) With Sodium Bentonite For Landfill



Product Description:

GCL is a new geosynthetics which is graded by a natural sodium bentonite particles and corresponding acctive mixed together. By special technology and equipment, the bentonite particles between two layers of geotextile fixed, made of waterproof blanket, with all the characteristics of both the geotextile material, but also has excellent water (infiltration) performance.



Technical Parameters:



Bentonite composite waterproof blanket
item Specification
GCL-NP GCL-QF GCL-AH
Unit area weight≥(g/㎡) ≥4000 ≥4000 ≥4000
Bentonite Swelling Index≥(mL/2g) 24 24 24
Blue absorption≥(g/100g) 30 30 30
Tensile Strength≥(N/100mm) 600 700 600
Maximum elongation≥(%) 10 10 8
Peel strength of non-woven fabric and woven fabric≥(N/100m) 40 40 _
Peel strength of pe film and non-woven fabric
≥(N/100m)
_ 30 _
permeability coefficient≤(m/s) 5.0*10^-11 5.0*10^-12 5.0*10^-12
Durability of bentonite/≥(mL/2g) 20 20 20





Product Features:
1. Improved leakage performance
2. Permanent waterproof performance
3. Simple construction and short time limit for a project.
4. Not influenced by air temperature.
5. A kind of green material and good to environmental protection.
6. More versatile than compacted clay
7. Increased airspace and liner efficiency

ODM GCL Geocomposite Geosynthetic Clay Liner Manufacturers With Sodium Bentonite 0





Applications:
Landfills, Mud Pits, Lagoons, Canals, Bund Lining, Tank Lining, Fish Farm Lining, Roof Lining, Waste Water Pits, Ponds and Reservoirs, Dams Floating Covers, Vertical Cutoff Walls, Hydraulic Structure, Basement Lining, Drip Irrigation Ponds.



FAQ:

Q:Can you send samples?

A:Yes,we are very happy to provide you with free samples to check the quality of our products.

Q:Are you a manufacturer or a trading company?
A:Our company located in Hefei,Anhui Province,with are gistered capital of 52 miion yuan.It is a professiona lmanufacturer of geomembrane,geotextile,geogrid and other products.So we have the competitive price with best quality.

Q:Can you produce the product according to customers' requirements?
A:Sure,we are professional manufacturer,OEM and ODM are both welcome.
