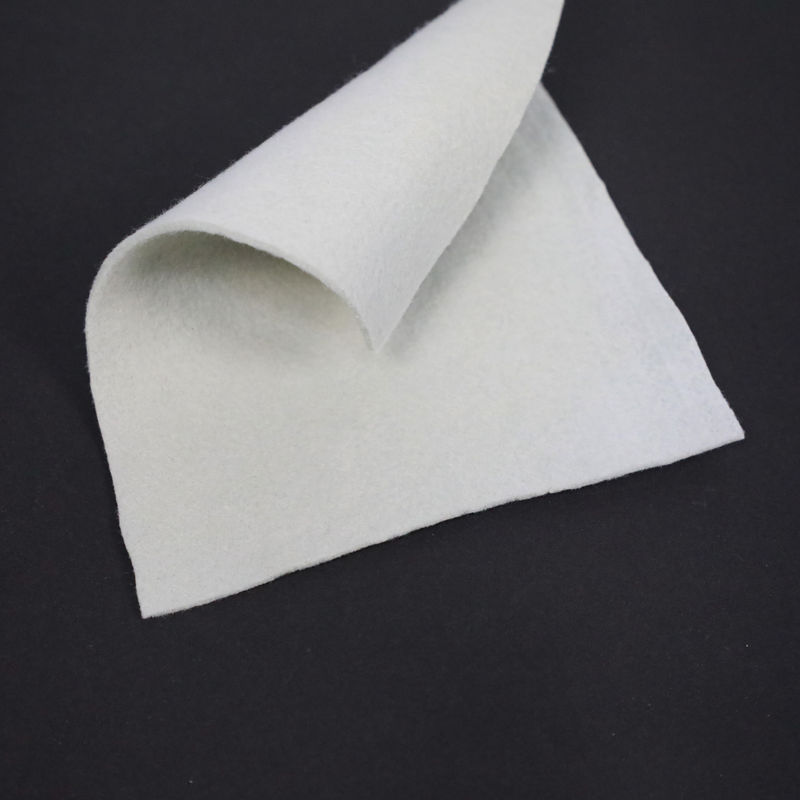

White Black Synthetic Geotextile Drainage Fabric Filter Cloth 200gm2

White Black Synthetic Geotextile Drainage Fabric Filter Cloth 200gm2

Geotextile Drainage Fabric Cloth

200gm2 Geotextile Drainage Fabric

200gm2 drainage filter cloth

Place of Origin:

China

Brand Name:

Zhongloo

Certification:

CE/ISO

Model Number:

100gsm-1000gsm

Contact Us

Request A Quote
Product Details
Product Name:
White Black Geotextile Fabric Synthetic Fabric Non Woven Geotextile 200gm2
Project Solution Capability:
Total Solution For Projects
After-sale Service:
Online Technical Support
TypeNon Woven PP/PET Geotextile:
PP & PET
Specification:
100g/M2--1500g/M2
Length:
50m, 100m Or As Required
Geotextile Type:
Non-Woven Geotextiles
Transport Package:
Inner PE Bag+Outer PP Woven Bag
Product Description

White Black Geotextile Fabric Synthetic Fabric Non Woven Geotextile 200gm2



Product Description:



Staple fibers needle punched geotextile is made of PP staple fibers and processed by on carding cross-laying equipment and needle punched equipment.

Features
It owns the advantages of acid and alkali resistance,aging resistance,large strength,stable size,good filtrability etc.



Product Paraments:

Staple fiber needle punched non-woven geotextile
item Specification
Vertical and horizontal fracture strength(KN/M) 3 5 8 10 15 20 25 30 40
Elongation corresponding to standard breaking strength (%) 20-100
CBR Bursting strength(KN) 0.6 1 1.4 1.8 2.5 3.2 4 5.5 7
Deviation rate of weight per unit area(%) ±5
Vertical and horizontal tearing strength(KN) 0.10 0.15 0.20 0.25 0.40 0.50 0.65 0.80 1.00
Width deviation rate(%) -0.5
Thickness deviation rate(%) ±10
Vertical permeability coefficient(cm/s) k*(0.001-0.1) Ps: k=1.0-9.9
Acid and alkali resistance(% ≥) 80
Antioxidant performance(% ≥) 80
UV resistance (% ≥) 80

Application:

1. Stabilization In stabilization, the fabric is applied on top of a material that is highly compressible. Most often, this material is wet, soft soil. Here, the geotextile allows water to seep from the soft soil to draining material. As a result, it consolidates the basement layer, thus strengthening it and making it a more trustworthy base.
2. Separation Fabric is laid between two layers of different materials, such as two different soil types, new construction, and soil, or new and old pavement. Separation is sometimes used interchangeably with stabilization, but there are fine distinctions.
3. Filtration Using geotextile infiltration is similar to using in stabilization. The main aim in both cases is to allow the passage of water from the covered layer. The goal of this application is to remove water while preventing soil and or any other fine particles from passing through. This is achieved in combination with a filter behind the geotextile. In this process, water is removed, rather than being filtered into a different material.
4. Moisture Barrier This application is almost the direct opposite of the above applications. In the moisture barrier, the geotextile is used to block water rather than allowing water to pass through. This is accomplished by applying an asphaltic suspension. As a result, the fabric becomes impermeable and suitable for use in construction projects such as pavement rehabilitation.
5. Drainage Geotextile material can help gather water or gas and then transport it along its plane, therefore providing seamless transmission. This process is what is traditionally called drainage function, which can be highly effective in chimney drains as well as drip drains.
6. Reinforcement In reinforcement, the geotextile acts as a source of strength instead of strengthening the bottom layer like in stabilization.
