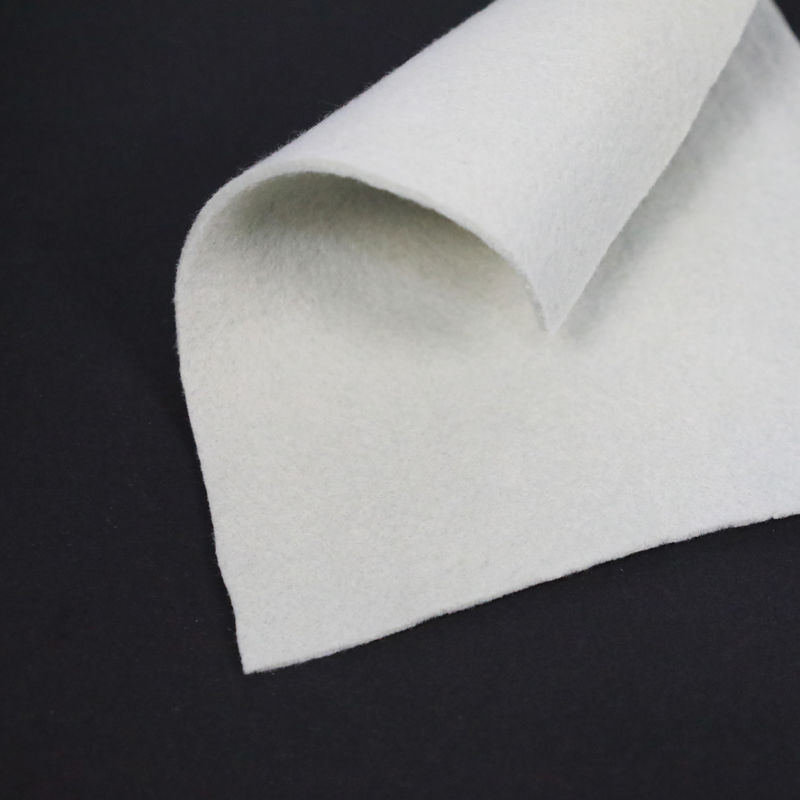

High Tensile Strength PP PE Non Woven 4 Oz Geotextile Fabric 100 gsm For Construction

High Tensile Strength PP PE Non Woven 4 Oz Geotextile Fabric 100 gsm For Construction

PE 4 oz geotextile fabric

PP 4 oz geotextile fabric

100 gsm geotextile Fabric

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
High Tensile Strength PP PE Non-Woven Geotextile For Construction
Project Solution Capability:
Total Solution For Projects
After-sale Service:
Online Technical Support
TypeNon Woven PP/PET Geotextile:
Geotextile Type:
Non-Woven Geotextiles
Design Style:
Product Description

High Tensile Strength PP PE Non-Woven Geotextile For Construction


Product Description:


Staple fibers needle punched geotextile is made of PP staple fibers and processed by on carding cross-laying equipment and needle punched equipment.

It owns the advantages of acid and alkali resistance,aging resistance,large strength,stable size,good filtrability etc.


Product Paraments:

Staple fiber needle punched non-woven geotextile
item Specification
Vertical and horizontal fracture strength(KN/M) 3 5 8 10 15 20 25 30 40
Elongation corresponding to standard breaking strength (%) 20-100
CBR Bursting strength(KN) 0.6 1 1.4 1.8 2.5 3.2 4 5.5 7
Deviation rate of weight per unit area(%) ±5
Vertical and horizontal tearing strength(KN) 0.10 0.15 0.20 0.25 0.40 0.50 0.65 0.80 1.00
Width deviation rate(%) -0.5
Thickness deviation rate(%) ±10
Vertical permeability coefficient(cm/s) k*(0.001-0.1) Ps: k=1.0-9.9
Acid and alkali resistance(% ≥) 80
Antioxidant performance(% ≥) 80
UV resistance (% ≥) 80


Main Features:

1)anti-aging, the product has very high anti-ultraviolet radiation ability, not easy to degradation.

2) High temperature resistance to up to 230ºC maintaining structure stability and original physical properties.

3) High flat drainage and vertical permeability.

4) High creep resistance.

5) Resistance of erosion of chemicals in soil with the corrosion of gasoline and diesel etc.

6) High elongation under certain stress, thus able to adapt to uneven and irregular bases.


Major functions: Separation, filtration, drainage, reinforcement, protection, and liquid barrier

1) Filtration The filtration layer of the dykes, river canal, seacoast, concrete slope, retaining walls. At the same time of preventing the clay granule from passing, it allows the water and the gas pass through freely.

2) Separation The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the groundsill, different dam materials. It isolates the soil and the gravel of two kinds different granule pathway from the groundsill or other buildings.

3)Adding muscle The highway, railway, soil-stone dam, breakwater, airport, backfill soil of retaining wall, slope protection, etc in which distributes the earth stress, prevents the side-displacement of the earth body and improves the earth body stability.

4)Protection It prevents the bank from being washed out, protects the bank and the bottom, prevents the water and soil from being washed away.

High Tensile Strength PP PE Non Woven 4 Oz Geotextile Fabric 100 gsm For Construction 0
