High Strength Road Stabilization Woven Polypropylene Geotextile Filter Membrane

High Strength Road Stabilization Woven Polypropylene Geotextile Filter Membrane

High Strength woven polypropylene geotextile

woven polypropylene geotextile Membrane

Polypropylene geotextile filter membrane

Place of Origin:

China

Brand Name:

Zhongloo

Certification:

CE/ISO

Model Number:

150-500gsm

Contact Us

Request A Quote
Product Details
Product Name:
High Strength1-4.5 Width Road Stabilization Fabric Woven PET Geotextile
Project Solution Capability:
Total Solution For Projects
After-sale Service:
Online Technical Support
Usage:
Insulation, Waterproof, Water Filter
Weight:
150-500gsm
Breaking Strength(MD):
100kn/M
Geotextile Type:
Woven Geotextiles
Width:
2-6M
Product Description

High Strength1-4.5 Width Road Stabilization Fabric Woven PET Geotextile

Product Description:



PET Woven Geotextiles is made from polyester fibers, manufactured from high tenacity polyester (PET)
yarns, our woven geotextiles have superior properties for filtration, separation, reinforcement, erosion control
and drainage. Woven geotextile is for a variety of civil and environmental applications including highways,
port facilities, reservoir, transport construction, waste and chemical management ,subgrade engineering,
coast reclamation works, peninsula shoal engineering, etc.



Features:
1. High strength, low deformation.
2. Durability: steady property, not easy to resolved, air slaked and can keep the original property long term.
3. Anti-erosion: anti-acid, anti-alkali, resists insects and mould.
4. Permeability: could control the sieve size to retain certain permeability.



Product Paraments:

Woven geotextile
item Specification
35 50 65 80 100 120 140 160 180 200 250
Vertical Breaking strength(KN/M≥) 35 50 65 80 100 120 140 160 180 200 250
horizontal Breaking strength(KN/M≥) 24.5 35 45.5 56 70 84 98 112 126 140 175
Elongation corresponding to standard breaking strength(%) 30-35
CBR Bursting strength(KN≥) 2.00 4.00 6.00 8.00 10.50 13.00 15.50 18.00 20.50 23.00 28.00
Equivalent aperture(mm) 0.05-0.50
Vertical permeability coefficient(cm/s) k*(0.00001-0.01) Ps: k=1.0-9.9
Width deviation rate(%) -1
Length and width deviation rate(%) ±2
Weight deviation per unit area(%) -5



Properties:

1. High tensile strength, the maximum can be up to 1400KN/m.
2. Low elongation
3. Corrosion resisitance
4. Permeation of water
5. Easy to store and transport
6. Durability



Application:
PET Woven Geotextiles is manufactured from high tenacity polyester (PET) yarns and designed for landfill
liner reinforcement, embankment over soft soil, reinforced soil slope, road and railway construction, the
foundation of marine structures, port facilities, reservoir, waste and chemical
management, peninsula
shoal engineering, etc.

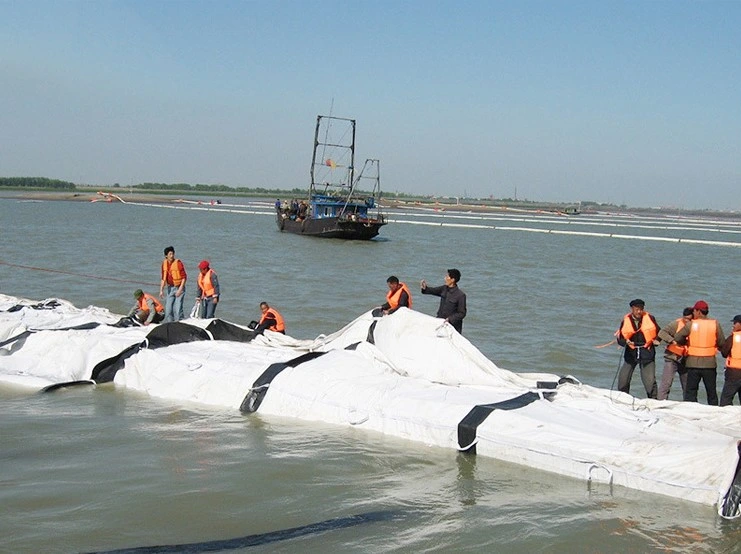

Woven Geotextile Filament Geotextile for Geotube
