High Strength Woven PET 150 Gsm Geotextile 50m OEM

High Strength Woven PET 150 Gsm Geotextile 50m OEM

OEM 150 gsm geotextile

PET 150 gsm geotextile

PET geotextile 50m

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
320g 150-50kn Pet High Strength Woven Geotextile Fabric
Width (M):
5.2 Or As Customer Per Request
Tensile Strength (MD, CD) Kn/M:
As Per Customer Request.
Production Time:
Within 20 Days
Product Description

320g 150-50kn Pet High Strength Woven Geotextile Fabric


Product Description:

  • Polyester / Polypropylene Woven Geotextile is interwoven by high tenacity PET / PP filament yarn into a dimensionally stable network
  • The inherent characteristics of Polyester / Polypropylene high tensile strength and modulus, low elongation, low creep and high longterm design strength makes the good ideal for soil reinforcement application. The fabric develops excellent frictional interaction with a wide variety of soil and granular materials.
  • The relatively low openings of these fabrics enable them to act as efficient separators preventing the mixing of costly granular materials with finegrained soils. It has reasonably high permeability to prevent excessive buildup of pore pressures due to applied loadings.
  • Excellent puncture and tear resistance along with high tensile strengths
  • Uniform opening provide excellent flow and filtration characteristics
  • Lightweights are typically used for separation of good to moderate sub grades and for controlling run-off and flow velocity.
  • Heavy weight Wovens are typically used for separation and reinforcement and applications such as the stabilization of weak sub grades for heavy loads or if the base material is abrasive.
  • Low deformation systems such as paved road on weak sub grades require a product that will increase the bearing resistance of the sub grade as well as provide separation and filtration under long term dynamic loads
  • Consider a Woven geotextile with high modulus, high flow and an AOS compatible with sub grade soils

Product Paraments:

Woven geotextile
item Specification
35 50 65 80 100 120 140 160 180 200 250
Vertical Breaking strength(KN/M≥) 35 50 65 80 100 120 140 160 180 200 250
horizontal Breaking strength(KN/M≥) 24.5 35 45.5 56 70 84 98 112 126 140 175
Elongation corresponding to standard breaking strength(%) 30-35
CBR Bursting strength(KN≥) 2.00 4.00 6.00 8.00 10.50 13.00 15.50 18.00 20.50 23.00 28.00
Equivalent aperture(mm) 0.05-0.50
Vertical permeability coefficient(cm/s) k*(0.00001-0.01) Ps: k=1.0-9.9
Width deviation rate(%) -1
Length and width deviation rate(%) ±2
Weight deviation per unit area(%) -5



Polyester / Polypropylene Woven Geotextiles is manufactured from high tenacity polyester (PET) / polypropylene (PP) yarns and designed for landfill liner reinforcement, embankment over soft soil, reinforced soil slope, road and railway construction, the
foundation of marine structures, port facilities, reservoir, waste and chemical management, peninsula
shoal engineering, etc.


320g 150-50kn Pet High Strength Woven Geotextile Fabric

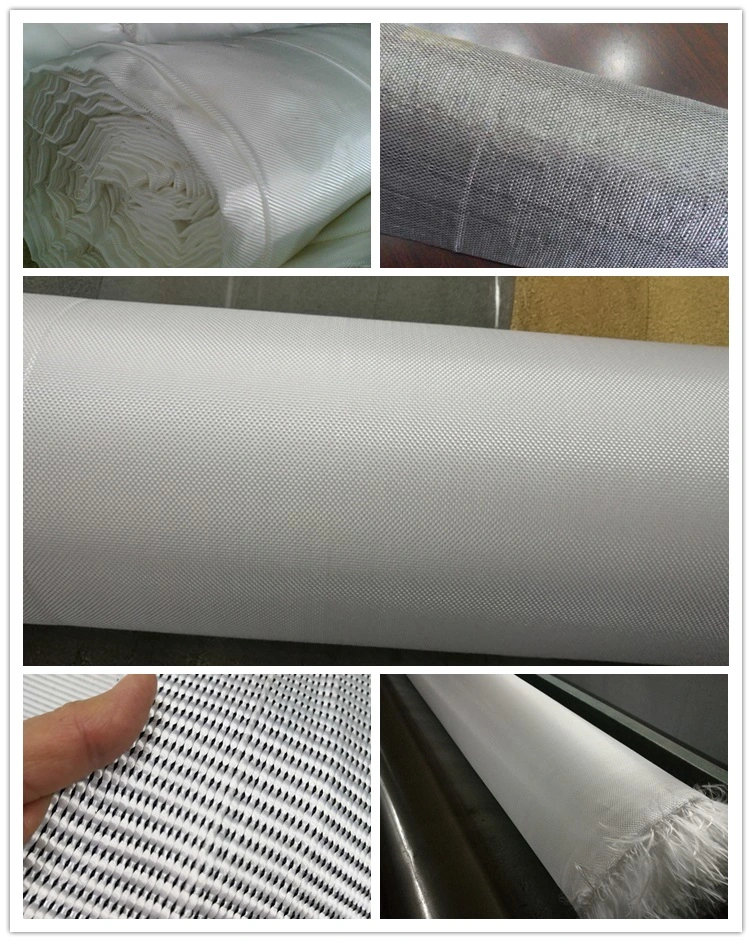

Detailed Images:

320g 150-50kn Pet High Strength Woven Geotextile Fabric
